Sq Ft
2,062 FT²

Beds
3

Baths
3.5

Stories
3

Garage
2

Depth
73'

Width
25'

On Sale
$1,480.00
$1,850.00

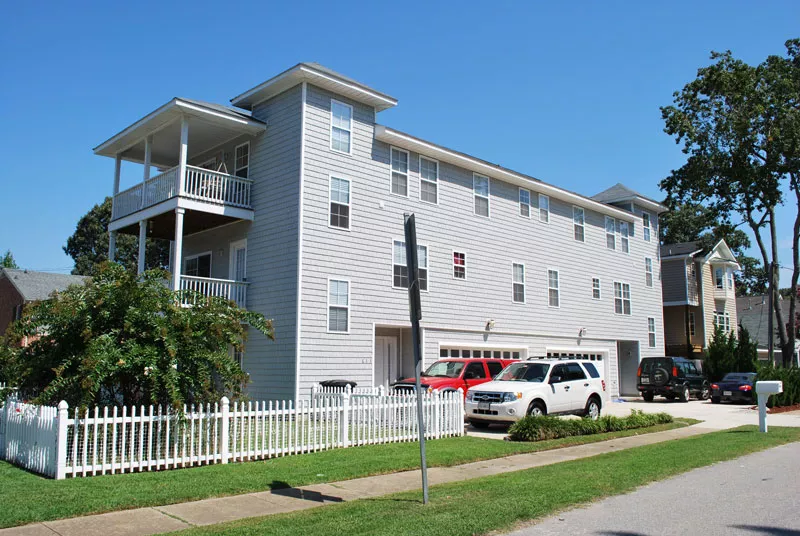

Gorgeous Front Photo

Gorgeous Front Rendering

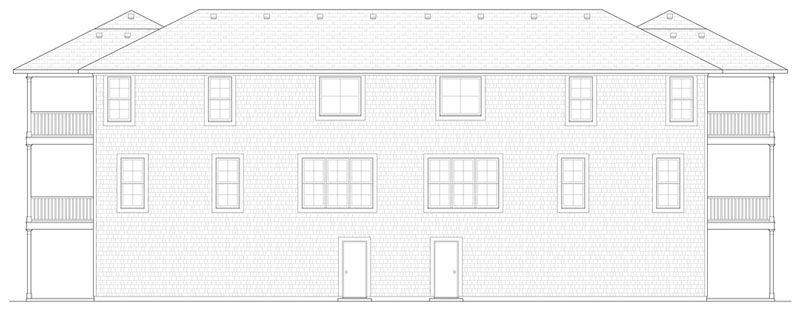

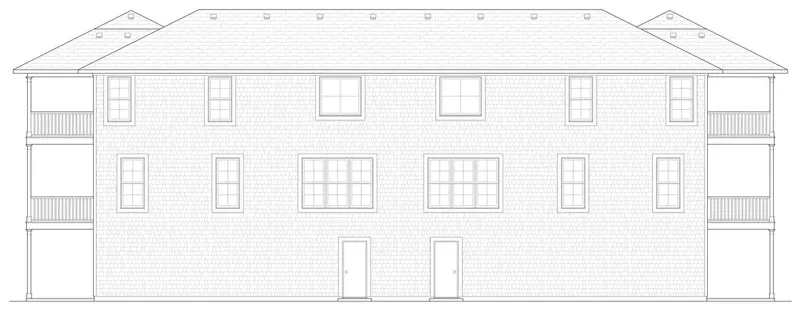

Rear Elevation

View All 3 Images | Photographs may reflect modified home

Sq Ft

2,062 FT²

From

$1,480.00

Beds

Baths

3.5

Stories

Garage

Depth

73'

Width

25'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

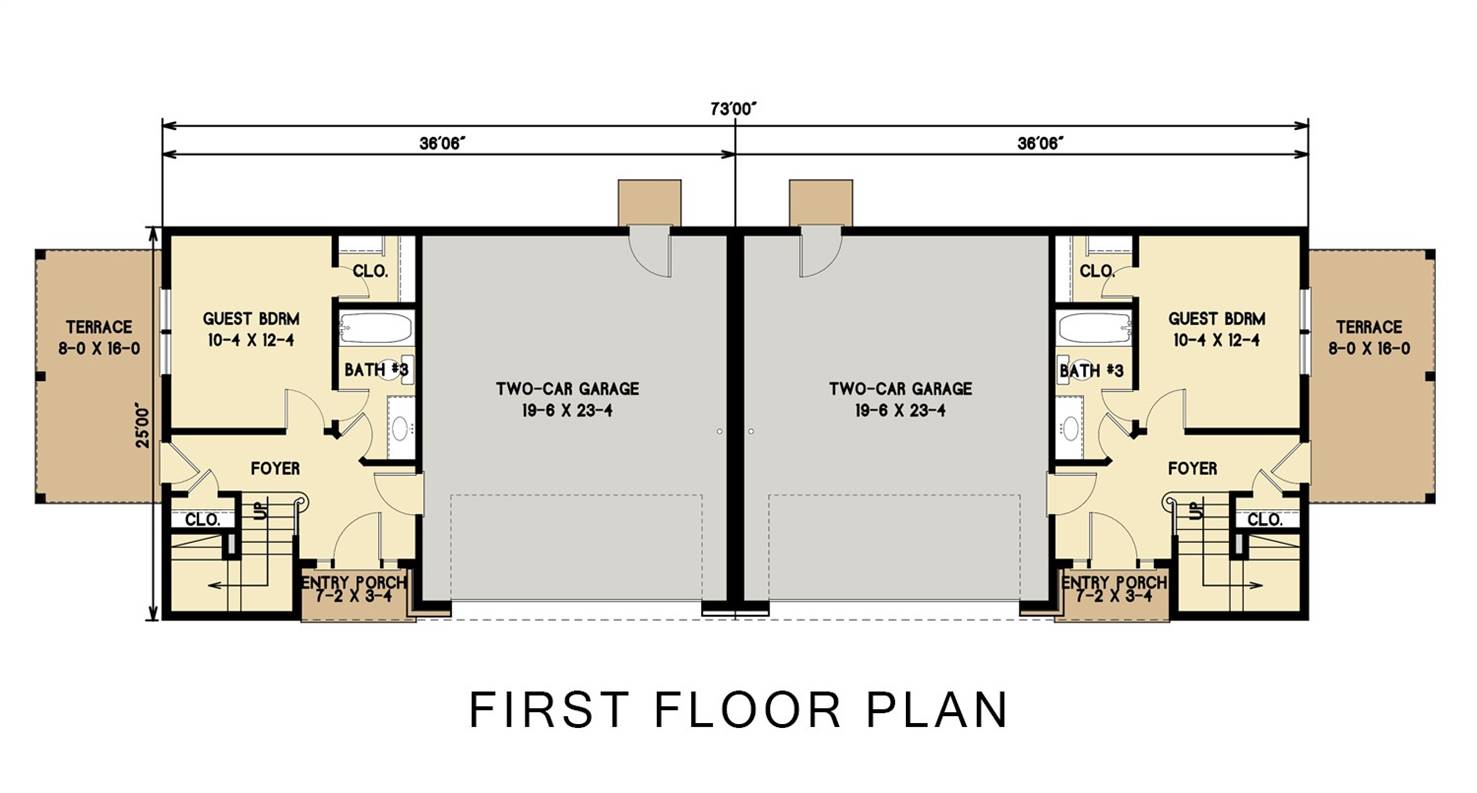

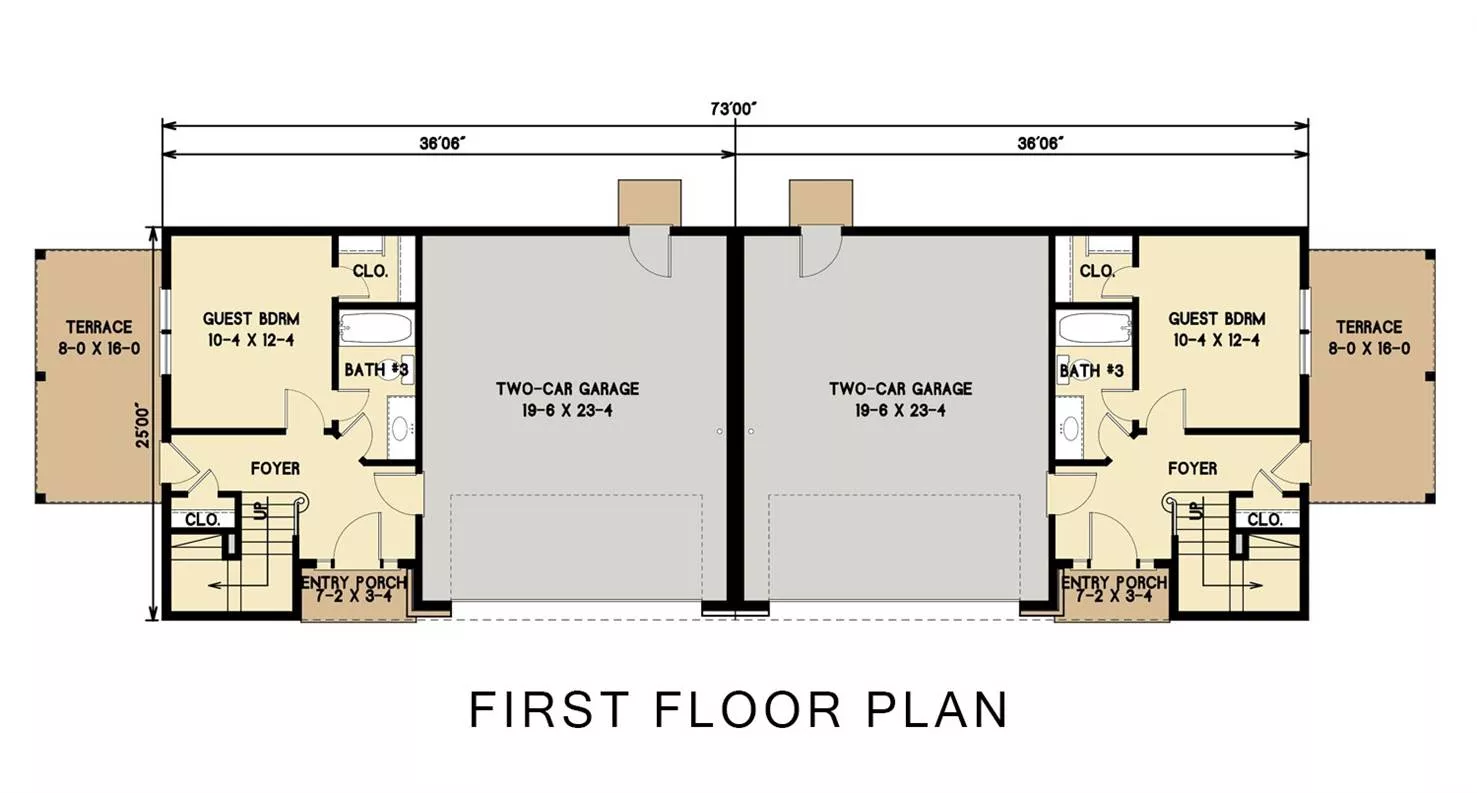

1st Floor

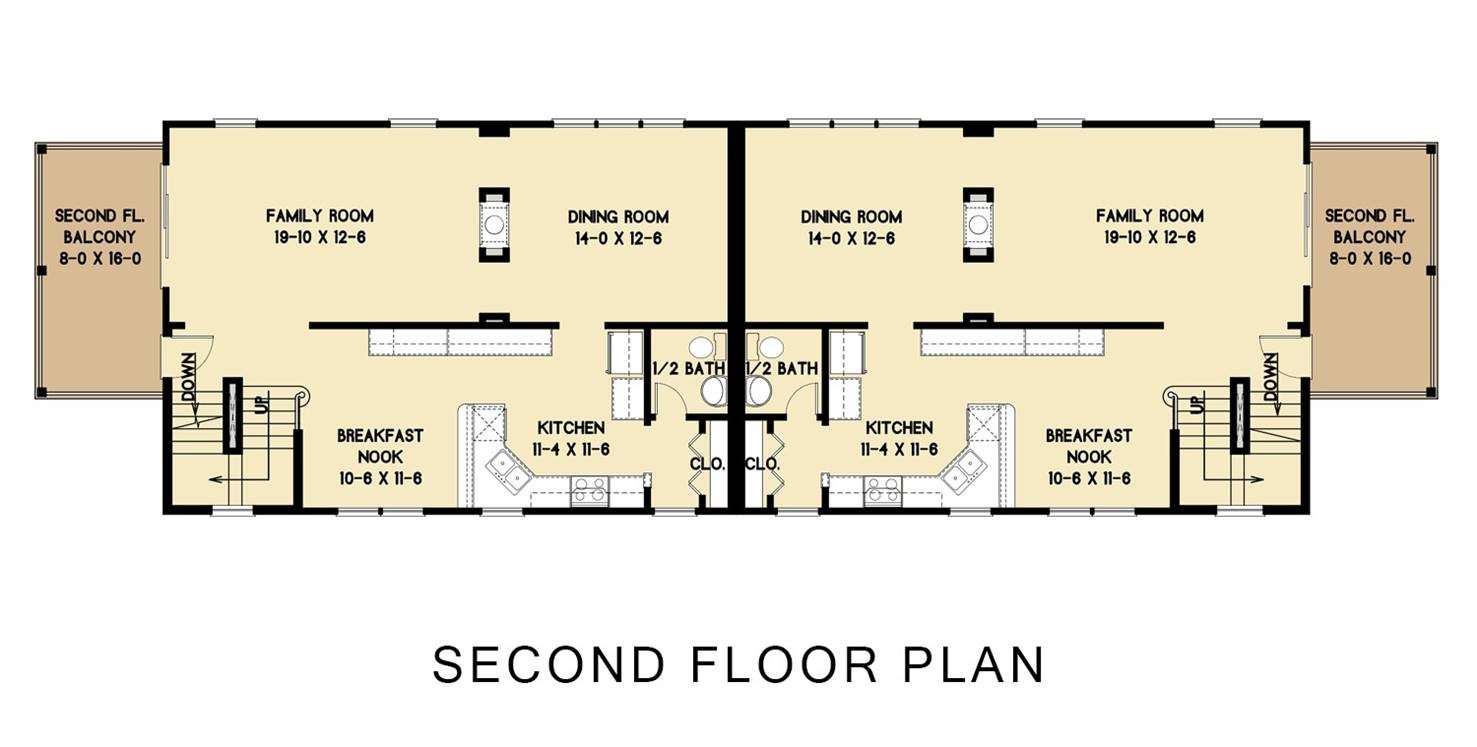

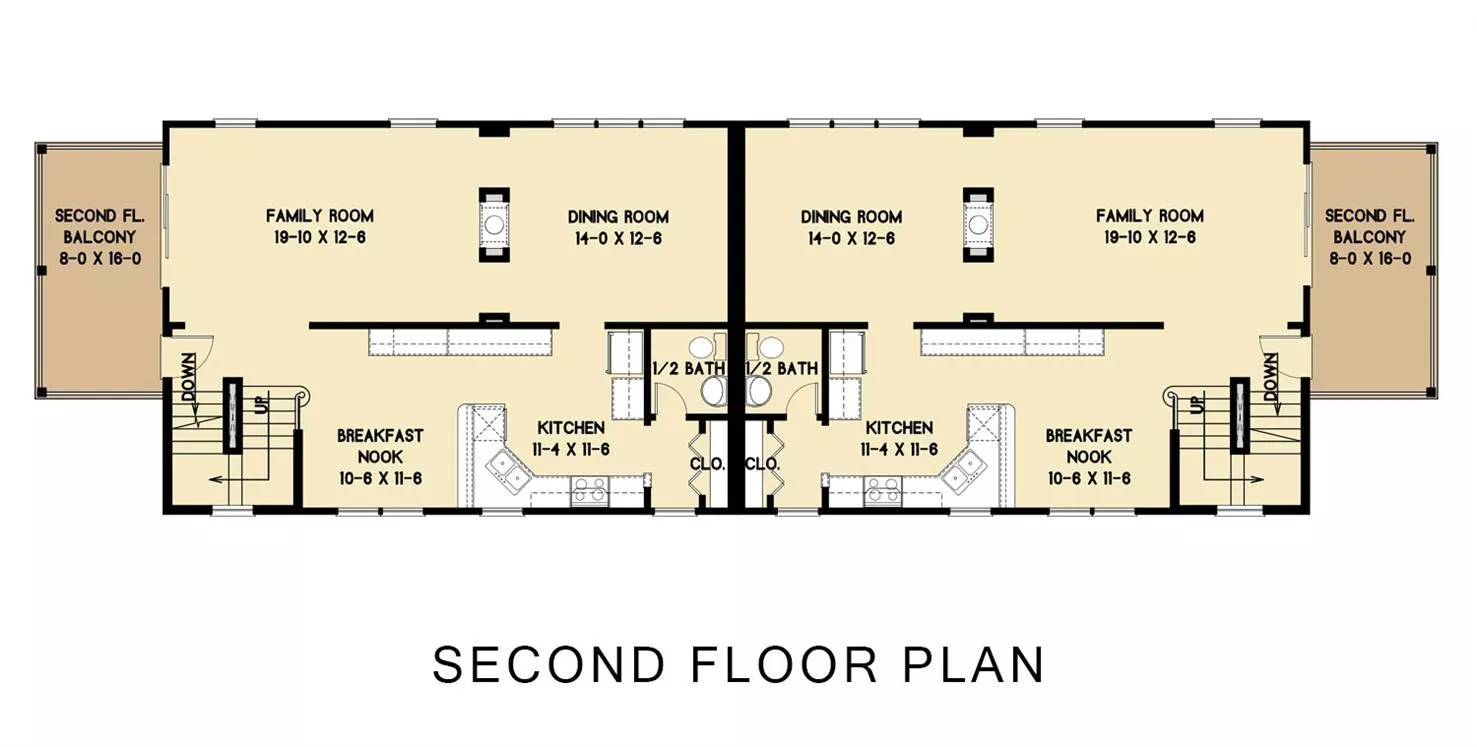

2nd Floor

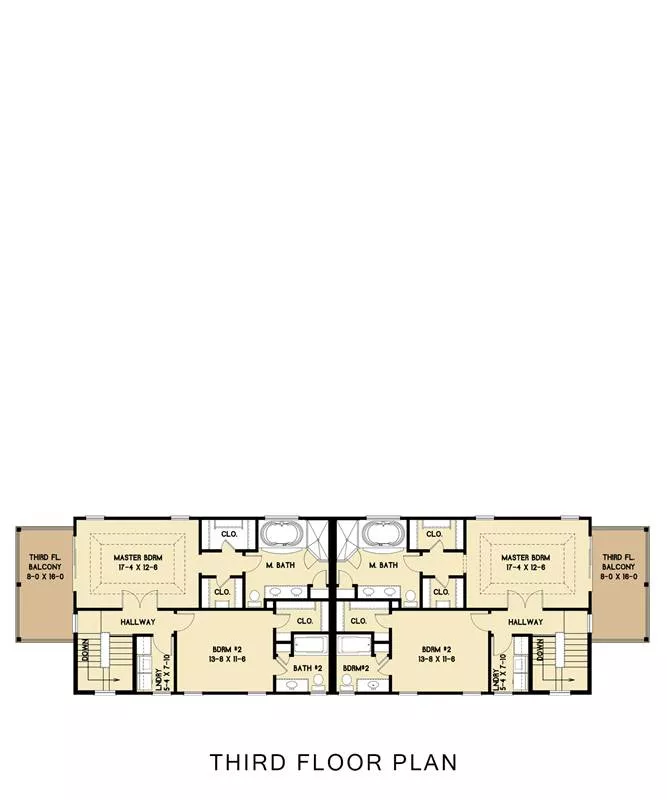

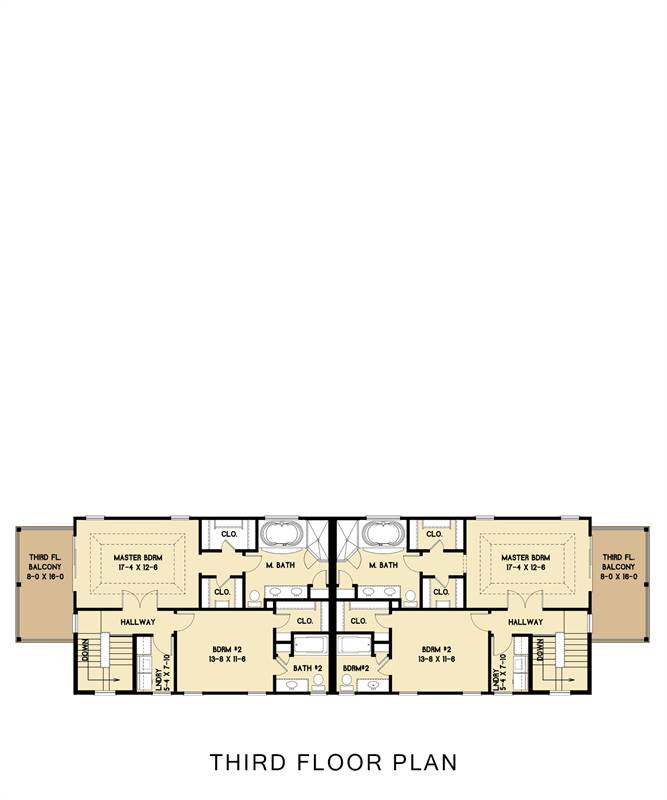

3rd Floor

1st Floor

2nd Floor

3rd Floor

About This Plan

This 3-story duplex is unlike any that you have ever seen before, both in space and function. Both units provide 2,218 square feet of space, as well as 3 bedrooms and 3.5 bathrooms amongst 3 floors. The first level begins with each units’ own 2-car garage and guest suite, a truly rare offering. As you move upstairs, you’ll find open concept designs, with the family room and dining room flowing into the kitchen and breakfast nook. Both sides have their own covered balconies for outdoor enjoyment. Finally, the third floor of each unit has 2 massive bedrooms, including vaulted masters with spa-style baths and dual walk-in closets, as well as 3^rd story private balconies. With this much space, it will never feel like you’re sharing a wall with another unit as you’ll be right at home in your comfortably large home.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Bedroom features

2 Primary Suites
Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Lot Options

Suited for corner lot
Suited for view lot

Additional features

Dining Room
Family Room
Fireplace
Foyer
Great Room
In-law Suite
Inverted Living
Laundry 2nd Fl
Open Floor Plan
Storage Space

Garage Location

Under

Garage Options

Attached
Drive-under
Side-entry

4,938 Ft

Total Structure

2,062 Ft

Unit Heated

387 Ft

1st Floor

829 Ft

2nd Floor

846 Ft

3rd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

25' 0"

Width

73' 0"

Depth

34' 10"

Height

8' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4 or 2x6

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

6/12

Secondary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

488 Ft

Garage

151 Ft

Porch

256 Ft

Deck

Exterior Styles

Beach

Southern

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$450

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$450

$1,850

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,850

$1,950

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,950

$2,750

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,750

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
