Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,180 FT²

Beds
5

Baths
3

Stories
2

Garage
2

Depth
70' 1"

Width
35' 6"

On Sale
$1,196.00
$1,495.00

Front Elevation

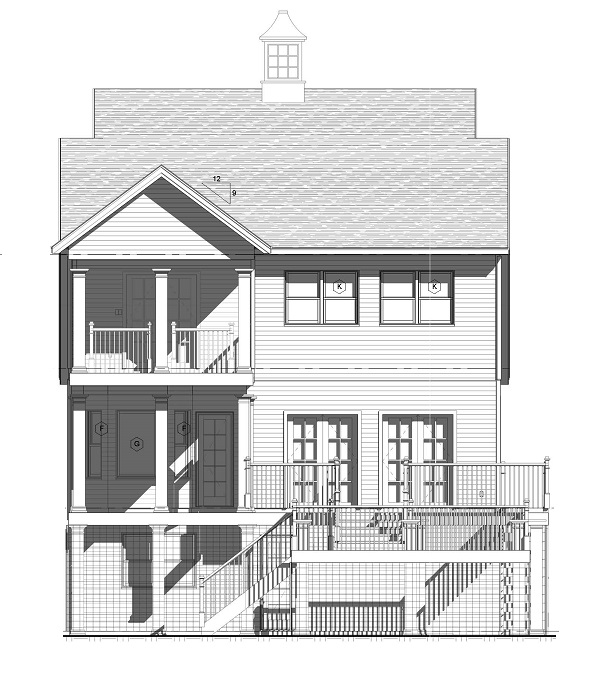

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,180 FT²

From

$1,196.00

Beds

Baths

Stories

Garage

Depth

70' 1"

Width

35' 6"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

2nd Floor

Basement Garage

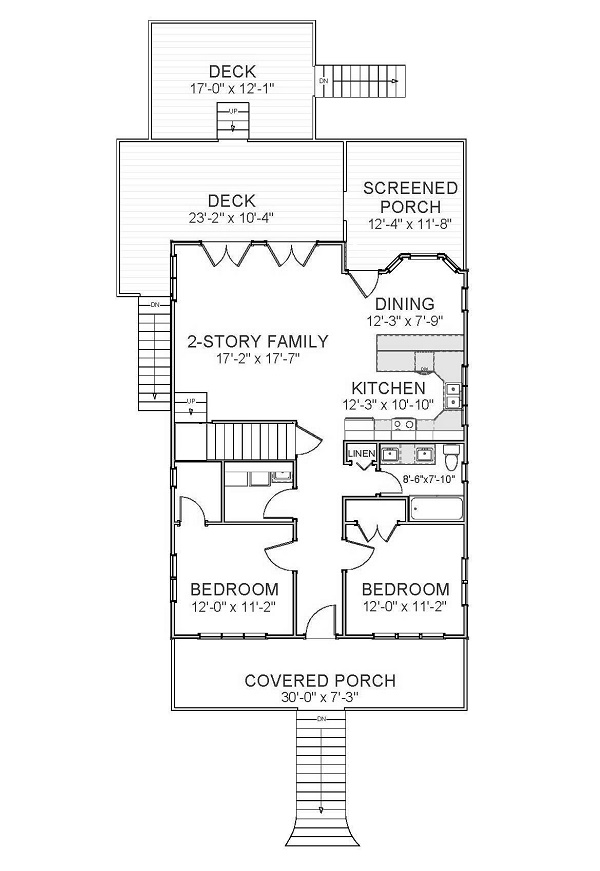

1st Floor

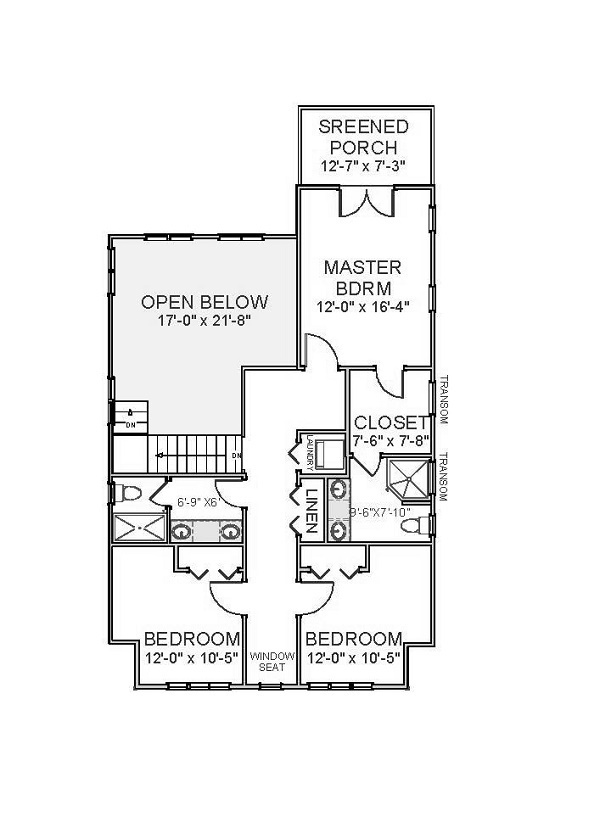

2nd Floor

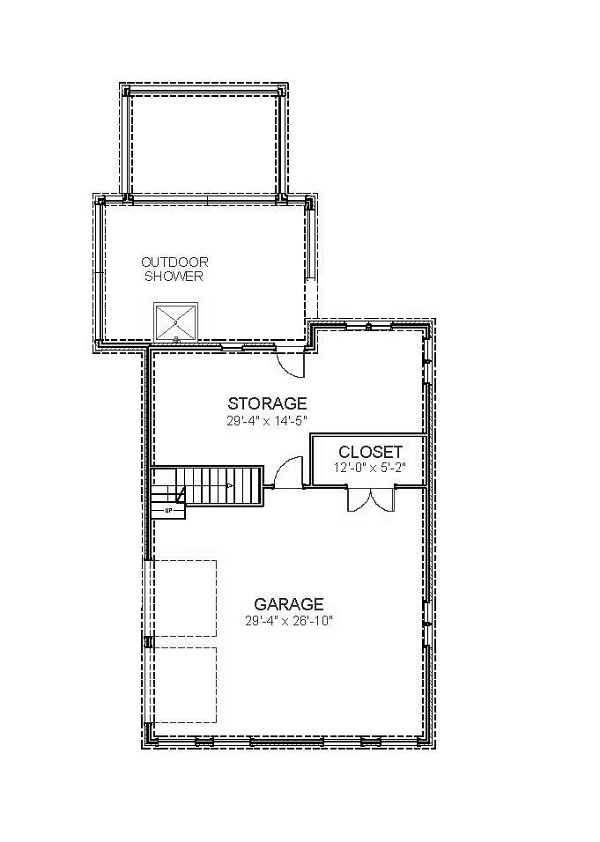

Basement Garage

About This Plan

A large front porch provides makes for a welcoming entry for this 5-bedroom , 4-bath vacation cottage. The basement garage lends plenty of parking and storage as well as an outdoor shower. The two-story family room and open floor plan provide an airy feel as well and a perfect outdoor view provided by two sets of double French doors and ample windows. It boasts the convenience of two Laundry rooms, one for each floor. The well-equipped kitchen with an eating peninsula has a breakfast nook that leads out to a screened porch and multi-level deck, perfect for entertaining. The upstairs offers two family bedrooms and a Master Suite complete with a walk-out screened porch and large closet.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Screened Porch/Sunroom

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for narrow lot
Suited for view lot

Additional features

Family Room
Laundry 1st Fl
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings

Garage Location

Under

Garage Options

Drive-under
Side-entry

2,643 Ft

Total Structure

2,180 Ft

Total Heated

1,200 Ft

1st Floor

980 Ft

2nd Floor

420 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

35' 6"

Width

70' 1"

Depth

38' 7"

Height

9'' 0"

Main Floor Ceiling

8'' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

810 Ft

Garage

463 Ft

Porch

450 Ft

Deck

Exterior Styles

Beach

Cottage

Collections

Old House Classics

Open Floor Plan

Vacation

Plan Package Options

Important info before you buy

Select Plan Package

$1,495

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,495

$1,595

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595

$1,945

CAD + PDF Single License
PDFs NOW!™

PDF and CAD single build

$1,945

$2,995

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,995

Need To Reverse Plan? (Optional)

$300

Readable Reverse

Reverse house plans with readable text and dimensions

$300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
