Sq Ft
2,702 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
51'

Width
38'

On Sale
$1,080.80
$1,351.00

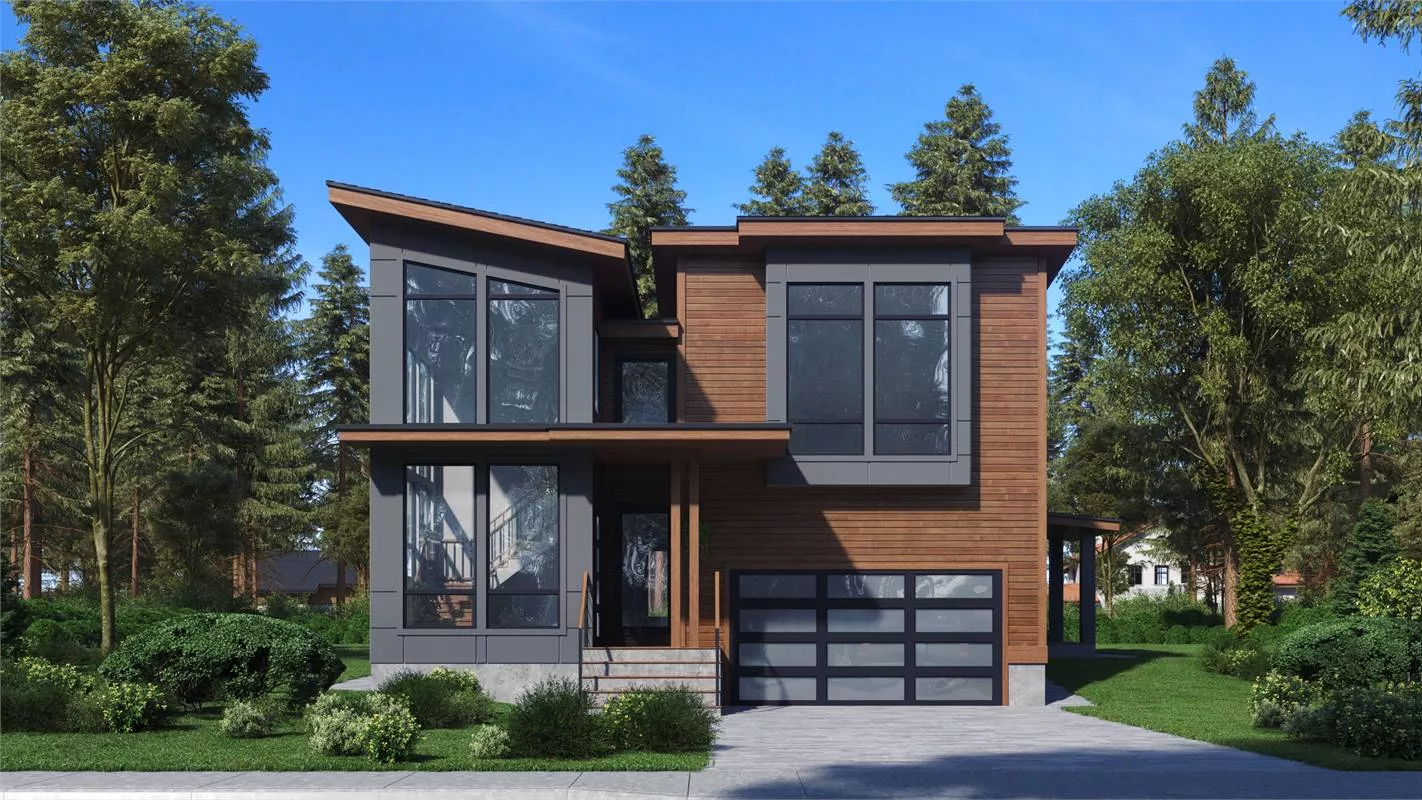

Front View

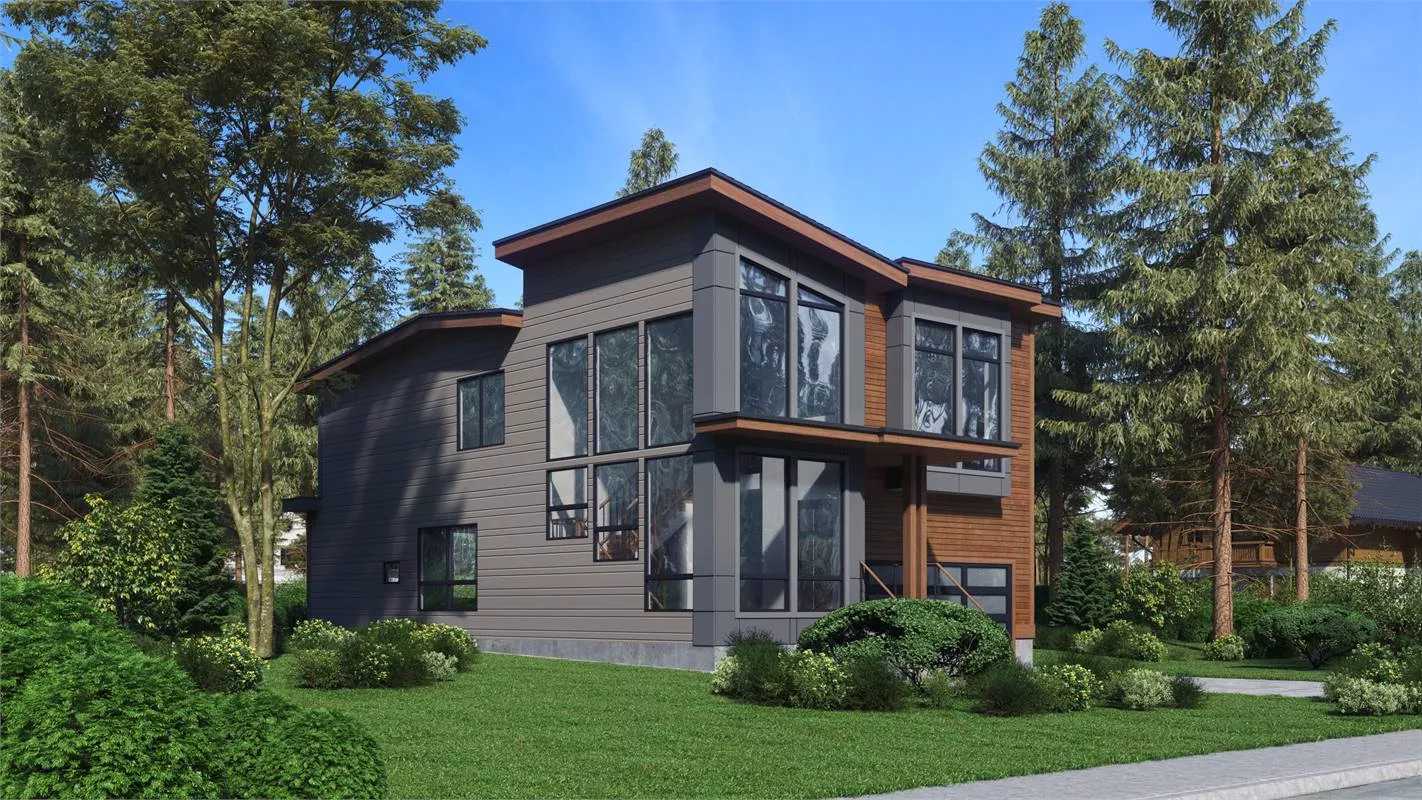

Front Angle View

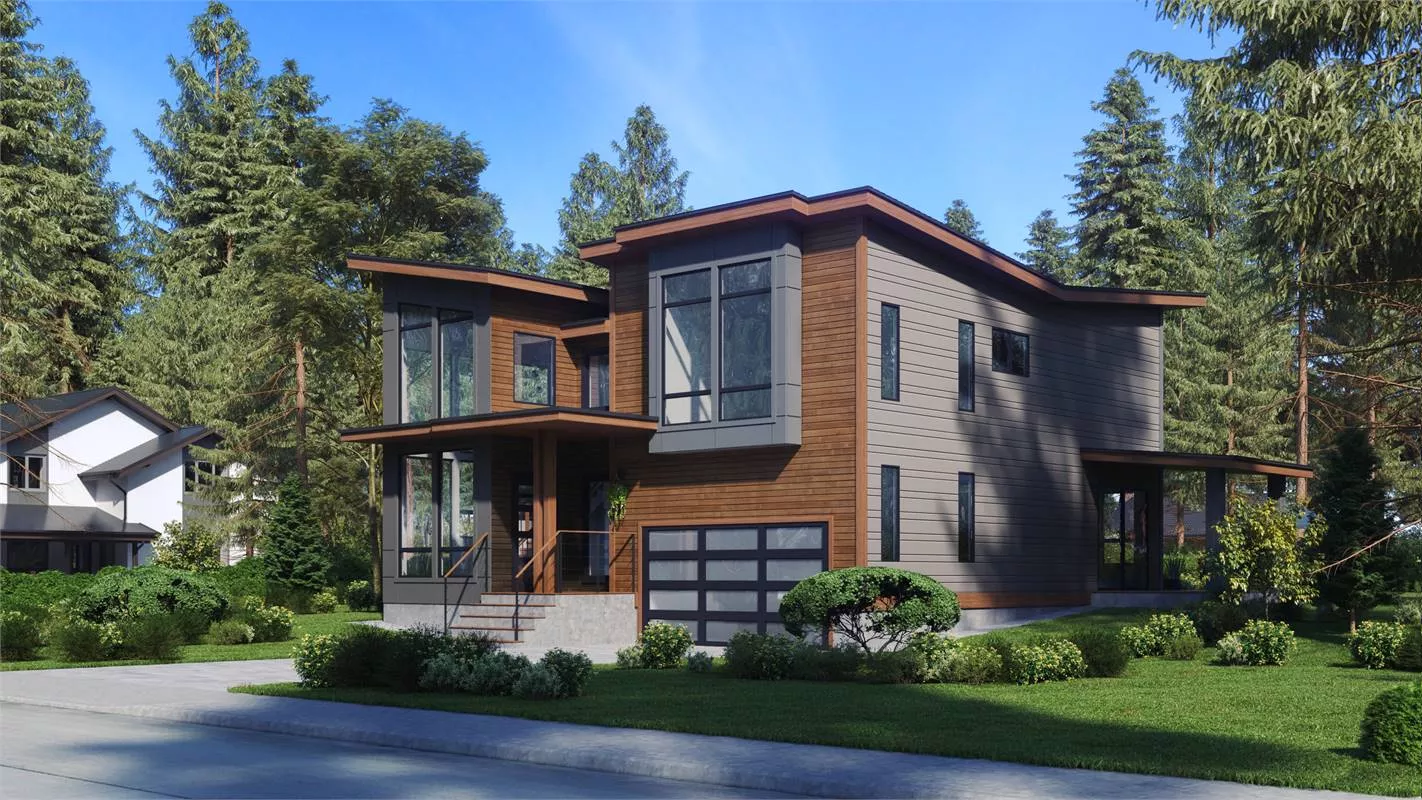

Front Angle View II

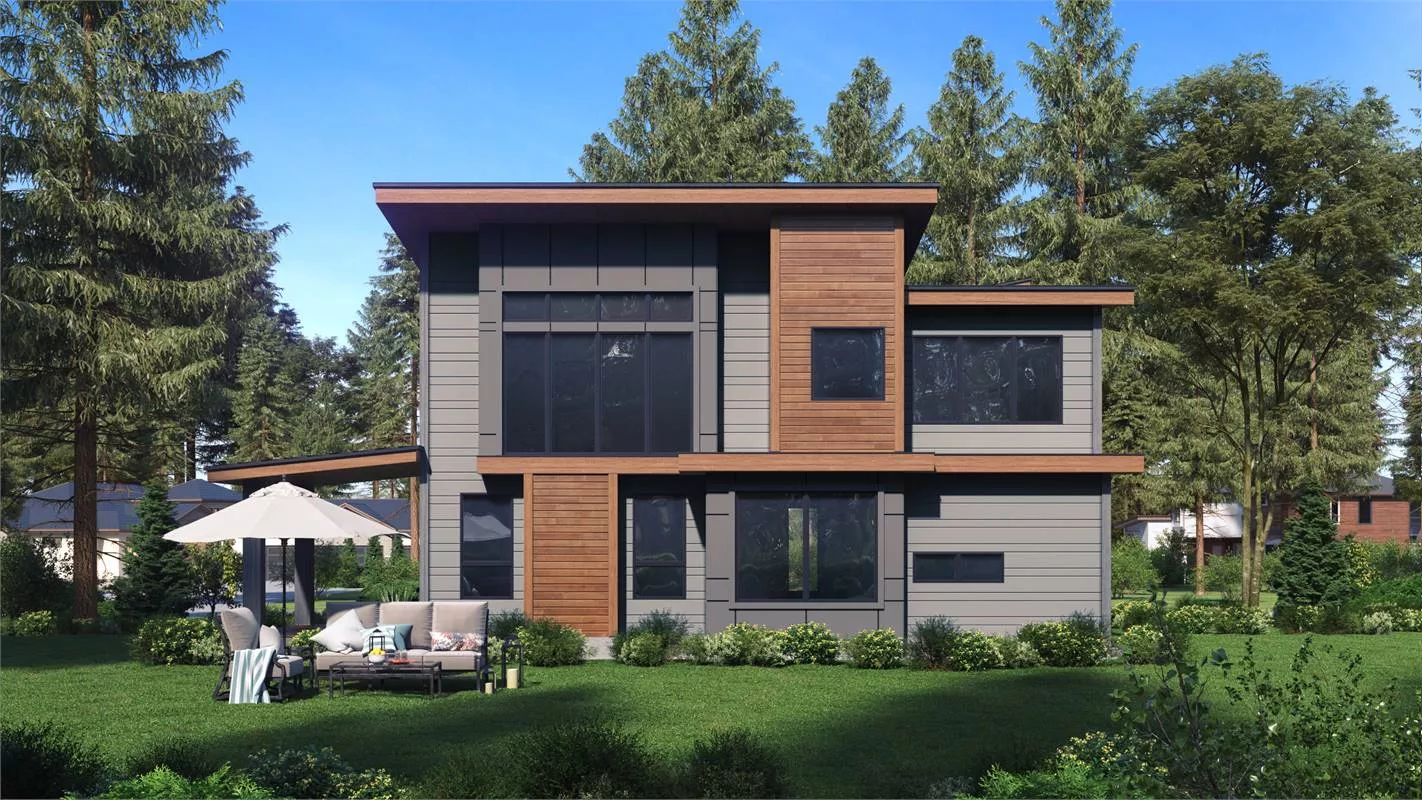

Rear View

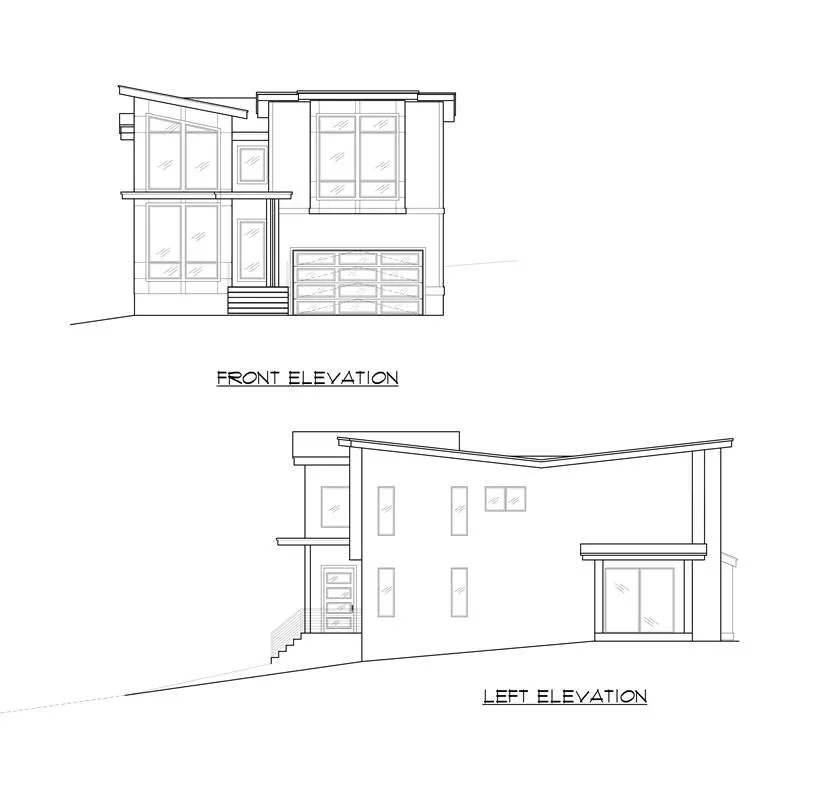

Front and Left Elevation

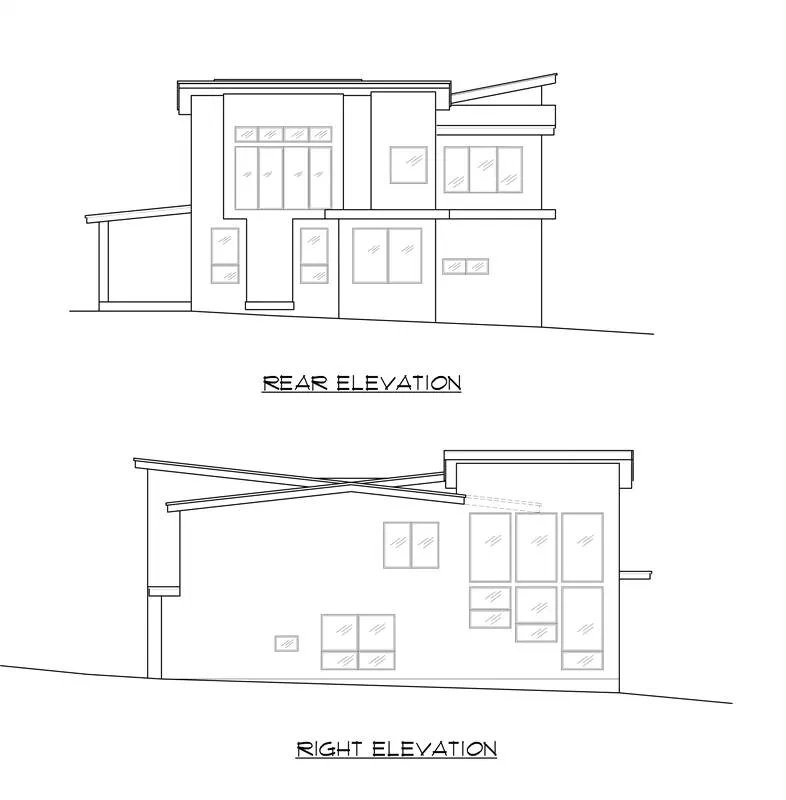

Right and Rear Elevation

View All 6 Images | Photographs may reflect modified home

Sq Ft

2,702 FT²

From

$1,080.80

Beds

Baths

2.5

Stories

Garage

Depth

51'

Width

38'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

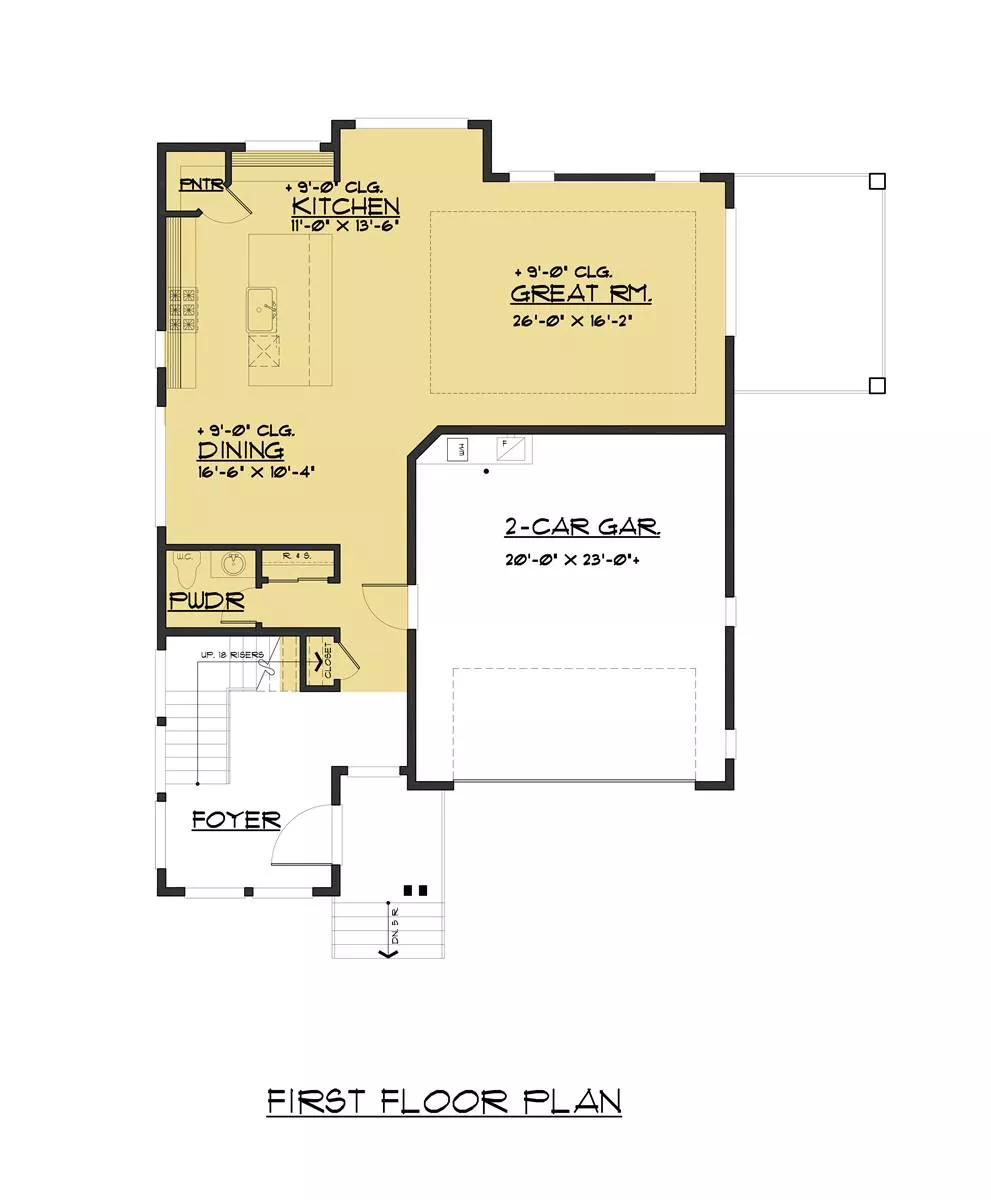

1st Floor

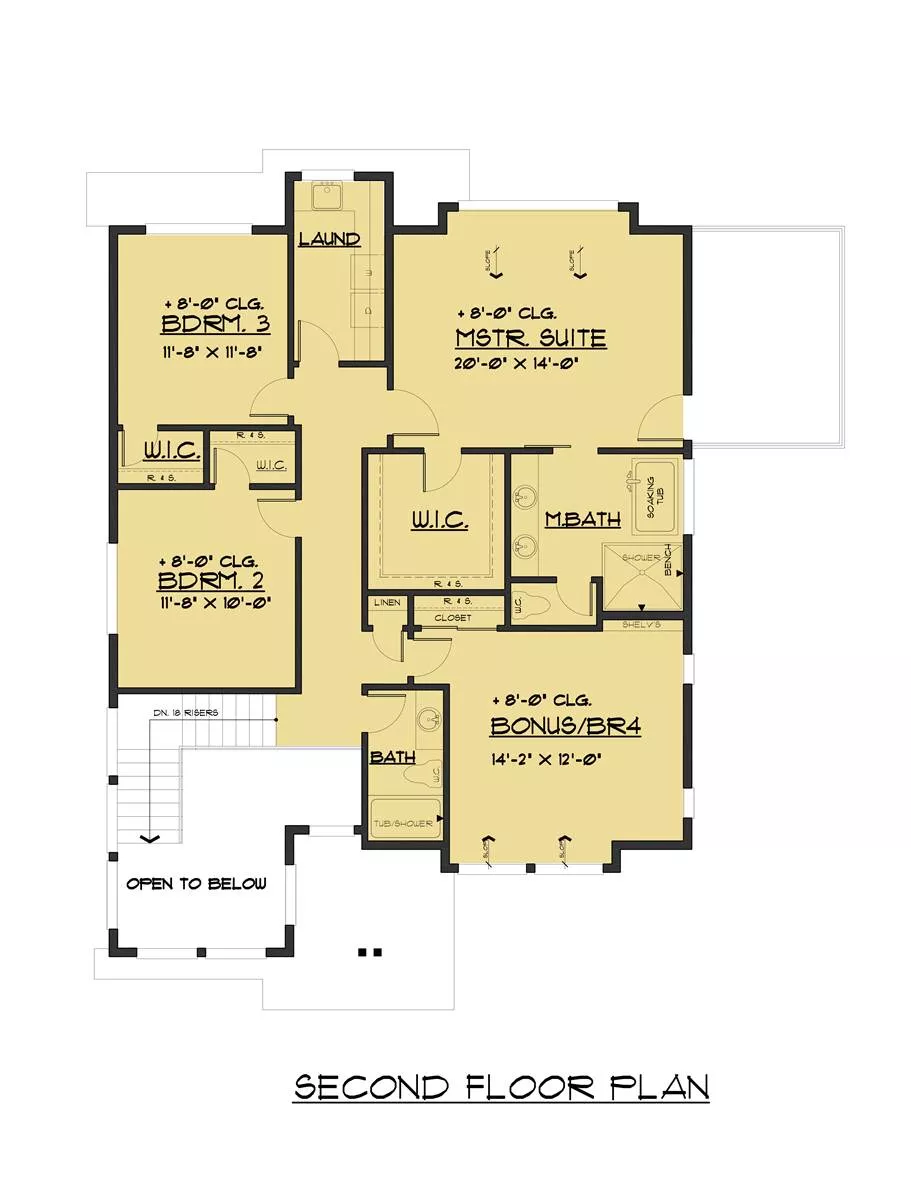

2nd Floor

1st Floor

2nd Floor

About This Plan

Welcome to this narrow lot contemporary house plan featuring 2,702 s.f. The beautiful windows invite you to take a peek inside. You are immediately drawn into an open floor plan with great room, dining room, and L-shaped kitchen. This home is designed to bring family and friends together with clear views throughout the entire first floor. The second floor is a dedicated family space with a large master with bath, two secondary bedrooms and a nice bonus room that can double as a 4th bedroom.

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch

Lot Options

Suited for narrow lot
Suited for sloping lot

Additional features

2 Story Volume
Bonus Room
Dining Room
Family Room
Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry

3,292 Ft

Total Structure

2,702 Ft

Total Heated

1,222 Ft

1st Floor

1,480 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

38' 0"

Width

51' 0"

Depth

26' 4"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

9' 0"

Living/Great Room Ceiling

9' 0"

Foyer Ceiling

8' 0"

Primary Ceiling

2x6

Framing

Truss

Roof Framing

5/12

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

470 Ft

Garage

120 Ft

Porch

Exterior Styles

Contemporary

Modern

Collections

North Carolina

Open Floor Plan

Plan Package Options

Important info before you buy

Select Plan Package

$1,351

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,351

$1,651

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,651

$1,801

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,801

$2,566

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,566

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
