PLAN 10593
House Plan 10593
866-214-2242     Live Chat
Contact Us
Search Plans
Customer Reviews

20% Off House Plans Sitewide Ends Sunday
20% Off House Plans Sitewide Ends Sunday
20% Off House Plans Sitewide Ends Sunday

Code: SAVE20
Sale ends midnight 11/23/2025 PST
Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,600 FT²
Beds
3
Baths
2
Stories
1.5
Garage
2
Depth
38'
Width
70'		 On Sale
$800.00
$1,000.00
Front Rendering
© copyright by designer
 View All 4 Images | Photographs may reflect modified home
Sq Ft
1,600 FT²
From
Beds
3
Baths
2
Stories
1.5
Garage
2
Depth
38'
Width
70'

Click to Zoom In on Floor Plan

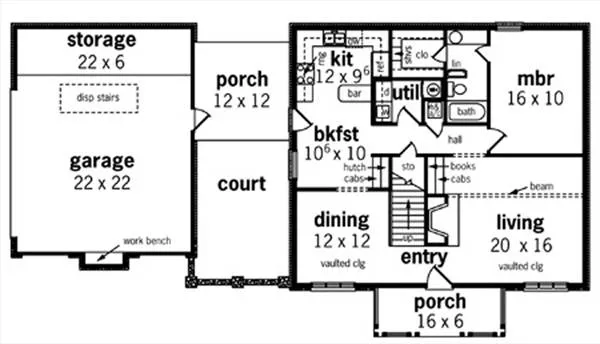

First Floor Plan

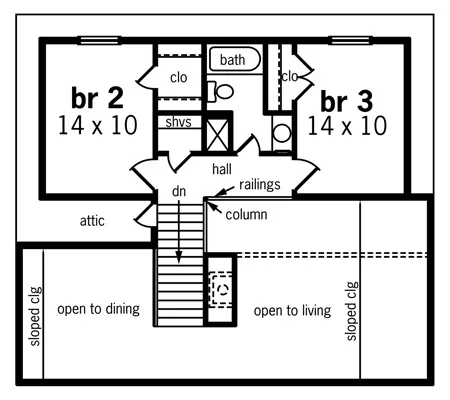

Second Floor Plan
© copyright by designer



About This Plan

The Dining and living room ceilings of this cottage design are sloped to the upper level ceiling. The stairwell is open to the living room and a small balcony at the top of the stairs overlooks the living room below. The garage contains a built in work bench to make those household repairs easy and convenient. This is a super energy saving home featuring 2x6 exterior walls, 12 attic insulation and many other energy saving features.


See All Plan Options


FEATURES & DETAILS

Exterior features
Front Porch
Foundation Options
Basement
Crawlspace
Slab
Garage Location
Side
Garage Options
Attached
2,464 Ft
2
Total Structure
1,600 Ft
2
Total Heated
1,152 Ft
2
1st Floor
448 Ft
2
2nd Floor
3
Bedrooms
2
Bathrooms
2
Garage
1.5
Stories
70' 0"
Width
38' 0"
Depth
23' 0"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
10/12
Primary Roof Pitch
4:12
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
484 Ft
2
Garage
140 Ft
2
Storage
240 Ft
2
Porch
Exterior Styles
Colonial
Country
Southern
Traditional
Collections
Old House Classics


Plan Package Options

Important info before you buy
 Select Plan Package
Sale: $640
PDF Bid Set
$800

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade
Sale: $640
Sale: $800
PDF Single Build
$1,000

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.
Sale: $800
Sale: $868
4 Printed Sets
$1,085

Four printed sets of construction drawings shipped and received in 3-5 business days
Sale: $868
Sale: $904
5 Printed Sets
$1,130

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.
Sale: $904
Sale: $992
8 Printed Sets
$1,240

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.
Sale: $992
Sale: $1,520
CAD + PDF Single Build
$1,900

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.
Sale: $1,520
  Select Foundation Option
$0
Slab
PDFs NOW!™

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.
$0
$175
Crawlspace
PDFs NOW!™

Preferred for sloped or for level lots, crawl space foundations are elevated from 16” to four feet above the ground. This option facilitates unrestricted access to your home’s ductwork and wiring making repairs easier, is good for flood-prone areas, and often creates warmer floors.
$175
$175
Basement
PDFs NOW!™

Ideal for level lots, lower level of home will be partially or fully underground.
$175
If a foundation isn't listed, please live chat, email or call for availability.
  Add-Ons (Optional)
$175
ENERGY STAR® Approved

In addition to the construction plans, with this package you will receive detailed drawings, wall and roof insulation and glazing specifications and information on cooling calculations for your specific area plus information on getting your home built and certified to ENERGY STAR® standards. You must purchase construction plans as well from the list above. This package is not exchangeable or refundable under any circumstances. Allow one week for completion of your customized package. Available in the U.S. Please allow 3-5 business days for delivery.
$175
$125
ADD PDF TO PRINT ORDER
For those that want both prints and a PDF electronic file, order the prints and choose the option to ADD A PDF ELECTRONIC FILE TO A PRINT ORDER. When choosing this option, the customer must order prints. This is a great option because prints can be used to distribute to your contractor for use on the job site. The PDF electronic files can be sent to sub-contractors, permit departments and your lender.
$125
$90
Materials List
The Materials list includes the material quantity for the foundation, framing, exterior finish and interior drywall. It will not include plumbing fixtures, electrical fixtures, heating and air conditioning or interior finish.
$90
$90
Mirror Reverse Set
The image is reversed 180 degrees in a mirror reverse plan; however, the lettering and dimensions will also be reversed. If you select the mirror reverse option, you will receive 2 sets of your total order in mirror reverse. The mirror reverse sets will assist your contractor to lay out the foundation and framing in reverse. The remaining sets of your order will not be mirror reversed. Your lender and permit department will not accept mirror reverse plans.
$90
If an add-on isn't listed, please live chat, email or call for availability.
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.
FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer
Sub Total
Sale Price: $800.00
Immediate Delivery
Savings: $200.00 (20%)
ADD TO CART
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
