Sq Ft
1,741 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
37'

Width
79'

On Sale
$800.00
$1,000.00

Front Exterior

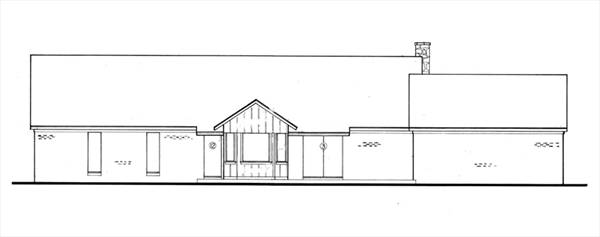

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,741 FT²

From

$800.00

Beds

Baths

Stories

Garage

Depth

37'

Width

79'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

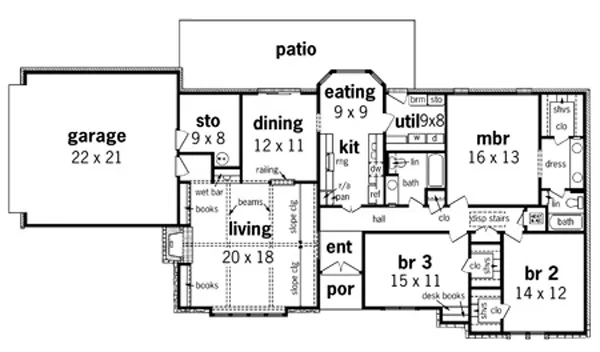

First Floor Plan

About This Plan

This rambling ranch style was intentionally designed with maximum length to create an impressive facade with an appearance of a much larger home than it actually is. The front location of the living room allows for a great view from the massive glass wall. The living room ceiling is vaulted and beamed and there is a built in wet bar for entertaining.

FEATURES & DETAILS

Exterior features

Front Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for corner lot

Garage Location

Side

Garage Options

Attached

2,330 Ft

Total Structure

1,741 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

79' 0"

Width

37' 0"

Depth

18' 0"

Height

8' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

462 Ft

Garage

97 Ft

Storage

30 Ft

Porch

Exterior Styles

Modern

Southern

Traditional

Collections

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
