Sq Ft
3,343 FT²

Beds
3

Baths
3.5

Stories
2

Garage
2

Depth
82'

Width
49' 5"

On Sale
$1,276.00
$1,595.00

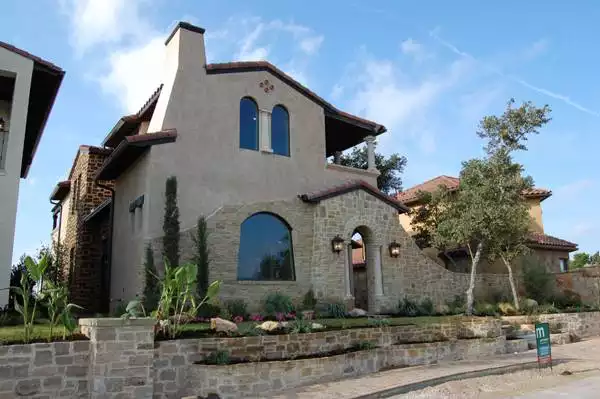

Front Photo

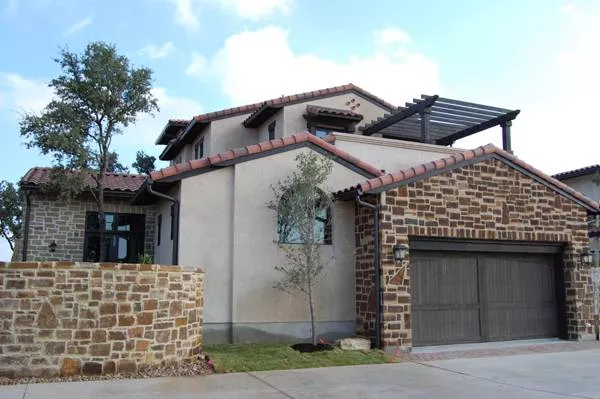

Rear Photo

Loggia

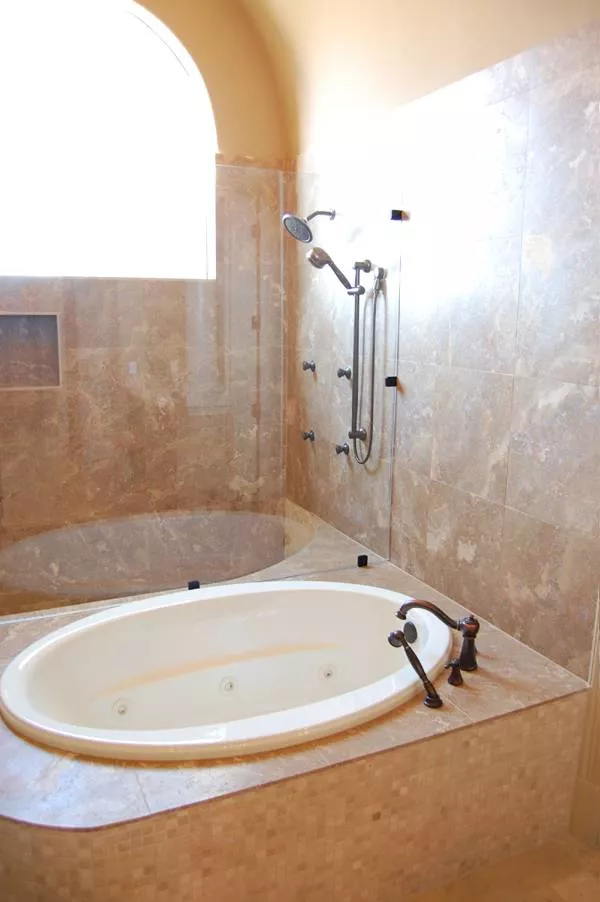

Master Bath

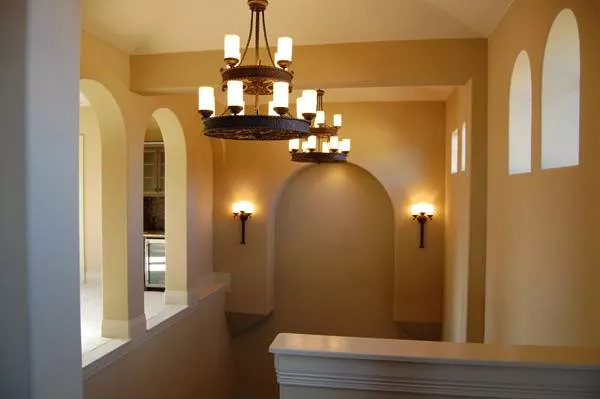

Upper Foyer/Gallery

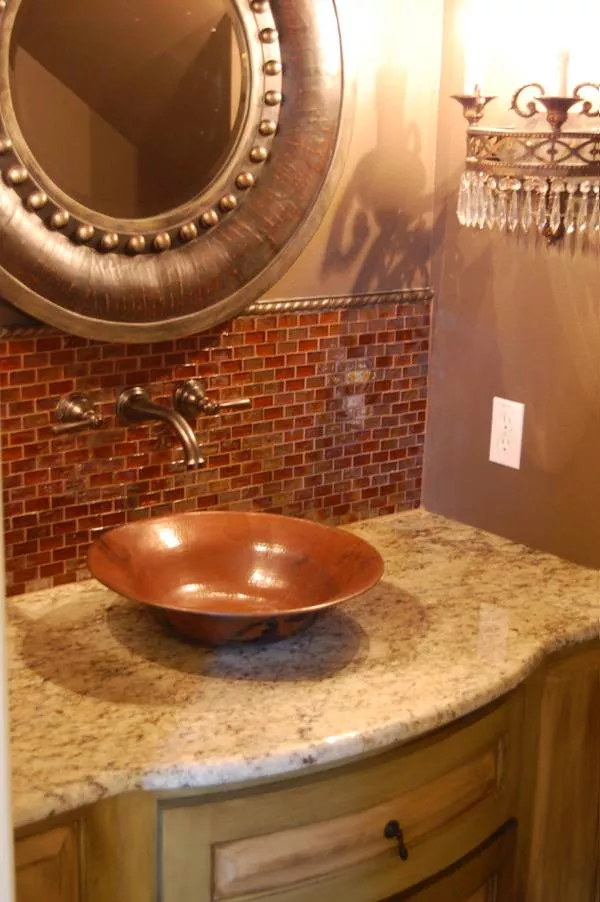

Powder

Master Bath

Interiors - Kitchen

View All 8 Images | Photographs may reflect modified home

Sq Ft

3,343 FT²

From

$1,276.00

Beds

Baths

3.5

Stories

Garage

Depth

82'

Width

49' 5"

Modify

Cost Estimator

Sample Plan

Architect's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

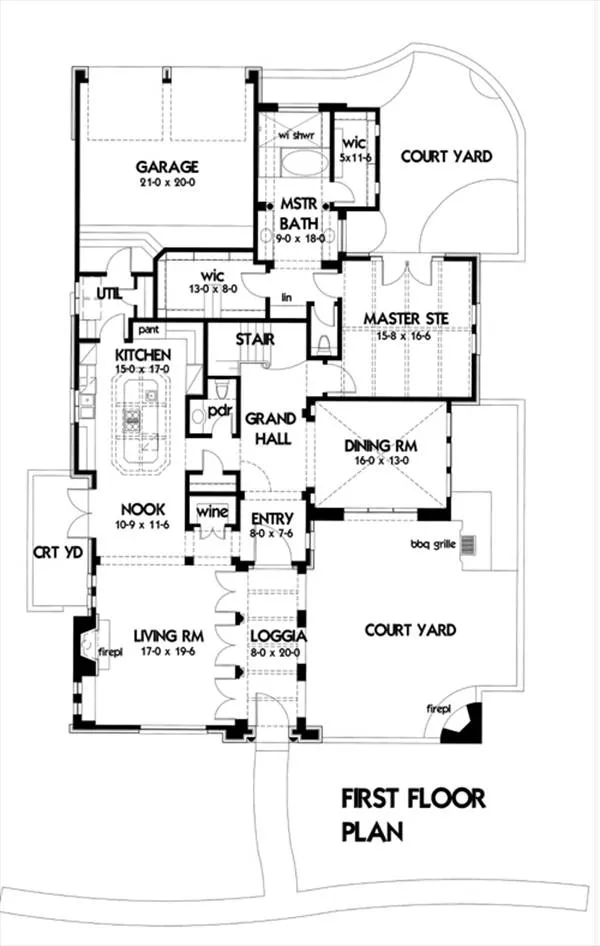

First Floor Plan

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Designed for a narrow lot with a rear entry Garage, this plan still boasts some great features that make it seem bigger than it is.

The unique Entry into a private courtyard leads you to the front door by way of a traiditional Italian Loggia. The Family Rm enjoys views to this private courtyard, including an exterior fireplace and bbq area, as well as wide expanse of glass/view to the front.

The Entry leads you back to a two story Grand Hall which flows into the Dining Rm on the right. The Master Suite has its own private courtyard retreat and the Master Bath is accented by a barrel vault ceiling that runs the length of the room.

The upstairs bedrooms each have their own private baths as well as access to exterior porches. The front bedroom serves as a secondary Master Suite.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

2 Primary Suites
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Primary Bdrm Upstairs
Split Bedrooms
Walk-in Closet

Exterior features

Breezeway
Courtyard
Covered Front Porch
Deck
Rear Porch

Foundation Options

Basement
Crawlspace
Slab
Walkout Basement

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot

Additional features

Family Room
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Wine Cellar

Garage Location

Rear

4,312 Ft

Total Structure

3,343 Ft

Total Heated

2,249 Ft

1st Floor

1,094 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

49' 5"

Width

82' 0"

Depth

31' 2"

Height

12' 0"

Main Floor Ceiling

10' 0"

Upper Floor Ceiling

2x4 or 2x6

Framing

Stick

Roof Framing

4/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

494 Ft

Garage

329 Ft

Porch

279 Ft

Patio

Exterior Styles

Mediterranean

Spanish

Tuscan

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,595

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595

$1,745

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,745

$1,845

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,845

$2,395

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,395

$2,790

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,790

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
