Search Plans

20% Off Use Code: HOLIDAY24
20% Off Use Code: HOLIDAY24

Sq Ft
8,647 FT²

Beds
4

Baths
5.5

Stories
2

Garage
4

Depth
109'

Width
137'
On Sale
$2,992.00
$3,740.00
© copyright by designer
View All 62 Images | Photographs may reflect modified home
Sq Ft
8,647 FT²
From
$2,992.00
Beds
4
Baths
5.5
Stories
2
Garage
4
Depth
109'
Width
137'

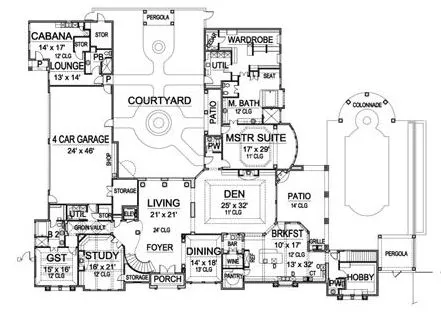

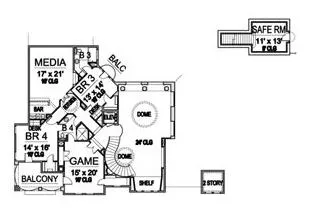

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

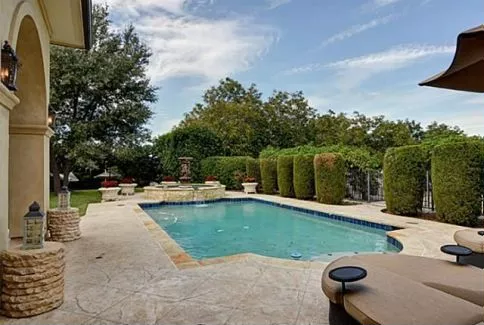

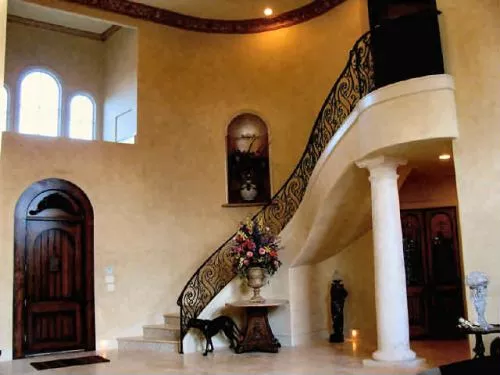

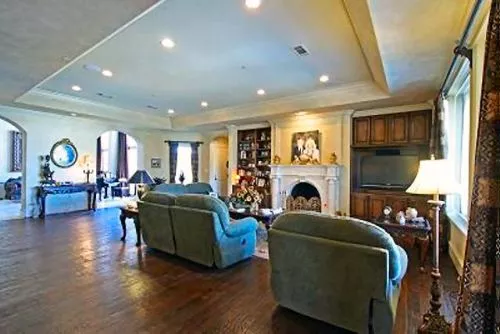

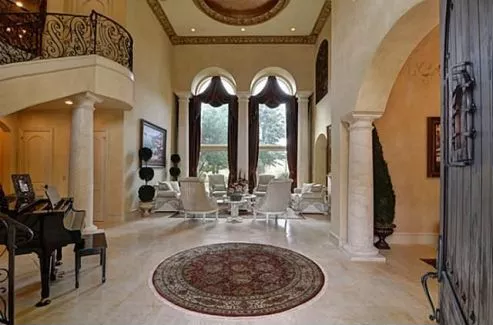

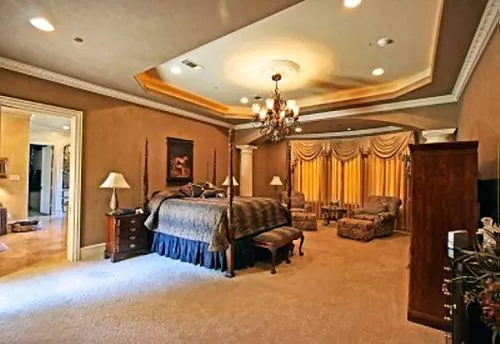

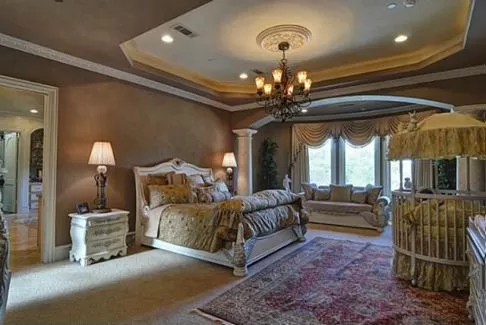

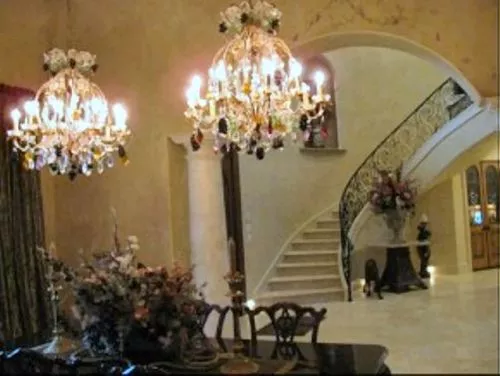

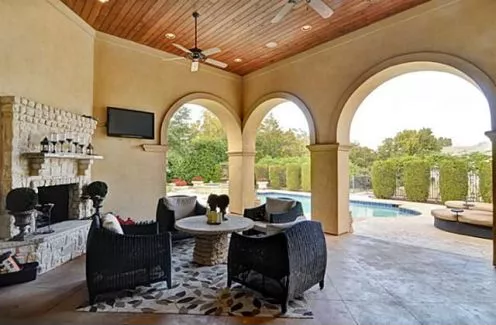

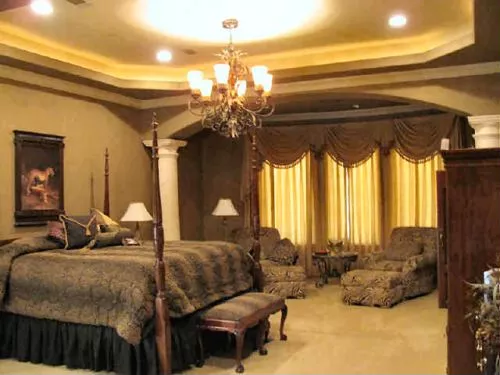

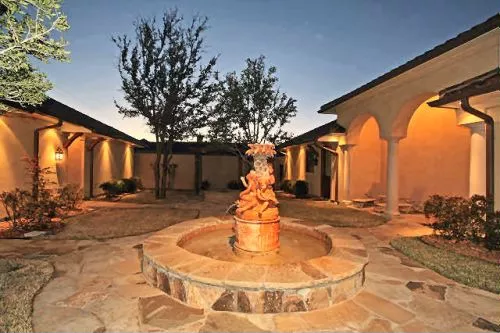

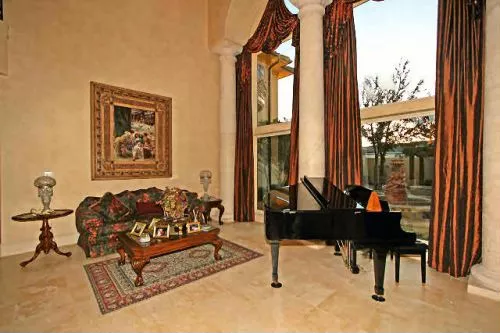

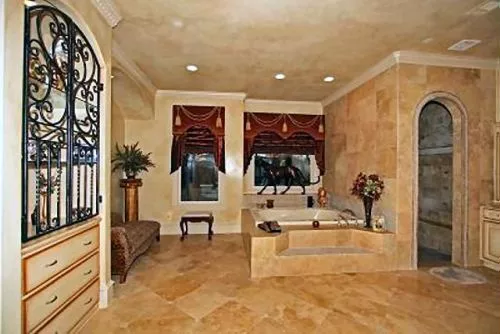

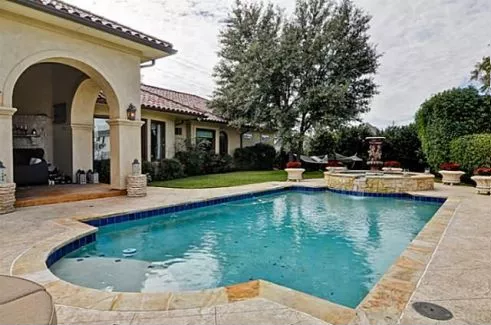

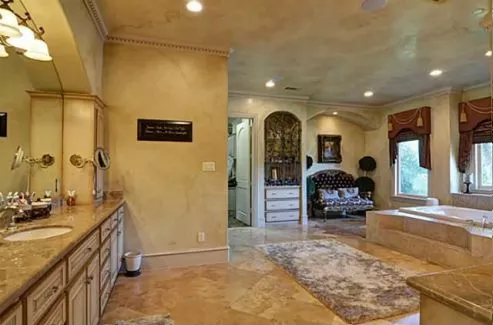

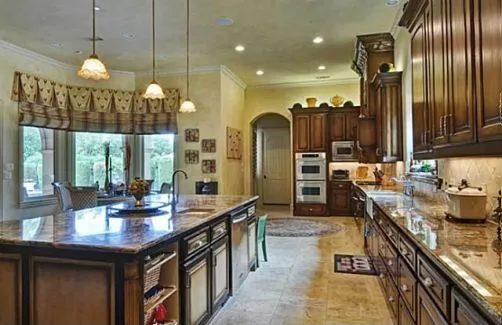

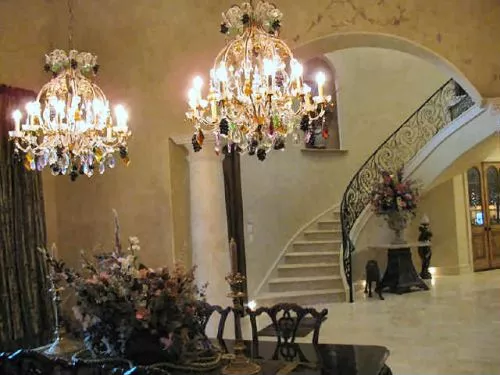

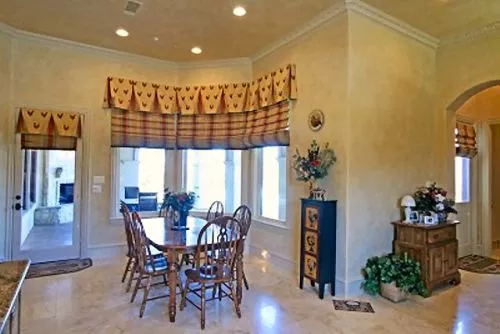

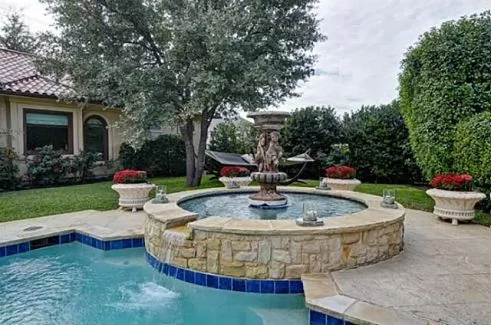

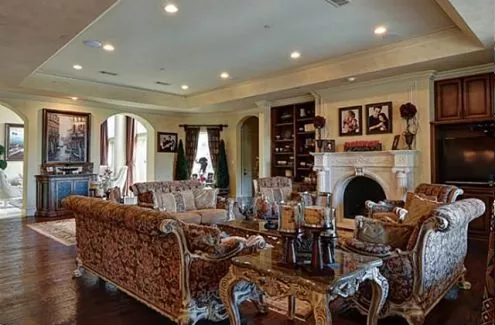

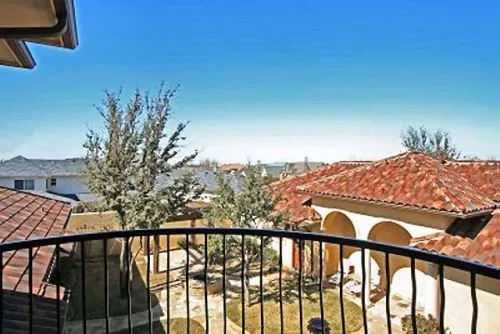

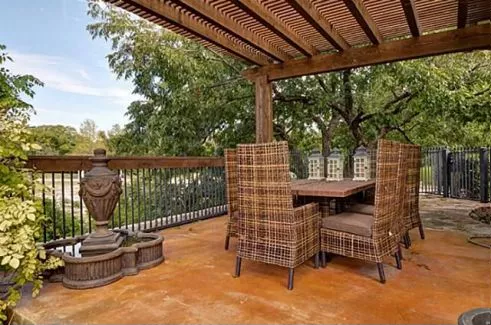

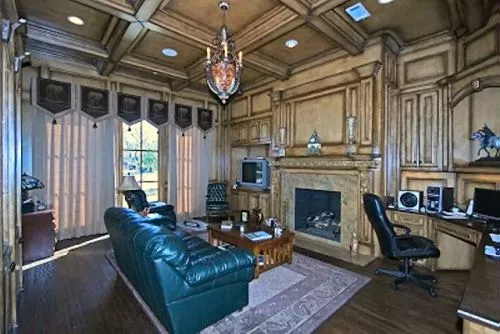

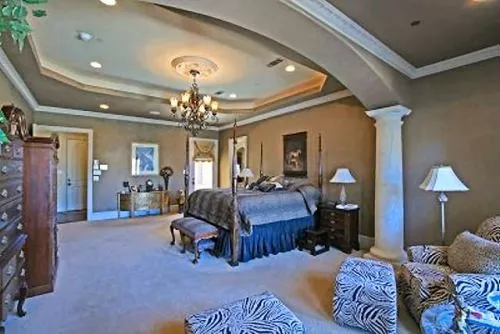

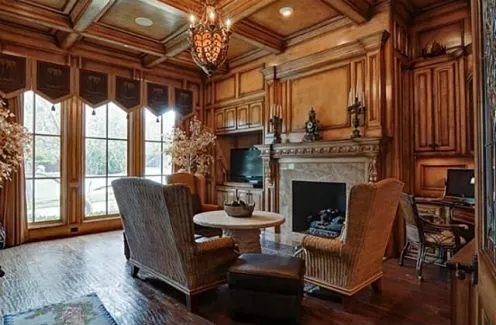

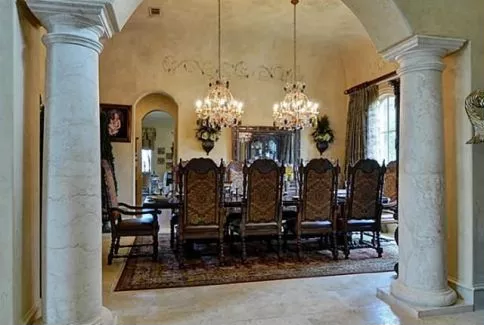

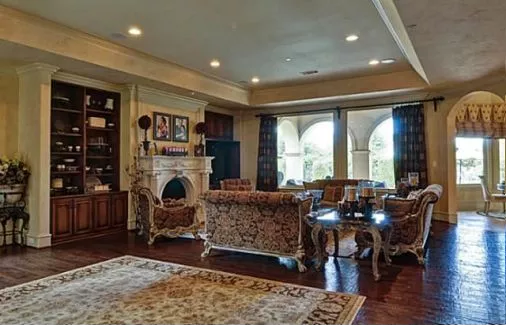

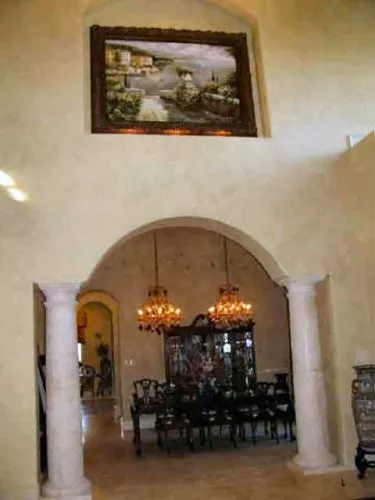

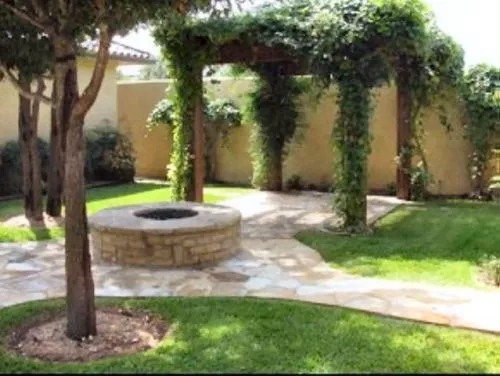

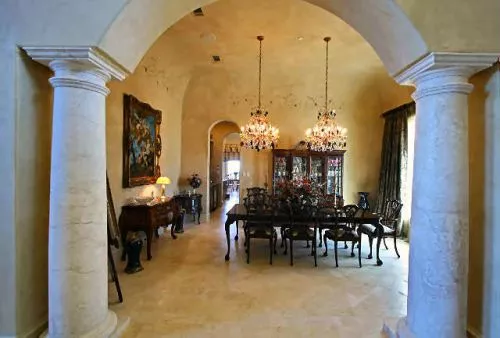

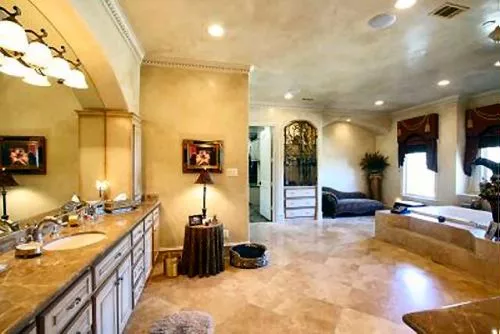

This Tuscan luxury mansion house plan brings your dreams to life. When you enter the two-story foyer, the curved staircase to the second story and the open living room will greet you. The large bank of windows in the living room face out to the courtyard to view your lush landscape. An elevator next to the living room goes to the second story outside one of the family bedrooms. At the front of the house is the elegant dining room with trey ceiling, wine and bar rooms, and access to the pantry and kitchen for ease in serving. The breakfast area has patio access and shares the free-standing island in the kitchen. A corner fireplace and grille enhance the patio, while the (concept) pool and pergola are set off by large decorative pillars. A hobby room with half bath completes this section of this luxury house plan. Beyond the den with trey ceiling and fireplace, is the luxurious master suite. The luxurious master suite boasts a bay window sitting area, lavish master bath with his and hers vanities, separate shower, tub with trey ceiling, utility room, and large wardrobe with built-in cedar closet and seat. At the front of the house plan is a quiet study with coffered ceiling and warming fireplace. Through the groin vault ceiling, a guest room with walk-in closet and full bath is tucked away in the front corner. A four-car side entry garage, utility room, storage areas, courtyard with fountain, second pergola and a cabana with lounge, bath and kitchen complete this level of this Tuscan luxury mansion house plan. Upstairs, a private safe room shares space with two family bedrooms complete with walk-in closets, balconies and full baths, a media room with bar, built-in desks and shelves. Enjoy the views from above of the main level below.


FEATURES & DETAILS

Kitchen features

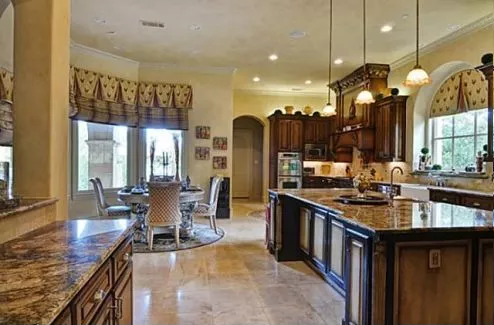

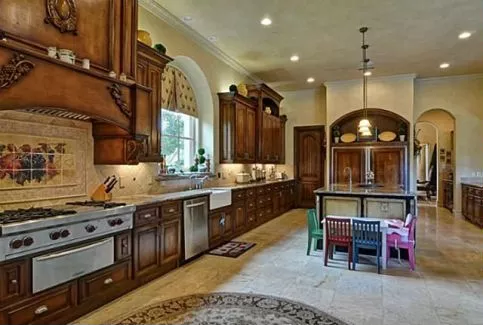

Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor

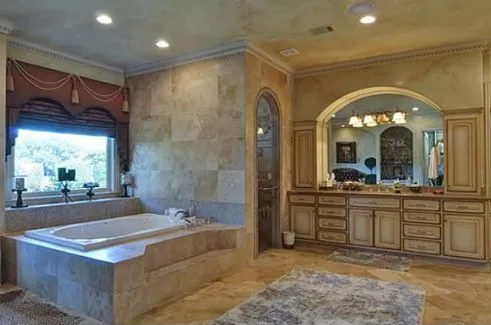

Separate Tub and Shower
Exterior features

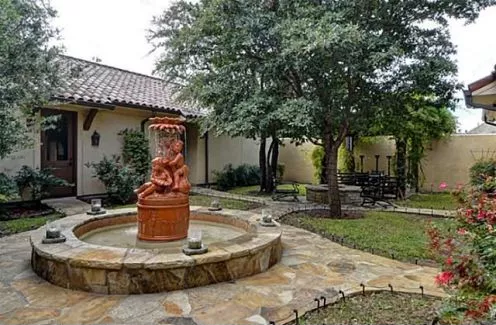

Courtyard
Covered Front Porch

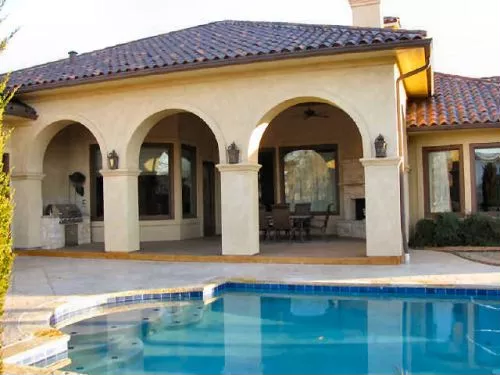

Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl

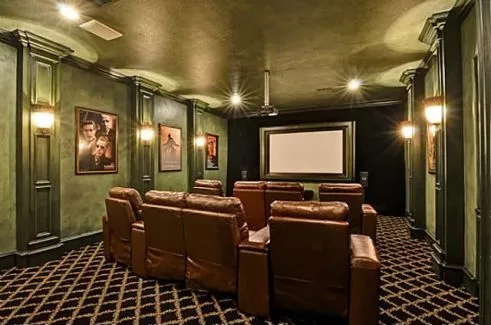

Library/Media Rm
Open Floor Plan
Garage Location
Side
Garage Options
Attached
Side-entry
11,008 Ft
2
Total Structure
8,647 Ft
2
Total Heated
6,528 Ft
2
1st Floor
1,815 Ft
2
2nd Floor
304 Ft
2
Lower Floor
4
Bedrooms
5.5
Bathrooms
4
Garage
2
Stories
137' 0"
Width
109' 0"
Depth
35' 0"
Height
12' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
6
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,311 Ft
2
Garage


Plan Package Options

 Select Plan Package
$3,760
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,760
$3,940
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,940
$5,645
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,645
 Need To Reverse Plan? (Optional)
$300
Readable Reverse

Reverse house plans with readable text and dimensions

$300
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer Binder

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
