Sq Ft
5,093 FT²

Beds
4

Baths
5.5

Stories
3

Garage
3

Depth
65' 2"

Width
137' 5"

On Sale
$2,640.00
$3,300.00

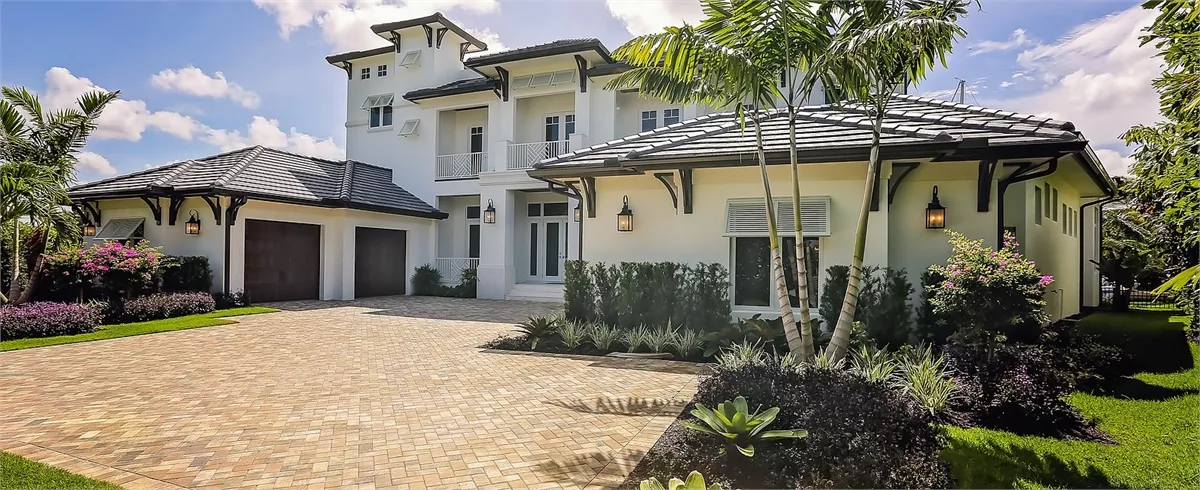

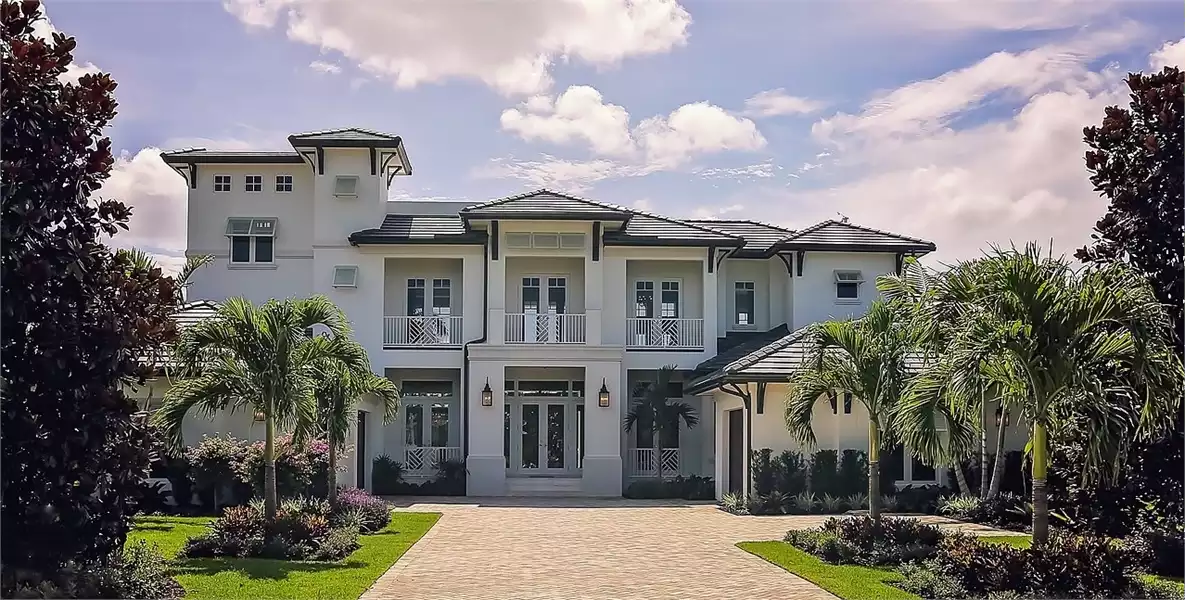

Front Photo

Kitchen

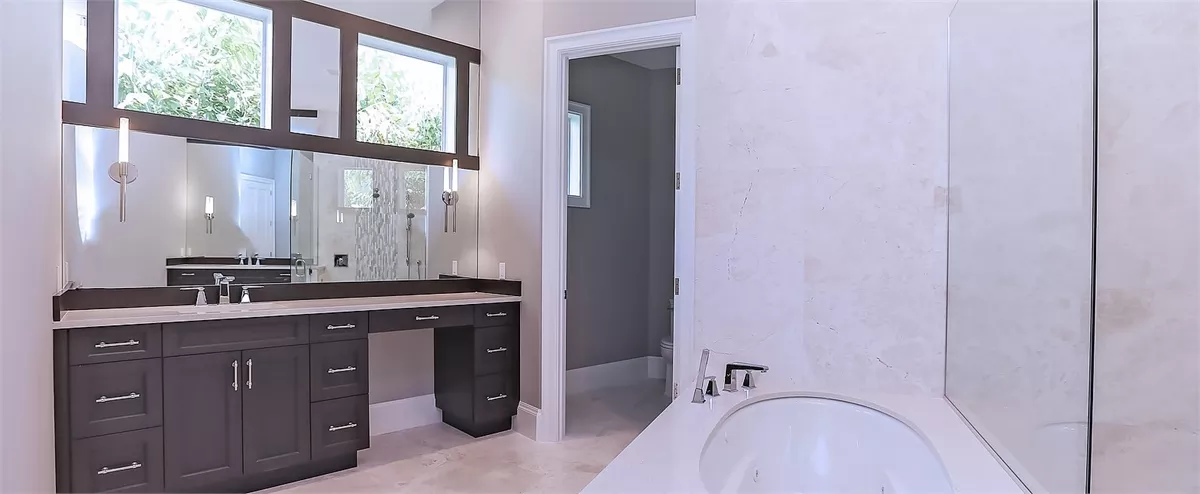

Master Bathroom

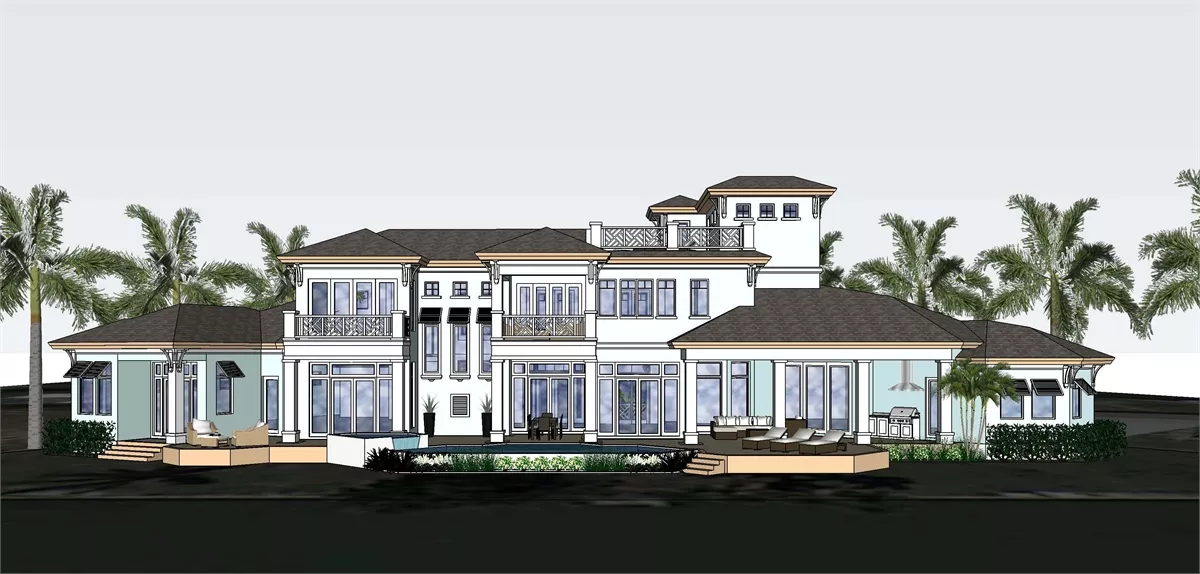

Rear Rendering

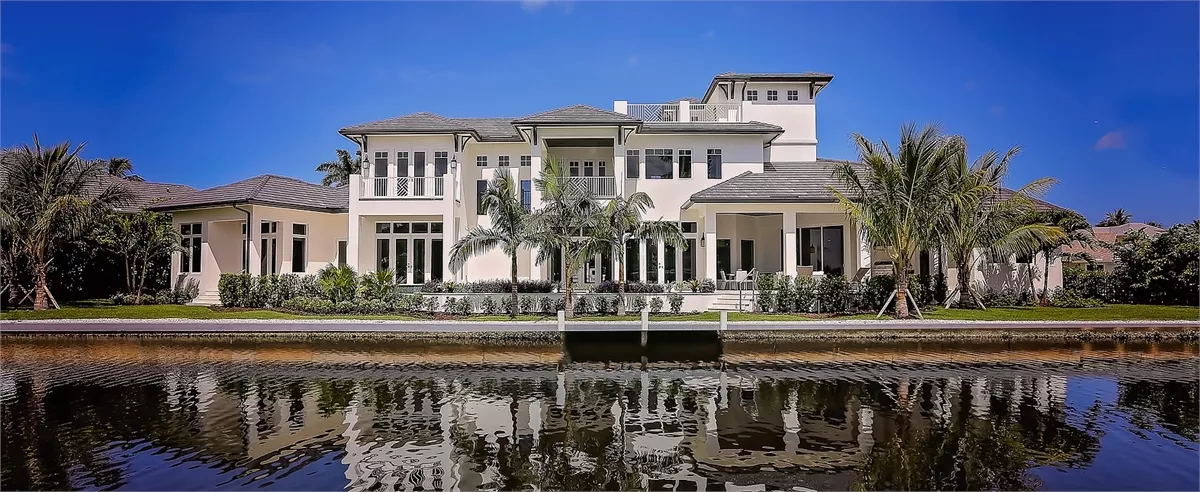

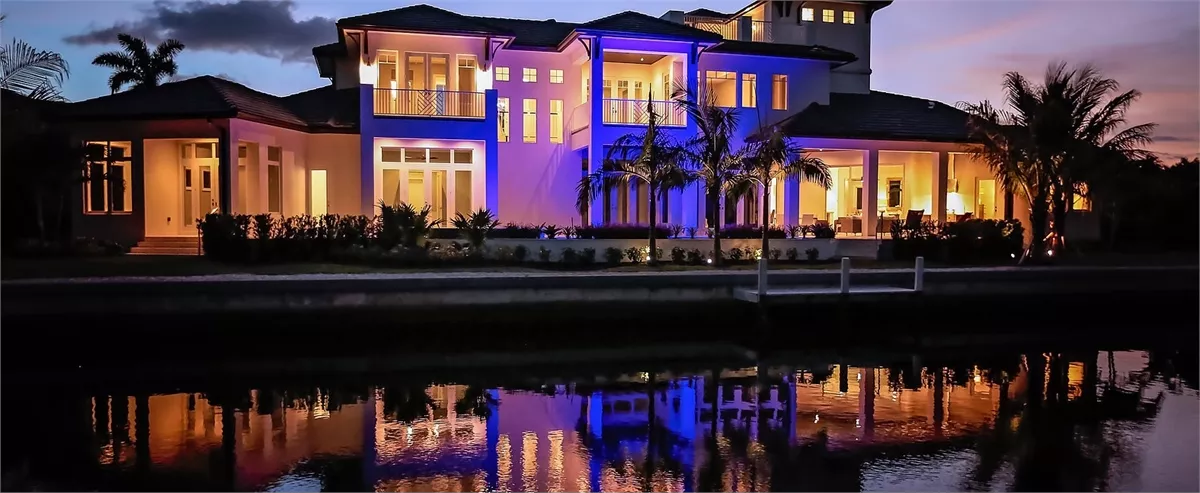

Rear Photo

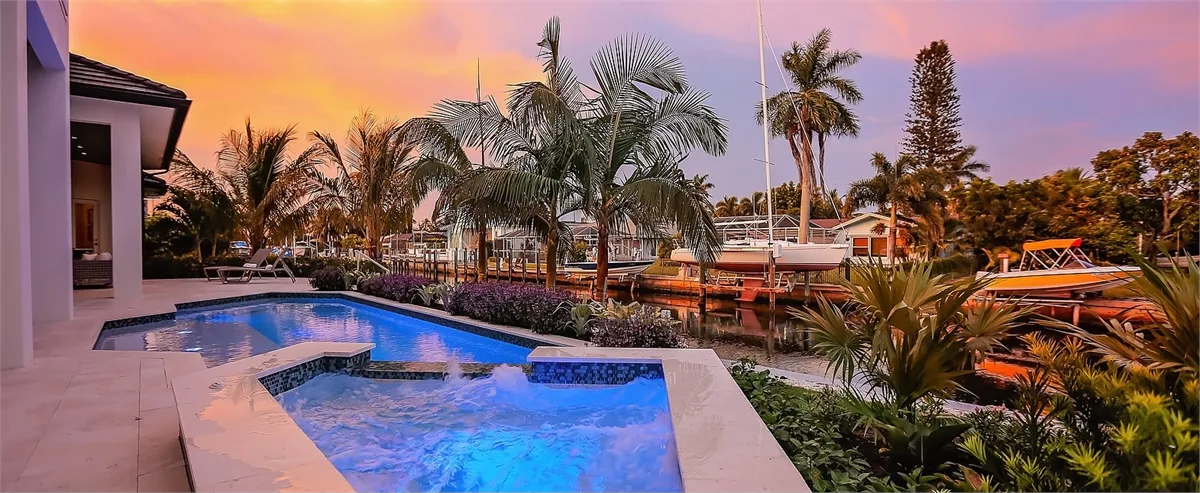

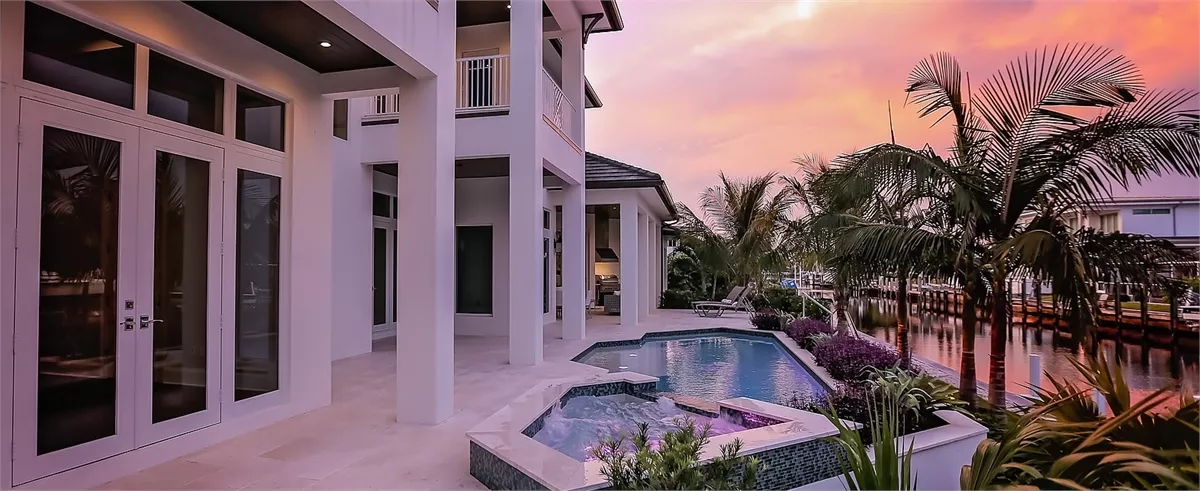

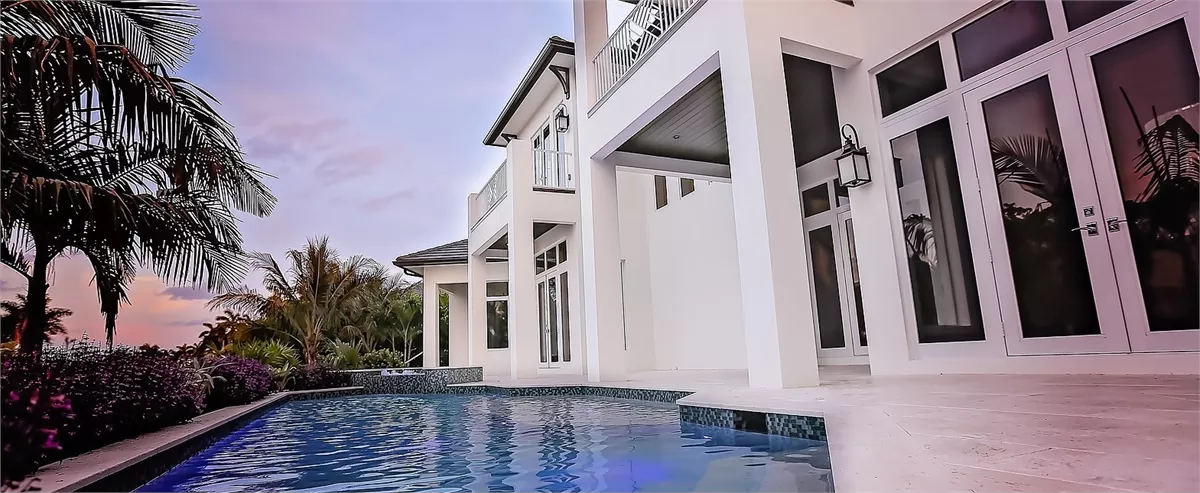

Rear Photo with Pool

Rear Photo

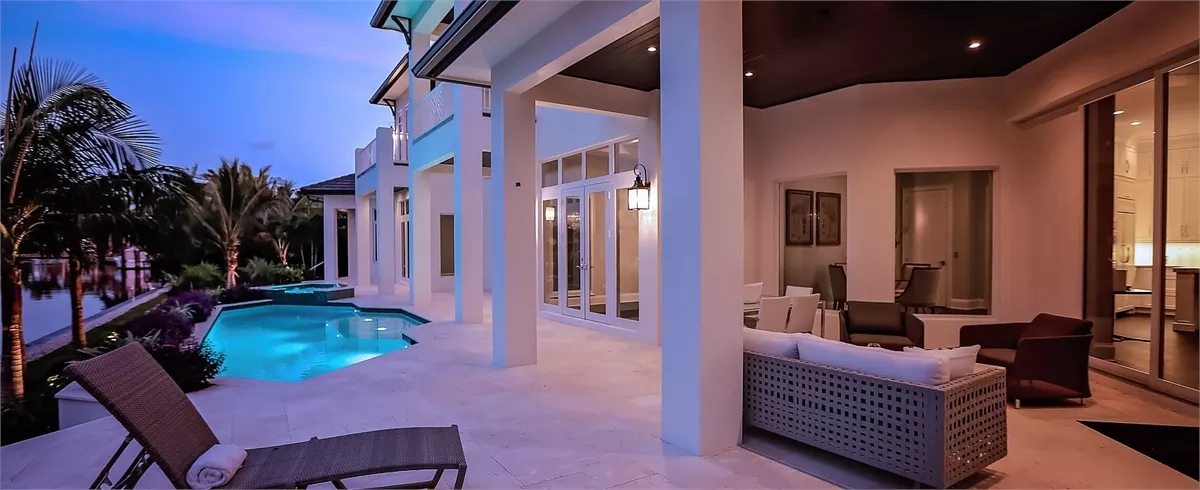

Rear Photo with Pool

Rear Photo

Front Rendering

View All 12 Images | Photographs may reflect modified home

Sq Ft

5,093 FT²

From

$2,640.00

Beds

Baths

5.5

Stories

Garage

Depth

65' 2"

Width

137' 5"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

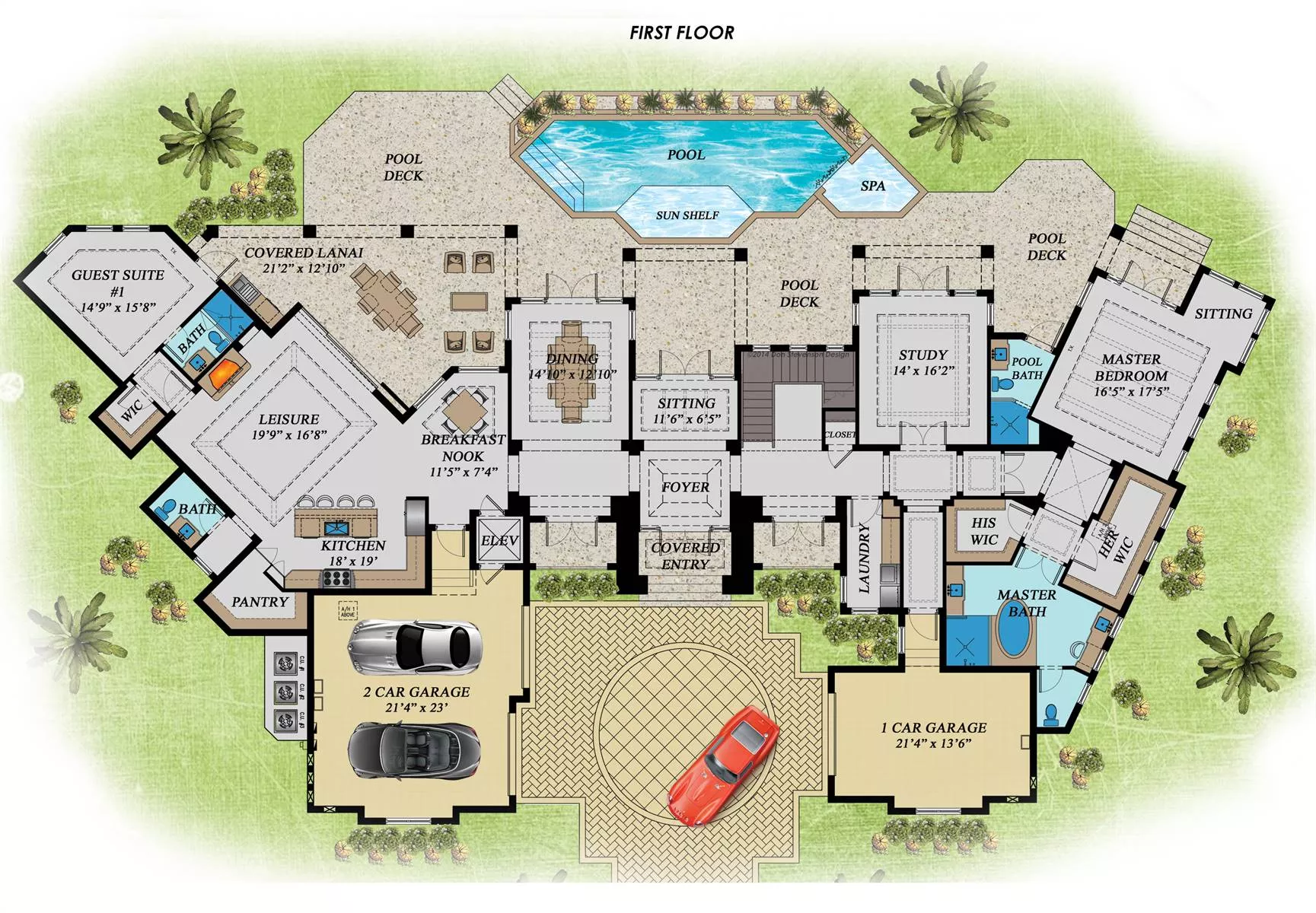

1st Floor Plan

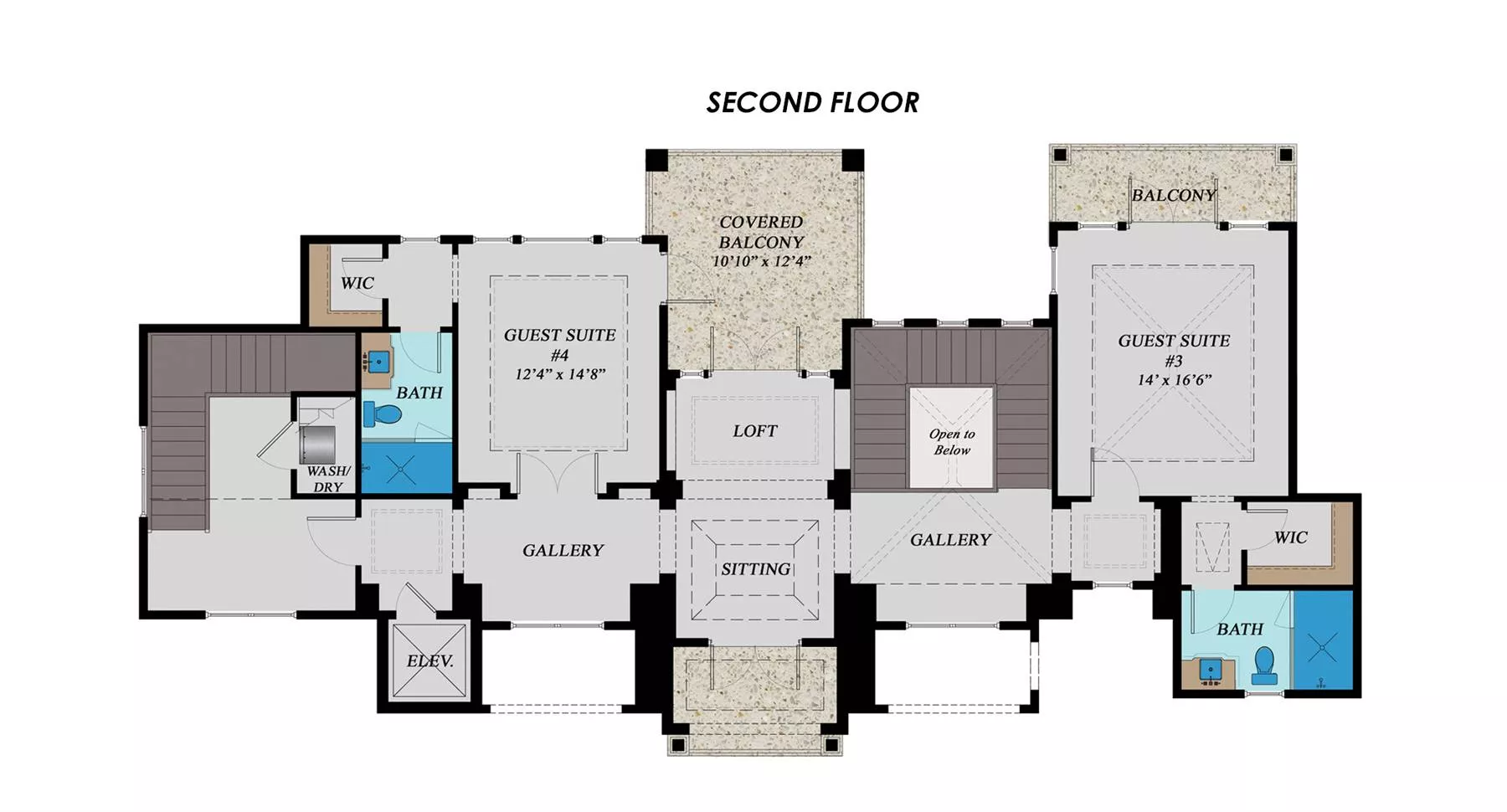

2nd Floor Plan

3rd Floor Plan

1st Floor Plan

2nd Floor Plan

3rd Floor Plan

About This Plan

Absolutely marvelous in every sense of the word, this magnificent 5,093 square foot beach style house plan is a dream come true. This 3-story design offers plenty of space for everyone, including 4 bedrooms and 5.5 bathrooms. As you pull up, the amazement starts right away, beginning with the courtyard drive, flanked by two separate attached garages on either side. Once indoors, the foyer provides access to both wings of this home's layout, the right wing housing the master suite and study, and the left providing the main living spaces and kitchen. Or you can head out back to discover an expansive entertainment area, including a covered lanai and cooking area, as well as a perfect space to build a pool. The first floor master is great, offering his and hers walk-in closets, and a stunning spa style bath. The living room on the other end of the home joins with the island kitchen and walk-in pantry, as well as a fully equipped guest suite. The second floor is home to two more guest suites as well as a sitting area and living room. All of the levels are accessible either via stairs or elevator. The final level is a full roof deck, perfect for relaxing in a hammock or entertaining large crowds, you are sure to love its many uses all year long!

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Deck

Foundation Options

Slab

Lot Options

Suited for view lot

Additional features

Dining Room
Family Room
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Library/Media Rm
Open Floor Plan
Storage Space

Garage Location

Front

Garage Options

Attached
Front-entry
Side-entry

5,093 Ft

Total Heated

3,558 Ft

1st Floor

1,535 Ft

2nd Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

137' 5"

Width

65' 2"

Depth

35' 0"

Height

10-12' 0"

Main Floor Ceiling

9-10' 0"

Upper Floor Ceiling

8" Block

Framing

Truss

Roof Framing

6:12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

976 Ft

Garage

49 Ft

Storage

610 Ft

Porch

413 Ft

Deck

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$3,300

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,300

$3,800

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,800

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
