Sq Ft
8,129 FT²

Beds
5

Baths
5.5

Stories
2

Garage
4

Depth
85' 10"

Width
84' 2"

On Sale
$6,503.20
$8,129.00

View All 20 Images | Photographs may reflect modified home

Sq Ft

8,129 FT²

From

$6,503.20

Beds

Baths

5.5

Stories

Garage

Depth

85' 10"

Width

84' 2"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

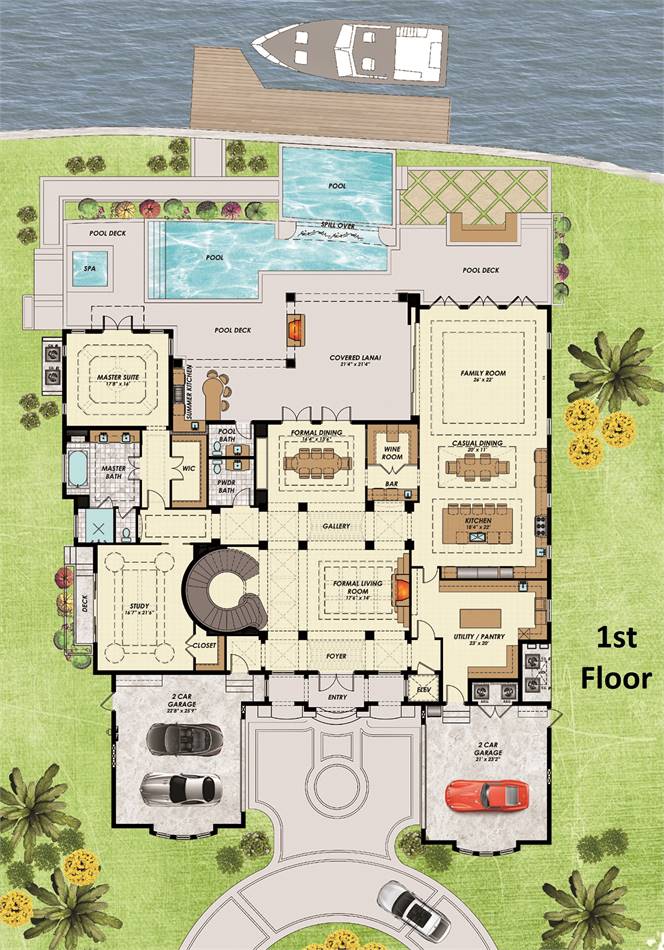

1st Floor Plan

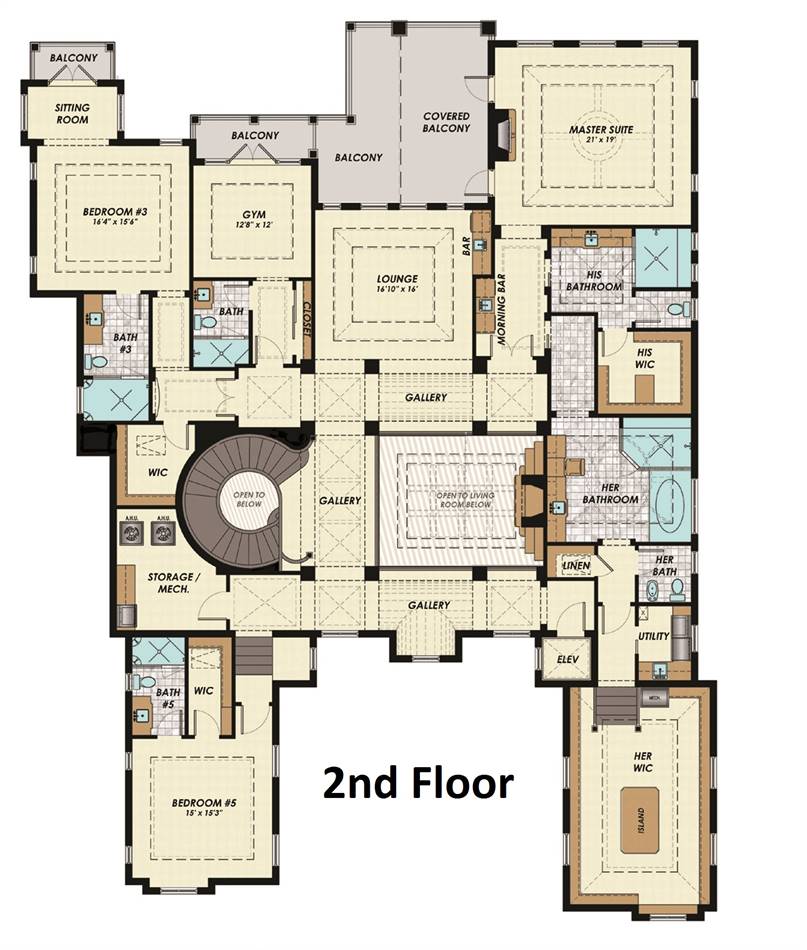

2nd Floor Plan

1st Floor Plan

2nd Floor Plan

About This Plan

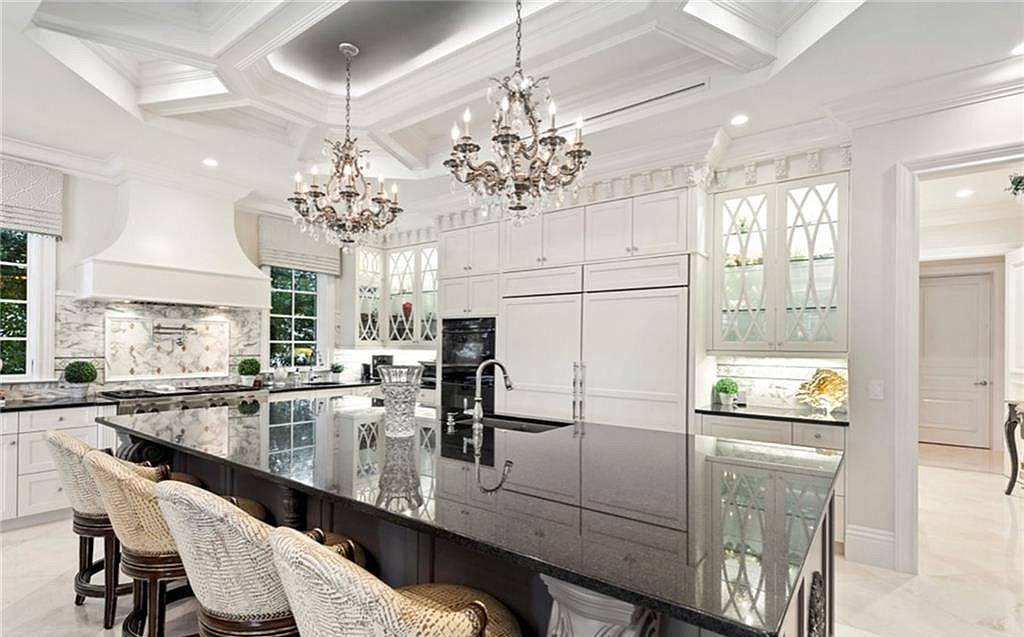

This gorgeous 2-story European Mediterranean features of 8,129 square feet of luxury living. with 4 bedrooms, 5 bathrooms and 2 half baths. The gourmet kitchen features a massive pantry, wine room and butlers bar. The L-shaped design adds extra cabinetry and creates a functional work space with a large island with seating and casual dining area. The foyer opens to a formal living room with a spiral staircase that leads to a second master suite, lounge area with bar, a gym and two ample bedrooms.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island
Walk-in Pantry

Bedroom features

Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Slab

Additional features

Exercise Room

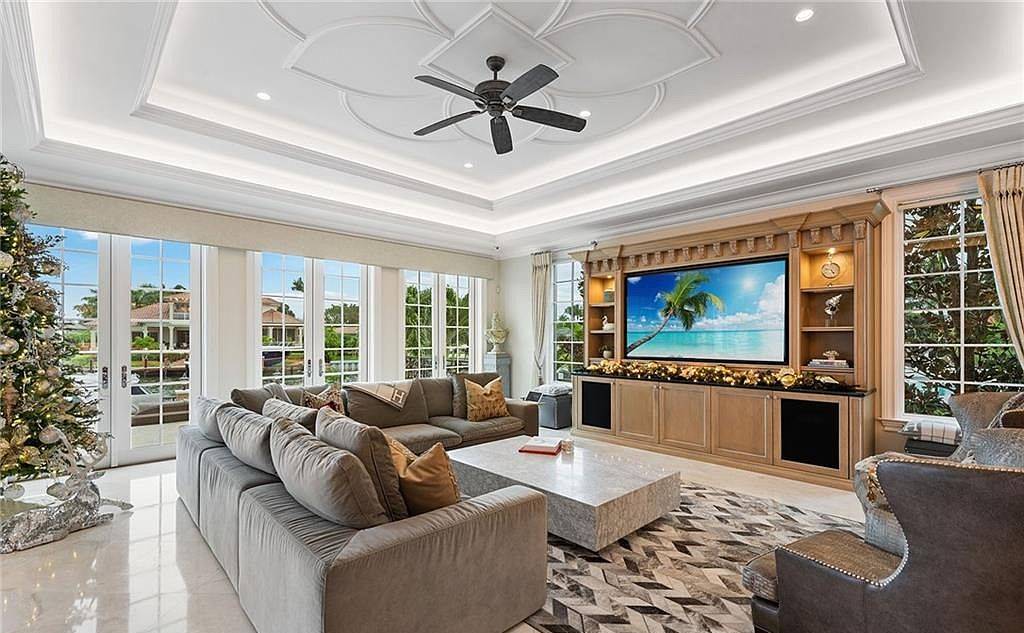

Family Room
Home Office
Laundry 2nd Fl
Library/Media Rm
Storage Space
Vaulted Ceilings
Wine Cellar

Garage Location

Front

Garage Options

Attached
Side-entry

10,611 Ft

Total Structure

8,129 Ft

Total Heated

4,390 Ft

1st Floor

3,739 Ft

2nd Floor

135 Ft

Entry

391 Ft

Balcony

Bedrooms

5.5

Bathrooms

Garage

Stories

84' 2"

Width

85' 10"

Depth

30' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

Block

Framing

Truss

Roof Framing

8:12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

1,189 Ft

Garage

667 Ft

Patio

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $6,503

PDF Single Build

~~$8,129~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $6,503

Sale: $8,129

CAD Single Build

~~$10,161~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $8,129

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
