Sq Ft
3,772 FT²

Beds
4

Baths
4.5

Stories
2

Garage
3

Depth
74' 9"

Width
84' 11"
On Sale
$1,695.75
$1,995.00

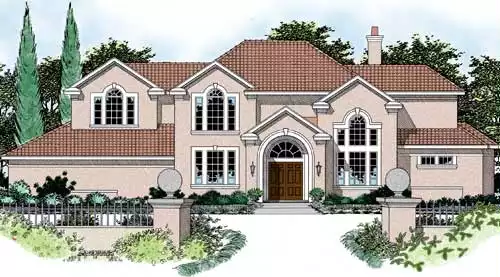

Front Exterior
© copyright by designer
View All 3 Images | Photographs may reflect modified home
Sq Ft
3,772 FT²
Beds
4
Baths
4.5
Stories
2
Garage
3
Depth
74' 9"
Width
84' 11"

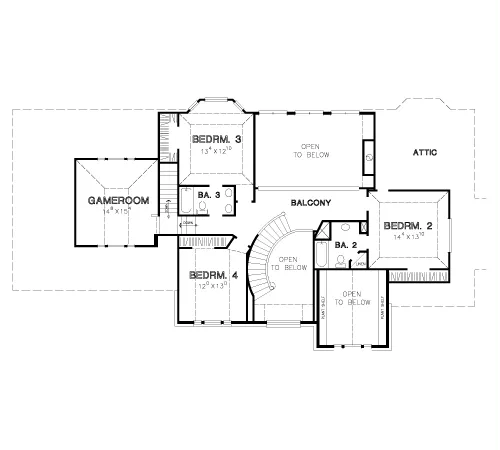

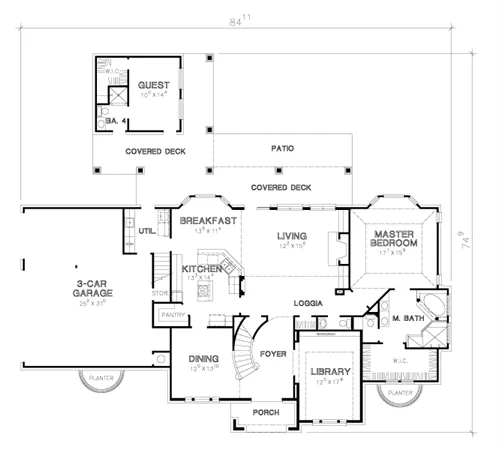

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

A separate guest cottage connected by a breezeway is a unique feature of this five bedroom mediterranean style luxury home. Features include first floor master suite, high ceiling library, and a full two story high living room. The three car garage is side entry.

See All Plan Options


FEATURES & DETAILS

Exterior features
Front Porch
Foundation Options
Crawlspace
Slab
Lot Options
Suited for view lot
Garage Location
Side
Garage Options
Attached
3,772 Ft
2
Total Heated
2,480 Ft
2
1st Floor
1,292 Ft
2
2nd Floor
4
Bedrooms
4.5
Bathrooms
3
Garage
2
Stories
84' 11"
Width
74' 9"
Depth
27' 11"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
6/12
Primary Roof Pitch
8/12
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
781 Ft
2
Garage
75 Ft
2
Porch
565 Ft
2
Deck
178 Ft
2
Patio
Collections


Plan Package Options

 Select Plan Package
Sale: $1,696
PDF Single Build
$1,995

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,696
Sale: $2,631
CAD Single Build
$3,095

States N/A: TX,NM,LA

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $2,631
 Need To Reverse Plan? (Optional)
$400
Readable Reverse

Reverse house plans with readable text and dimensions

$400
  Select Foundation Option
$0
Slab

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.

$0
$250
Crawlspace

Preferred for sloped or for level lots, crawl space foundations are elevated from 16” to four feet above the ground. This option facilitates unrestricted access to your home’s ductwork and wiring making repairs easier, is good for flood-prone areas, and often creates warmer floors.

$250
$350
Basement

Ideal for level lots, lower level of home will be partially or fully underground.

$350
If a foundation isn't listed, please live chat, email or call for availability.
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
Sale Price: $1,695.75
FREE SHIPPING
Savings: $299.25 (15%)
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
