Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,793 FT²

Beds
3

Baths
2.5

Stories
1

Garage
3

Depth
83' 8"

Width
42'

On Sale
$1,036.00
$1,295.00

EXCLUSIVE PLAN

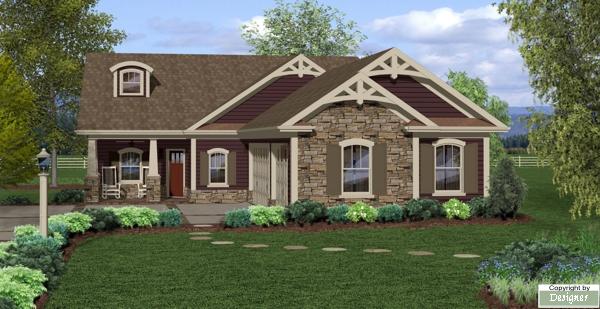

Front Elevation

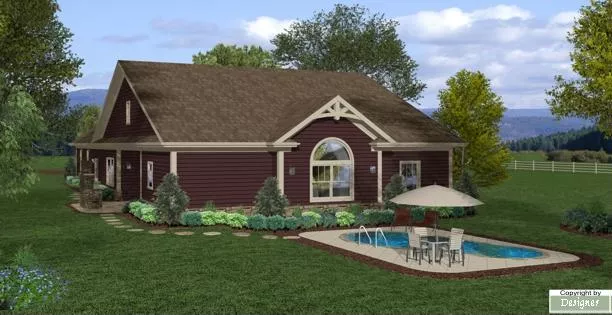

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,793 FT²

From

$1,036.00

Beds

Baths

2.5

Stories

Garage

Depth

83' 8"

Width

42'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

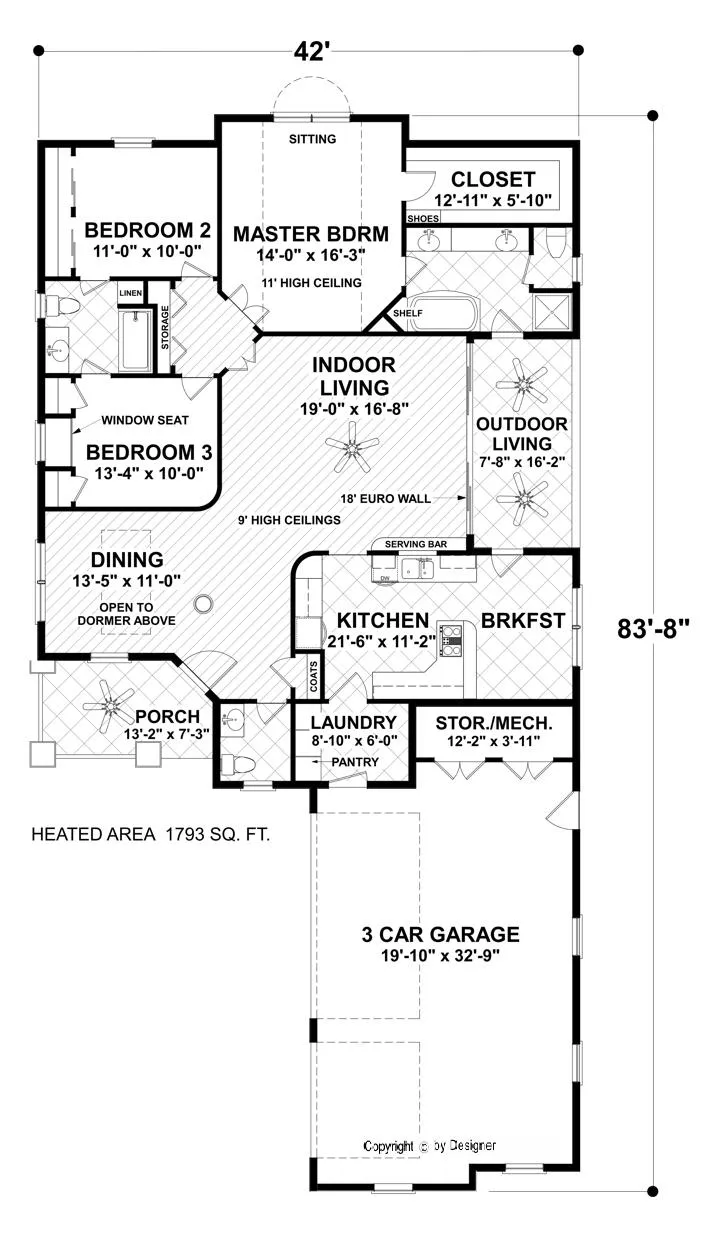

First Floor Plan

About This Plan

This inviting ranch is designed for narrow lots. We've included our most requested features and even
added a few of our own "signature touches." Just a couple of rounded corners add flair as they direct
the flow from the entry to the indoor & outdoor living areas. We've also provided access to the
outdoor living area from the master suite and the breakfast area.

With very little wasted space, it's carefully designed 1793 square feet provide the feel and features
of a much larger home. There are 9' high ceilings throughout with just a couple of added accents; The
master suite ceiling vaults to 11' and the dining room provides natural light via a light shaft to the
dormer above. The 3-car garage provides plenty of space for multiple vehicles as well as a sizable
area for storage and mechanical needs.

FEATURES & DETAILS

Foundation Options

Basement
Crawlspace
Slab

Garage Location

Side

Garage Options

Attached
Side-entry

1,793 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

42' 0"

Width

83' 8"

Depth

22' 4"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

8/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

Exterior Styles

Country

Craftsman

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$845

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$845

$1,295

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,295

$1,345

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,345

$1,395

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,395

$1,795

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795

Need To Reverse Plan? (Optional)

$295

Readable Reverse

Reverse house plans with readable text and dimensions

$295

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
