Sq Ft
2,567 FT²

Beds
4

Baths
3.5

Stories
1

Garage
3

Depth
78' 6"

Width
64' 8"

On Sale
$1,156.00
$1,445.00

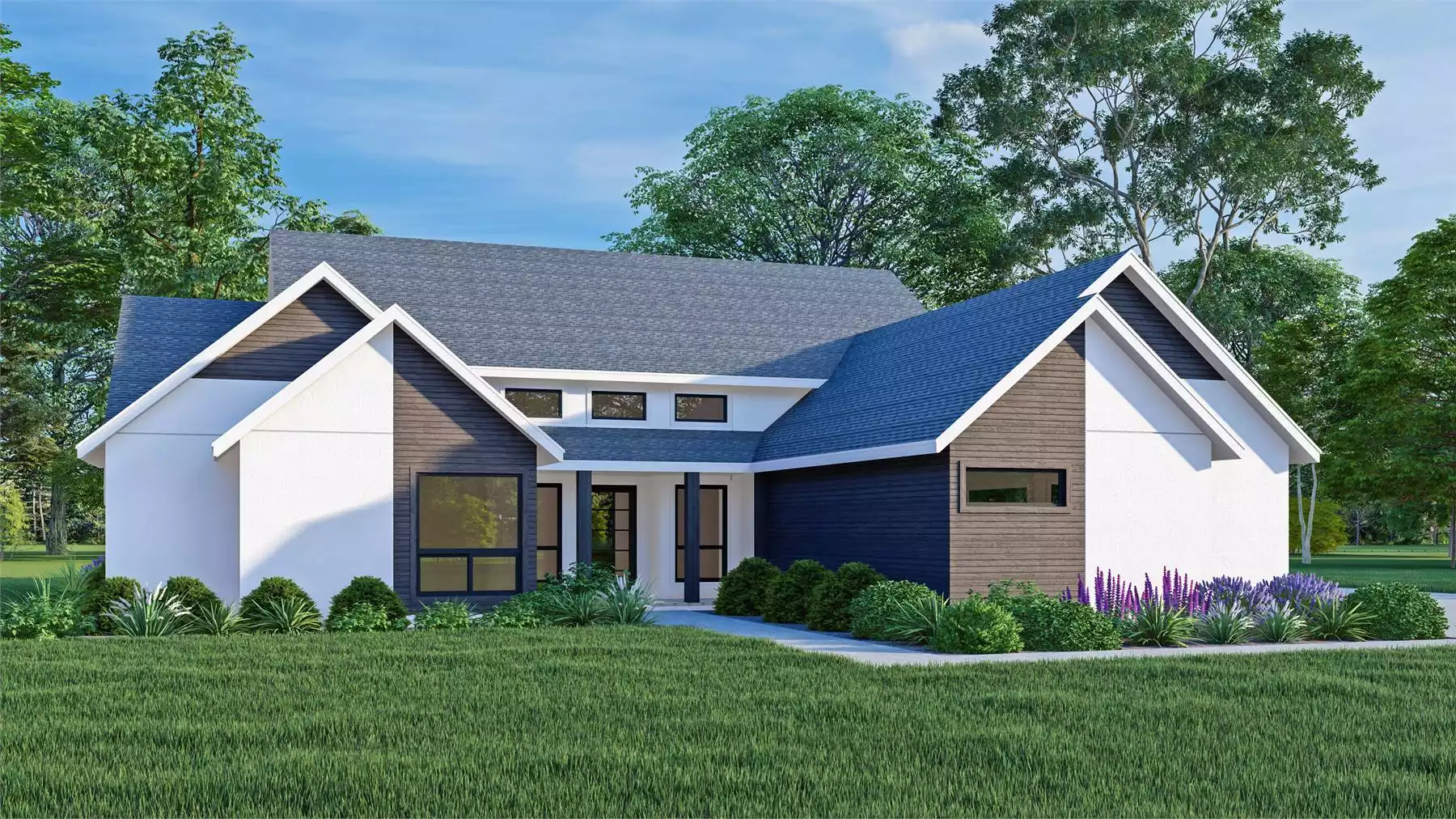

Front View

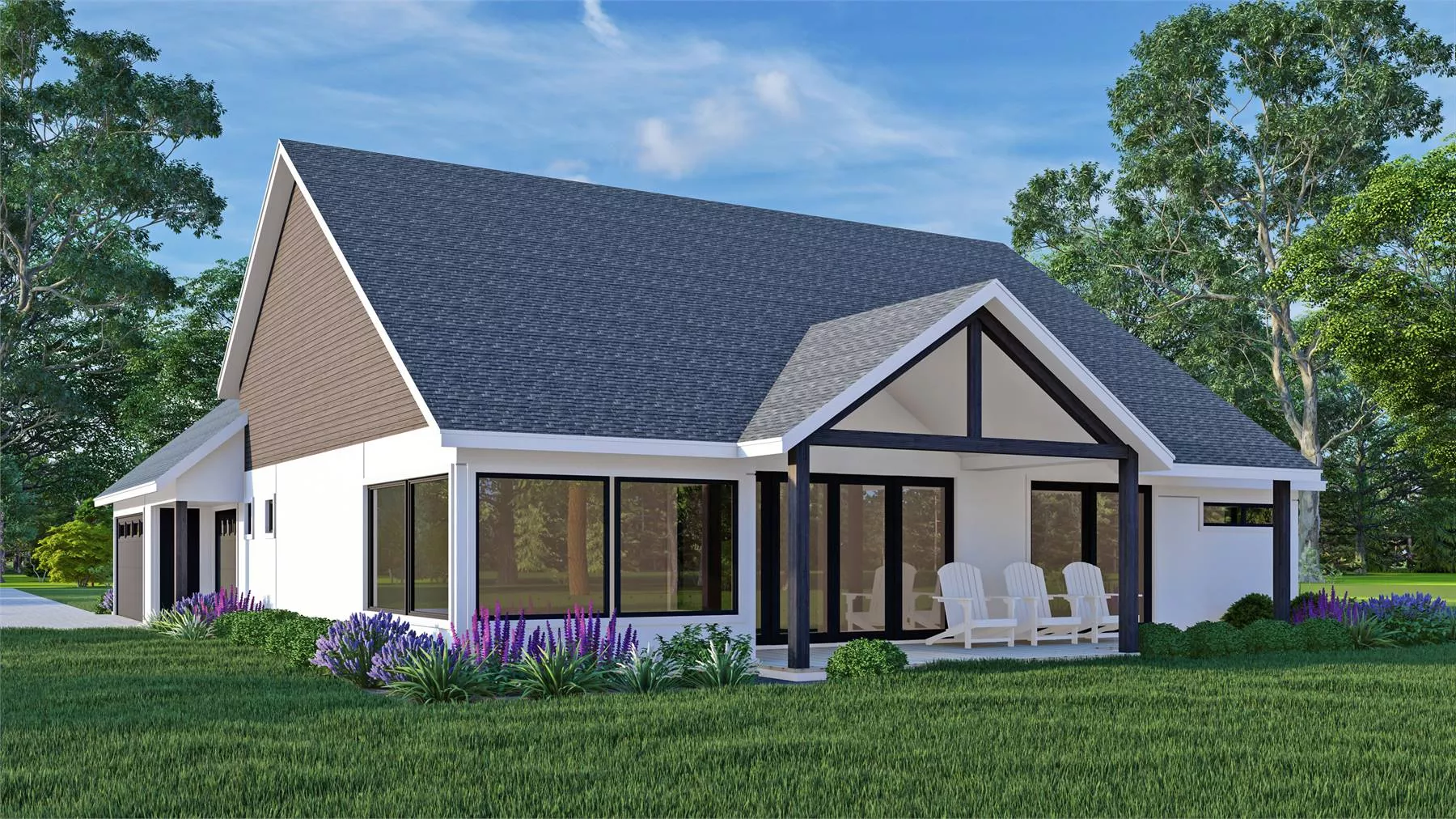

Rear View

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,567 FT²

From

$1,156.00

Beds

Baths

3.5

Stories

Garage

Depth

78' 6"

Width

64' 8"

Modify

Cost Estimator

Architect's Plan Details

Reverse Plan

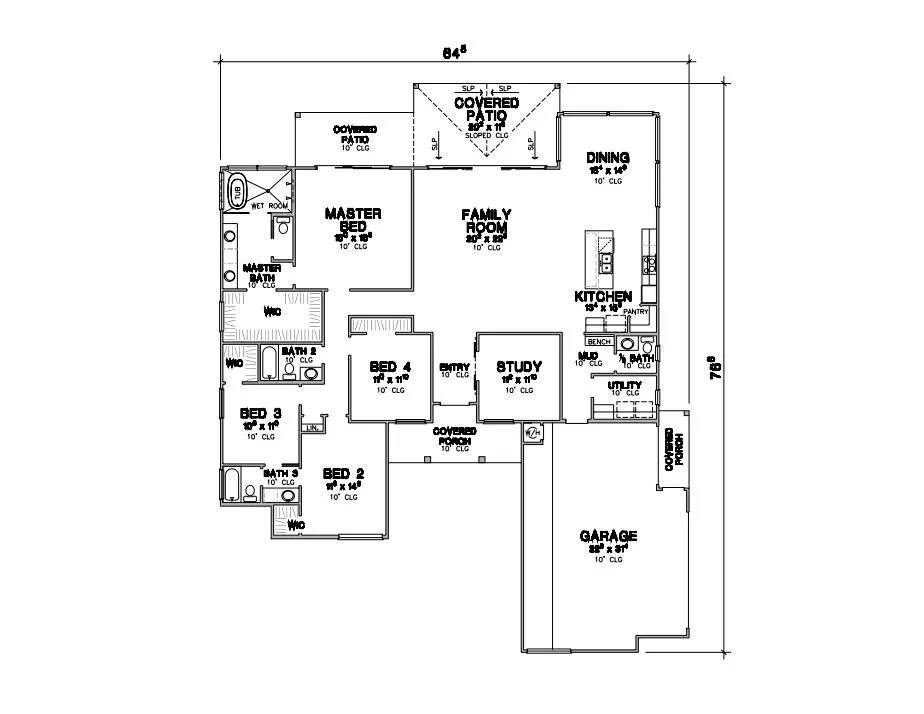

Click to Zoom In on Floor Plan

1st Floor

About This Plan

Introducing The Chevigny, a one story Modern Ranch home featuring 4 Bedrooms, 3 1/2 bathrooms and a 3 car garage. The curb appeal to this home is unmistakable with its combination hip and gable roof lines. The large windows give a modern feel and the covered rear porch is perfect for enjoying the outdoors with your family. Step inside to experience an open-concept vibe. You'll be surprised the home is only 2,567 square feet. With four bedrooms, a study, mud room, utility room and comfortable family space you'll truly be at home.

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Pantry

Bedroom features

Double Vanity Sink
Family Style
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Outdoor Living Space

Additional features

Dining Room
Family Room
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan

Garage Location

Side

Garage Options

Attached
Front-entry
Side-entry

3,717 Ft

Total Structure

2,567 Ft

Total Heated

Bedrooms

3.5

Bathrooms

Garage

Stories

64' 8"

Width

78' 6"

Depth

27' 9"

Height

10' 0"

Main Floor Ceiling

10' 0"

Primary Ceiling

2x4

Framing

Stick

Roof Framing

8:12

Primary Roof Pitch

10:12

Secondary Roof Pitch

4:12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

682 Ft

Garage

116 Ft

Porch

352 Ft

Deck

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,445

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,445

$2,445

CAD Single Build
States N/A: TX,NM,LA

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,445

Need To Reverse Plan? (Optional)

$300

Readable Reverse

Reverse house plans with readable text and dimensions

$300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

Note: No CAD to TX, NM, LA, TN, AL

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
