Sq Ft
1,707 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
2

Depth
52' 10"

Width
40'

On Sale
$1,206.40
$1,508.00

Front Rendering

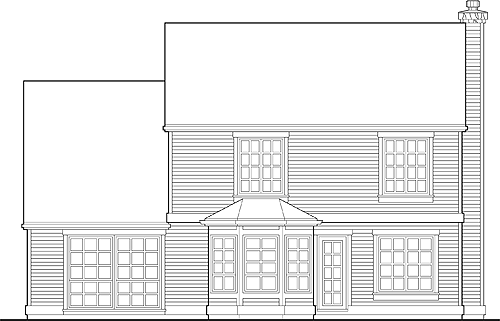

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,707 FT²

From

$1,206.40

Beds

Baths

2.5

Stories

1.5

Garage

Depth

52' 10"

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

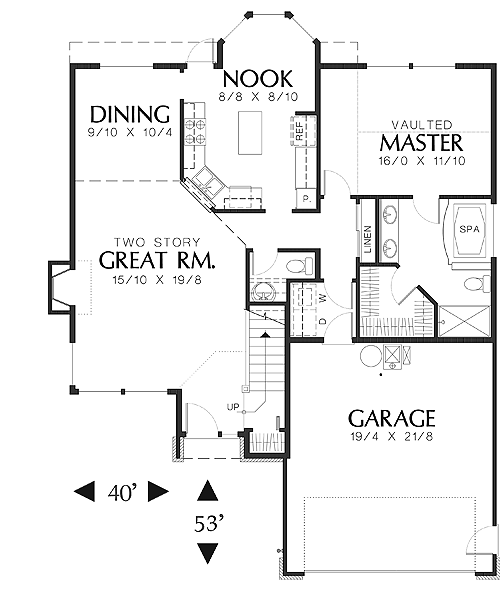

First Floor Plan

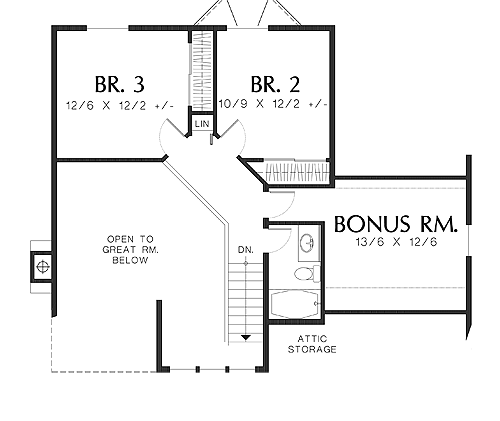

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

A covered front entry, a facade that's trimmed in brick, and tall mullioned windows give this home timeless appeal. Daily life revolves around the large, two-story great room with fireplace. The efficient kitchen is enhanced by an island that adds work surface and storage. An open wall above the sink encourages conversation between the kitchen and great room. Just steps away from the kitchen, the dining room and breakfast nook ease meal service. The angular breakfast nook is enclosed by windows and offers access to the back yard.

The master suite provides a private get-away on the first floor. A wall of windows in the vaulted bedroom scoop in light and the view. The attached bath has a double-sink vanity and both a tub and shower enclosure.

The two bedrooms upstairs share a full bath. Furnish the bonus room as a fourth bedroom or as a home office.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Primary Bdrm Main Floor
Split Bedrooms
Walk-in Closet

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Bonus Room
Great Room
Laundry 1st Fl
Unfinished Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,707 Ft

Total Heated

1,230 Ft

1st Floor

477 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

40' 0"

Width

52' 10"

Depth

26' 3"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

195 Ft

Bonus Room

Exterior Styles

Colonial

Cottage

Traditional

Collections

Old House Classics

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$1,508

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,508

$1,708

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,708

$1,758

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,758

$3,016

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,016

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
