Recently Viewed Plans | Advanced Plan Search

Sq Ft
5,789 FT²
Beds
6
Baths
6.5
Stories
2
Garage
3
Depth
74' 2"
Width
105'		 On Sale
$1,428.00
$1,680.00

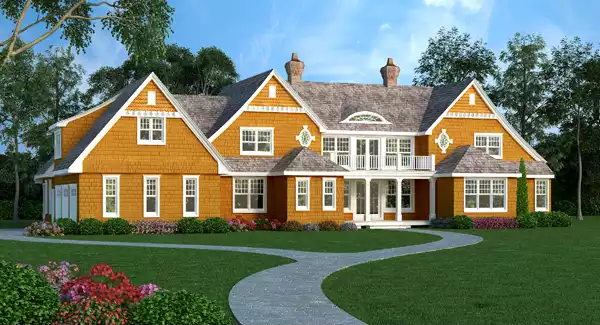

Front Rendering
© copyright by designer
View All 4 Images | Photographs may reflect modified home
Sq Ft
5,789 FT²
From
Beds
6
Baths
6.5
Stories
2
Garage
3
Depth
74' 2"
Width
105'

Click to Zoom In on Floor Plan

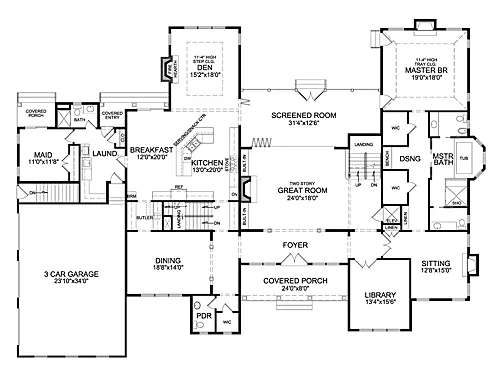

First Floor Plan

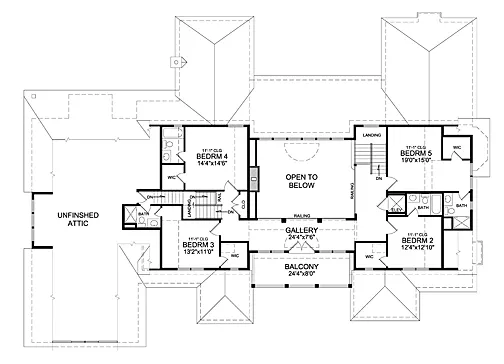

Second Floor Plan
© copyright by designer



About This Plan

The luxurious first floor master suite sets the image for this beautiful colonial, craftsman inspired home. The suite includes a sitting room, his and her baths and spacious closets. Just outside the suite is a lovely library. The home includes 6 bedrooms and 7 baths. The dramatic living room is a two story high space. The kitchen, breakfast room and family room are one open flowing space. There is a butlers pantry connecting to the dining room. A large screened porch is accessible from the living room and family room and kitchen. An elevator connects to the second floor which has four en-suite bedrooms each with a full bath and walk-in closet. There is a lovely front balcony here as well. There are two staircases connecting the two floors as well as the elevator and a third outside stair to the basement. Construction drawings include an unfinished walk-out basement option at the right side of the house if your lot allows. There is also a large unfinished attic for future use.

See All Plan Options


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Rear Porch
Screened Porch/Sunroom
Foundation Options
Basement
Daylight Basement
Walkout Basement
Lot Options
Suited for corner lot
Suited for sloping lot
Suited for view lot
Additional features
Bonus Room
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
5,789 Ft
2
Total Heated
4,140 Ft
2
1st Floor
1,649 Ft
2
2nd Floor
385 Ft
2
Screeened Porch
6
Bedrooms
6.5
Bathrooms
3
Garage
2
Stories
105' 0"
Width
74' 2"
Depth
35' 7"
Height
9.5' 0"
Main Floor Ceiling
8.1' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
9
Primary Roof Pitch
10
Secondary Roof Pitch
11
Teritary Roof Pitch
Single
Dwelling Number

Unheated Living Space
851 Ft
2
Garage
430 Ft
2
Porch
925 Ft
2
Bonus Room
Exterior Styles
Beach
Country
Craftsman
Collections
Luxury
Primary Suites
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom


Plan Package Options

Important info before you buy
 Select Plan Package
Sale: $1,126
PDF Bid Set
$1,325

PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade
Sale: $1,126
Sale: $1,428
PDF Single Build
$1,680

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.
Sale: $1,428
Sale: $1,530
5 Printed Sets
$1,800

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.
Sale: $1,530
Sale: $1,624
8 Printed Sets
$1,910

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.
Sale: $1,624
Sale: $2,376
CAD Single Build
$2,795

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.
Sale: $2,376
 Need To Reverse Plan? (Optional)
$350
Readable Reverse

Reverse house plans with readable text and dimensions
$350
  Select Foundation Option
$0
Walkout Basement
PDFs NOW!™

Ideal for sloped lots, home will be partially underground with windows and exterior doors.
$0
If a foundation isn't listed, please live chat, email or call for availability.
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.
FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer
Sub Total
Sale Price: $1,428.00
Immediate Delivery
Savings: $252.00 (15%)
ADD TO CART
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
