Sq Ft
3,076 FT²

Beds
4

Baths
3.5

Stories
2

Garage
3

Depth
53'

Width
64'

On Sale
$928.00
$1,160.00

Color Rendering

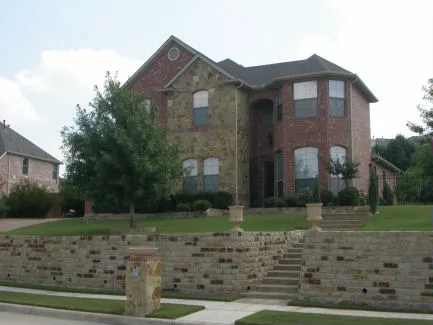

Front

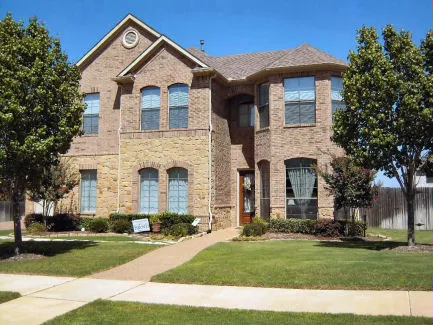

Front 2

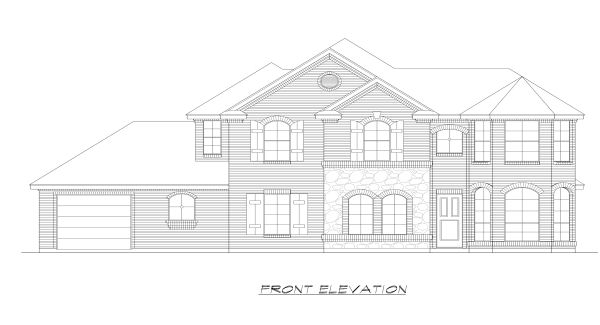

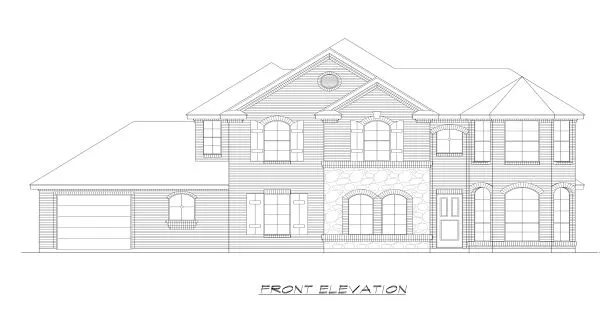

Front Elevation

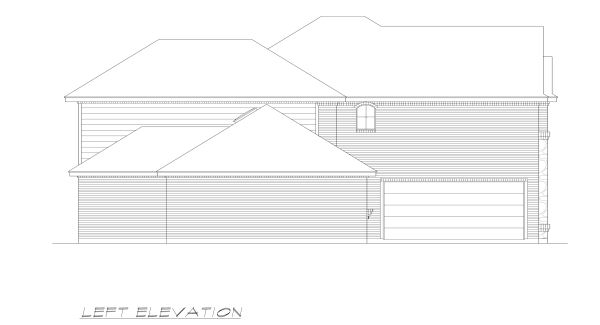

Left Elevation

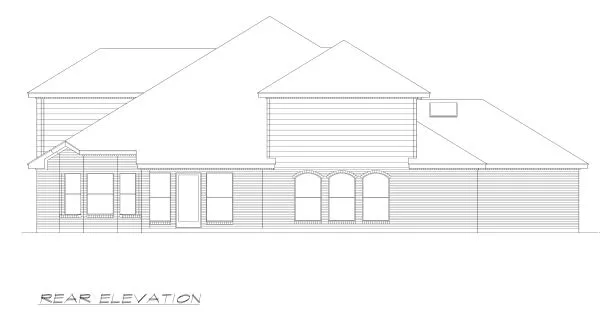

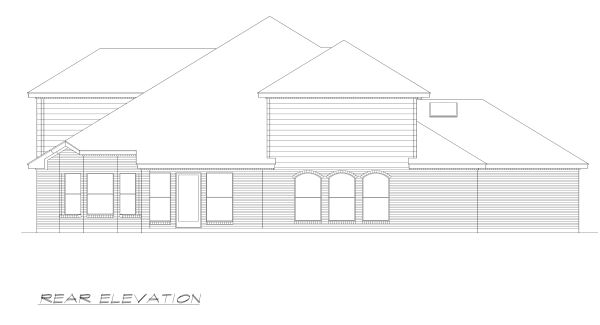

Rear Elevation

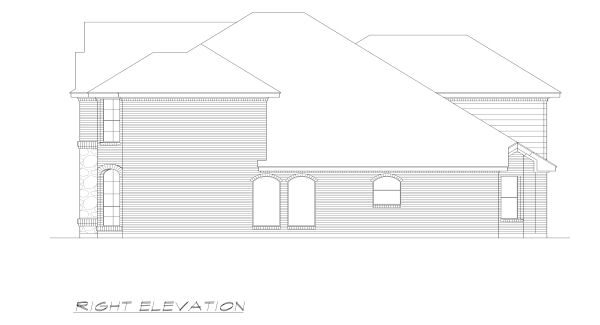

Right Elevation

View All 7 Images | Photographs may reflect modified home

Sq Ft

3,076 FT²

From

$928.00

Beds

Baths

3.5

Stories

Garage

Depth

53'

Width

64'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

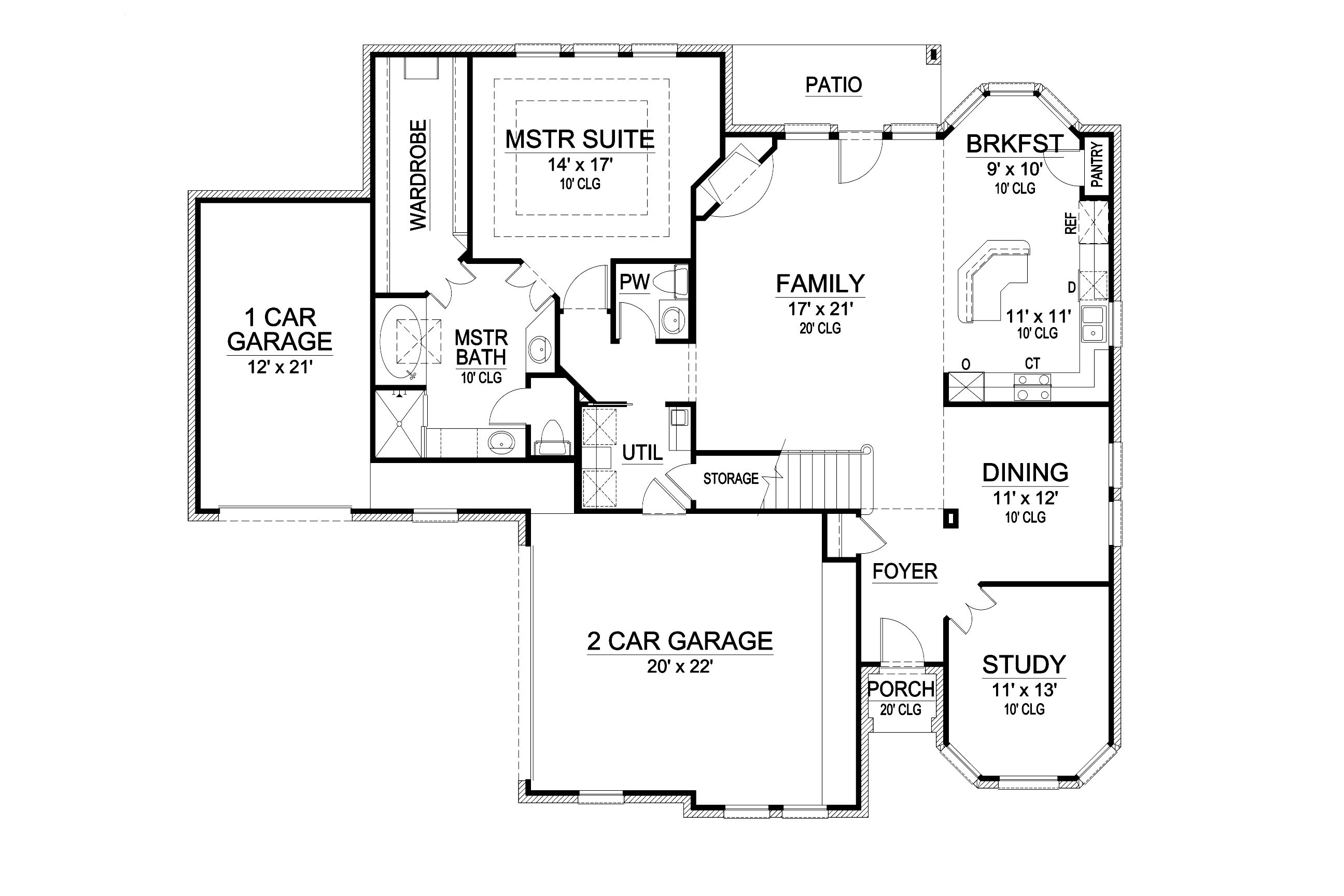

First Floor

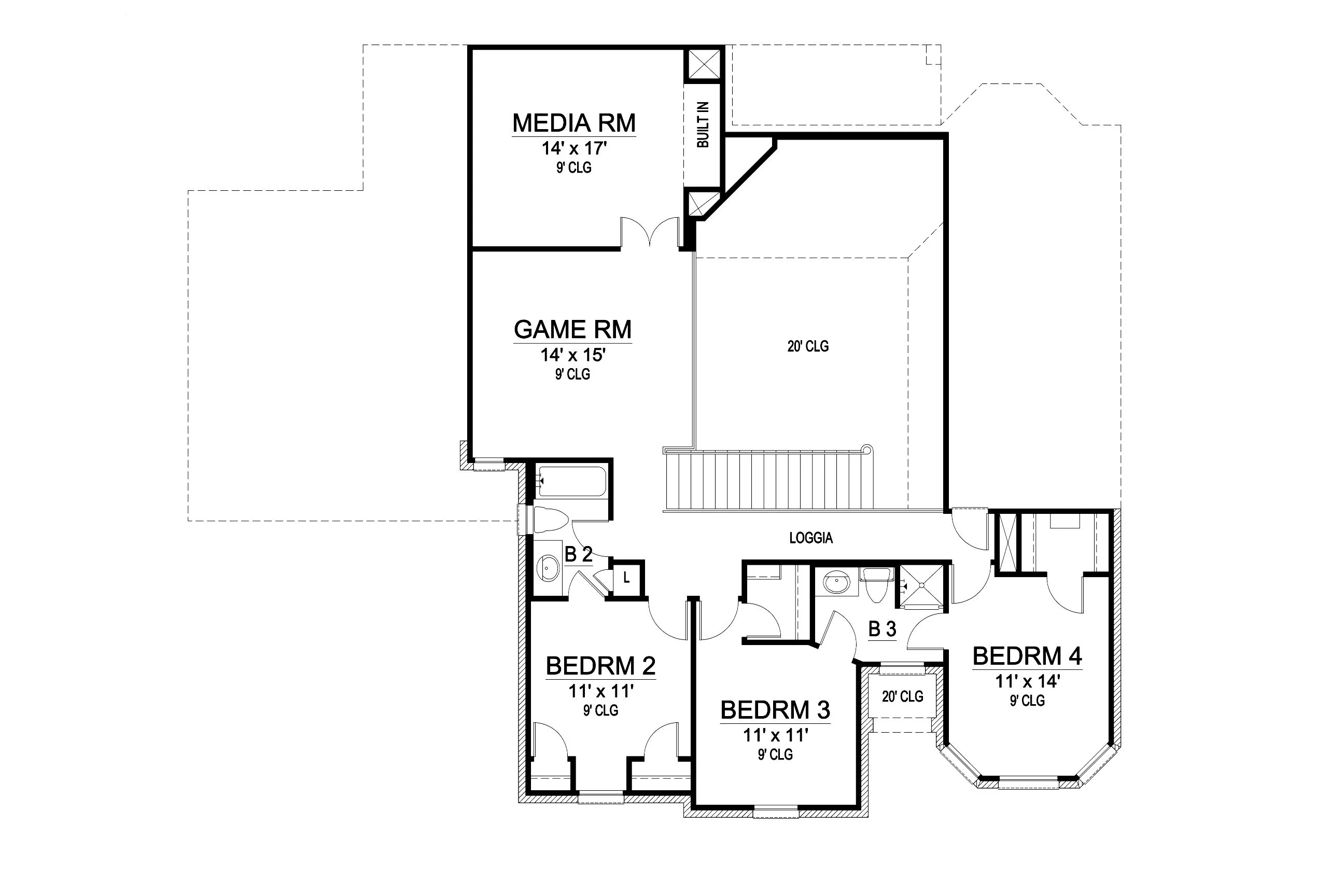

Second Floor

First Floor

Second Floor

About This Plan

This luxurious mansion opens into an inviting entry through a two-story porch. The foyer is flanked by the bayed study and dining room. Beyond is the open living space, made up of the family room, kitchen, and breakfast area. The family room features a warming corner fireplace as well as access to the patio. The kitchen is only separated from the breakfast area and family room by the free standing eating bar. Enjoy the beautiful views of the backyard through the wall of windows in the bayed breakfast area. The master suite features a trey ceiling, spacious wardrobe and luxurious master bath with separate tub and shower and dual vanities. On the second floor of this house plan there are three family bedrooms, each featuring a walk-in closet and access to one of the two full baths. The media room can be accessed through the game room and offers built ins.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Additional features

Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Storage Space

Garage Location

Front

Garage Options

Attached
Front-entry
Side-entry

3,983 Ft

Total Structure

3,076 Ft

Total Heated

1,784 Ft

1st Floor

1,292 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

64' 0"

Width

53' 0"

Depth

32' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Slab

Roof Framing

Single

Dwelling Number

Unheated Living Space

Exterior Styles

Modern

Southern

Collections

Luxury

Plan Package Options

Important info before you buy

Select Plan Package

$1,045

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,045

$1,225

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,225

$1,570

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,570

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
