Estuary 6 Bedroom Contemporary Lake Style House, Plan 9486


Sq Ft
5,200 FT²

Beds
6

Baths
4.5

Stories
2

Garage
2

Depth
70'

Width
59'
On Sale
$2,080.00
$2,600.00
© copyright by designer
View All 6 Images | Photographs may reflect modified home
Sq Ft
5,200 FT²
From
$2,080.00
Beds
6
Baths
4.5
Stories
2
Garage
2
Depth
70'
Width
59'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This stunning three level 5,200 sq. ft. contemporary house plan is perfect for a large family that loves to entertain yet have their own private spaces to relax and unwind.

Whether entering the home through the 2 car front garage or the foyer, you’ll immediately feel the airiness of the 2 story foyer with a convenient powder room and coat closet to use. The main level has just 1 ensuite bedroom tucked behind the garage and stairwell, a perfect location for your out of town guests or older grandparents.

This floor  is the main living space for the family with an open floor plan concept. There are tons of windows for natural light, and the outdoor deck is accessed through the sliding glass doors. The great room is anchored by a fireplace, and the kitchen has a large walk-in pantry.

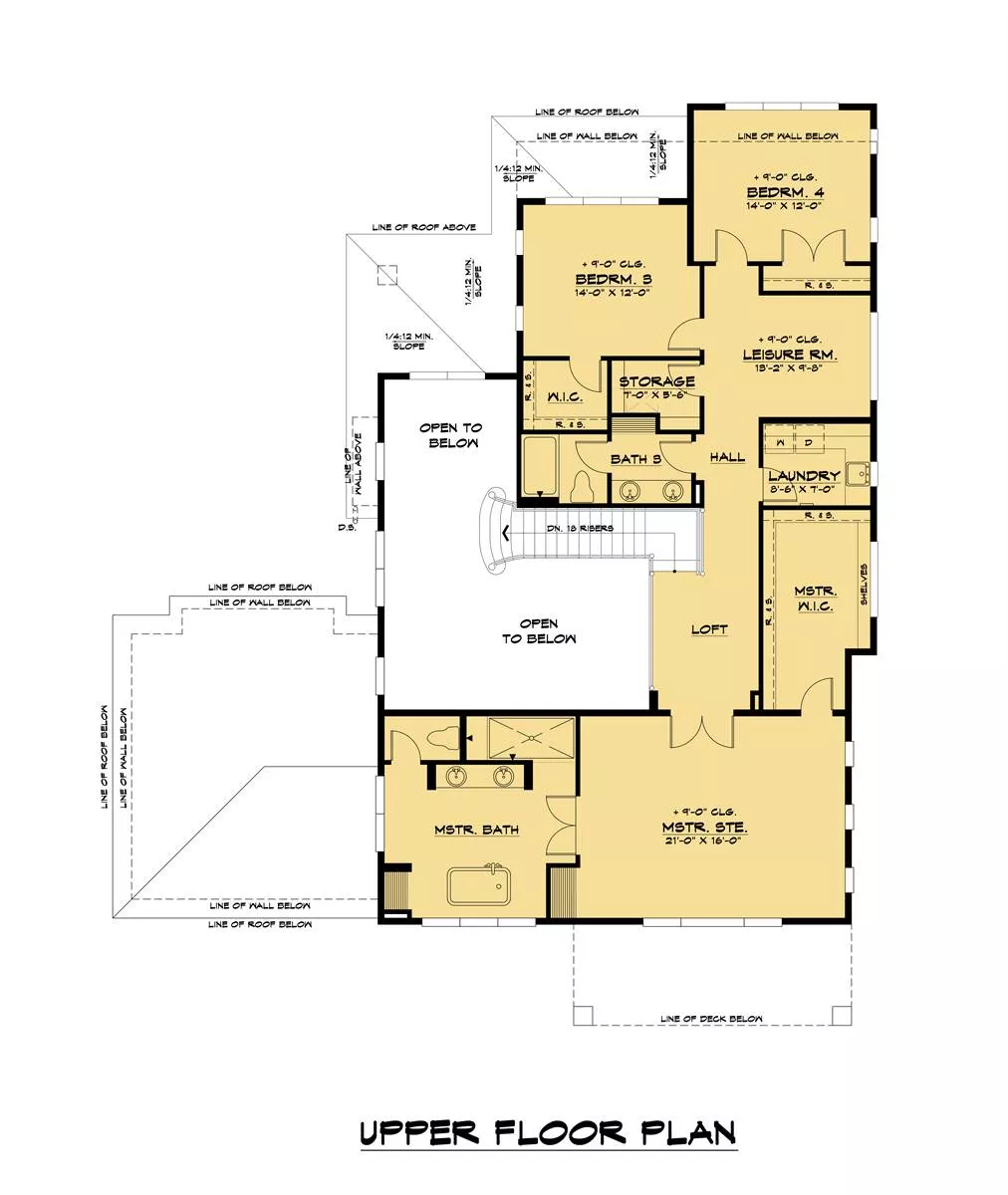

Up the stairs is found 3 of the 5 bedrooms of the home including the master suite and the laundry room. The two secondary bedrooms share a hallway bath while the master bedroom claims the back of the home and has a dual sink bathroom with both a shower and a stand alone tub and a walk-in closet.

The lower level of the home has the remaining 2 bedrooms of the 5, and they share a compartmentalized hallway bathroom. There is an additional flex room that has a fireplace as well as an exterior exit onto a concrete patio.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Walk-in Closet
Exterior features
Covered Front Porch
Deck
Rear Porch
Lot Options
Suited for corner lot
Suited for narrow lot
Additional features
2 Story Volume
Dining Room
Exercise Room
Fireplace
Great Room
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Rec Room
Storage Space
Garage Location
Front
Garage Options
Attached
Front-entry
Oversized
6,176 Ft
2
Total Structure
5,200 Ft
2
Total Heated
2,031 Ft
2
1st Floor
1,707 Ft
2
2nd Floor
1,462 Ft
2
Lower Floor
6
Bedrooms
4.5
Bathrooms
2
Garage
2
Stories
59' 0"
Width
70' 0"
Depth
37' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
9' 0"
Lower Floor Ceiling
2x6
Framing
Truss
Roof Framing
4/12
Primary Roof Pitch
.25/12
Secondary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
587 Ft
2
Garage
109 Ft
2
Porch
104 Ft
2
Deck


Plan Package Options

 Select Plan Package
$2,600
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,600
$2,900
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,900
$3,050
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$3,050
$4,940
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,940
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer Binder

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
