Sq Ft
2,046 FT²

Beds
3

Baths
2.5

Stories
1

Garage
2

Depth
57' 4"

Width
68' 2"
On Sale
$1,088.00
$1,360.00

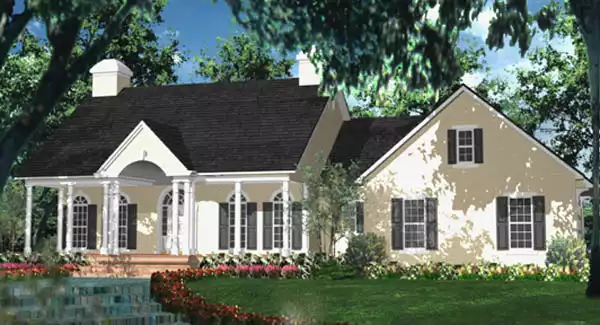

Front Rendering
© copyright by designer
 View All 3 Images | Photographs may reflect modified home
Sq Ft
2,046 FT²
Beds
3
Baths
2.5
Stories
1
Garage
2
Depth
57' 4"
Width
68' 2"

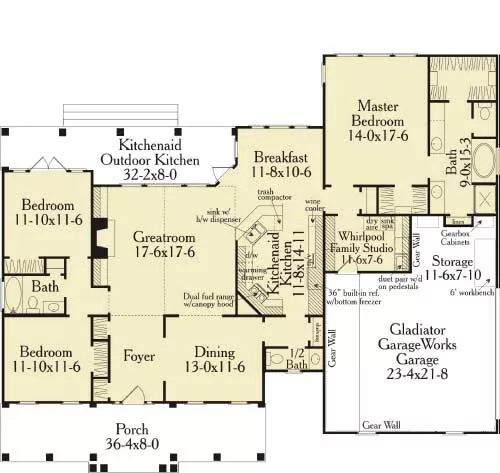

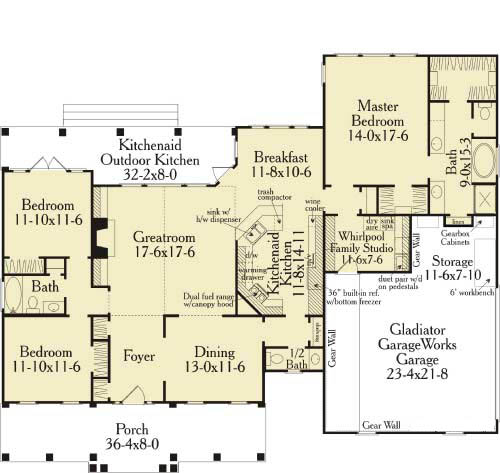

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This dream home presents an impressive kitchen featuring Kitchenaid Architect Series appliances. The Whirlpool Family Studio series creates a magnificant laundry room. In the garage Gladiator Garageworks makes organization a snap. A great split bedroom design with a vaulted great room, windows galore and a large rear porch featuring the Kitchenaid Outdoor Kitchen series.

See All Plan Options


FEATURES & DETAILS

Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Basement
Crawlspace
Slab
Additional features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Side-entry
2,046 Ft
2
Total Heated
3
Bedrooms
2.5
Bathrooms
2
Garage
1
Stories
68' 2"
Width
57' 4"
Depth
9' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
9/12
Primary Roof Pitch
10/12
Secondary Roof Pitch
12/12
Gable Roof Pitch
Single
Dwelling Number

Unheated Living Space
611 Ft
2
Garage
539 Ft
2
Porch


Plan Package Options

 Select Plan Package
Sale: $1,088
PDF Single Build
$1,360

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,088
Sale: $1,364
5 Printed Sets
$1,705

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,364
Sale: $1,504
5 Printed Sets + PDF
$1,880

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,504
Sale: $1,852
CAD + PDF Single Build
$2,315

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $1,852
  Select Foundation Option
$0
Slab

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.

$0
$350
Basement

Ideal for level lots, lower level of home will be partially or fully underground.

$350
$350
Crawlspace

Preferred for sloped or for level lots, crawl space foundations are elevated from 16” to four feet above the ground. This option facilitates unrestricted access to your home’s ductwork and wiring making repairs easier, is good for flood-prone areas, and often creates warmer floors.

$350
If a foundation isn't listed, please live chat, email or call for availability.
  Add-Ons (Optional)
$175
ENERGY STAR® Approved

In addition to the construction plans, with this package you will receive detailed drawings, wall and roof insulation and glazing specifications and information on cooling calculations for your specific area plus information on getting your home built and certified to ENERGY STAR® standards. You must purchase construction plans as well from the list above. This package is not exchangeable or refundable under any circumstances. Allow one week for completion of your customized package. Available in the U.S. Please allow 3-5 business days for delivery.

$175
$245
Materials List

A comprehensive materials list detailing every component needed to build your home from foundation to finishing options. Customized for each design, precise and easy-to-follow. Please allow 3-5 business days for delivery.

$245
If an add-on isn't listed, please live chat, email or call for availability.
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
Sale Price: $1,088.00
FREE SHIPPING
Savings: $272.00 (20%)
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 30-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
