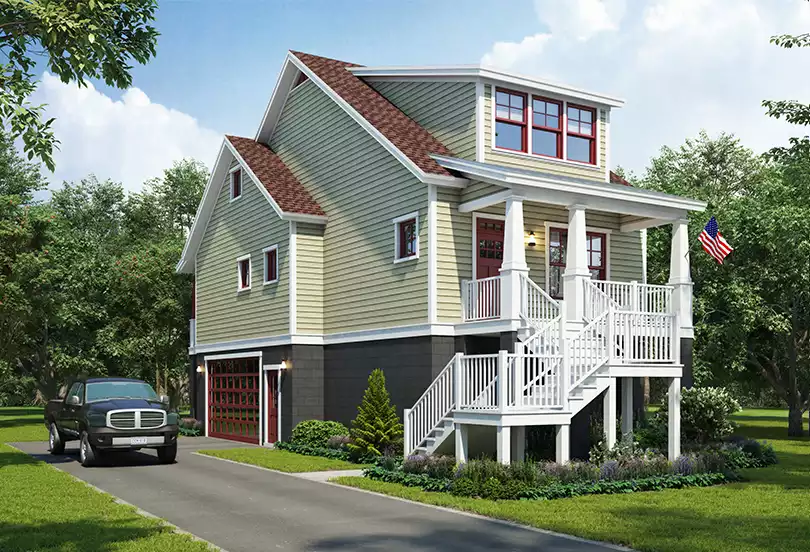

Semper Fi Beach Front Cottage Style House, Plan 5023


Sq Ft
1,894 FT²

Beds
4

Baths
2.5

Stories
3

Garage
2

Depth
52' 5"

Width
24'
On Sale
$860.00
$1,075.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
1,894 FT²
From
$860.00
Beds
4
Baths
2.5
Stories
3
Garage
2
Depth
52' 5"
Width
24'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

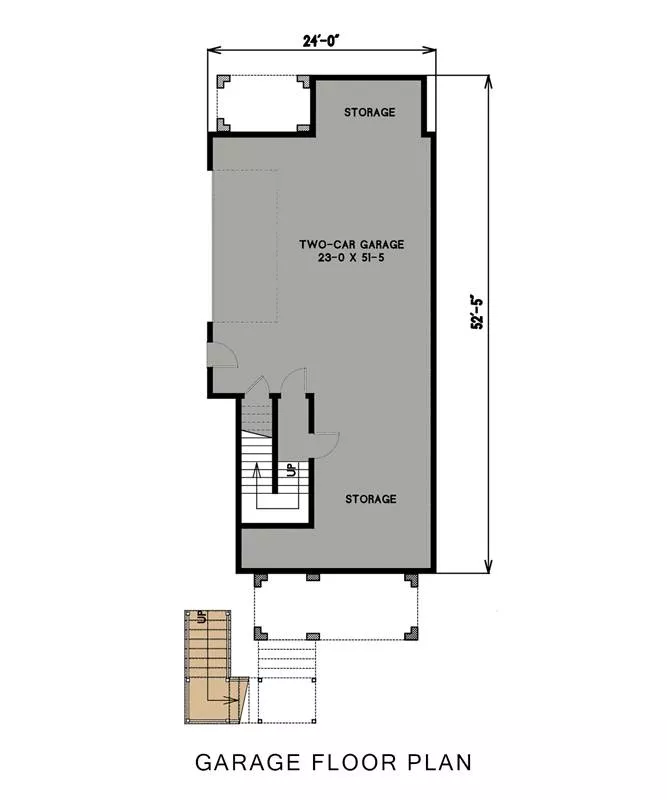

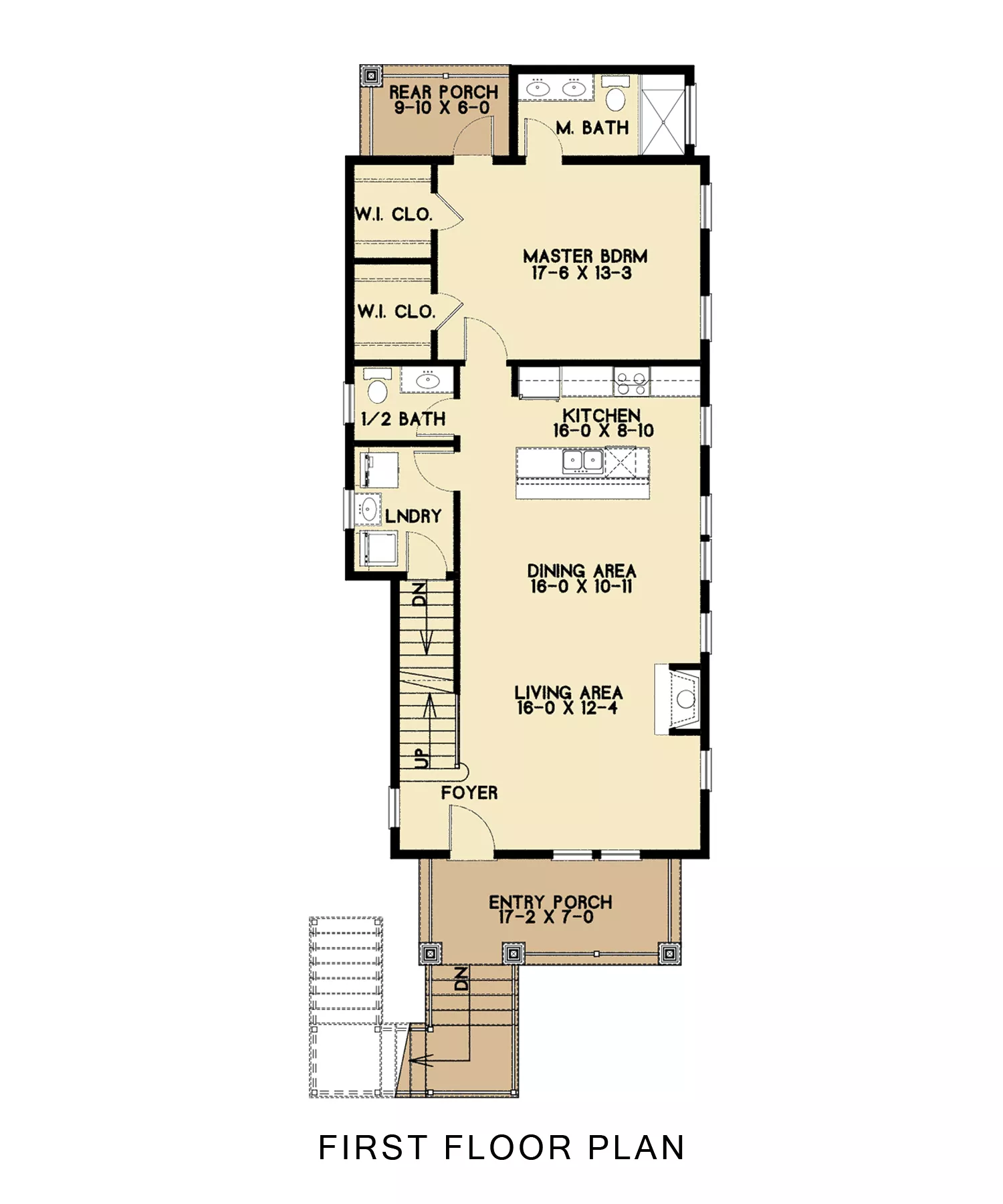

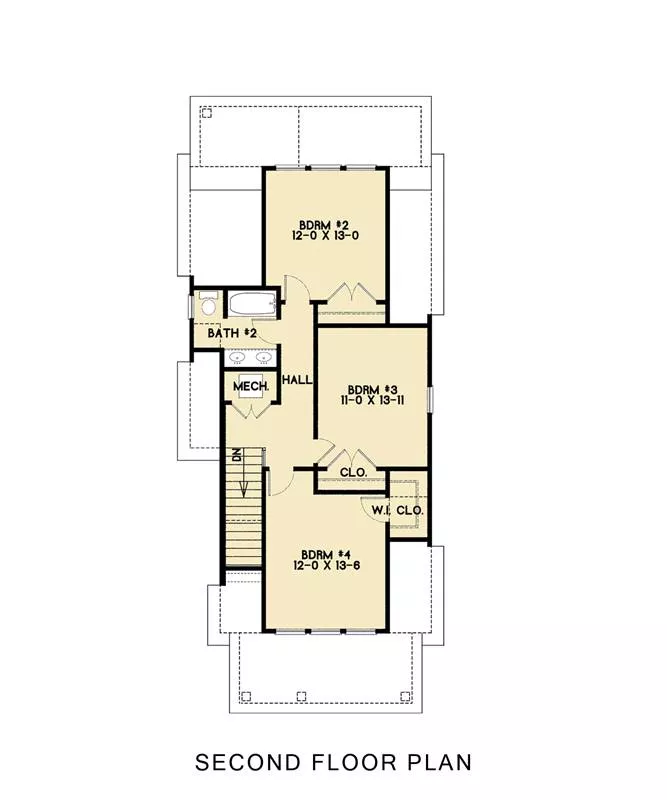

With the look and feel of a cozy cottage and the space for a large or growing family, this home is your own slice of the American Dream! Featuring timeless classic styles, this design will fit in perfectly to a wide range of neighborhoods and locations. And with its narrow footprint, it can be built on even the most limited of lots. Plus, the 3-story layout offers a sensible 1,894 square feet of space, including 4 bedrooms. The ground floor features a side-entry garage which is packed full of storage and customization potential. Whether you want to add a workshop or just stow away some holiday decorations, there is plenty of space for anything you need. The main level is accessible either via the main or the exterior stairs. Once there you'll find an open layout which seamlessly joins the living room, kitchen, and dining areas together with ease. Also on the first floor is the master suite which comes complete with dual walk-in closets, a private full bath, and even your own private porch. The uppermost floor houses 3 more bedrooms as well as the laundry. If you don't need all 3, consider making one room into an office or playroom. This plan is super flexible!


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Additional features
Fireplace
Formal LR
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Workshop
Garage Location
Side
Garage Options
Attached
Side-entry
3,205 Ft
2
Total Structure
1,894 Ft
2
Total Heated
1,079 Ft
2
1st Floor
815 Ft
2
2nd Floor
4
Bedrooms
2.5
Bathrooms
2
Garage
3
Stories
24' 0"
Width
52' 5"
Depth
36' 10"
Height
9' 1"
Main Floor Ceiling
9' 1"
Upper Floor Ceiling
9' 1"
Lower Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
8
Secondary Roof Pitch
8
Gable Roof Pitch
8
Dormer Roof Pitch
4
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,132 Ft
2
Garage
179 Ft
2
Porch


Plan Package Options

 Select Plan Package
$250
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$250
$1,075
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,075
$1,175
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,175
$1,865
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,865
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer Binder

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
