Sq Ft
1,769 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
71' 8"

Width
51'

On Sale
$928.00
$1,160.00

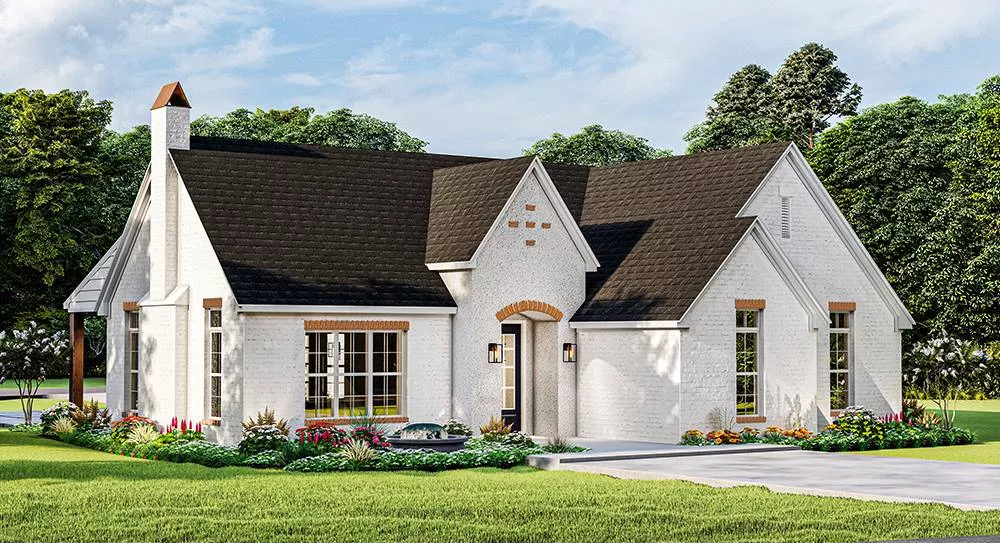

Front Rendering

Front rendering

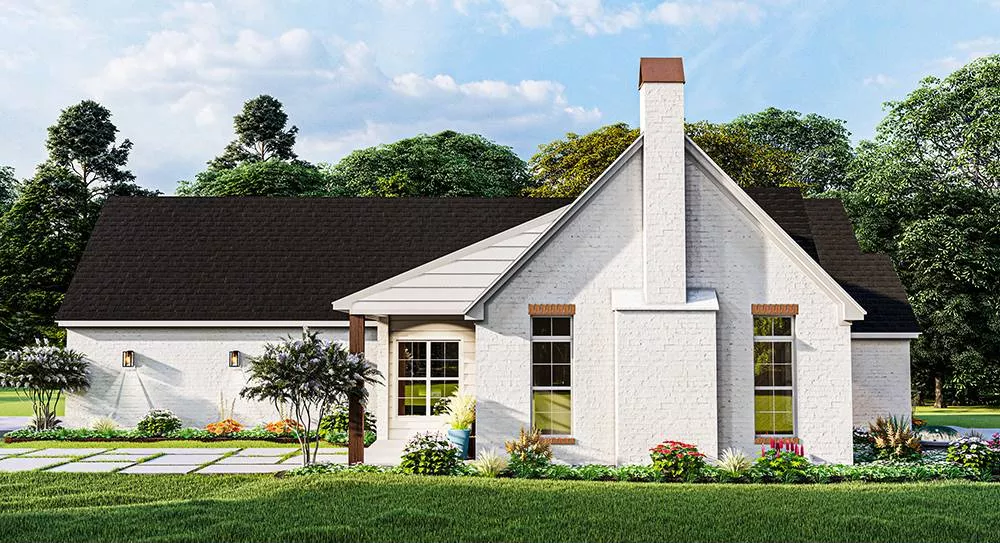

Left Elevation

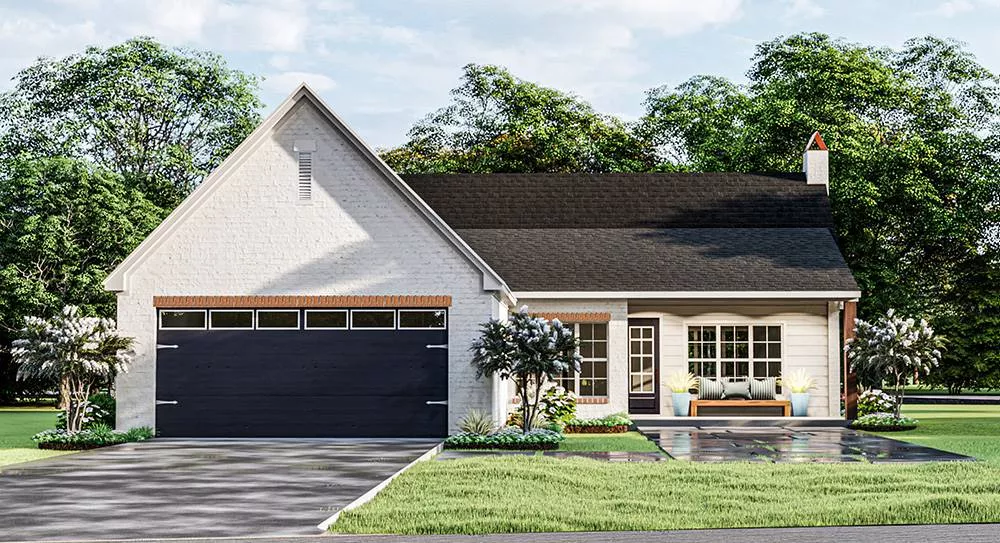

Rear rendering

Right Elevation

View All 6 Images | Photographs may reflect modified home

Sq Ft

1,769 FT²

From

$928.00

Beds

Baths

Stories

Garage

Depth

71' 8"

Width

51'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

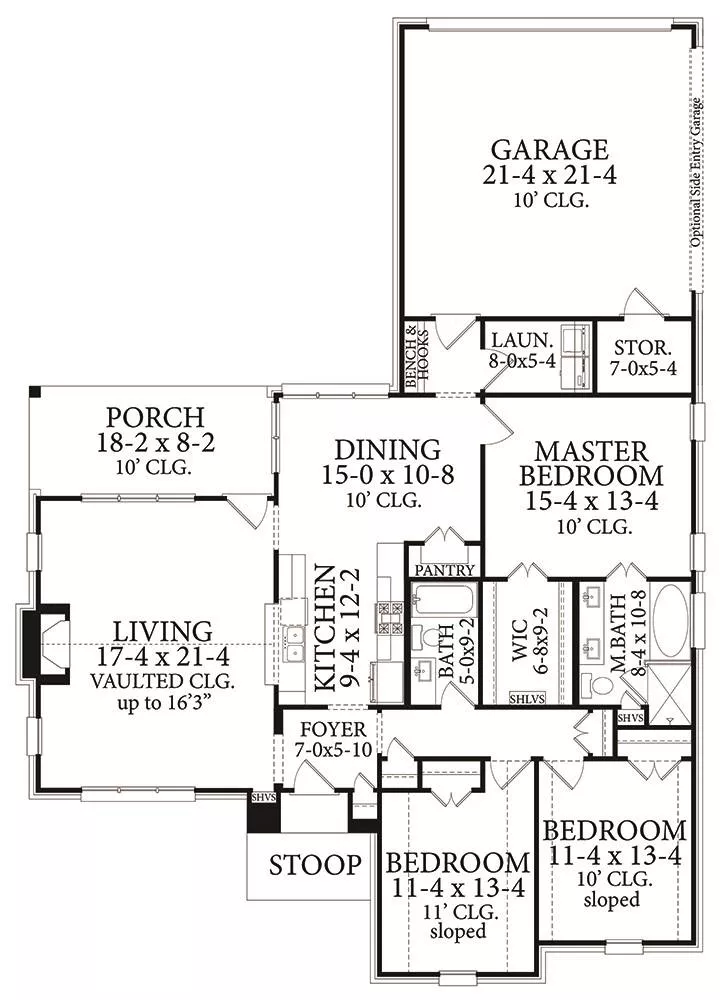

Floor Plan

About This Plan

Great single story design with 1,769 heated square feet. Upon entering the living room, one is invited by the vaulted ceiling centered on the wood burning fireplace. The ceiling in the living room vaults up to 16'3". The kitchen and the dining room center the floor plan. The master bedroom is privately located to the rear of the home and includes a large walk-in closet. The other two bedrooms and bath are positioned in the front of the home and both included sloped ceilings. The front left bedroom slopes up to 11'. The garage entry is optional to either the rear of the home or side. You can choose what best suits your needs. A mudroom is located just inside the garage.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for narrow lot

Additional features

Arches
Family Room
Fireplace
Foyer
Laundry 1st Fl
Mud Room
Storage Space
Vaulted Ceilings

Garage Location

Rear

Garage Options

Attached
Rear-entry
Side-entry

1,769 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

51' 0"

Width

71' 8"

Depth

21' 2"

Height

10'' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

15/12

Secondary Roof Pitch

5/12

Teritary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

510 Ft

Garage

44 Ft

Storage

165 Ft

Porch

Exterior Styles

Cottage

French Country

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,160

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,160

$1,355

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,355

$1,530

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,530

$2,065

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,065

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
