Radbrook Place Two Story Traditional Style House, Plan 5009


Sq Ft
5,487 FT²

Beds
3

Baths
4

Stories
2

Garage
4

Depth
69'

Width
152'
On Sale
$1,936.00
$2,420.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
5,487 FT²
From
$1,936.00
Beds
3
Baths
4
Stories
2
Garage
4
Depth
69'
Width
152'

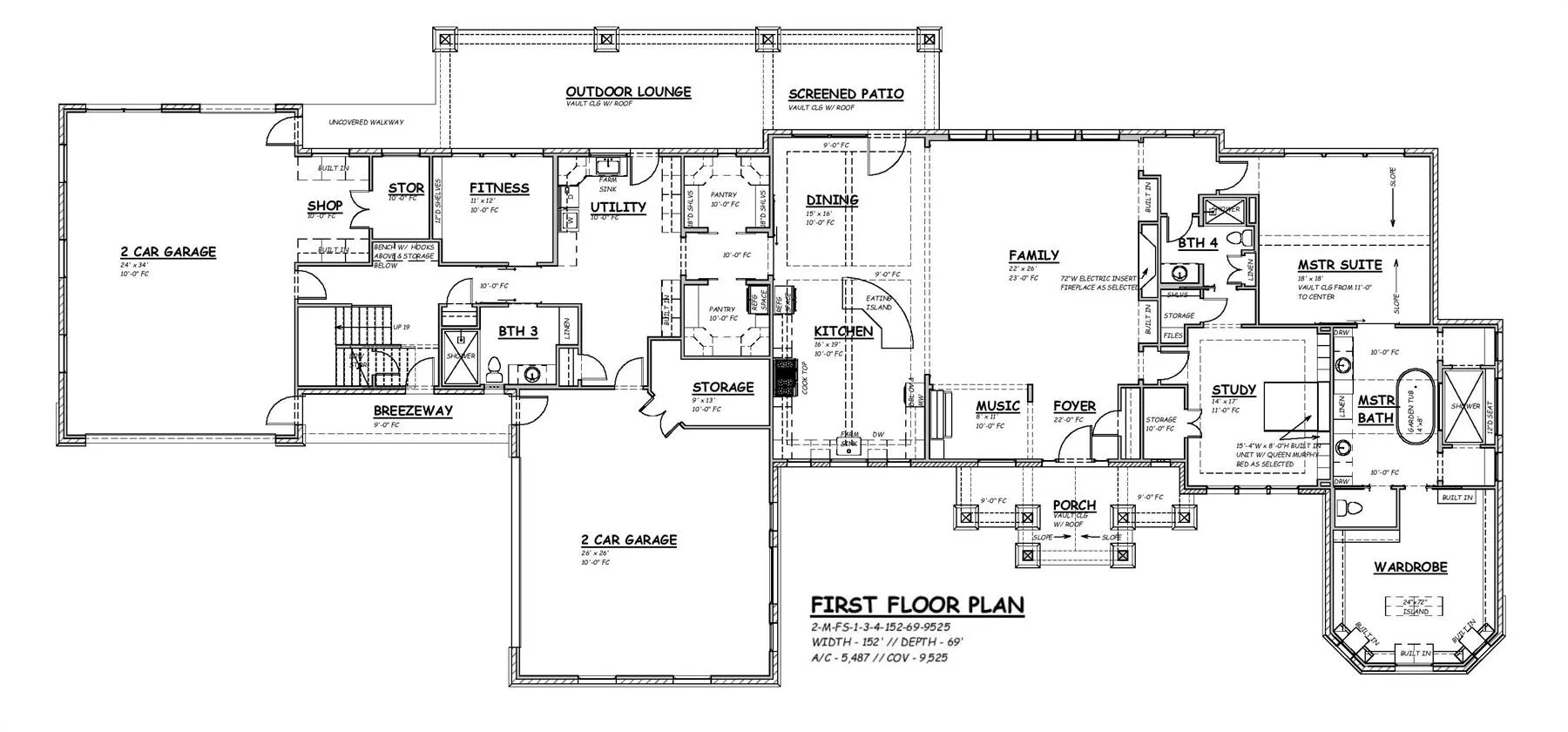

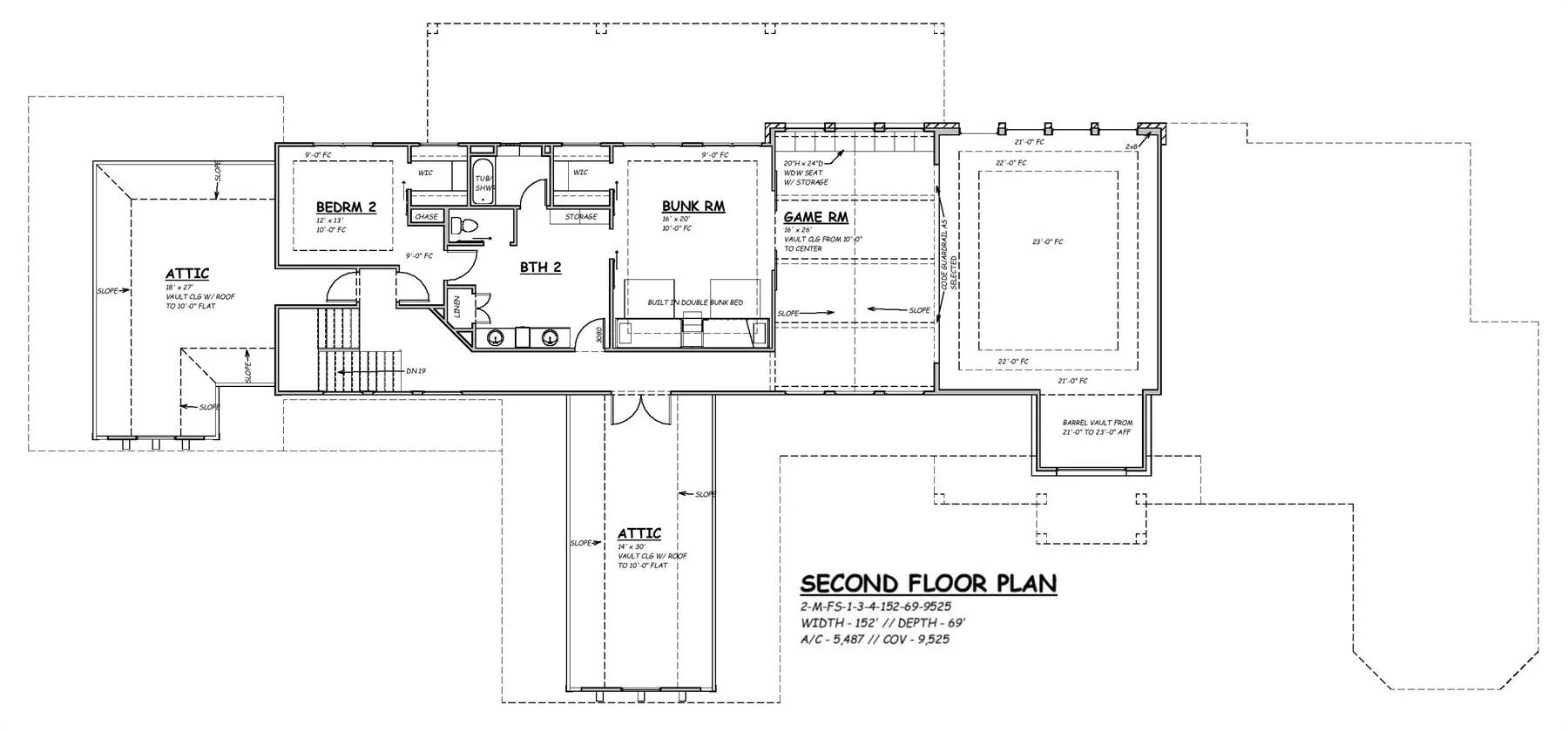

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

A grandiose facade offers a larger-than-life appeal to perfectly complement this stunning estate. Featuring traditional styles with some modern flair, this plan is both versatile and unique. Standing 2 stories tall and boasting 5,487 square feet of space, the real question is "what doesn't this home have"? What it does have is an all-inclusive layout featuring 3 huge bedroom suites and tons of other great spaces. Speaking of bedroom suites, check out the first floor master. Not only does it have a private study and a huge resort-style spa bath, but it has one of the largest walk-in closets you've ever seen! Other highlights of the home include the private gym, gourmet island kitchen with walk-in pantry and dining room, and even a living room with a formal area for a piano. Spaces such as the 2 2-car garages are upgraded thanks to the inclusion of plenty of storage and even a workshop area. Moving upstairs you'll find the other bedrooms and bathrooms, as well as a massive multi-purpose game room. There is even access to 2 separate attic areas, perfect for keeping the home organized and clutter-free.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Pantry
Peninsula / Eating Bar
U-Shaped
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Outdoor Living Space
Screened Porch/Sunroom
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Rec Room
Storage Space
Vaulted Primary
Workshop
Garage Location
Front
Garage Options
Attached
Front-entry
Side-entry
9,525 Ft
2
Total Structure
5,487 Ft
2
Total Heated
3,895 Ft
2
1st Floor
1,592 Ft
2
2nd Floor
3
Bedrooms
4
Bathrooms
4
Garage
2
Stories
152' 0"
Width
69' 0"
Depth
37' 0"
Height
10' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
22' 0"
Foyer Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
3
Secondary Roof Pitch
Single
Dwelling Number
2nd Floor
Bonus Access

Unheated Living Space
1,889 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer Binder

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
