Sq Ft
3,568 FT²

Beds
3

Baths
2

Stories
1

Garage
1

Depth
46'

Width
66'

On Sale
$1,932.00
$2,415.00

Front

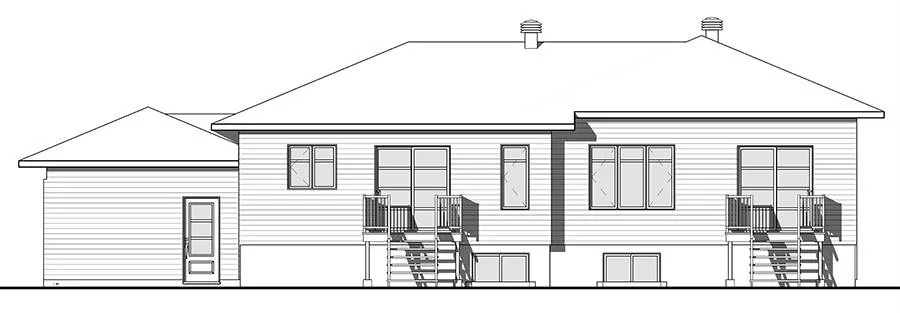

Rear view

View All 3 Images | Photographs may reflect modified home

Sq Ft

3,568 FT²

From

$1,932.00

Beds

Baths

Stories

Garage

Depth

46'

Width

66'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

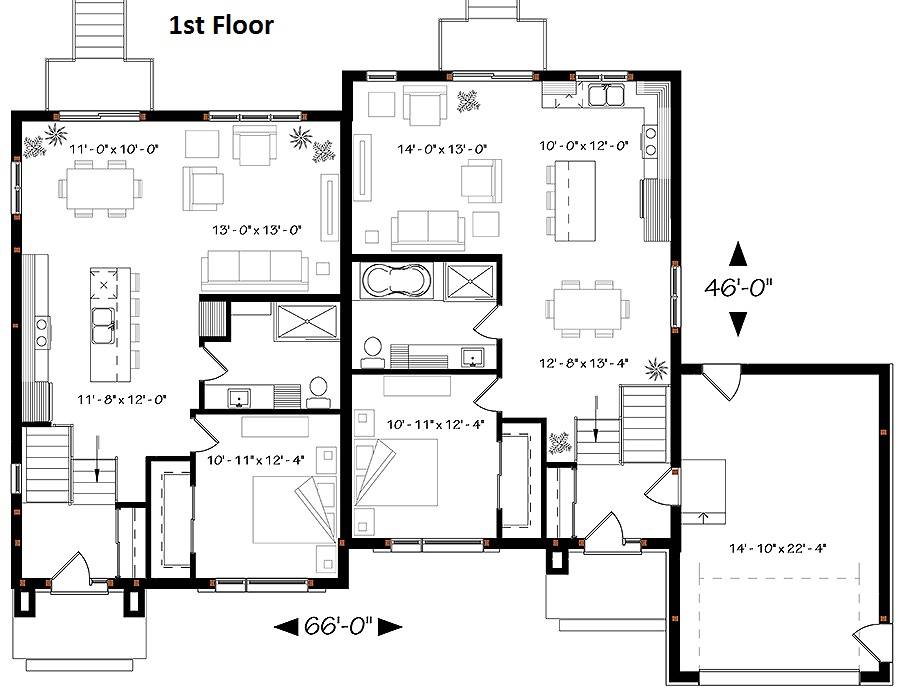

1st Floor Plan

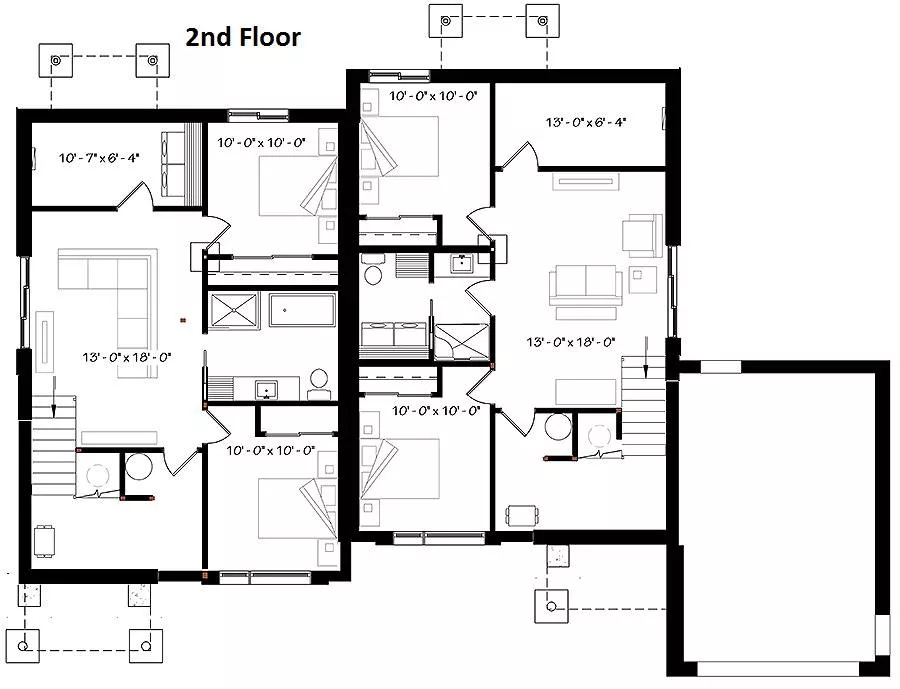

Lower level

1st Floor Plan

Lower level

About This Plan

Nice Modern Duplex house plan with master bedroom on main floor. Split entrance offers a large
closet as well as a ceiling of over 11 feet high in the lobby which gives amplitude tot his normally restricted space.
On both sides the master bedroom is located on the ground floor and has a walk-in closet. In addition, a shower room or a bathroom, with bath and separate shower are suggested on both sides. A kitchen with island, and open to the dining room and living room makes this space very friendly and conducive to receive family & friends. Patio doors at the back of the house and several windows contribute in inviting beautiful
natural light on the ground floor. In the finished basement you will find 2 secondary bedrooms, an additional family
room, a bathroom, laundry room as well as storage area.

FEATURES & DETAILS

Kitchen features

Kitchen Island

Bedroom features

His and Hers Primary Closets
Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch
Deck

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab

Additional features

Dining Room
Family Room
Foyer
Great Room
Inverted Living
Open Floor Plan
Storage Space
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

3,568 Ft

Total Structure

3,568 Ft

Unit Heated

1,184 Ft

1st Floor

1,184 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

66' 0"

Width

46' 0"

Depth

19' 10"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

Duplex

Dwelling Number

Unheated Living Space

394 Ft

Garage

45 Ft

Porch

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,415

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,415

$2,550

3 sets + PDF

Please allow 3-5 days for delivery

$2,550

$3,915

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,915

Need To Reverse Plan? (Optional)

$295

Readable Reverse

Reverse house plans with readable text and dimensions

$295

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
