Sq Ft
2,364 FT²

Beds
4

Baths
2.5

Stories
2

Garage
2

Depth
36' 8"

Width
46'

On Sale
$960.00
$1,200.00

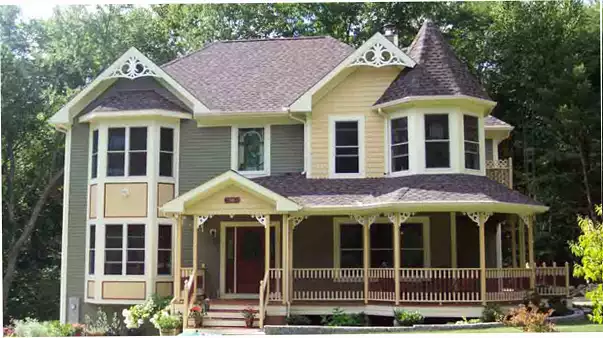

Front Photo

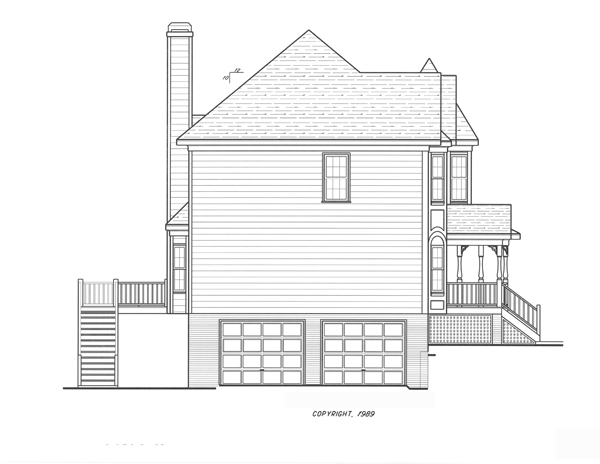

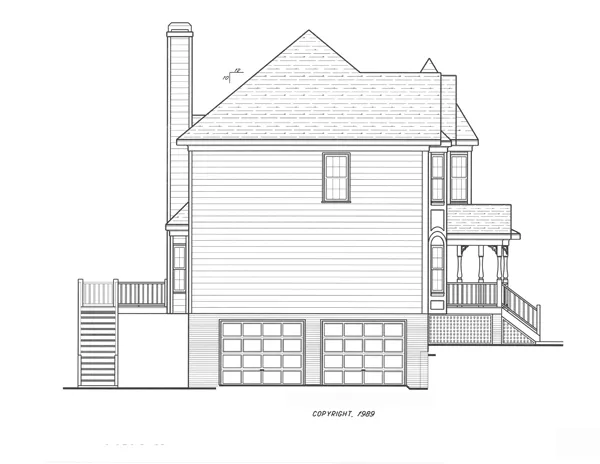

Left Elevation

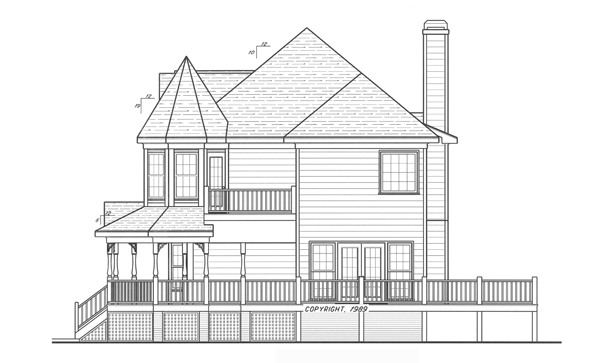

Right Elevation

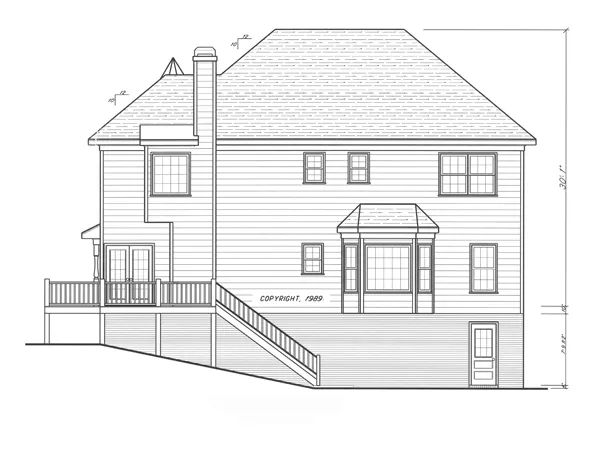

Rear Elevation

Rendering

View All 5 Images | Photographs may reflect modified home

Sq Ft

2,364 FT²

From

$960.00

Beds

Baths

2.5

Stories

Garage

Depth

36' 8"

Width

46'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

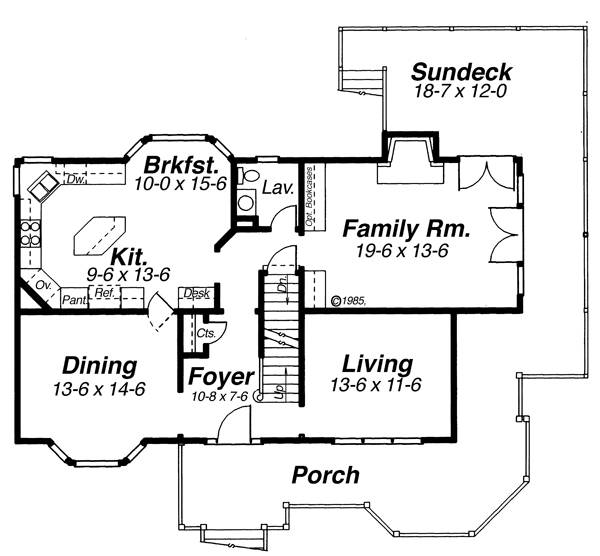

First Floor

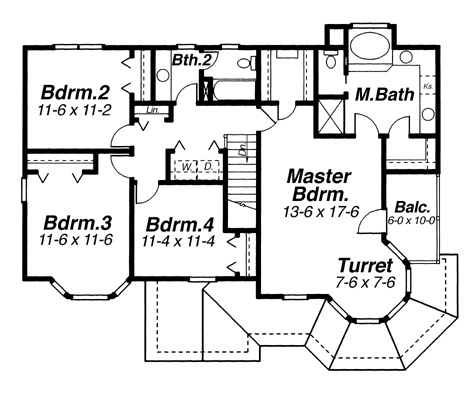

Second Floor

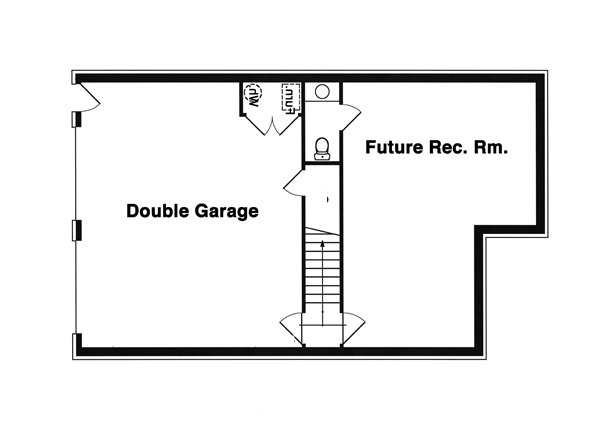

Lower Level

First Floor

Second Floor

Lower Level

About This Plan

From the second floor turret to the expanded porch underneath, little touches of Victorian lifestyle can be felt when looking at this design. A spacious kitchen provides the perfect workspace for the family cook. Bay windows continue the Victorian charm and add interest to each featured room. A drive under garage maximizes the compact design allowing it to fit nicely on a sloped lot.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Covered Front Porch
Deck
Front Porch
Wraparound Porch

Foundation Options

Basement
Walkout Basement

Lot Options

Suited for corner lot
Suited for sloping lot

Additional features

Dining Room
Family Room
Formal LR
Foyer
Laundry 2nd Fl

Garage Location

Under

Garage Options

Attached
Drive-under

2,364 Ft

Total Heated

1,155 Ft

1st Floor

1,209 Ft

2nd Floor

529 Ft

Lower Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

46' 0"

Width

36' 8"

Depth

30' 10"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

20/12

Teritary Roof Pitch

10/12

Gable Roof Pitch

3/12

Porch Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

612 Ft

Garage

271 Ft

Porch

318 Ft

Deck

Exterior Styles

Collections

Old House Classics

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$750

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$750

$1,200

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,200

$1,300

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

Note: This is a hand drawn plan and can only be modified if redrawn in CAD. Additional fees would be required.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
