Recently Viewed Plans | Advanced Plan Search

Sq Ft
6,765 FT²

Beds
6

Baths
6.5

Stories
2

Garage
4

Depth
67'

Width
78'

On Sale
$2,705.60
$3,382.00

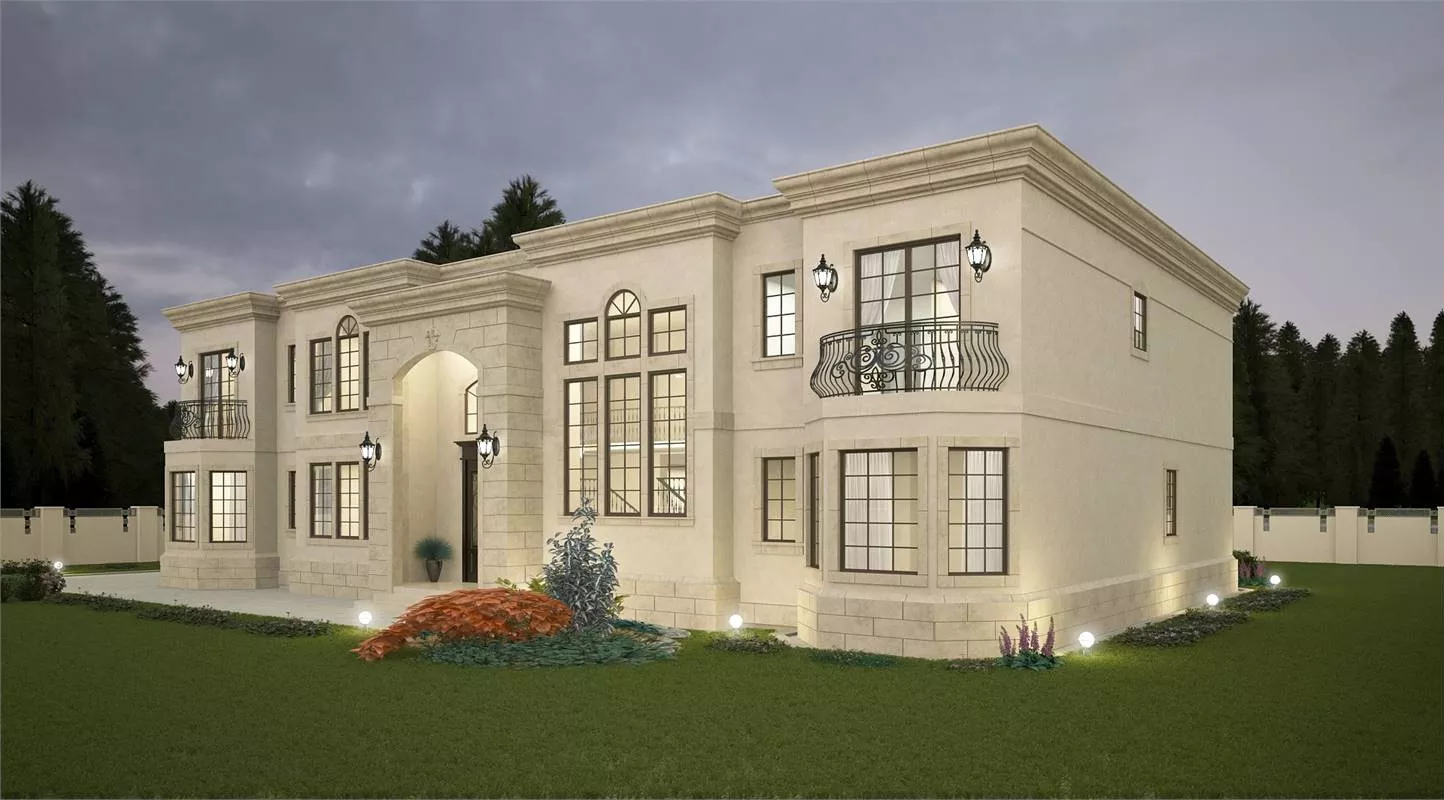

Front View

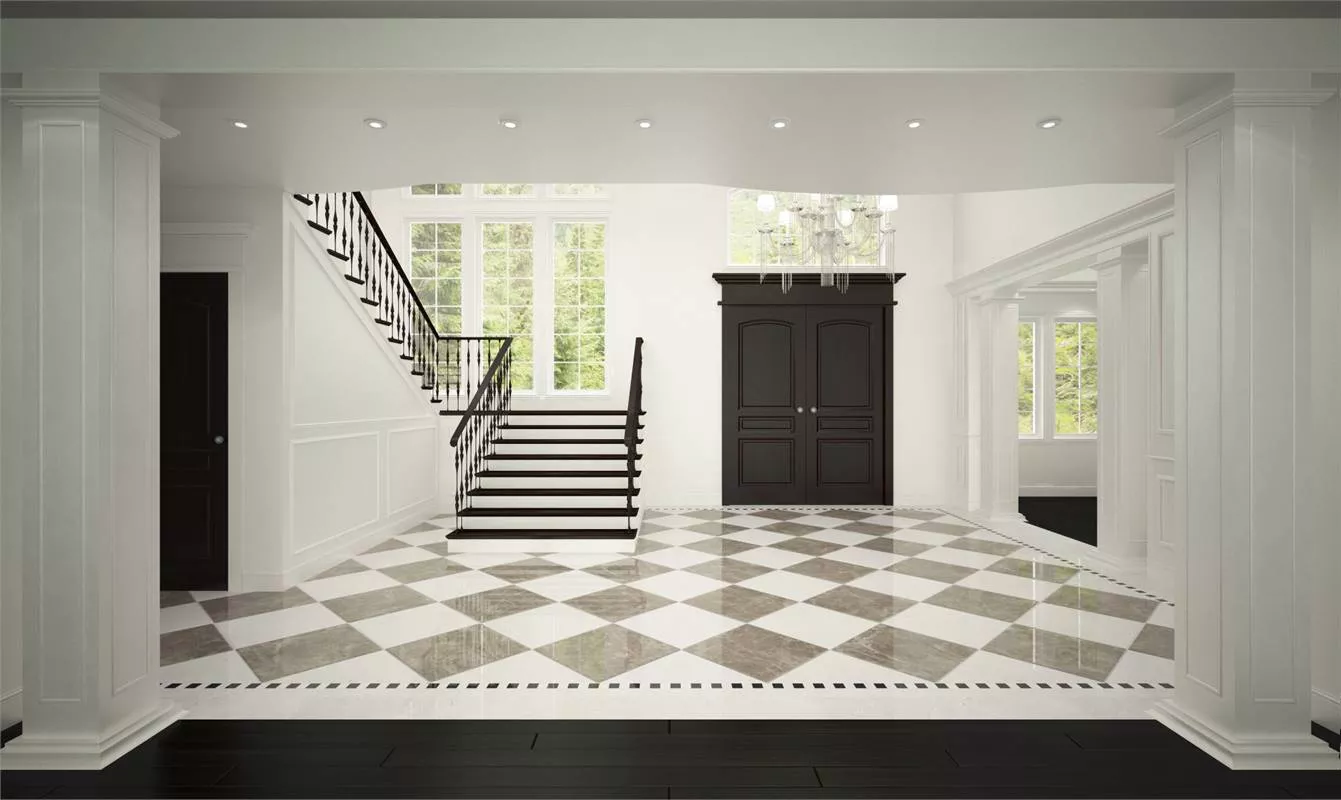

Entry Foyer

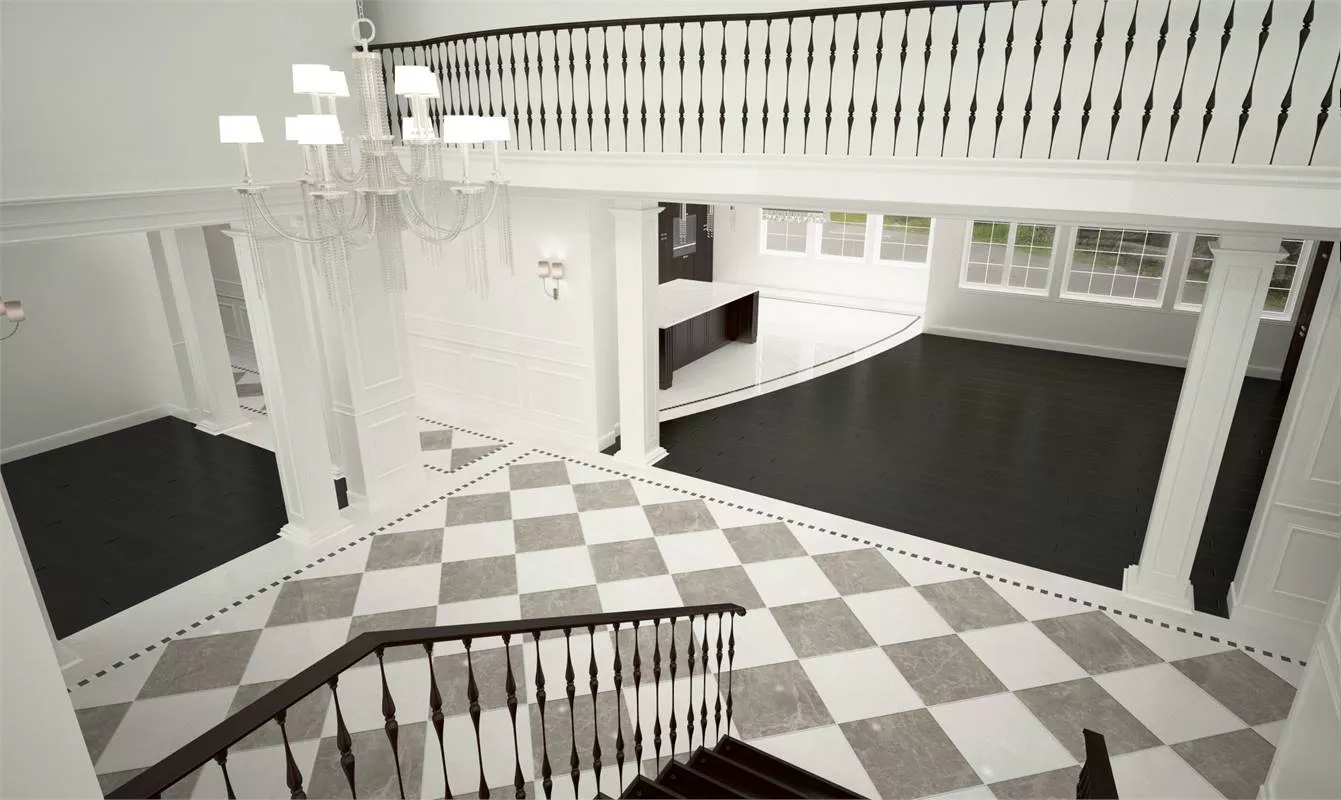

Interior

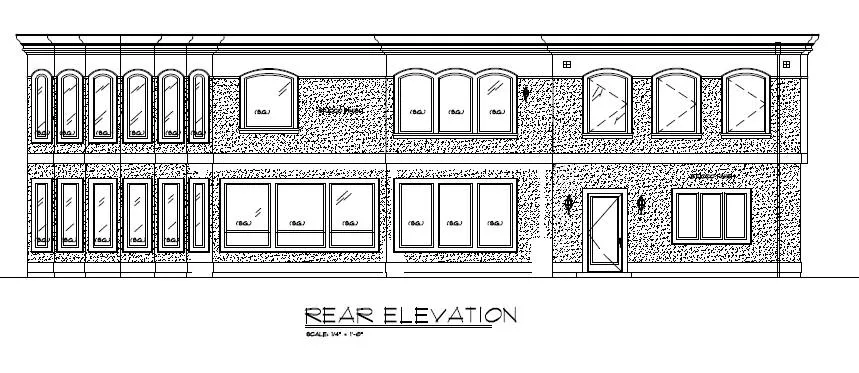

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

6,765 FT²

From

$2,705.60

Beds

Baths

6.5

Stories

Garage

Depth

67'

Width

78'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

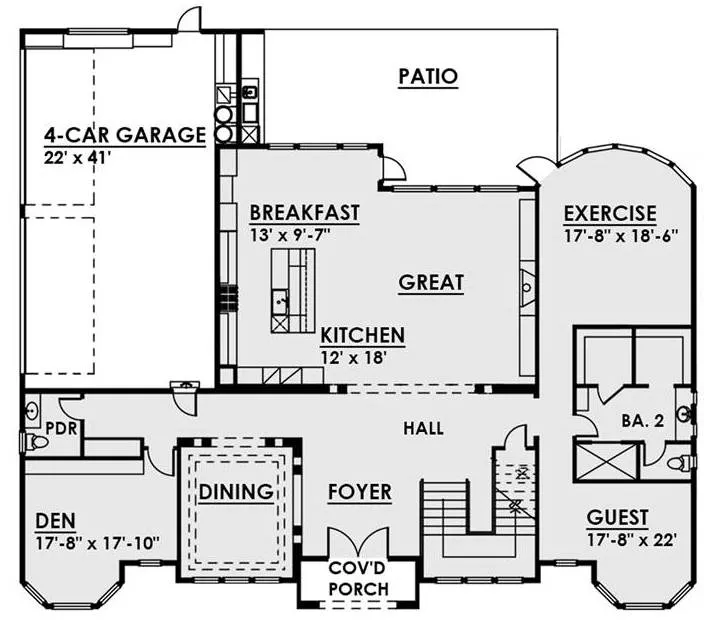

1st Floor

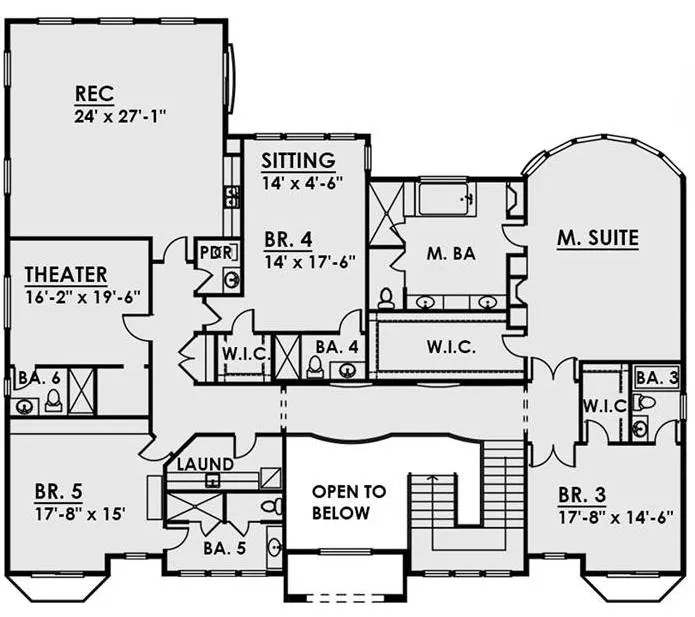

2nd Floor

1st Floor

2nd Floor

About This Plan

House plan 8616 is a luxury 6,765 square foot home with six bedrooms and six-and-a-half bathrooms. Adorned with classical features, this home is perfect for a growing family who cares about the details. The entry has an open feel and leads to the living room and dining area where the entire family can spend quality time together. The kitchen is a chef's delight with lots of cabinetry, a large island that serves as a breakfast bar, and an eating area. There's also a cozy den space in the front of the home that is perfect for reading or watching a movie. Upstairs is a large master suite that features a luxurious bathroom with double vanity sinks, a separate tub and shower, and access to the large walk-in closet. There are four additional bedrooms upstairs along with a recreation room and private theater.

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Deck
Front Porch

Additional features

2 Story Volume
Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Library/Media Rm
Open Floor Plan
Rec Room

Garage Location

Rear

Garage Options

Attached
Rear-entry
Side-entry

6,765 Ft

Total Heated

3,165 Ft

1st Floor

3,600 Ft

2nd Floor

Bedrooms

6.5

Bathrooms

Garage

Stories

78' 0"

Width

67' 0"

Depth

24' 6"

Height

10' 0"

Main Floor Ceiling

10' 0"

Upper Floor Ceiling

2x6

Framing

Combination

Roof Framing

.25/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

928 Ft

Garage

75 Ft

Porch

580 Ft

Deck

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$3,382

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,382

$3,682

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,682

$3,832

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$3,832

$6,426

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$6,426

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
