Sq Ft
2,861 FT²

Beds
4

Baths
3.5

Stories
1.5

Garage
2

Depth
67' 8"

Width
45'

On Sale
$920.00
$1,150.00

Front Rendering

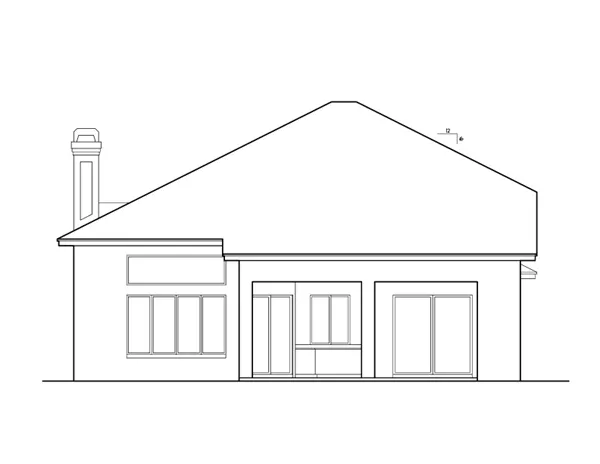

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,861 FT²

From

$920.00

Beds

Baths

3.5

Stories

1.5

Garage

Depth

67' 8"

Width

45'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

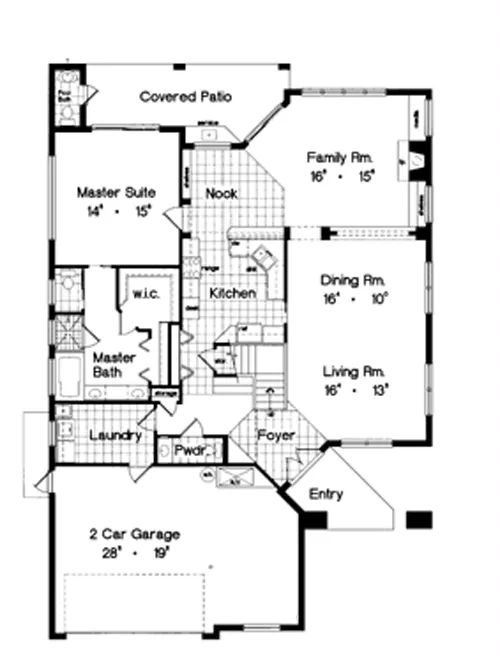

First Floor Plan

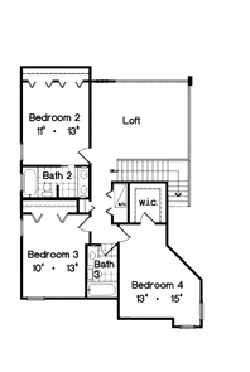

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

The excitement begins upon entering the foyer of this home where an impressive staircase is its focal point. From there one views the formal spaces of the living and dining rooms with vaulted cathedral ceilings and drywall treatments.

Passing through an archway you enter the family room with its impressive media/fireplace wall and much glass. Just off the nook is a sliding glass door to the covered patio where a wet bar can be found, as well as a pool bath.

The kitchen is a gourmet’s dream, with loads of pantry storage and planning desk.

A built in wall of shelves and arches just off the nook welcome you to the master wing. The suite is generously sized and has a wonderful bed wall of high transom glass, as well as sliders to the patio.

The bath, too, is well designed and has all the amenities included toilet chamber, walk-in closet, spa tub, double vanity, and a unique “California” closet design.

The second floor is impressive with three large bedrooms two of which share a bath, and one bedroom having a private bath. Rounding out this design is the advantage of a three car garage, walk thru utility room and a guest powder room.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Bedroom features

Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms

Exterior features

Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

2 Story Volume
Family Room
Fireplace
Formal LR
Foyer
Great Room
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized

2,861 Ft

Total Heated

1,844 Ft

1st Floor

1,017 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

1.5

Stories

45' 0"

Width

67' 8"

Depth

27' 8"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

8" Block

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

584 Ft

Garage

146 Ft

Porch

184 Ft

Patio

Exterior Styles

Contemporary

Cottage

Mediterranean

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$700

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700

$1,150

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,150

$1,350

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,350

$1,500

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,500

$2,300

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
