Sq Ft
2,423 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
72'

Width
43'

On Sale
$1,333.60
$1,667.00

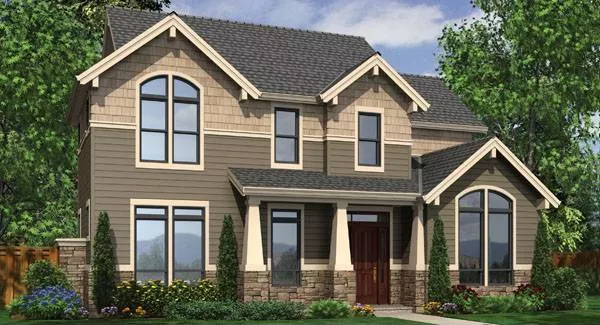

Front Rendering

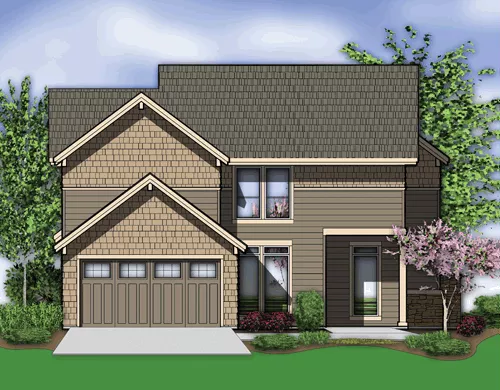

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,423 FT²

From

$1,333.60

Beds

Baths

2.5

Stories

Garage

Depth

72'

Width

43'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

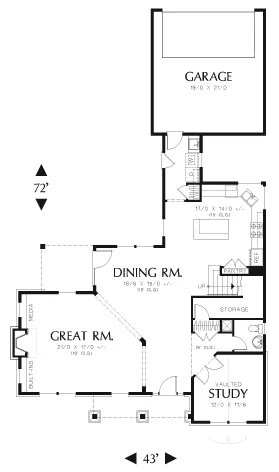

First Floor Plan

Second Floor Plan

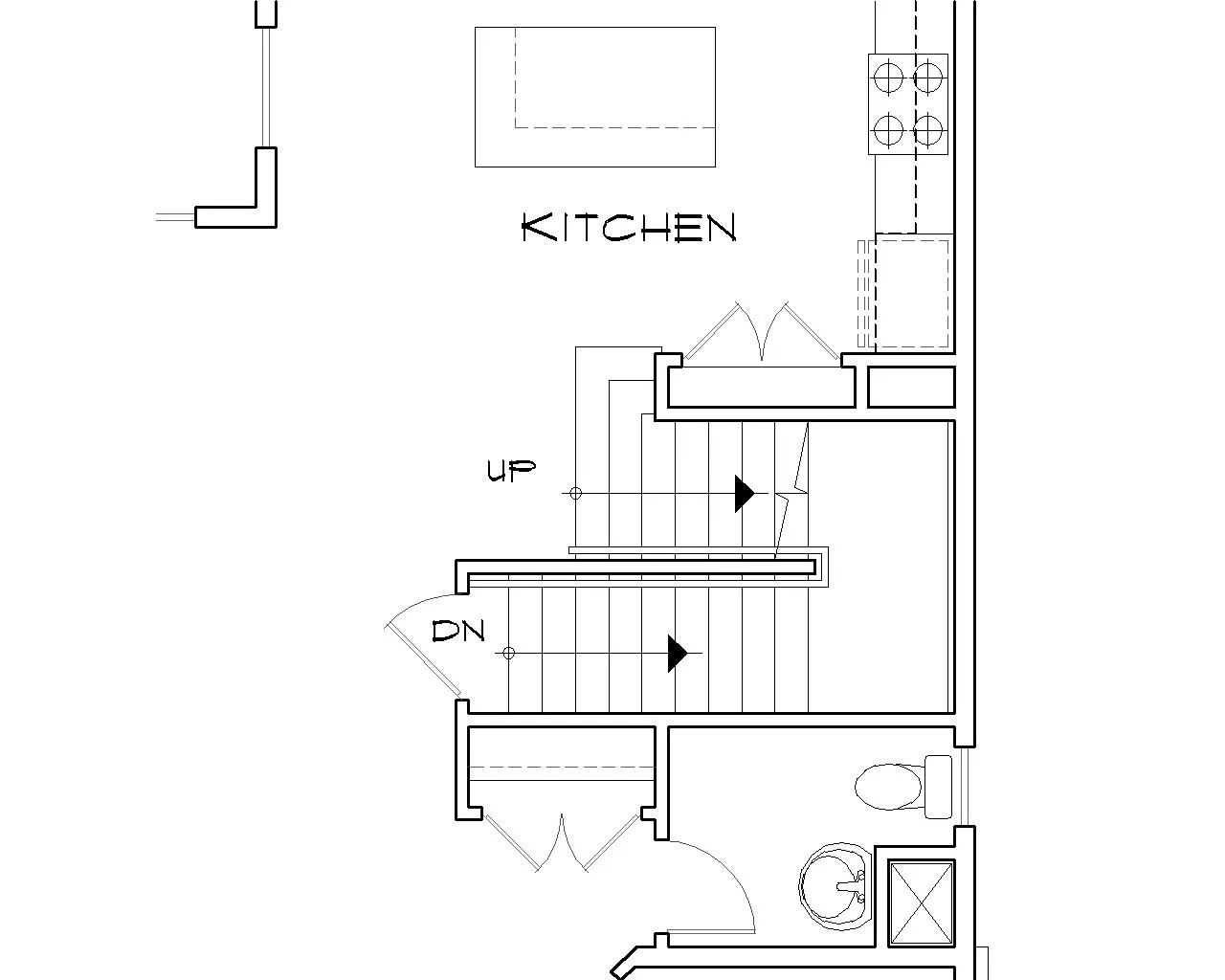

Basement Floor Plan

First Floor Plan

Second Floor Plan

Basement Floor Plan

About This Plan

A refined sensibility and cutting edge design make this 3+ bedroom, two-level home both architecturally adventurous and stylishly urbane. A columned entry leads into the offset great room and the dining room space, where a beautiful, island kitchen gives way to a most unique utility area and attached, back garage. A vaulted study, half bath and storage area precede the stairwell, which leads to a second level of cozy living space, where a vaulted master suite flourishes alongside two additional, spacious bedrooms. With a blend of window styles, materials and influences: The Mayfield embodies sophisticated construction.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space

Garage Location

Rear

Garage Options

Attached
Rear-entry

2,423 Ft

Total Heated

1,336 Ft

1st Floor

1,087 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

43' 0"

Width

72' 0"

Depth

30' 0"

Height

10' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

436 Ft

Garage

72 Ft

Patio

Exterior Styles

Colonial

Craftsman

Traditional

Collections

Old House Classics

Open Floor Plan

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$1,667

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,667

$1,867

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,867

$1,917

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,917

$3,334

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,334

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
