Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,783 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
41'

Width
28'

On Sale
$1,176.80
$1,471.00

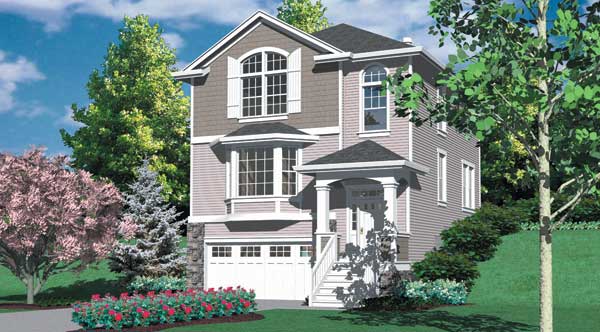

Front Rendering

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,783 FT²

From

$1,176.80

Beds

Baths

2.5

Stories

Garage

Depth

41'

Width

28'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

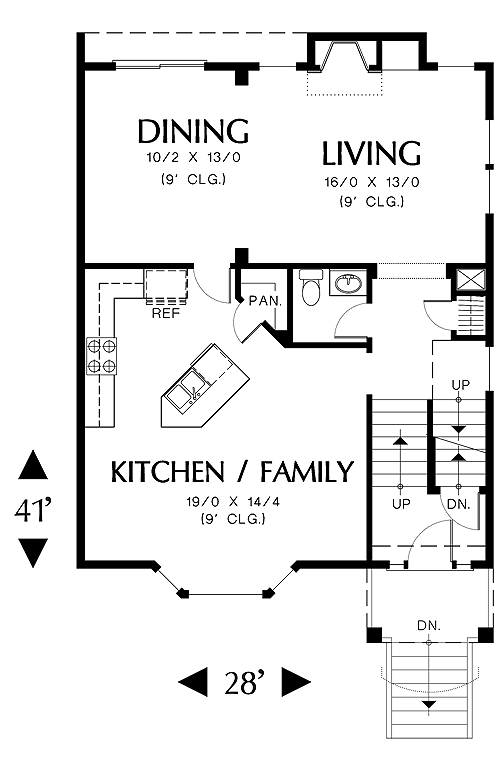

First Floor Plan

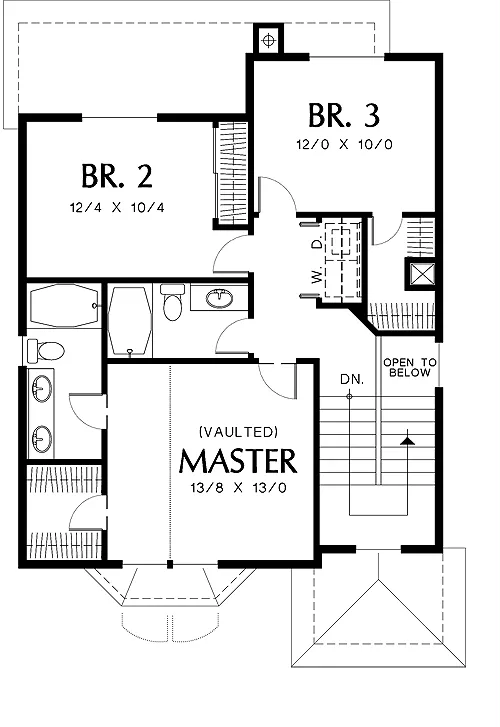

Second Floor Plan

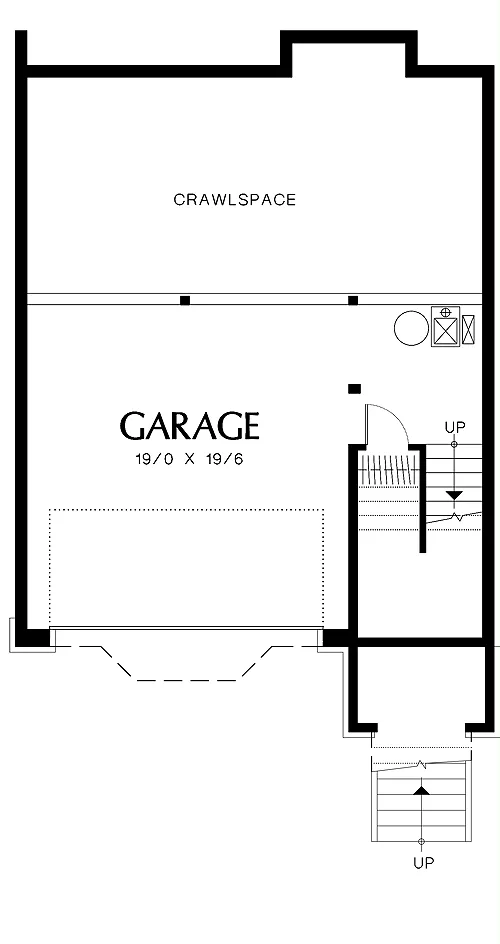

Lower Level

First Floor Plan

Second Floor Plan

Lower Level

About This Plan

Make this hillside home your personal castle with your furnishings and decorating touches. From the front, the statuesque house is distinguished by arch-top, multipane windows, a bay window, and a covered entryway. Inside the entry, an open staircase leads up to the public rooms and an enclosed staircase leads down to the garage. Wide-open spaces on the main level support both casual and formal activities. The kitchen and family room are separated only by an angular island, allowing a free flow of conversation and fun. The island is equipped with a sink, dishwasher, and snack counter. A walk-in pantry supplements kitchen storage.

A bumped-out fireplace creates a focal point in the living room. A sliding patio door in the dining room opens the area to the back yard.

Sleeping quarters are secluded on the upper floor. A luxurious master suite features a vaulted ceiling in the bedroom, a walk-in closet, and an attached bath. Two additional bedrooms share a bath. Laundry facilities are conveniently close to the bedrooms where most laundry is generated.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Front Porch

Foundation Options

Slab

Lot Options

Suited for narrow lot
Suited for sloping lot

Additional features

Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 2nd Fl
Vaulted Ceilings

Garage Location

Under

Garage Options

Attached
Drive-under

1,783 Ft

Total Heated

998 Ft

1st Floor

785 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

28' 0"

Width

41' 0"

Depth

38' 0"

Height

9' 0"

Main Floor Ceiling

Varies' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

7/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

470 Ft

Garage

Exterior Styles

Beach

Craftsman

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,471

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,471

$1,671

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,671

$1,721

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,721

$2,942

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,942

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
