Sq Ft
1,452 FT²
Beds
3
Baths
2
Stories
2
Garage
2
Depth
48' 22"
Width
36'		 From
$900.00

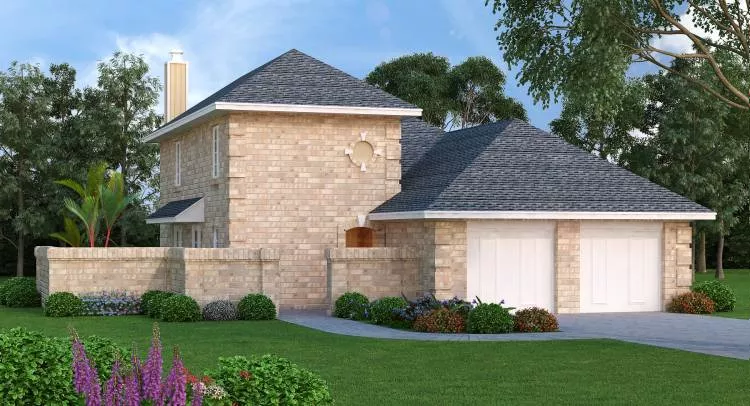

Front Rendering
© copyright by designer
View All 4 Images | Photographs may reflect modified home
Sq Ft
1,452 FT²
From
Beds
3
Baths
2
Stories
2
Garage
2
Depth
48' 22"
Width
36'

Click to Zoom In on Floor Plan

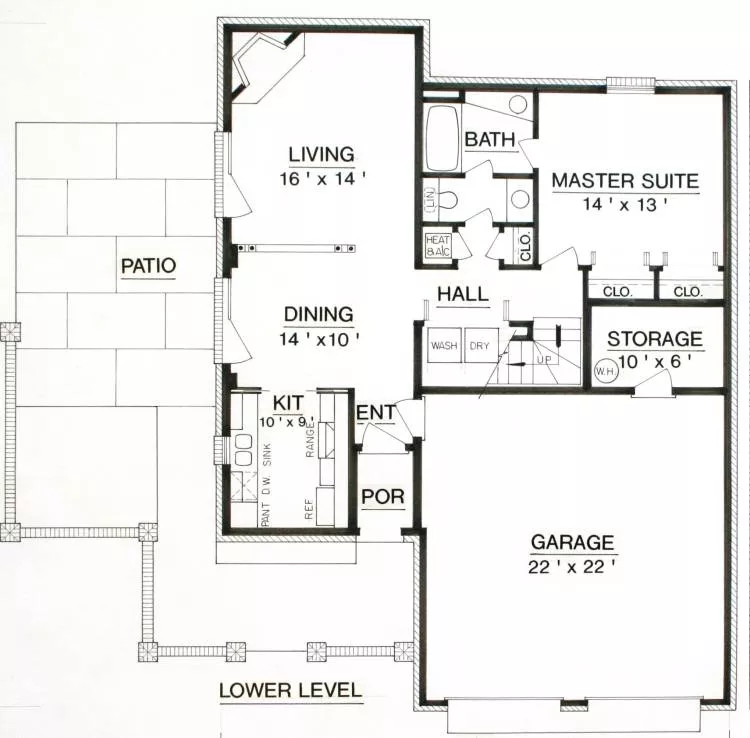

First Floor Plan

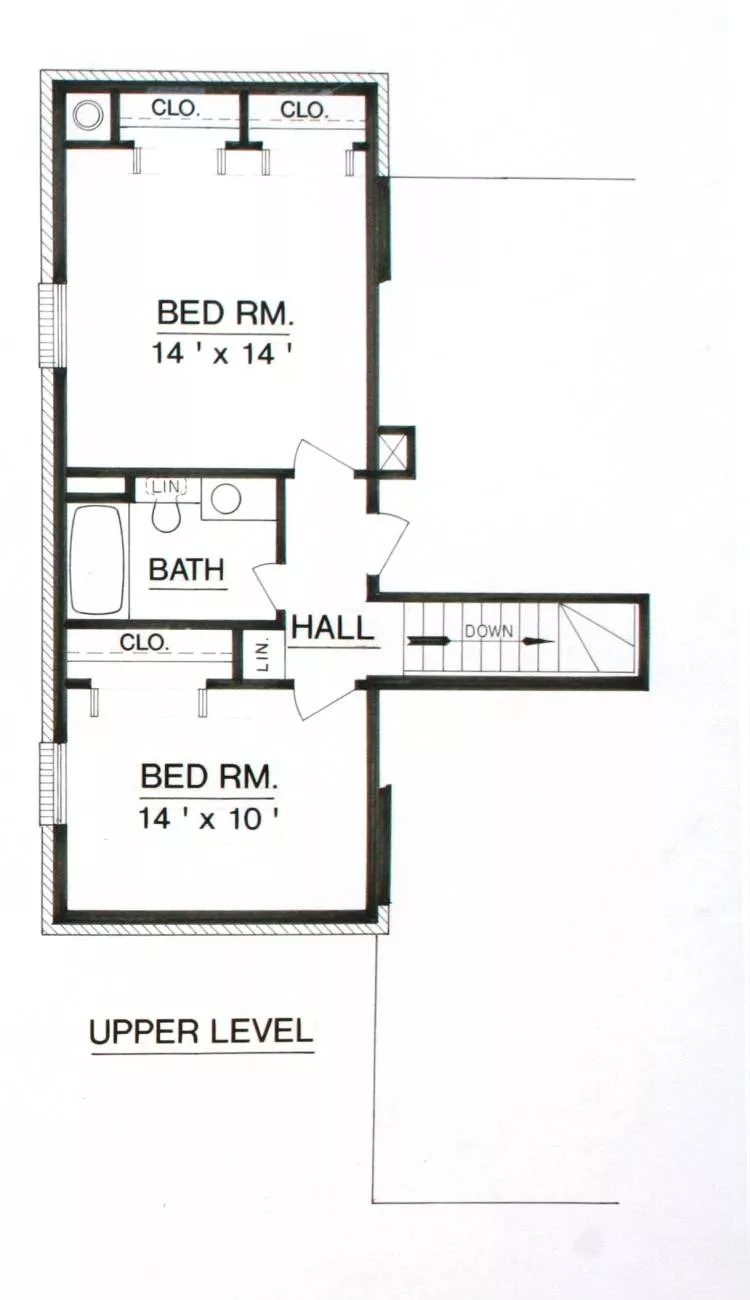

Second Floor Plan
© copyright by designer



About This Plan

Designed especially for narrow lot patio home developments, this plan delivers more than expected. It is affordable, energy efficient, open design concept and very compact. The simplistic design is easy on the budget but it delivers the look of a much larger home. 2x6 walls and a host of other energy efficient features cuts the cost of heating and cooling this home in half but with only minimal extra building cost. The main living areas are very open and bright with expansive glass views to the side courtyard. A real wood burning brick fireplace will provide the perfect mood for quiet evenings spent at home. The master suite is conveniently located on the lower level and only steps away from the main living areas. Two large closets and an adjoining fully appointed bath complete the perfect master suite. Two upstairs bed rooms each have large closets and a shared bath.

See All Plan Options


FEATURES & DETAILS

Foundation Options
Crawlspace
Slab
Lot Options
Suited for narrow lot
Garage Location
Front
Garage Options
Attached
Front-entry
2,026 Ft
2
Total Structure
1,452 Ft
2
Total Heated
898 Ft
2
1st Floor
554 Ft
2
2nd Floor
3
Bedrooms
2
Bathrooms
2
Garage
2
Stories
36' 0"
Width
48' 22"
Depth
22' 0"
Height
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
487 Ft
2
Garage
60 Ft
2
Storage
27 Ft
2
Porch
Exterior Styles
European
Southern
Traditional
Collections
Affordable
Builders
Old House Classics
Open Floor Plan
Split Bedroom


Plan Package Options

Important info before you buy
 Select Plan Package
$700
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade
$700
$900
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.
$900
$1,005
4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days
$1,005
$1,050
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.
$1,050
$1,110
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.
$1,110
$1,160
8 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.
$1,160
$1,600
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.
$1,600
  Select Foundation Option
$0
Slab

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.
$0
$150
Crawlspace

Preferred for sloped or for level lots, crawl space foundations are elevated from 16” to four feet above the ground. This option facilitates unrestricted access to your home’s ductwork and wiring making repairs easier, is good for flood-prone areas, and often creates warmer floors.
$150
If a foundation isn't listed, please live chat, email or call for availability.
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.
FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer
Sub Total
$900
FREE SHIPPING
ADD TO CART
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
