Sq Ft
2,965 FT²

Beds
5

Baths
3

Stories
2

Garage
2

Depth
46' 10"

Width
48' 10"

On Sale
$1,186.40
$1,483.00

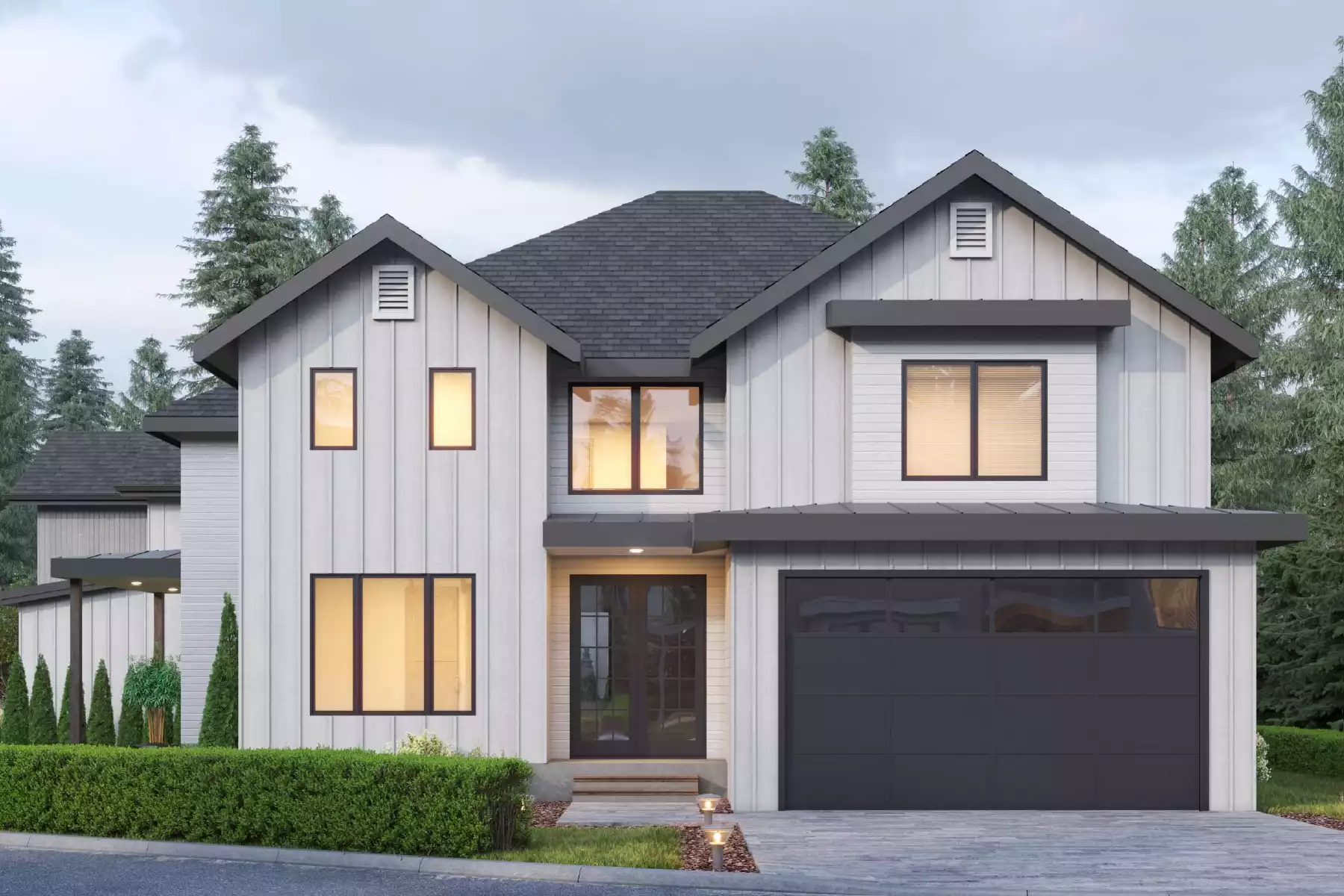

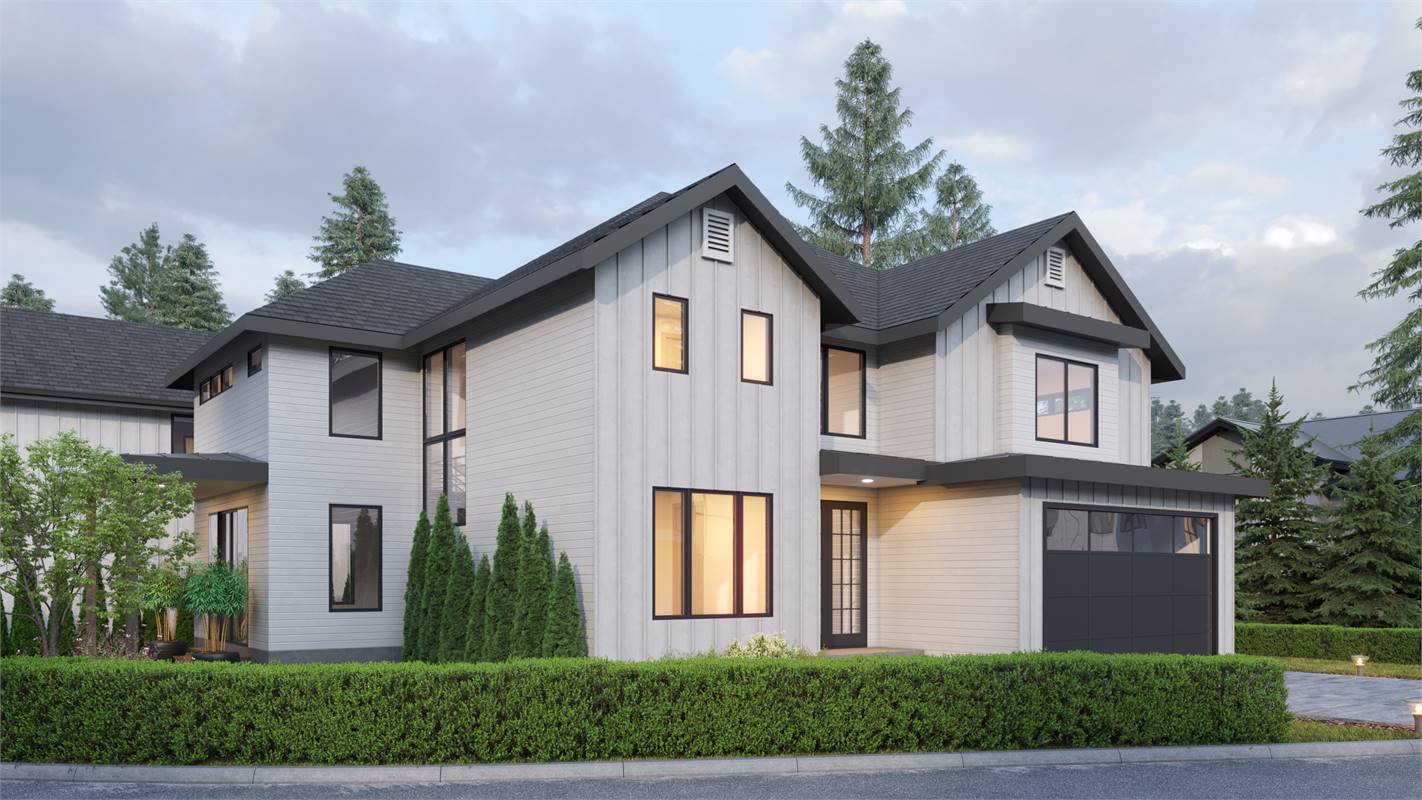

Front View

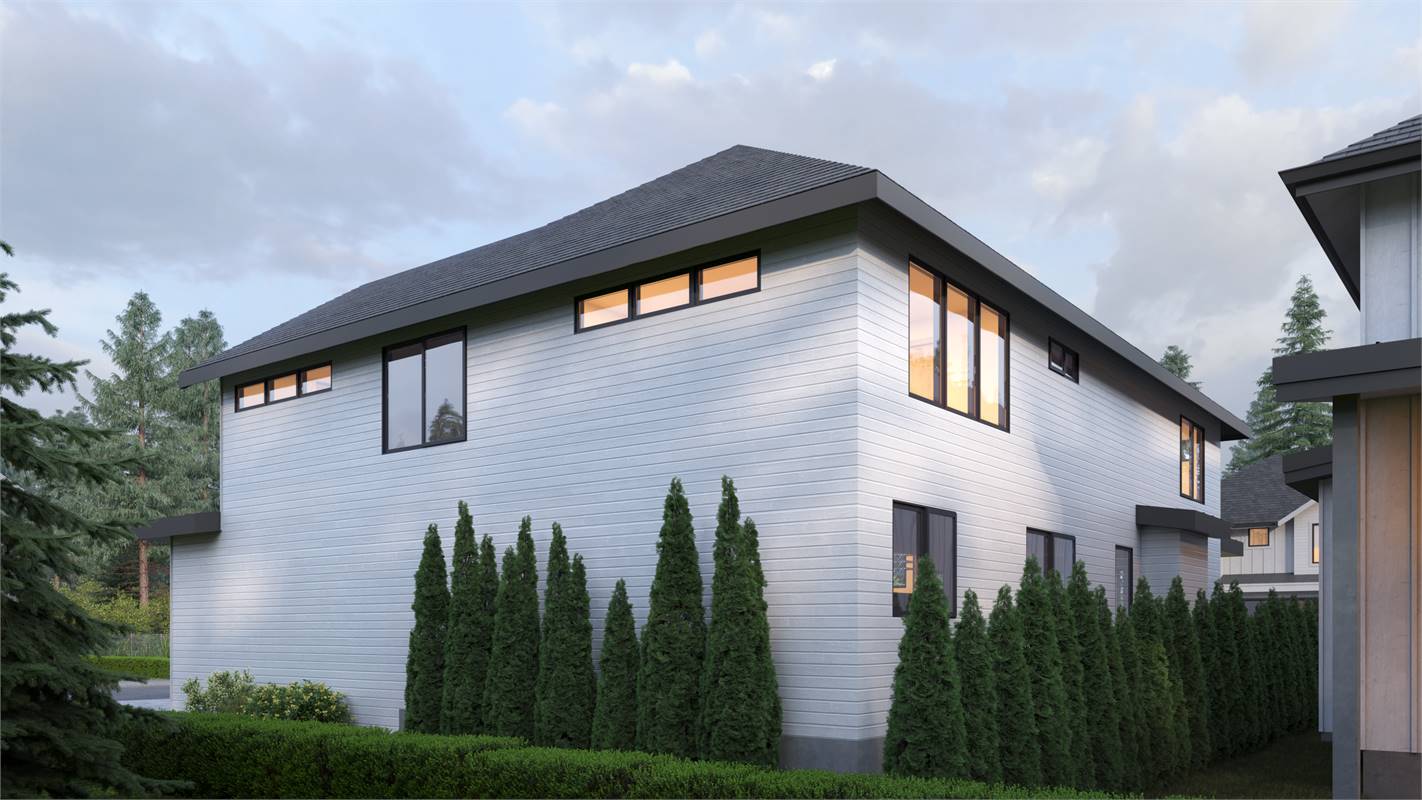

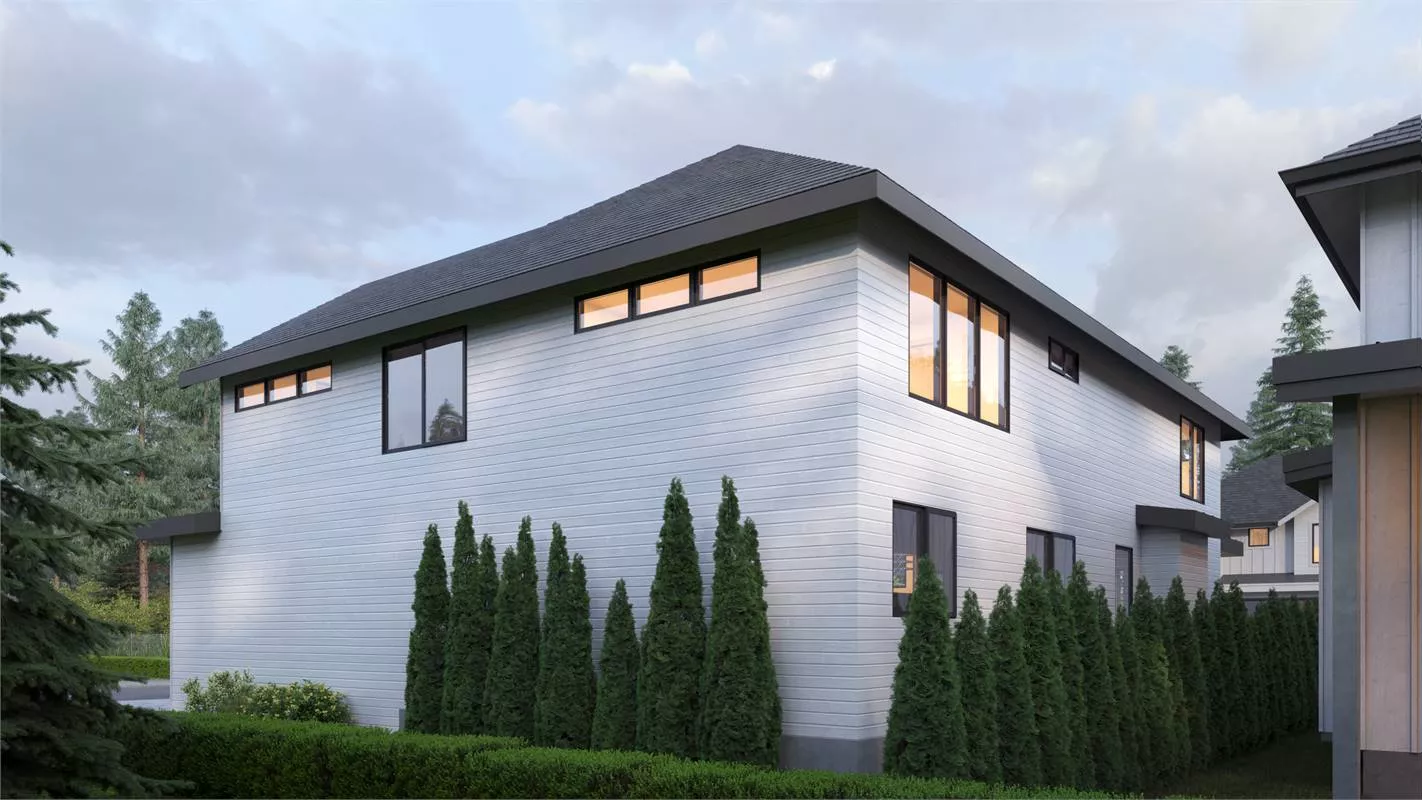

Left View

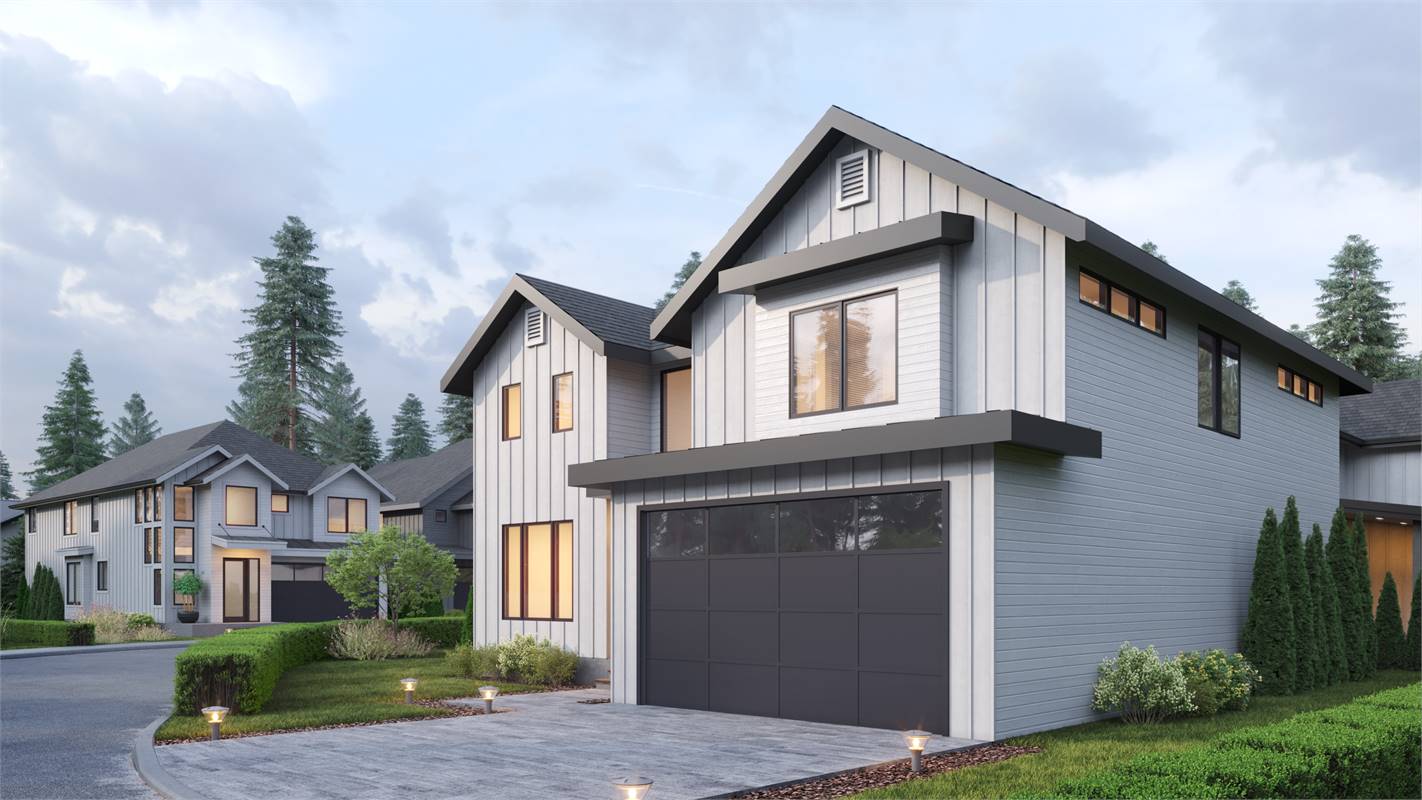

Right View

Rear View

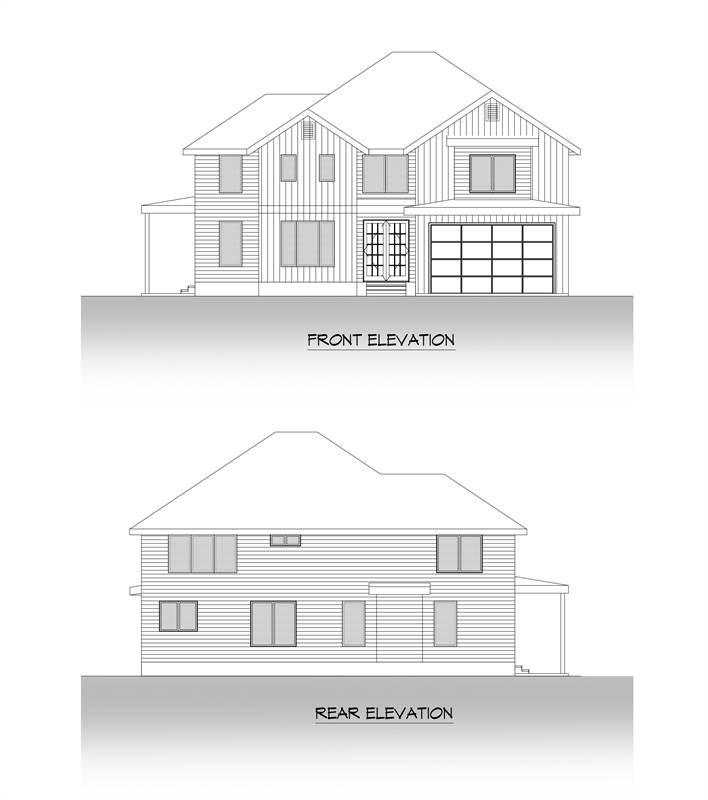

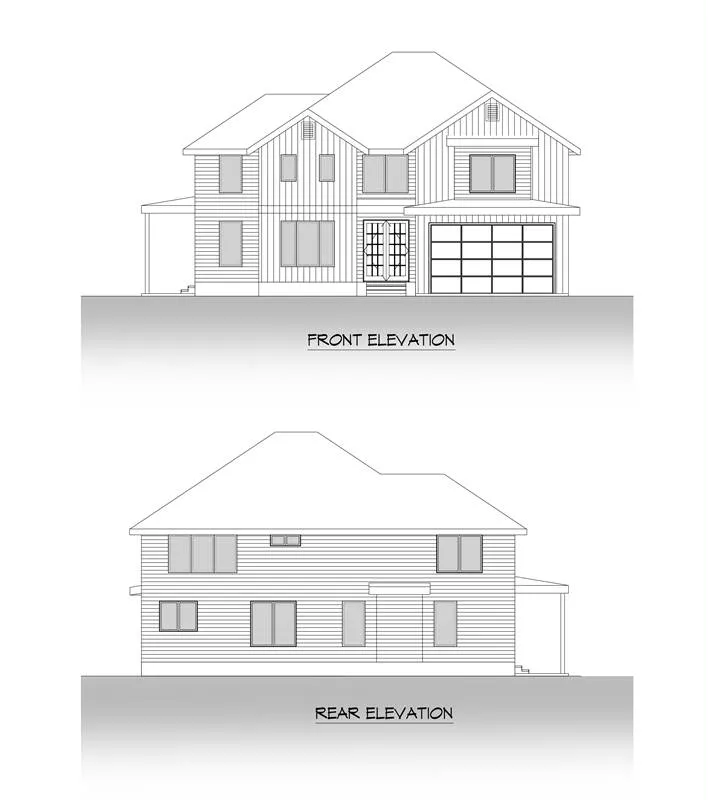

Front and Rear Elevations

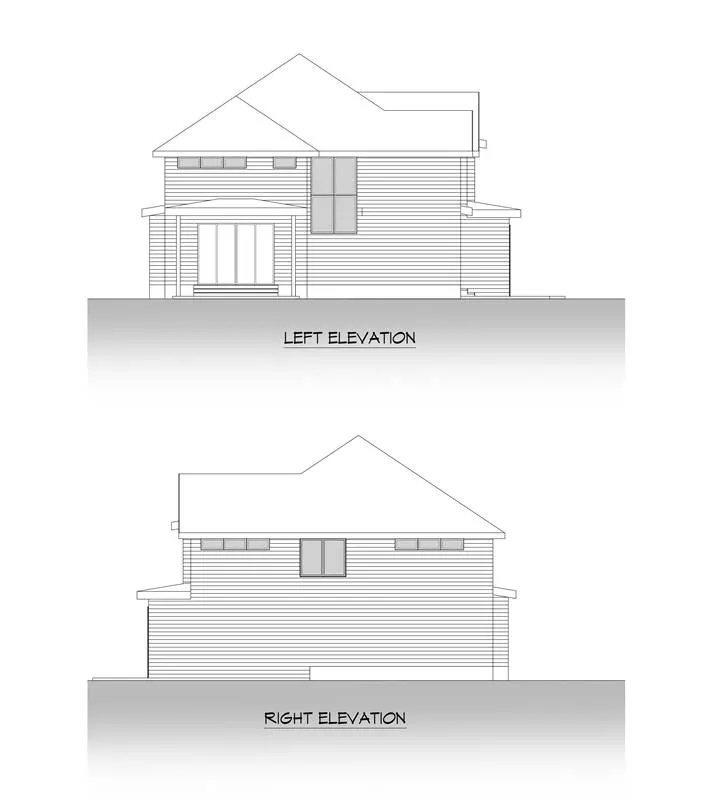

Left and Right Elevations

View All 6 Images | Photographs may reflect modified home

Sq Ft

2,965 FT²

From

$1,186.40

Beds

Baths

Stories

Garage

Depth

46' 10"

Width

48' 10"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

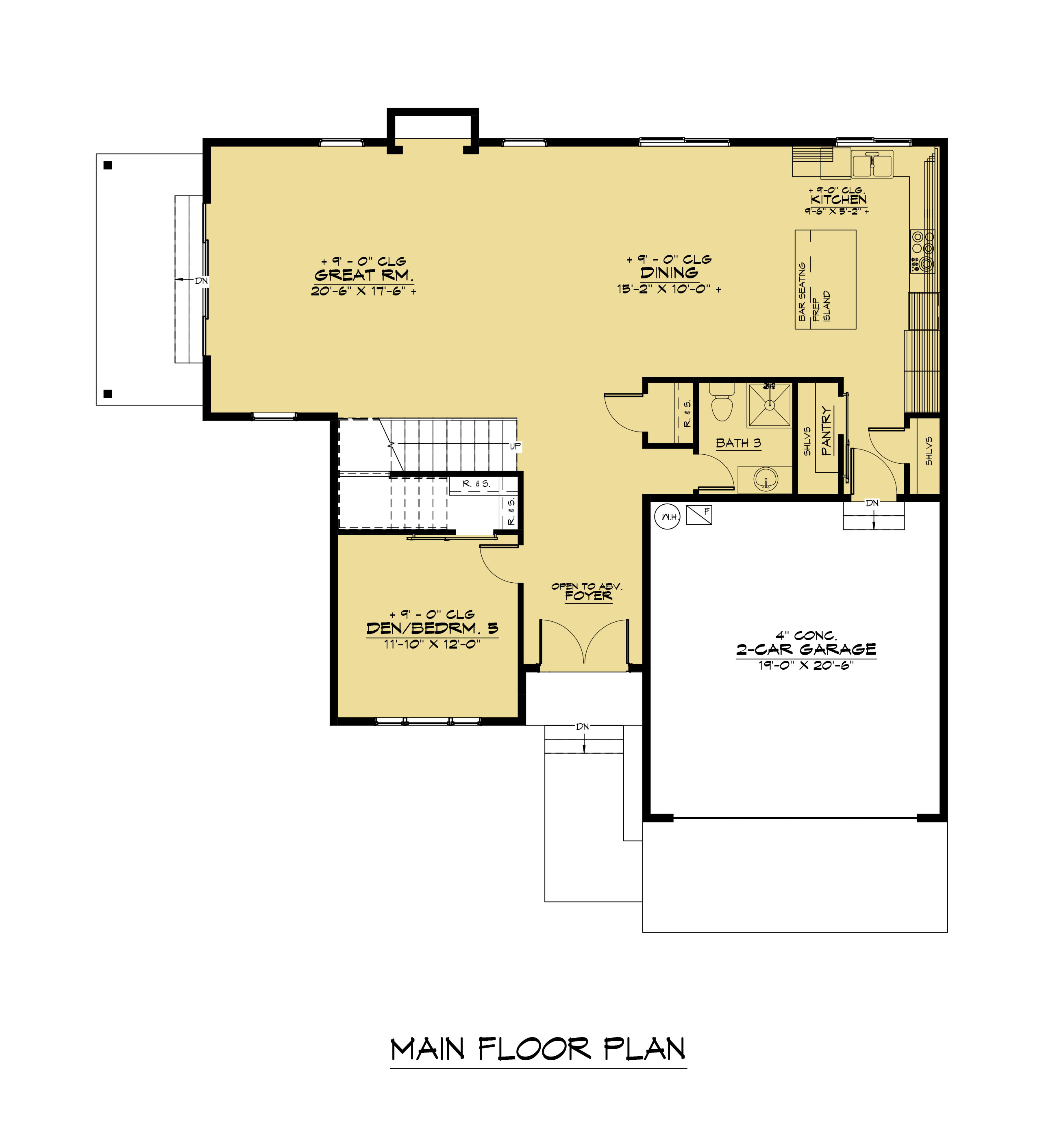

1st Floor

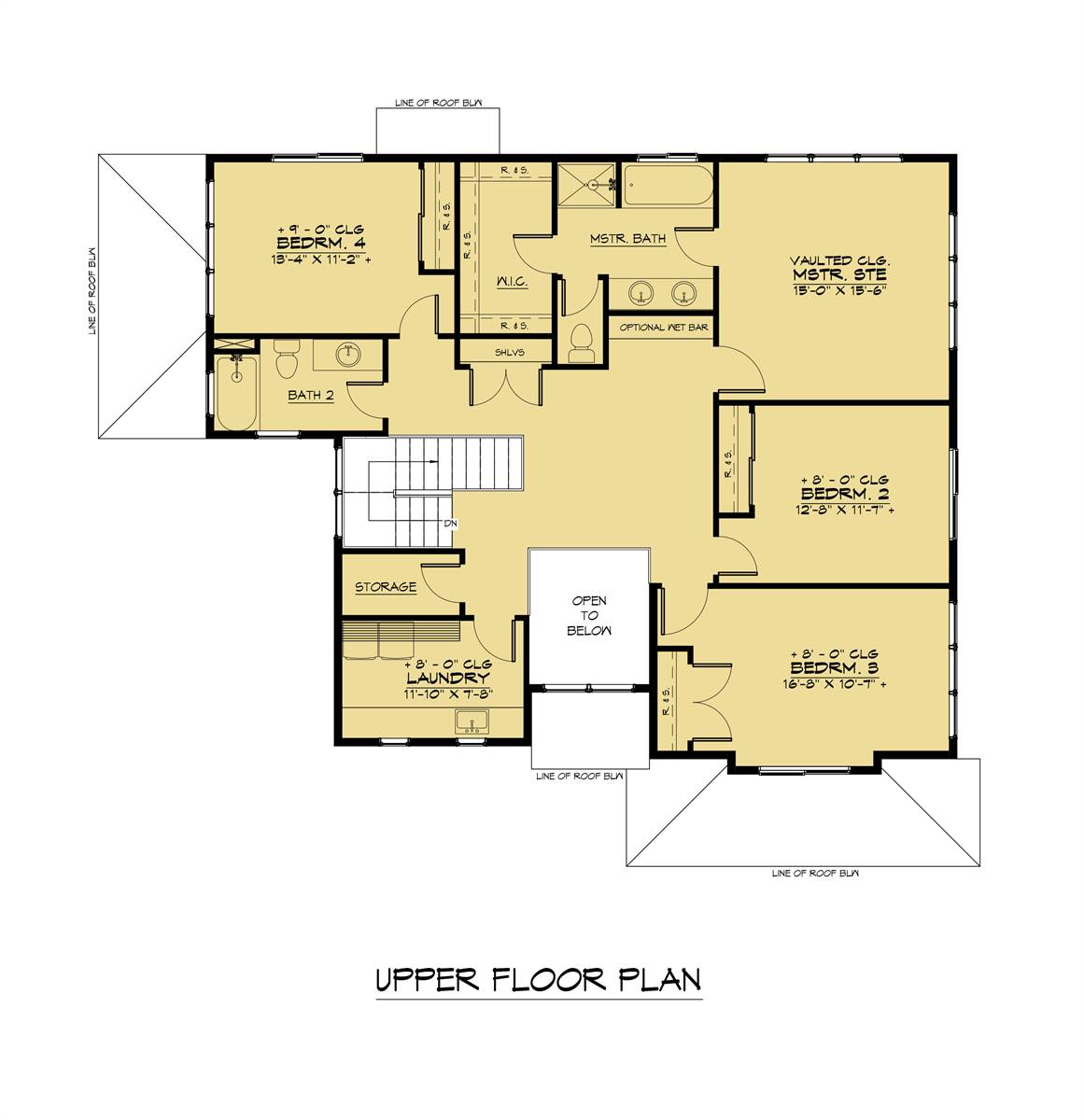

2nd Floor

1st Floor

2nd Floor

About This Plan

This New American Transitional home plan is modern yet classic, with board and batten siding beneath gables and metal roof accents featuring 2,967 s.f. The main level of this home includes an open living space that blends the great room with the eat-in kitchen. There's a guest bedroom that can be used as a home office. The four bedrooms and laundry room are upstairs, with additional storage space. The wet bar is located just outside the master suite, making mornings that much more convenient.

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Pantry
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Front Porch

Additional features

Dining Room
Foyer
Great Room
Laundry 2nd Fl
Loft / Balcony
Open Floor Plan
Vaulted Foyer
Vaulted Primary

Garage Location

Front

Garage Options

Attached
Front-entry

3,524 Ft

Total Structure

2,965 Ft

Total Heated

1,399 Ft

1st Floor

1,568 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

48' 10"

Width

46' 10"

Depth

31' 7"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8:12

Primary Roof Pitch

2:12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

414 Ft

Garage

27 Ft

Porch

116 Ft

Deck

Exterior Styles

Farmhouse

Modern Farmhouse

Transitional

Collections

Kitchens

Primary Suites

Open Floor Plan

Plan Package Options

Important info before you buy

Select Plan Package

$1,483

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,483

$1,783

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,783

$1,933

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,933

$2,818

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,818

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
