Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,794 FT²

Beds
2

Baths
0.5

Stories
2

Garage
1

Depth
62'

Width
19'

On Sale
$2,052.80
$2,566.00

Front Rendering

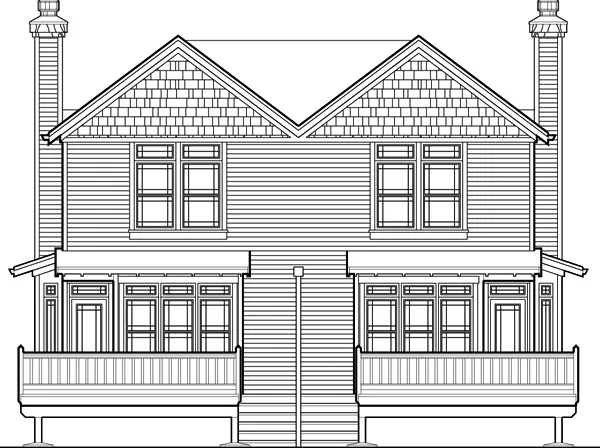

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,794 FT²

From

$2,052.80

Beds

Baths

0.5

Stories

Garage

Depth

62'

Width

19'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

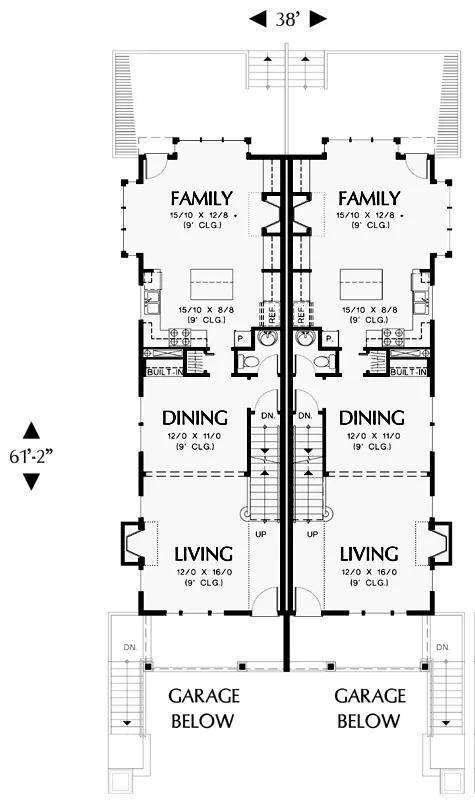

First Floor Plan

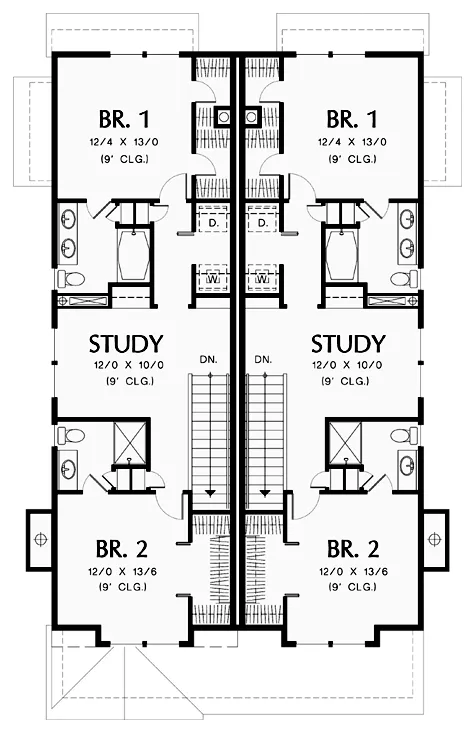

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

Invest in the best. This duplex is superbly designed with handsome windows and a covered porch that sweeps across the front. Two-car tandem garages at the foundation level are accessible from inside or out.
The identical apartments are suited for a small family or for two roommates. Two bedrooms are sited on the top floor of each dwelling. The bedrooms feature a large closet and adjoining bath, complete with a linen closet. Laundry facilities are nearby. An open area serves as a study or home office, furnished with built-in storage units. The main floors host both formal and informal gathering spaces. The living and dining rooms are open to each other. The living room is graced with a fireplace. Built-ins in the dining room offer storage space for china.

Walls of windows in the spacious kitchen and family room create an especially charming ambience. A gas fireplace is flanked by built-in cabinets for entertainment equipment, books, and collectibles. The kitchen revolves around an island, which can be used a workstation or a sit-down snack counter. A tall pantry cabinet augments kitchen storage.

FEATURES & DETAILS

Kitchen features

Kitchen Island

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch
Deck
Front Porch

Foundation Options

Slab

Lot Options

Suited for sloping lot

Additional features

Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 2nd Fl
Open Floor Plan
Storage Space

Garage Location

Front

Garage Options

Attached
Drive-under
Front-entry

3,588 Ft

Total Structure

1,794 Ft

Unit Heated

938 Ft

1st Floor

856 Ft

2nd Floor

Bedrooms

Garage

Stories

19' 0"

Width

62' 0"

Depth

35' 0"

Height

9' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

9/12

Primary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

572 Ft

Garage

329 Ft

Storage

102 Ft

Porch

153 Ft

Deck

Exterior Styles

Craftsman

Traditional

Collections

Open Floor Plan

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$2,566

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,566

$2,766

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,766

$2,816

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,816

$5,132

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,132

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
