Recently Viewed Plans | Advanced Plan Search

Sq Ft
5,123 FT²

Beds
3

Baths
4.5

Stories
2

Garage
3

Depth
98'

Width
51'

On Sale
$1,936.00
$2,420.00

View All 29 Images | Photographs may reflect modified home

Sq Ft

5,123 FT²

From

$1,936.00

Beds

Baths

4.5

Stories

Garage

Depth

98'

Width

51'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

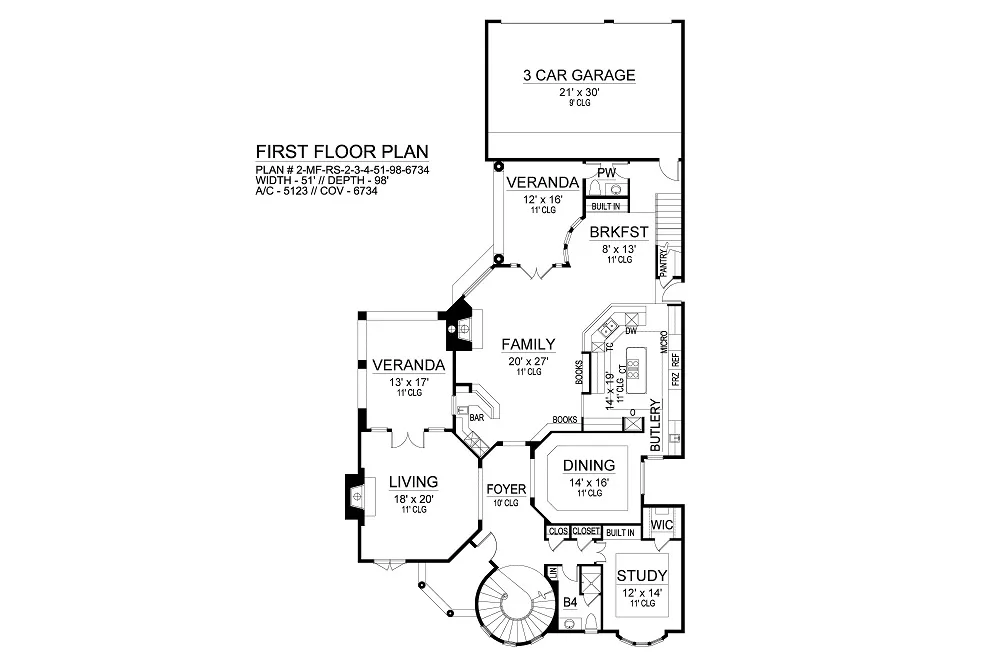

1st Floor

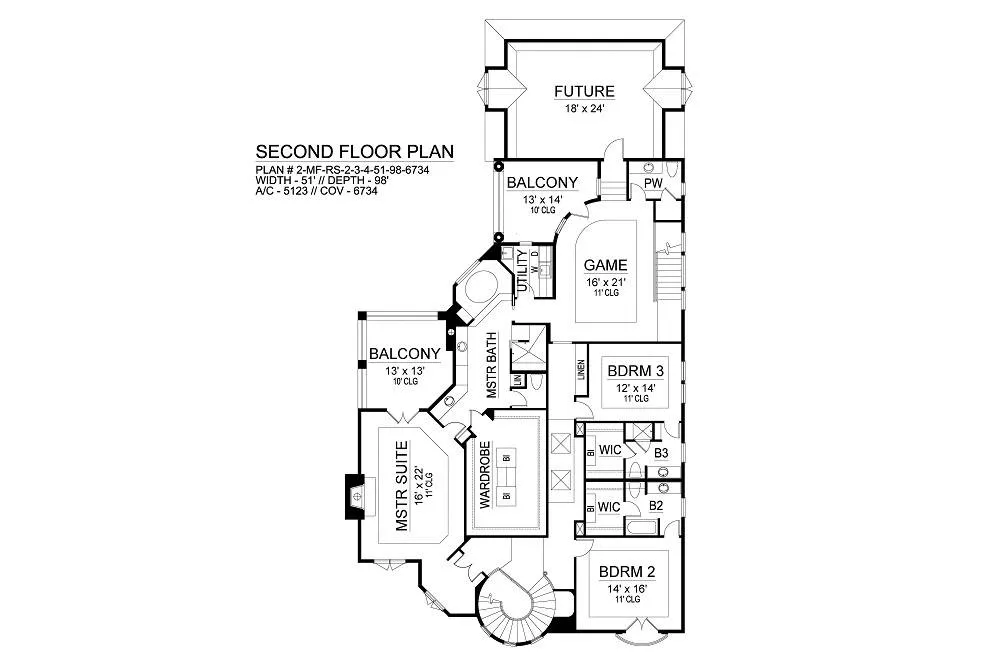

2nd Floor

1st Floor

2nd Floor

About This Plan

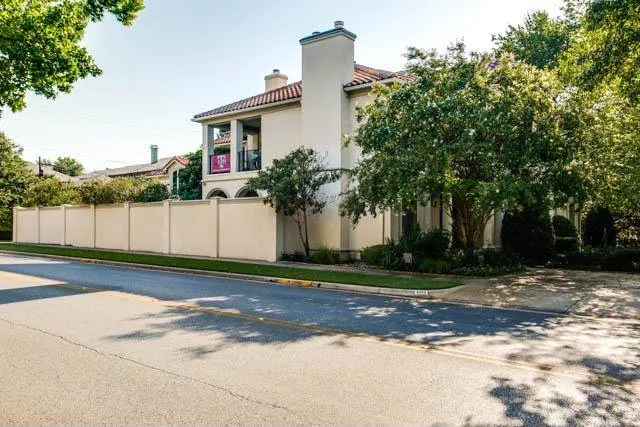

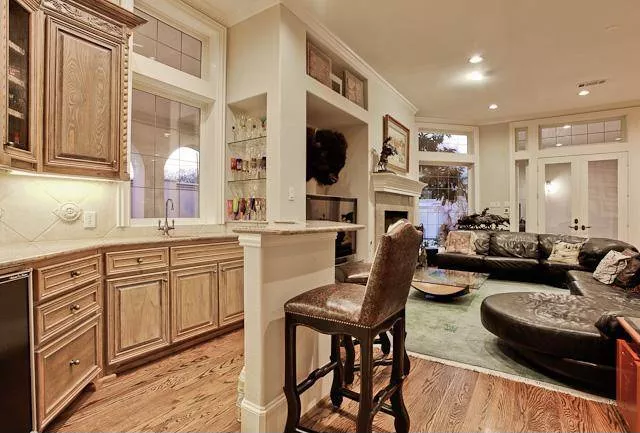

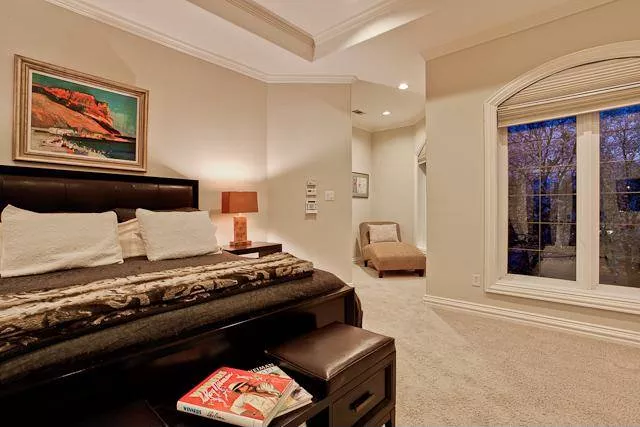

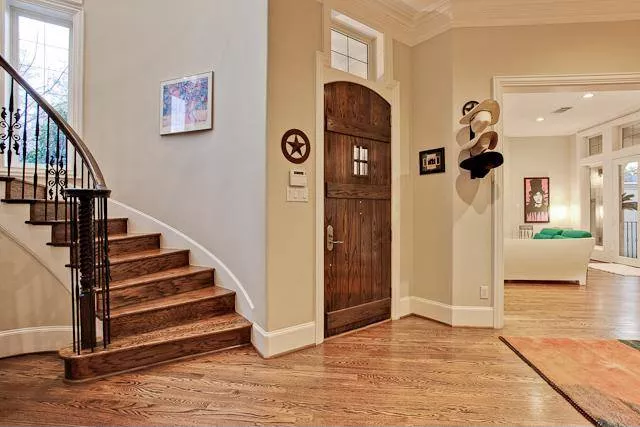

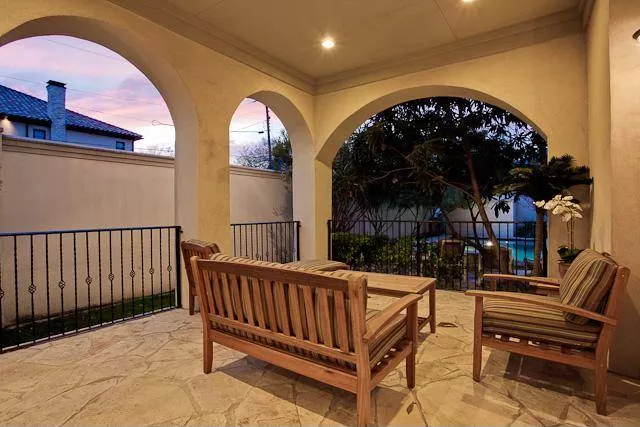

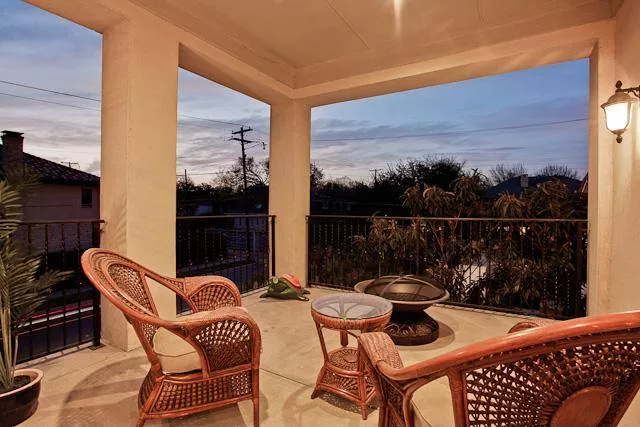

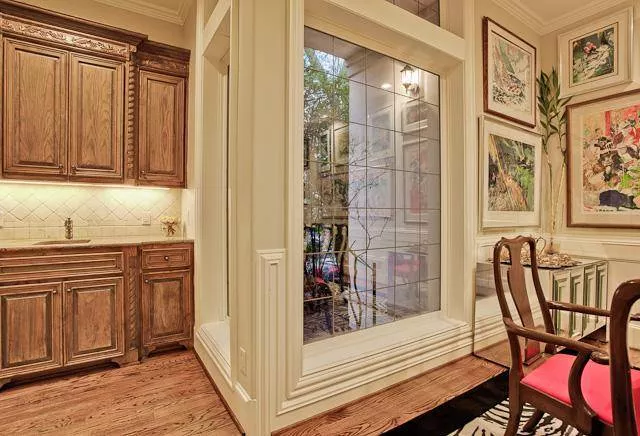

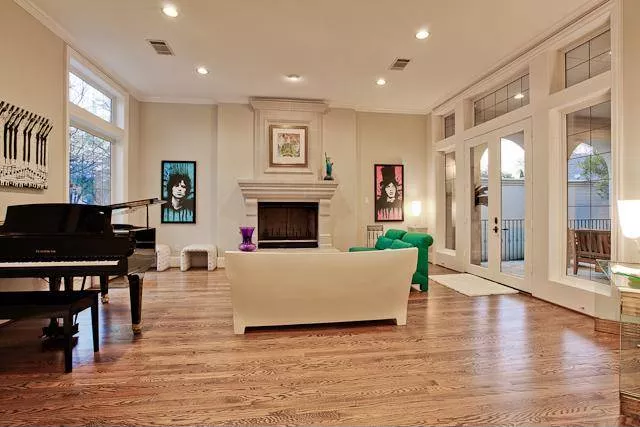

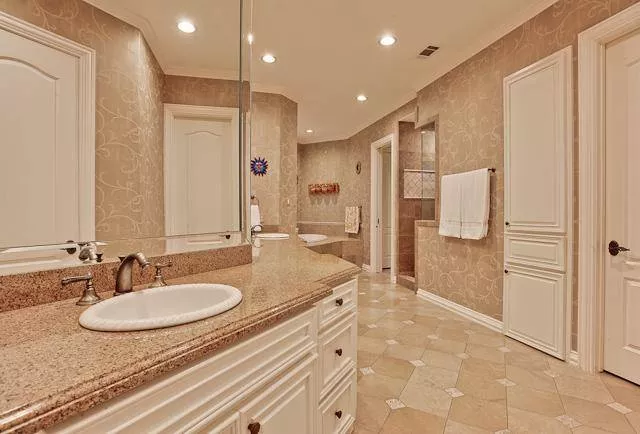

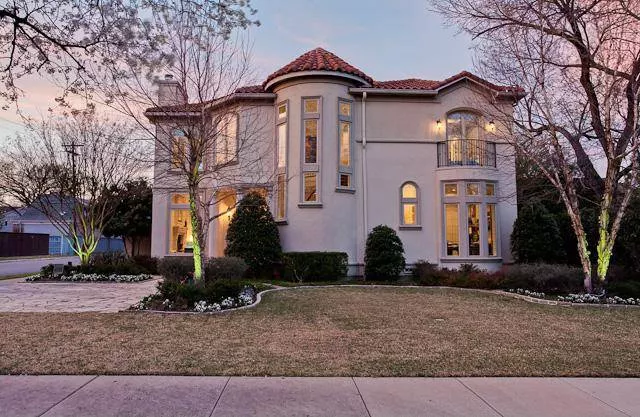

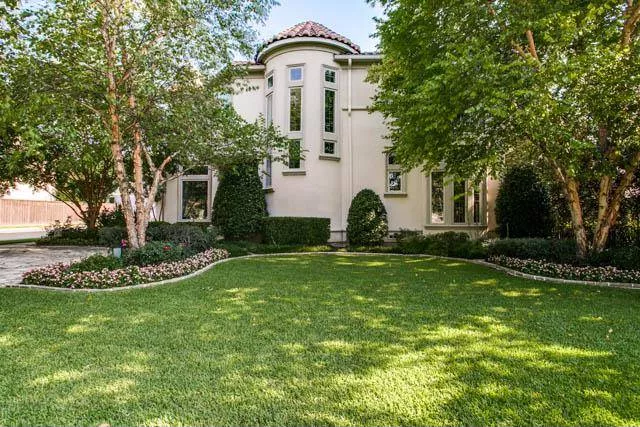

A regal, European-design gives this spacious family home the look and feel of a private Italian villa. Large windows and towering rooflines create an instant curb appeal. Meanwhile an interior of 5,123 square feet, including 3 full bedroom suites, offers plenty of functionality for the whole family. The main floor offers all the common areas such as the gorgeous living and dining rooms which flank either side of the grand foyer. There is also a private study along with a family room and a gourmet island kitchen. Check out all those built-ins throughout that add wonderful character. Upstairs finds the sleeping quarters, highlighted by the master suite with its stunning private balcony and large master bath. There is also a game room and another balcony nearby, along with space for a future bonus room atop the 3-car garage.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Kitchen Island

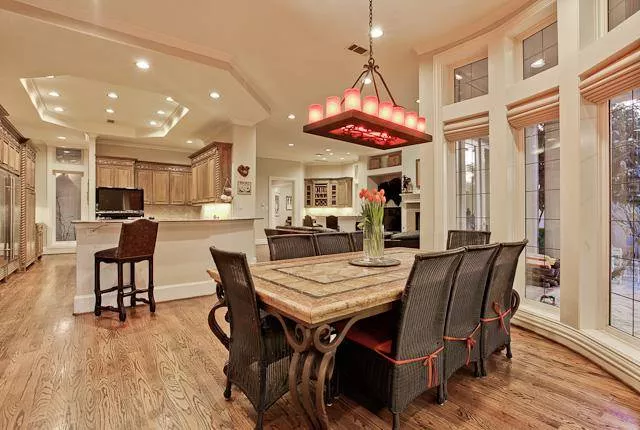

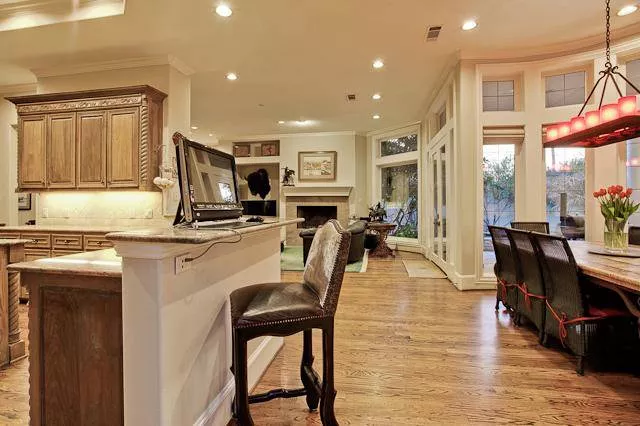

Nook / Breakfast Area
Pantry
U-Shaped
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Outdoor Living Space

Additional features

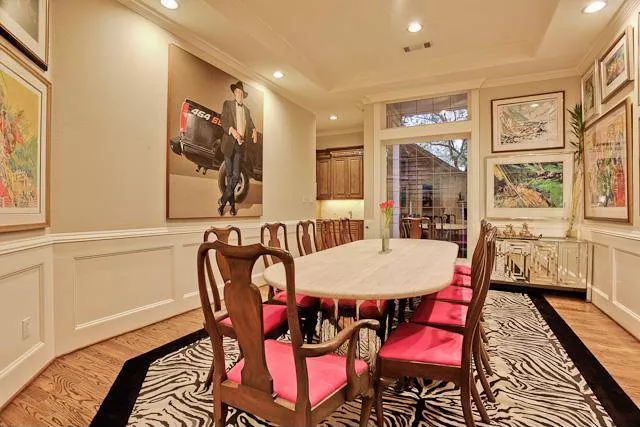

Dining Room

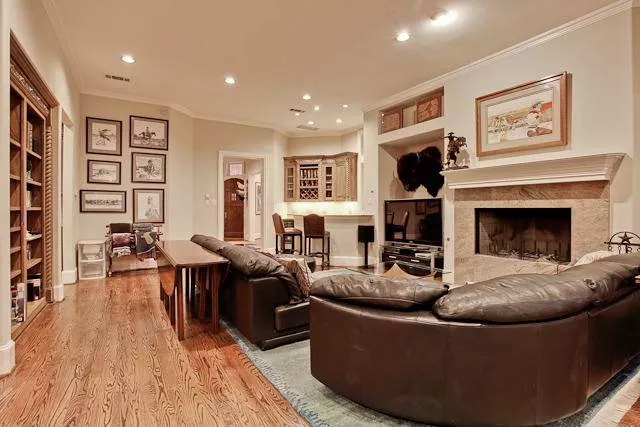

Family Room
Fireplace
Formal LR

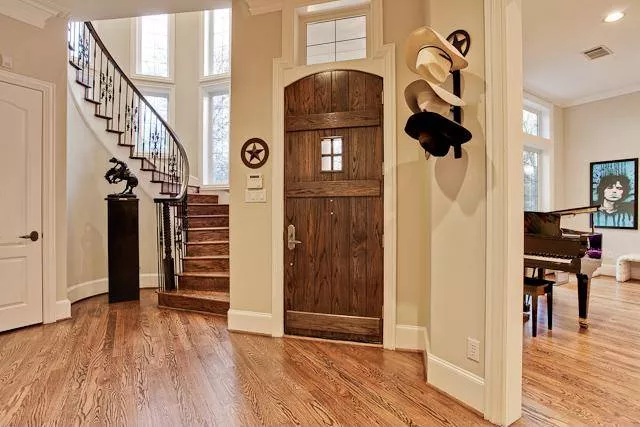

Foyer
Home Office
Laundry 2nd Fl

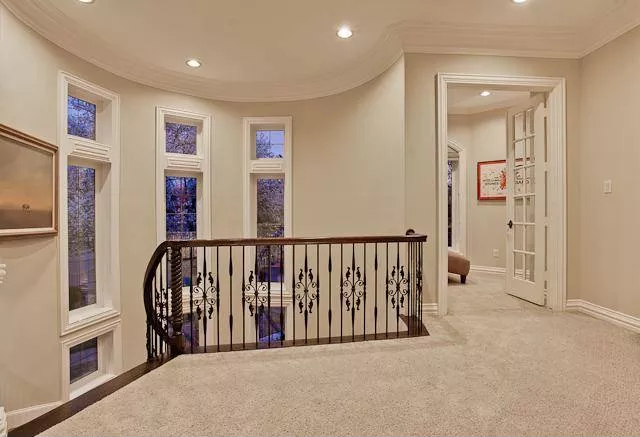

Loft / Balcony
Rec Room
Unfinished Space

Garage Location

Rear

Garage Options

Attached
Rear-entry

6,734 Ft

Total Structure

5,123 Ft

Total Heated

2,544 Ft

1st Floor

2,579 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

51'

Width

98'

Depth

34'

Height

11' 0"

Main Floor Ceiling

11' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

682 Ft

Garage

Exterior Styles

European

Mediterranean

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,180

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180

$2,360

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360

$3,270

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
