Sq Ft
2,718 FT²

Beds
5

Baths
3

Stories
1

Garage
2

Depth
64' 4"

Width
62' 8"

On Sale
$920.00
$1,150.00

Front Rendering

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,718 FT²

From

$920.00

Beds

Baths

Stories

Garage

Depth

64' 4"

Width

62' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

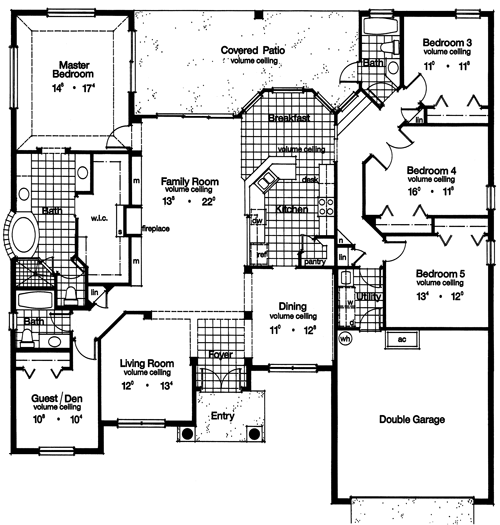

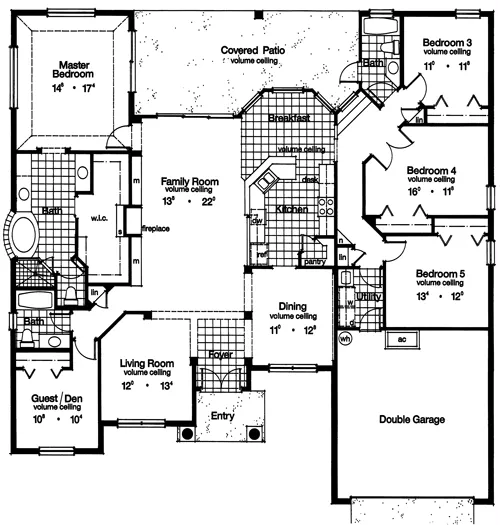

First Floor Plan

About This Plan

A columned foyer and living room are only one of the unique features of this plan.

From the moment you step into the huge family gathering space and view the magnificent media/fireplace wall, you become more excited and intrigued.

The master wing comes complete with a very secluded guest suite, with private bath.

The master suite itself, is a study of good design. From the arched entry to the windowed bedwall of the trayed sleeping chamber, the excitement continues.

The spectacular master bath frames the soaking tub in a curved wall of glass block. The his and hers vanities, large shower, toilet chamber and super huge walk-in dressing salon complete the design.

There is a mitered glass nook off the kitchen, which has a walk-in pantry.

The three secondary bedrooms share the pool bath. Note the learning center off the bedroom wing-the perfect place for a home computer.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Walk-in Pantry

Exterior features

Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

2 Story Volume
Fireplace
Foyer
Library/Media Rm

Garage Location

Front

Garage Options

Attached
Front-entry

2,718 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

62' 8"

Width

64' 4"

Depth

22' 0"

Height

Varies' 0"

Main Floor Ceiling

8" Block/Wood

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

452 Ft

Garage

64 Ft

Porch

358 Ft

Patio

Exterior Styles

Beach

Contemporary

Mediterranean

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$700

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700

$1,150

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,150

$1,350

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,350

$1,500

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,500

$2,300

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
