Sq Ft
2,654 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
54'

Width
46'

On Sale
$960.00
$1,200.00

Front Rendering

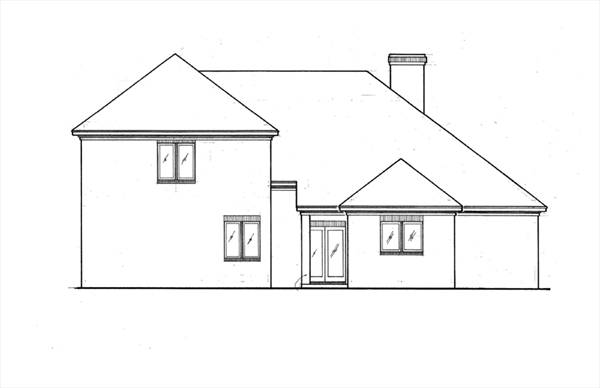

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,654 FT²

From

$960.00

Beds

Baths

2.5

Stories

Garage

Depth

54'

Width

46'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

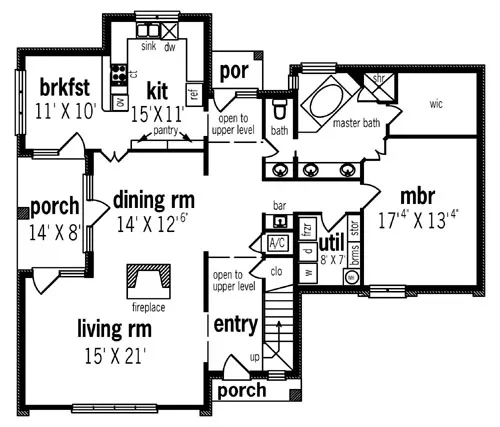

First Floor Plan

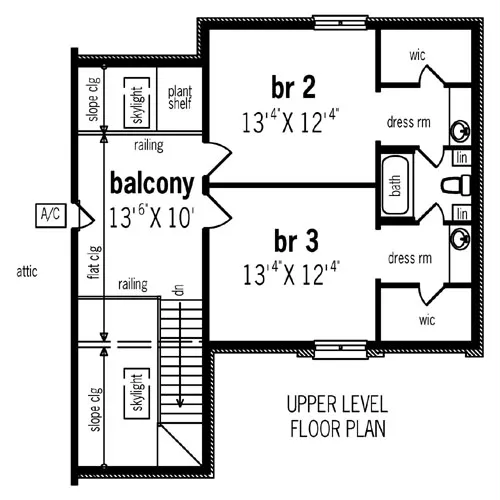

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

This is a great luxury 2 story home designed with a separate 2 car garage for maximum site design flexibility. Sloped ceilings in the foyer provide a connection of the upper level and lower level spaces. Open balconies allow a view from the upper level to the foyer below. The living room has a wood burning fireplace, access to the side covered porch and a very open view of the lower level living spaces. The master suite is located on the main level for convenience. The master suite bath includes the most popular amenities including a walk-in closet, his and her vanities, soaking tub, separate shower and a private toilet area. Both secondary bed rooms are located on the upper level and feature large walk-in closets and private dressing areas.

FEATURES & DETAILS

Exterior features

Front Porch

Foundation Options

Slab

Lot Options

Suited for narrow lot

Garage Location

Front

Garage Options

Detached
Front-entry

2,654 Ft

Total Heated

1,860 Ft

1st Floor

794 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

46' 0"

Width

54' 0"

Depth

27' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

484 Ft

Garage

174 Ft

Storage

173 Ft

Porch

Exterior Styles

Collections

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$950

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$950

$1,200

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,200

$1,235

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,235

$1,280

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,280

$1,390

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,390

$1,440

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,440

$2,200

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
