1,692 FT²

Beds
3

Baths
1.5

Stories
2

Garage
1

Depth
42'

Width
48' 10"

On Sale
$1,080.00
$1,350.00

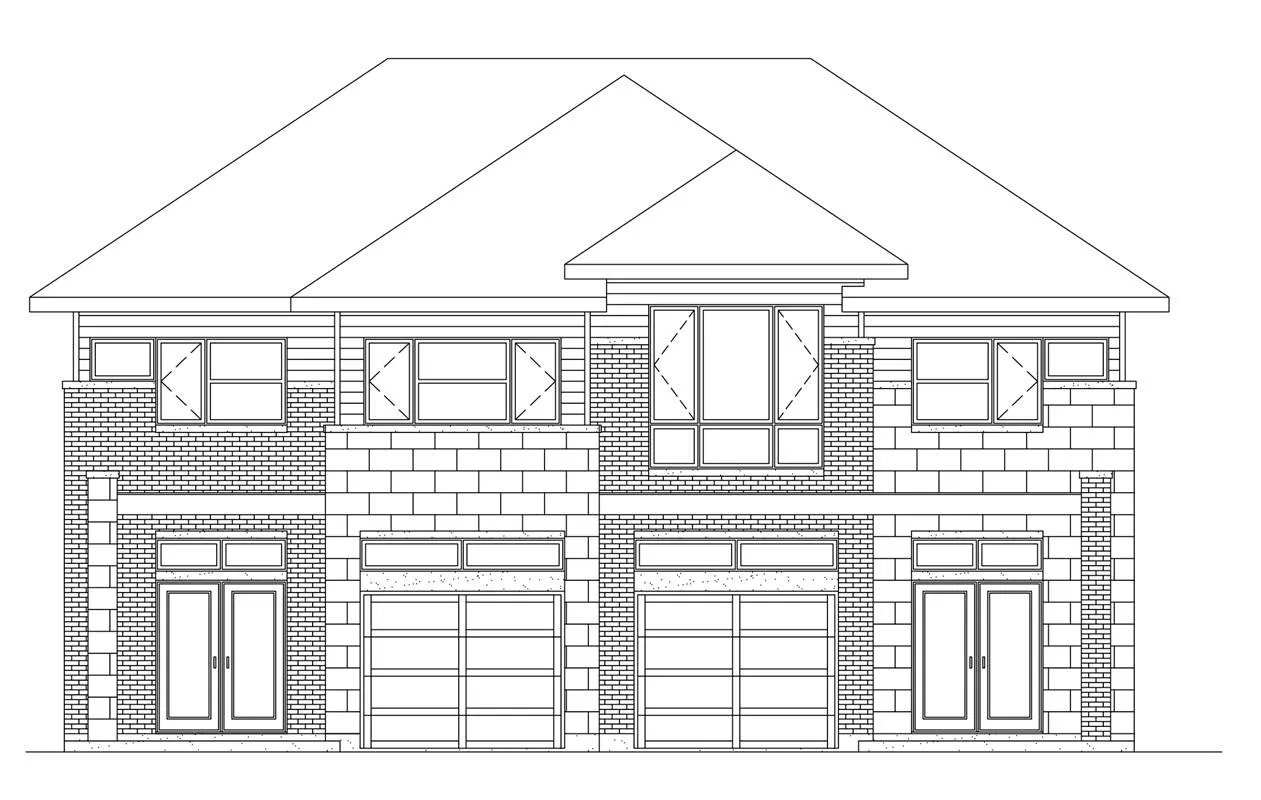

Front View

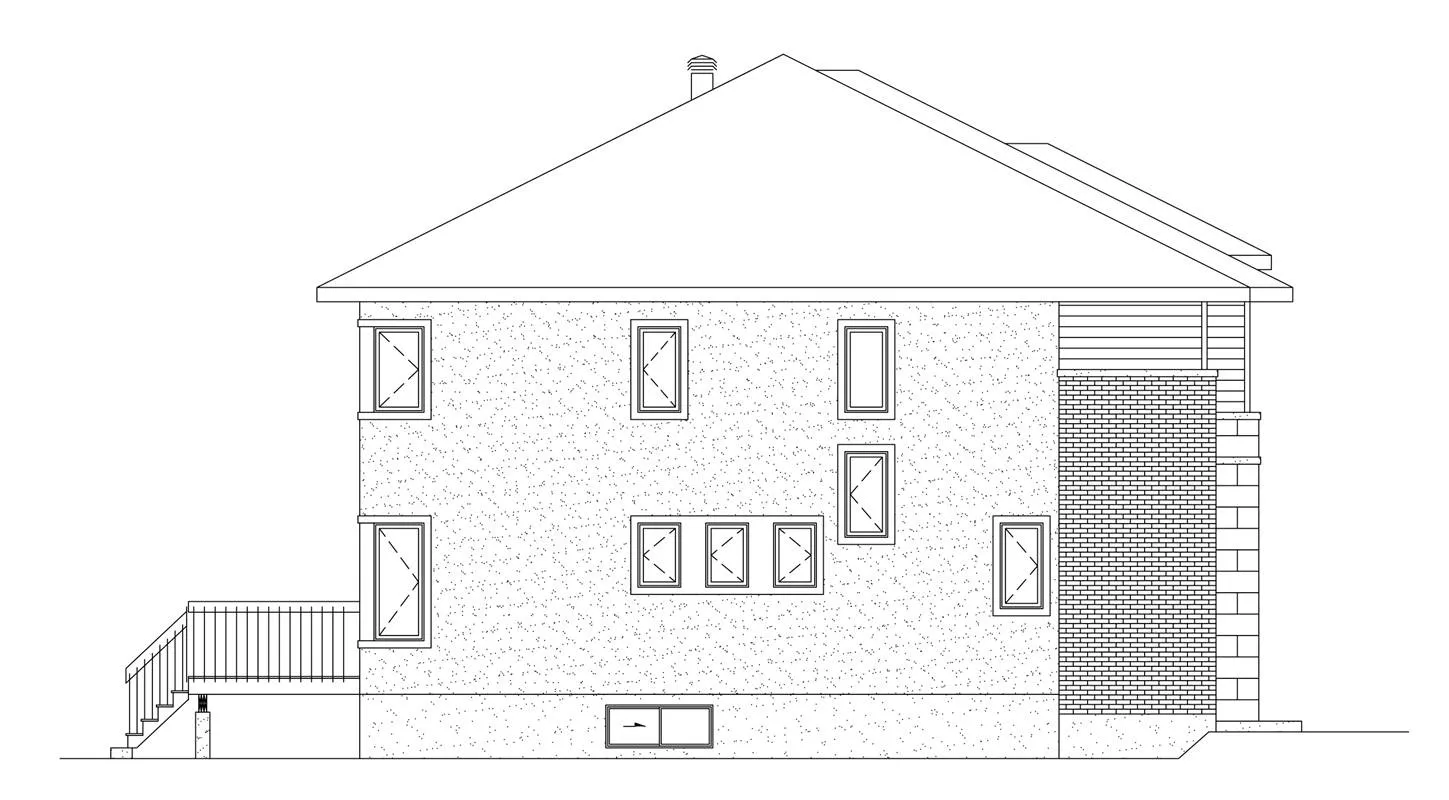

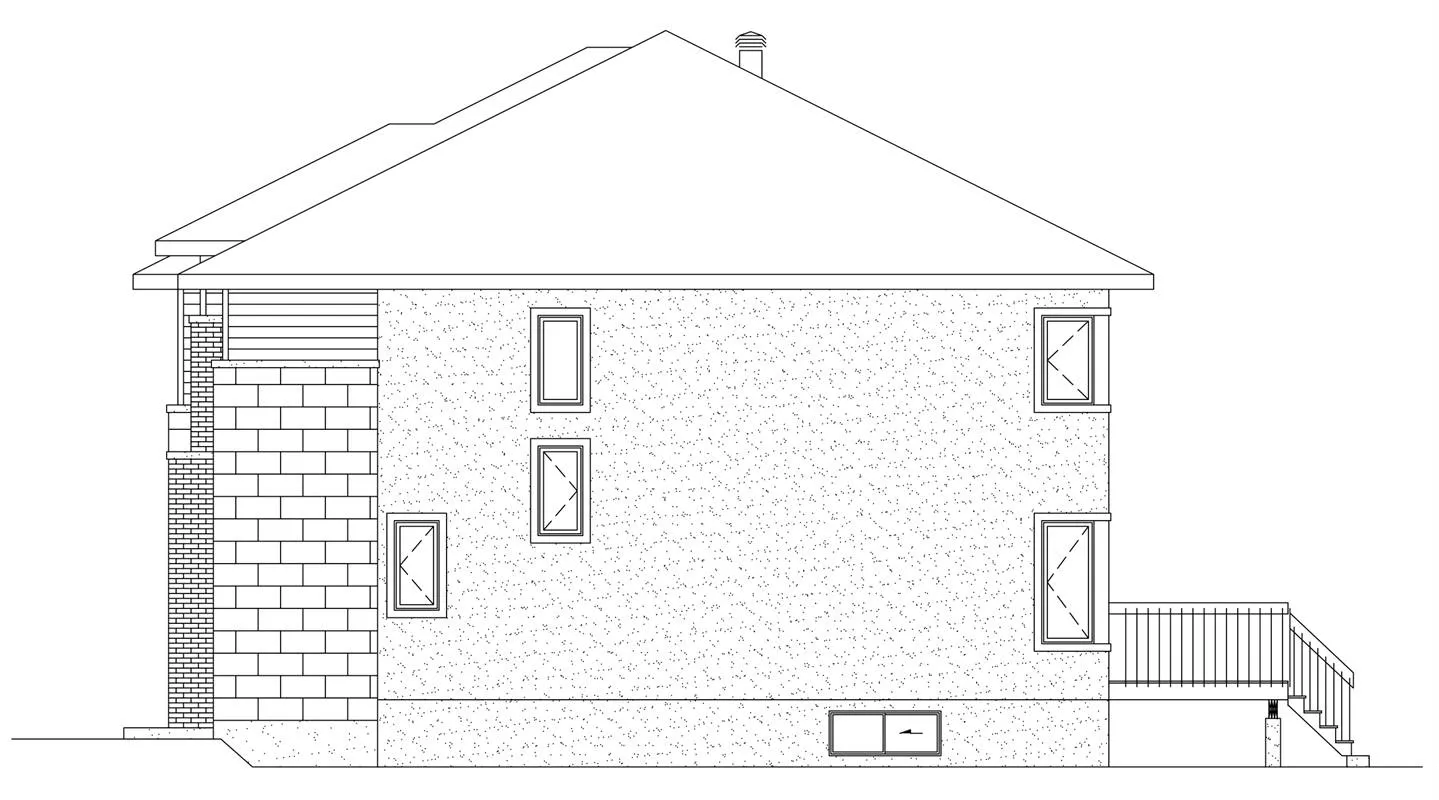

Side View

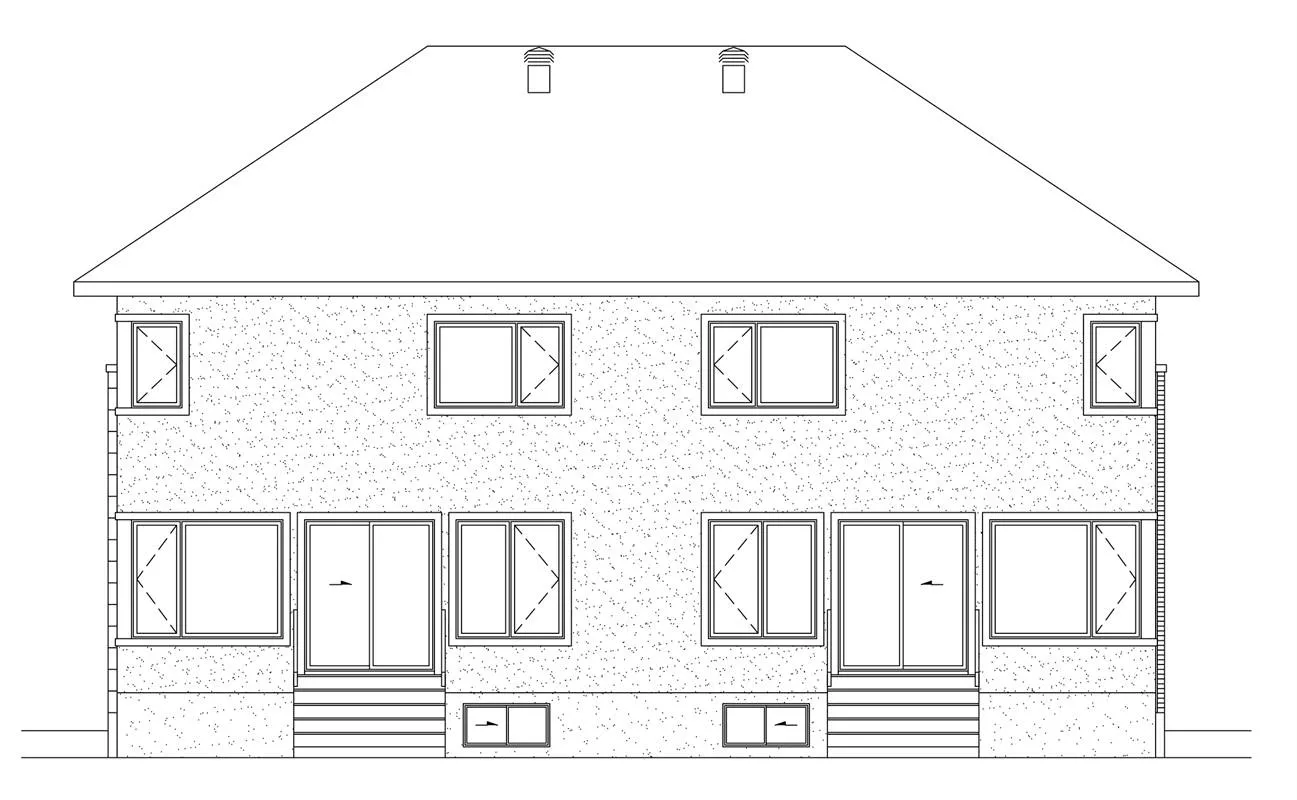

Rear View

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,692 FT²

From

$1,080.00

Beds

Baths

1.5

Stories

Garage

Depth

42'

Width

48' 10"

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

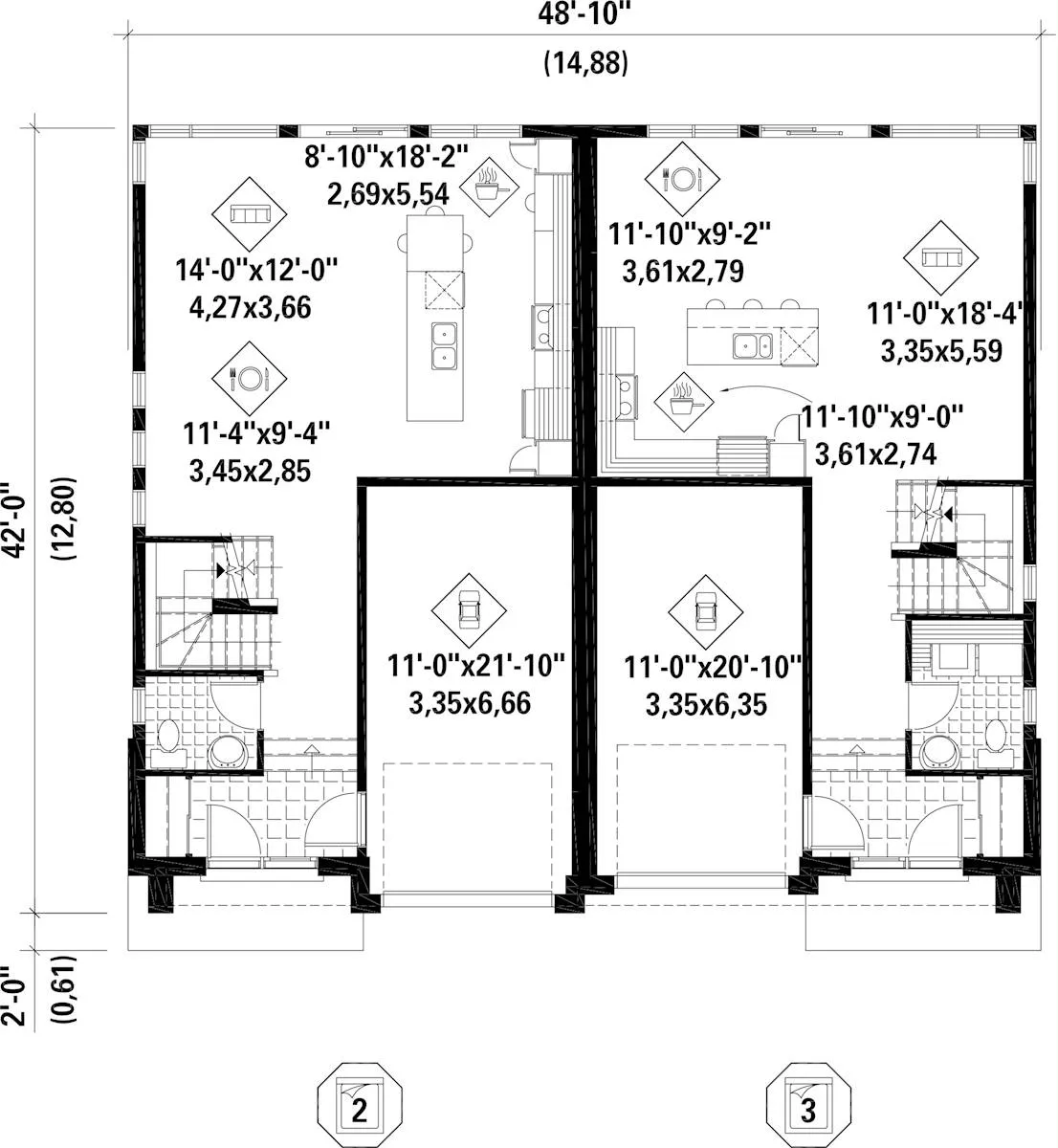

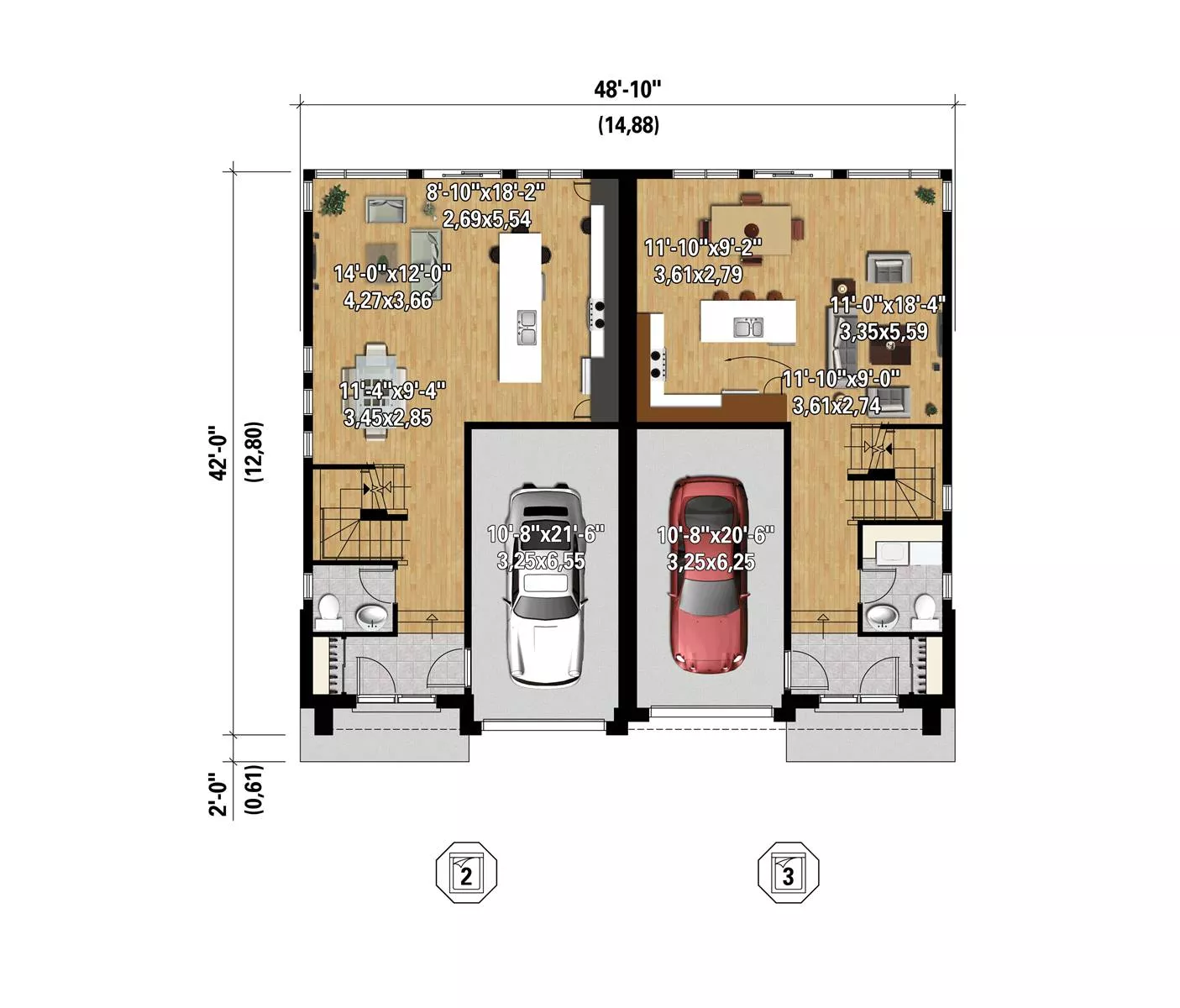

1st Floor

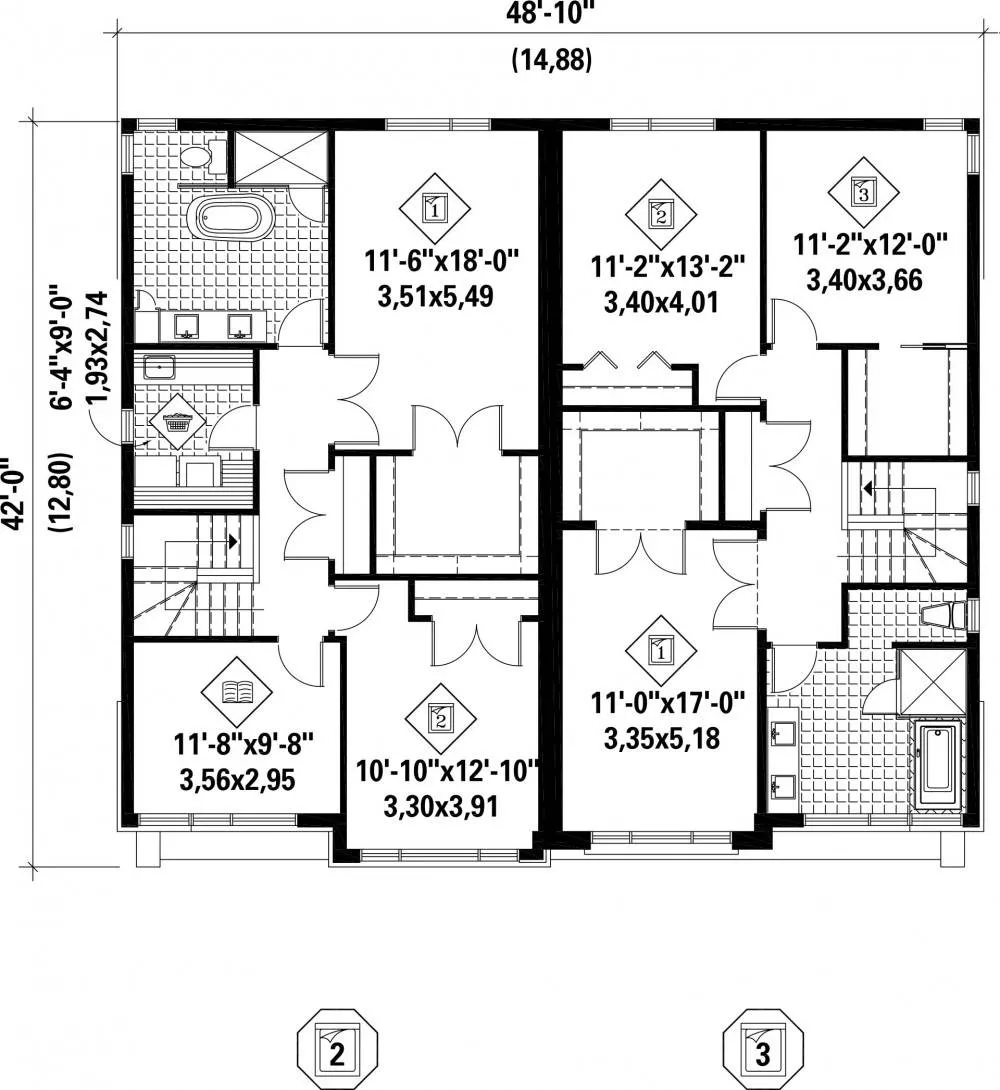

2nd Floor

1st Floor

2nd Floor

About This Plan

This modern duplex is perfect for a builder wanting to maximize profits and provide a great space for young families or college age young adults.

Both sides of the duplex mirror each other in their offerings.

Main Floor:

1 car garage
Powder bathroom
Open concept floorplan
Kitchen island
Sliding glass doors for access to the uncovered back deck
Plenty of natural light with ample windows

Second level:

All 3 bedrooms
1 full shared hallway bathroom with the right side “3” having a wet bath with shower & tub
Stackable W/D locations
Ample storage space

FEATURES & DETAILS

Kitchen features

Kitchen Island
Pantry

Bedroom features

Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Additional features

Foyer
Great Room
Laundry 2nd Fl
Open Floor Plan

Garage Location

Front

Garage Options

Attached
Front-entry

3,909 Ft

Total Structure

1,692 Ft

Unit Heated

1,443 Ft

1st Floor

1,942 Ft

2nd Floor

Bedrooms

1.5

Bathrooms

Garage

Stories

48' 10"

Width

42' 0"

Depth

32' 0"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

6:12

Primary Roof Pitch

8:12

Secondary Roof Pitch

Duplex

Dwelling Number

Unheated Living Space

524 Ft

Garage

Exterior Styles

Contemporary

Modern

Collections

Builders

Open Floor Plan

Plan Package Options

Important info before you buy

Select Plan Package

$1,350

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,350

$1,395

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,395

$1,540

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,540

$2,370

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,370

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
