Sq Ft
1,692 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
60' 6"

Width
27'

On Sale
$1,124.80
$1,406.00

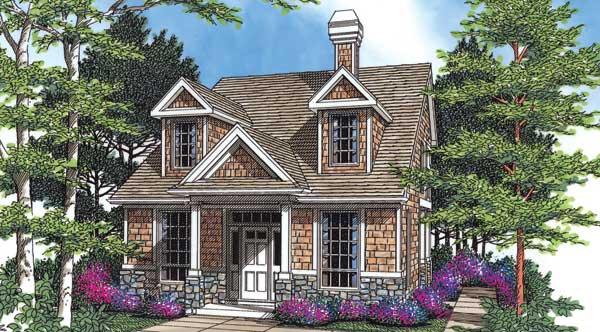

Front Rendering

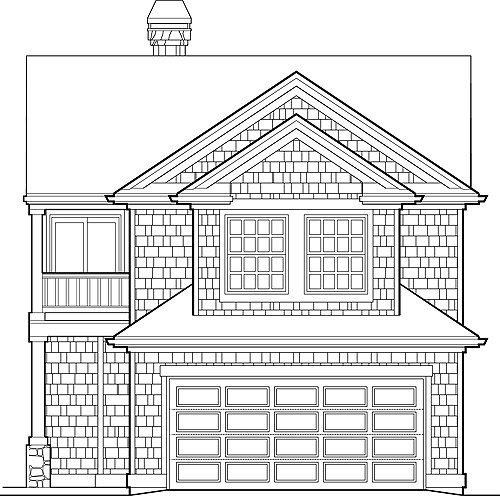

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,692 FT²

From

$1,124.80

Beds

Baths

2.5

Stories

Garage

Depth

60' 6"

Width

27'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

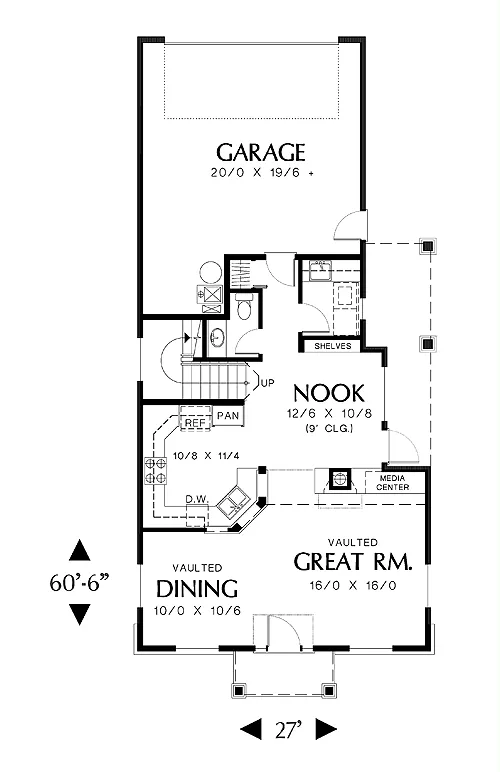

First Floor Plan

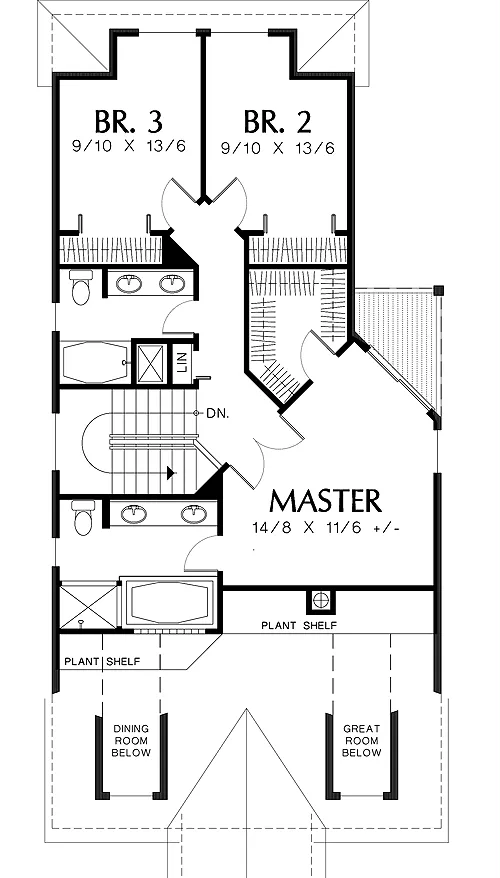

Second Floor Plan

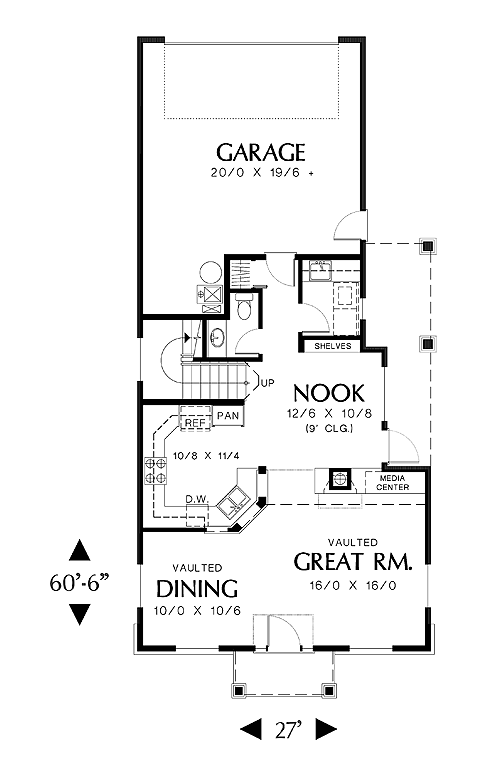

First Floor Plan

Second Floor Plan

About This Plan

It looks like a storybook cottage with its classic proportions, twin dormers, and cedar siding. The interior is just as captivating. Step inside to high-flying ceilings, open spaces, and beautiful built-ins. The dormers flow lovely light down into the vaulted dining room and great room, equipped for cozy living with a fireplace and media center. The U-shaped kitchen is large enough to accommodate the cook and helpers. The sink peninsula includes base cabinets only, so the cooks can participate in conversation from the dining room and great room. Built-in shelves in the breakfast nook beg for a pretty display of china and collectibles. This sunny nook opens to a side porch. Passage to the rear-facing garage is through a hall, which opens to a coat closet, the laundry room, and a powder room.

Upstairs, two spacious bedrooms share a bath with a double-sink vanity and a separate shower and tub. The magnificent master suite features double doors, a private balcony, an attached bath, and a large closet/dressing room.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Dining Room
Fireplace
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Rear

Garage Options

Attached
Rear-entry

1,692 Ft

Total Heated

847 Ft

1st Floor

845 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

27' 0"

Width

60' 6"

Depth

27' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

464 Ft

Garage

Exterior Styles

Cape Cod

Colonial

Craftsman

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,406

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,406

$1,606

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,606

$1,656

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,656

$2,812

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,812

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
