Sq Ft
3,689 FT²

Beds
4

Baths
4.5

Stories
2

Garage
1

Depth
72'

Width
103'

On Sale
$1,000.00
$1,250.00

Front

View All 5 Images | Photographs may reflect modified home

Sq Ft

3,689 FT²

From

$1,000.00

Beds

Baths

4.5

Stories

Garage

Depth

72'

Width

103'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor

Second Floor

First Floor

Second Floor

About This Plan

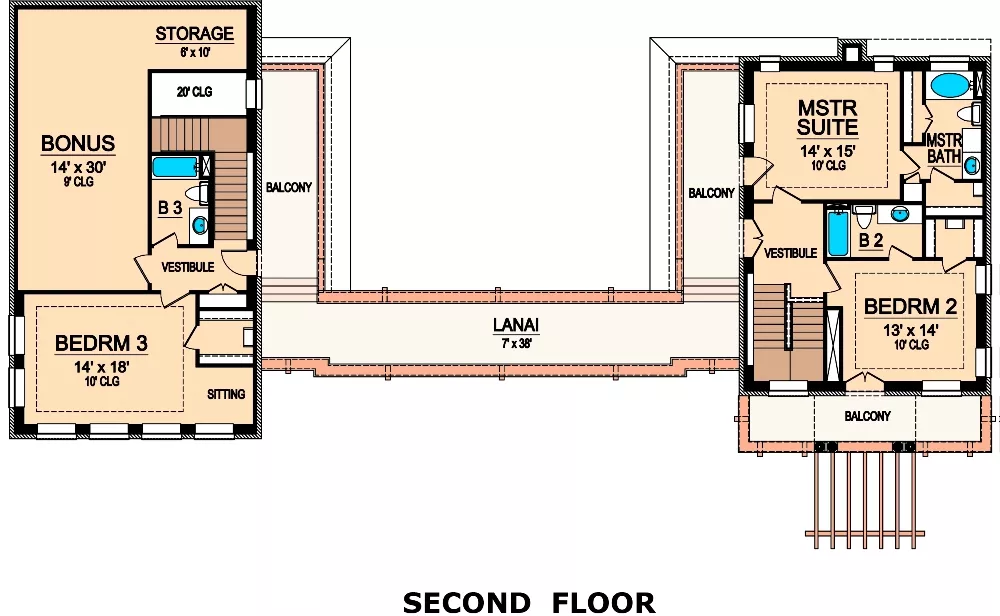

Surrounded by a courtyard, this extravagant floor plan offers many amenities. Off the den, you'll enjoy the outdoor lounge with a view of the courtyard. This area of the house plan offers a separate living area, well suited for in-laws or guests that includes a den, breakfast area, kitchen, bedroom with private bath and wardrobe, and a one car garage. Joined by the veranda and across the courtyard is the second living area that consists of a family room, dining room, kitchen with eating bar, and a breakfast patio. The master suite shares space on the second level with two family bedrooms and two baths. The lanai separates the master suite and one bedroom/bath from the third bedroom/bath and bonus room. This house plan also offers an elevator as an alternate way to reach the upper level.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Bedroom features

2 Primary Suites
Guest Suite
Primary Bdrm Upstairs

Exterior features

Courtyard

Foundation Options

Slab

Additional features

Bonus Room
Dining Room
Family Room
Foyer
In-law Suite
Laundry 1st Fl
Loft / Balcony
Storage Space

Garage Location

Side

Garage Options

Attached

5,646 Ft

Total Structure

3,689 Ft

Total Heated

2,318 Ft

1st Floor

1,371 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

103' 0"

Width

72' 0"

Depth

28' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

374 Ft

Garage

525 Ft

Bonus Room

Exterior Styles

Mediterranean

Southern

Spanish

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,125

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,125

$1,305

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,305

$1,670

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,670

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
