Sq Ft
1,826 FT²

Beds
3

Baths
2.5

Stories
1

Garage
2

Depth
46' 8"

Width
72' 4"

On Sale
$796.00
$995.00

EXCLUSIVE PLAN

Front Rendering

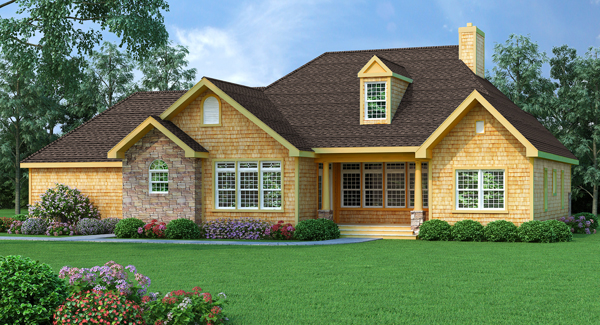

Rear Rendering

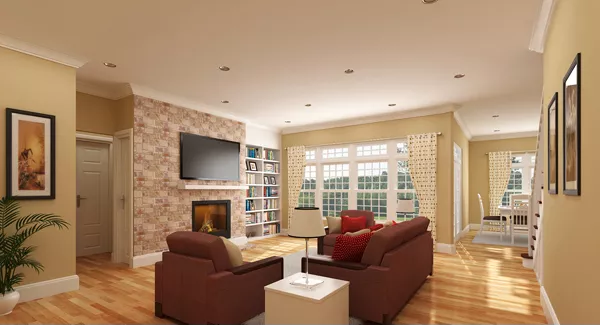

Great Room

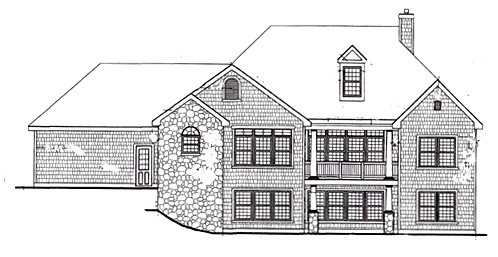

Rear Elevation with Opt Walk-Out Bsmt

View All 4 Images | Photographs may reflect modified home

Sq Ft

1,826 FT²

From

$796.00

Beds

Baths

2.5

Stories

Garage

Depth

46' 8"

Width

72' 4"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

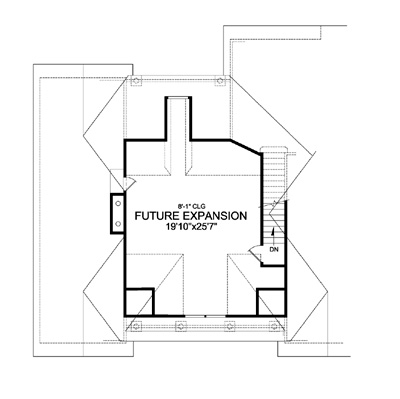

Bonus Second Floor Plan

Optional Walk-out Basement Plan

First Floor Plan

Bonus Second Floor Plan

Optional Walk-out Basement Plan

About This Plan

A great floor plan, huge great room and charming craftsman exterior are the most notable features of this split bedroom ranch. The central open great room, which is flooded with light from front and rear large windows, includes a 10 foot high ceiling and built-ins on either side of the fireplace. The large kitchen and spacious adjoining dining area are visually connected to the great room. The master suite is privately separated from the other two bedrooms. It includes an 11-0 high tray ceiling, large walk-in closet and compartmentalized bath with a separate tub and shower. The two other bedrooms each have a walk -in closet and share a jack and jill bath. There is a large second floor bonus space an optional walk-out basement is available.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for view lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Workshop

Garage Location

Side

Garage Options

Attached
Side-entry

1,826 Ft

Total Heated

117 Ft

Front porch

138 Ft

Rear Porch

Bedrooms

2.5

Bathrooms

Garage

Stories

72' 4"

Width

46' 8"

Depth

22' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Primary Roof Pitch

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

454 Ft

Garage

255 Ft

Porch

560 Ft

Bonus Room

Exterior Styles

Craftsman

Lake

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$695

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$695

$995

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$995

$1,105

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,105

$1,180

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,180

$1,895

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,895

Need To Reverse Plan? (Optional)

$350

Readable Reverse

Reverse house plans with readable text and dimensions

$350

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
