Sq Ft
1,034 FT²

Beds
2

Baths
2

Stories
1.5

Garage
0

Depth
30'

Width
36'

On Sale
$616.00
$770.00

Front Rendering

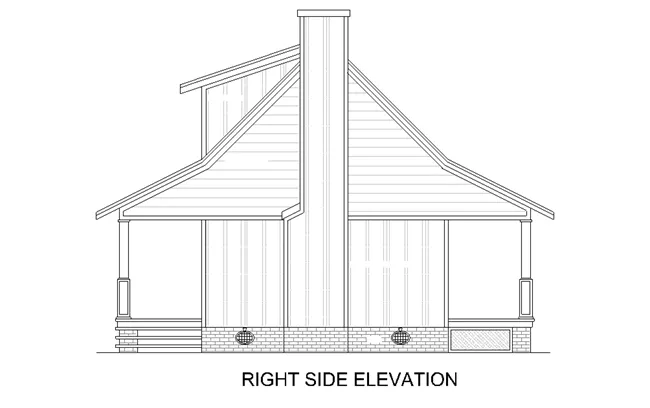

Right Side Elevation

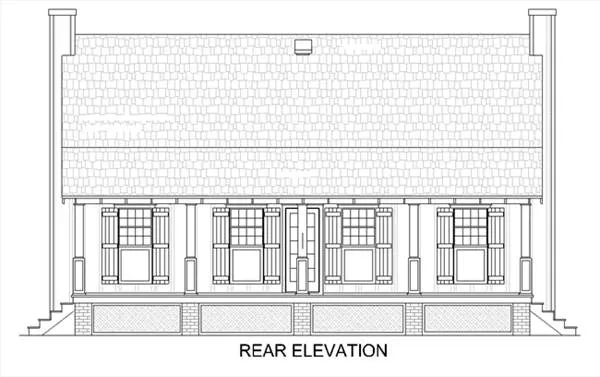

Rear Rendering

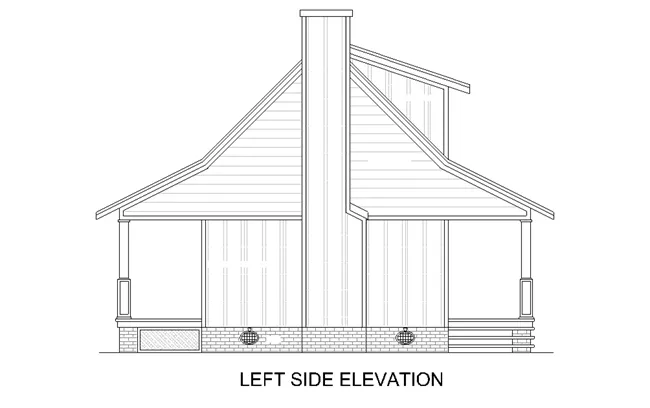

Left side elevation

optional detached garage elevation

View All 6 Images | Photographs may reflect modified home

Sq Ft

1,034 FT²

From

$616.00

Beds

Baths

Stories

1.5

Garage

Depth

30'

Width

36'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

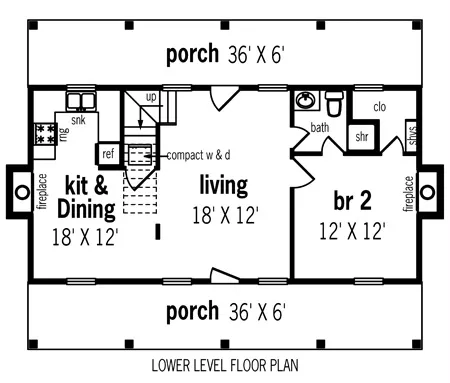

First Floor Plan

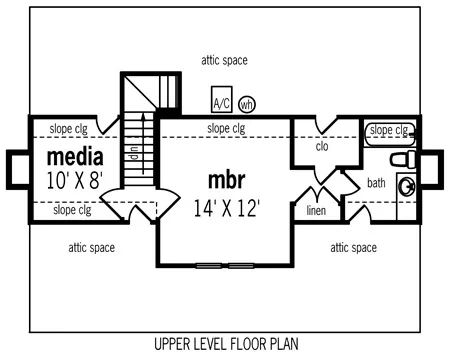

Second Floor Plan

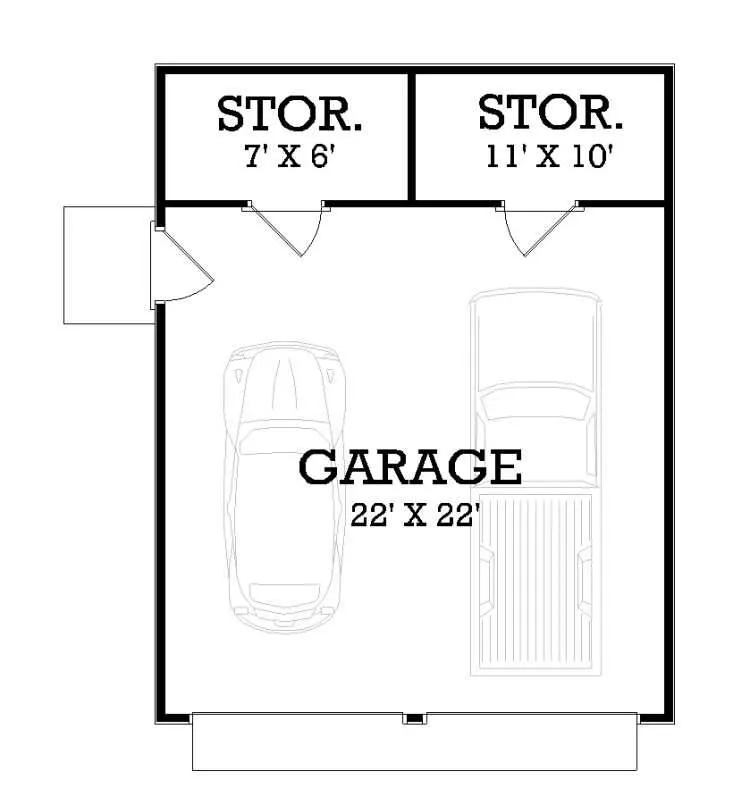

optional detached garage floor plan

First Floor Plan

Second Floor Plan

optional detached garage floor plan

About This Plan

Designed especially as a cabin retreat, this rustic cottage fits perfectly into any lake or wooded setting. The exterior is reminiscent of earlier frontier times and dogtrot homes built by the early settlers. Large front and rear porches provide outdoor living space and seasonal comfort. The large center Living room has an abundance of windows and doors on the front and rear so that cross ventilation can be just as effective as the dog trot homes of earlier times. In keeping with the traditional design, there is a fireplace at each end of the home. The fireplace in the country kitchen and dining area is sure to cast the perfect setting on those cool mornings. The master suite is located in the privacy of the upper level. The master bath is full size and offers a walk-in closet and a large linen storage. The gear storage room can house all of the sportsman gear one can imagine or it can double as a media room.

FEATURES & DETAILS

Bedroom features

Primary Bdrm Upstairs

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Library/Media Rm

Garage Options

None

1,466 Ft

Total Structure

1,034 Ft

Total Heated

648 Ft

1st Floor

386 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

1.5

Stories

36' 0"

Width

30' 0"

Depth

21' 0"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

6:12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

432 Ft

Porch

Exterior Styles

Cottage

Country

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$400

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$400

$770

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$770

$855

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$855

$900

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$900

$1,010

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,010

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,010

$1,340

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,340

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
