Sq Ft
1,835 FT²

Beds
3

Baths
2.5

Stories
2

Garage
2

Depth
33'

Width
36'

On Sale
$1,252.80
$1,566.00

Front Rendering

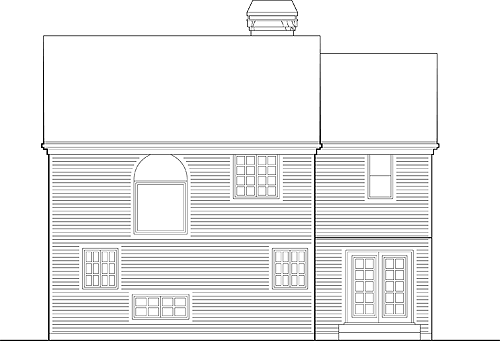

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,835 FT²

From

$1,252.80

Beds

Baths

2.5

Stories

Garage

Depth

33'

Width

36'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

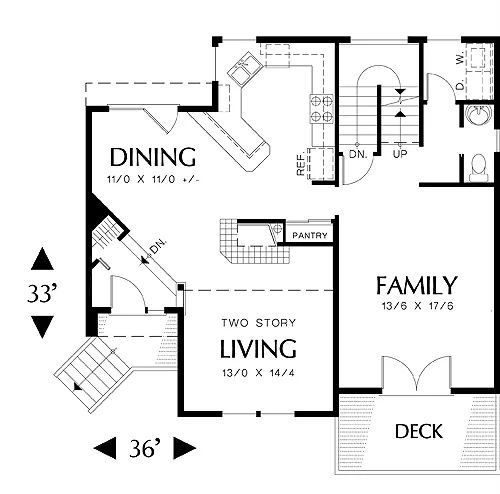

First Floor Plan

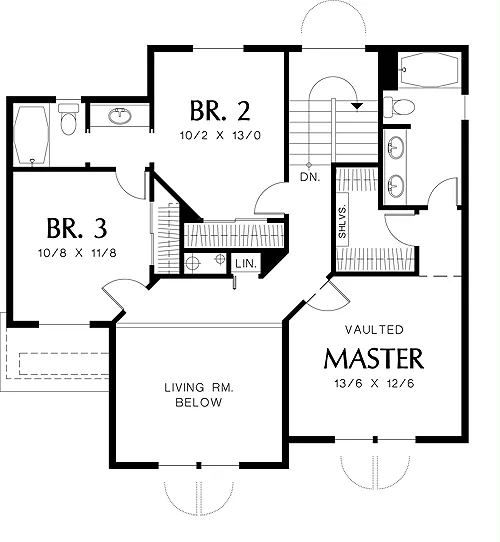

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

There's a stately aura about this multi-level house, created by tall arch-top windows, twin gables, and French doors that lead onto a balcony. The imposing aura is carried indoors, where the living room and its windows soar two stories to the rooftop. Corner windows light the kitchen, and generous stretches of countertop allow elbowroom for more than one cook. A peninsula doubles as a lunch counter and subtly separates the kitchen and dining room. The staircase, leading down to the garages and up to the bedrooms, is positioned at the back of the house, beside the laundry room and a powder room. The stairwell is highlighted by another two-story arch-top window.

The impressive master suite features a vaulted ceiling and arch-top windows in the bedroom, a sizable walk-in closet, and an attached bath.

FEATURES & DETAILS

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Garage Location

Under

Garage Options

Attached
Drive-under

1,835 Ft

Total Heated

1,022 Ft

1st Floor

813 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

36' 0"

Width

33' 0"

Depth

29' 0"

Height

Varies' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

994 Ft

Garage

98 Ft

Deck

Exterior Styles

Colonial

Cottage

Traditional

Collections

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$1,566

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,566

$1,766

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,766

$1,816

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,816

$3,132

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,132

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
