Sq Ft
1,709 FT²

Beds
3

Baths
2.5

Stories
1

Garage
2

Depth
60' 7"

Width
70' 1"

On Sale
$752.00
$940.00

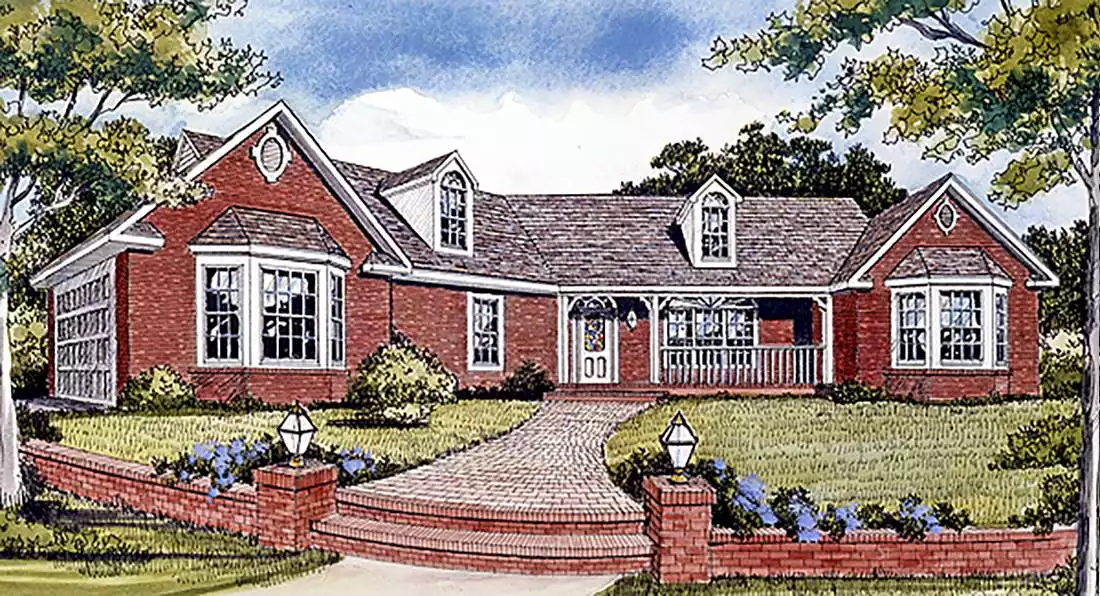

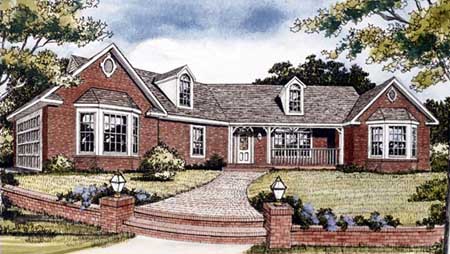

Front Rendering #1

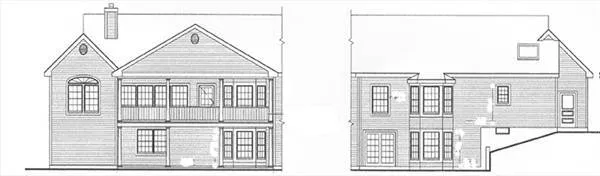

Rear Elevation with optional walk-out basement

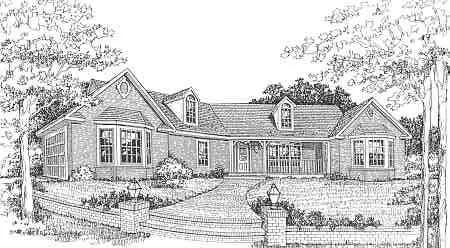

Front Rendering #2

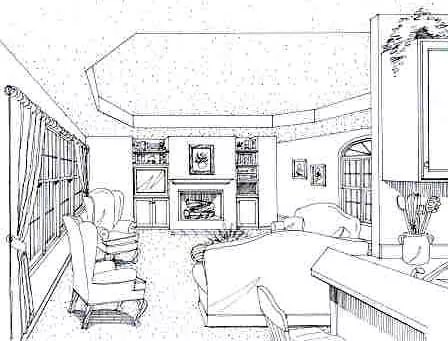

Great Room

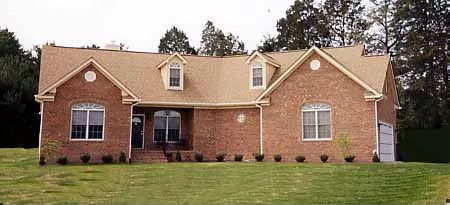

Front Photo #1

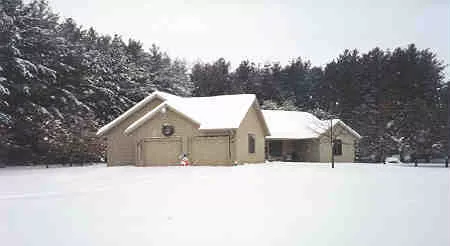

Front Photo #3

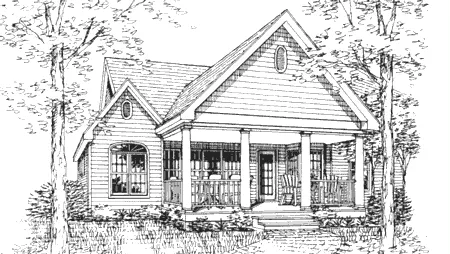

Rear Rendering

View All 7 Images | Photographs may reflect modified home

Sq Ft

1,709 FT²

From

$752.00

Beds

Baths

2.5

Stories

Garage

Depth

60' 7"

Width

70' 1"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

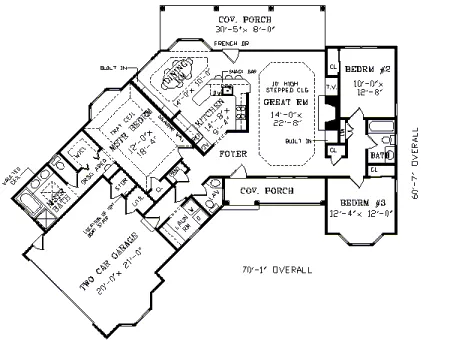

First Floor Plan

About This Plan

This perfectly planned home is well-suited to serve as the haven your family retreats to for relaxation. It's distinctive shape makes it ideal for corner or wedge shaped lots, or any type of sloping lot. The covered porch includes just the right space for two rockers and a side table. Inside, the foyer flows right into the Great Room, which will serve as home base for family gatherings. The fireplace is flanked by a media center for ease of furnishing. Nearby, sunlight pours into the versatile dining room. Along one wall, a beautiful built-in cabinet holds table linens, china and other fine collectibles. The master suite enjoys an isolated, yet easily accessed location; you don't have to trudge through the kitchen or down some long hall to get there. It includes a compartmented bath, a tray ceiling and large bay window.

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for corner lot
Suited for sloping lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl

Garage Location

Side

Garage Options

Attached
Side-entry

1,709 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

70' 1"

Width

60' 7"

Depth

20' 6"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

448 Ft

Garage

323 Ft

Porch

Exterior Styles

Country

Farmhouse

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$680

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$680

$940

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$940

$1,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050

$1,125

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,125

$1,795

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795

Need To Reverse Plan? (Optional)

$350

Readable Reverse

Reverse house plans with readable text and dimensions

$350

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
