Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,646 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
49'

Width
49'

On Sale
$1,078.40
$1,348.00

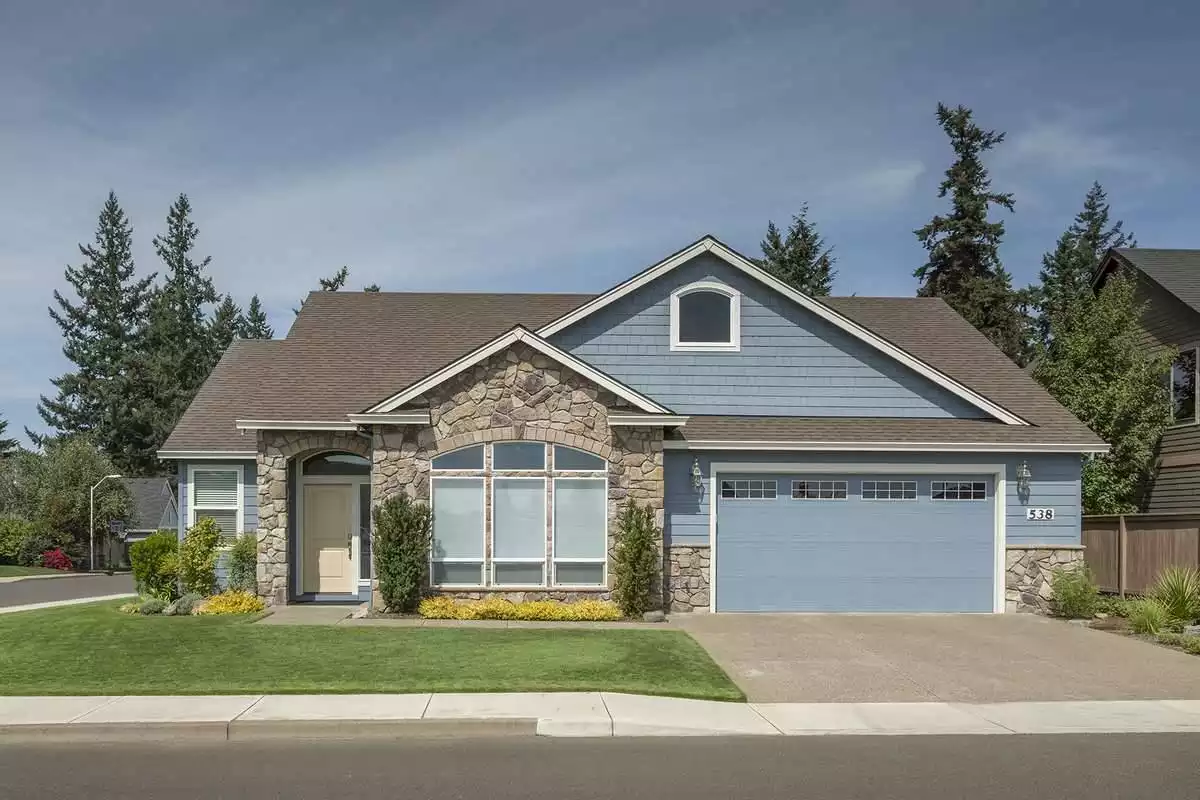

Front Exterior

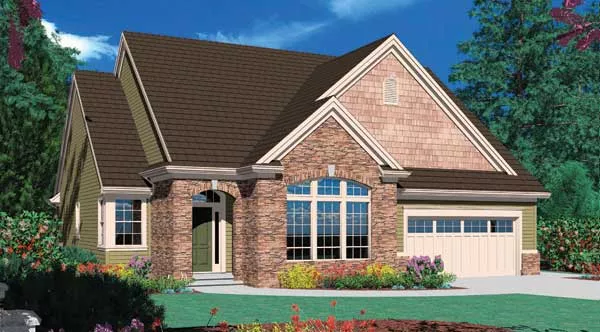

Front Rendering

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

1,646 FT²

From

$1,078.40

Beds

Baths

Stories

Garage

Depth

49'

Width

49'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

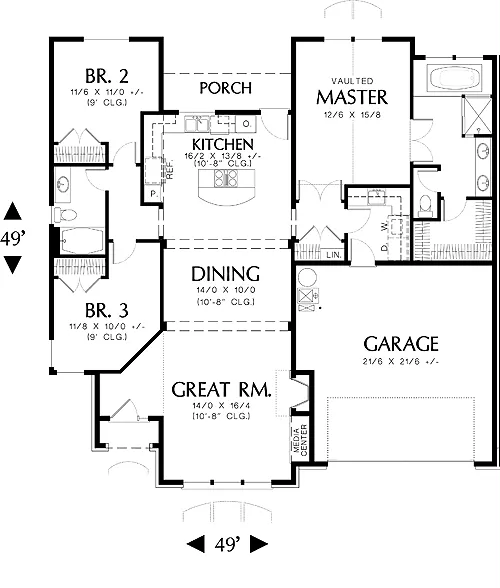

First Floor Plan

About This Plan

An elegant exterior with stone and cedar shingles paired with a smart floor plan lends charm to this home. Appealing from the outside and inside, a large arched window sends light cascading into the great room. An arched transom over the entry repeats the arched theme.
Public rooms run through the center of this home. The kitchen, featuring a center cook top island with a breakfast bar, serves as the homes command center. Another great place for the family to gather is the rear porch. Inside, ten-foot ceilings are used in the great room, dining room and kitchen to allow for a spacious and open feel in this compact floor plan.

The vaulted master suite provides all the amenities and comfort: a walk-in closet, spa tub, enclosed toilet, and dual sinks. It is assured privacy- the additional bedrooms are located across the home in their own hallway.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Rear Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Fireplace
Foyer
Great Room
Laundry 1st Fl
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,646 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

49' 0"

Width

49' 0"

Depth

29' 0"

Height

Varies' 0"

Main Floor Ceiling

2x6

Framing

Truss

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

472 Ft

Garage

56 Ft

Porch

Exterior Styles

Cottage

Country

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,348

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,348

$1,548

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,548

$1,598

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,598

$2,696

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,696

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
