Sq Ft
524 FT²

Beds
1

Baths
1

Stories
2

Garage
2

Depth
25' 2"

Width
20'

On Sale
$590.75
$695.00

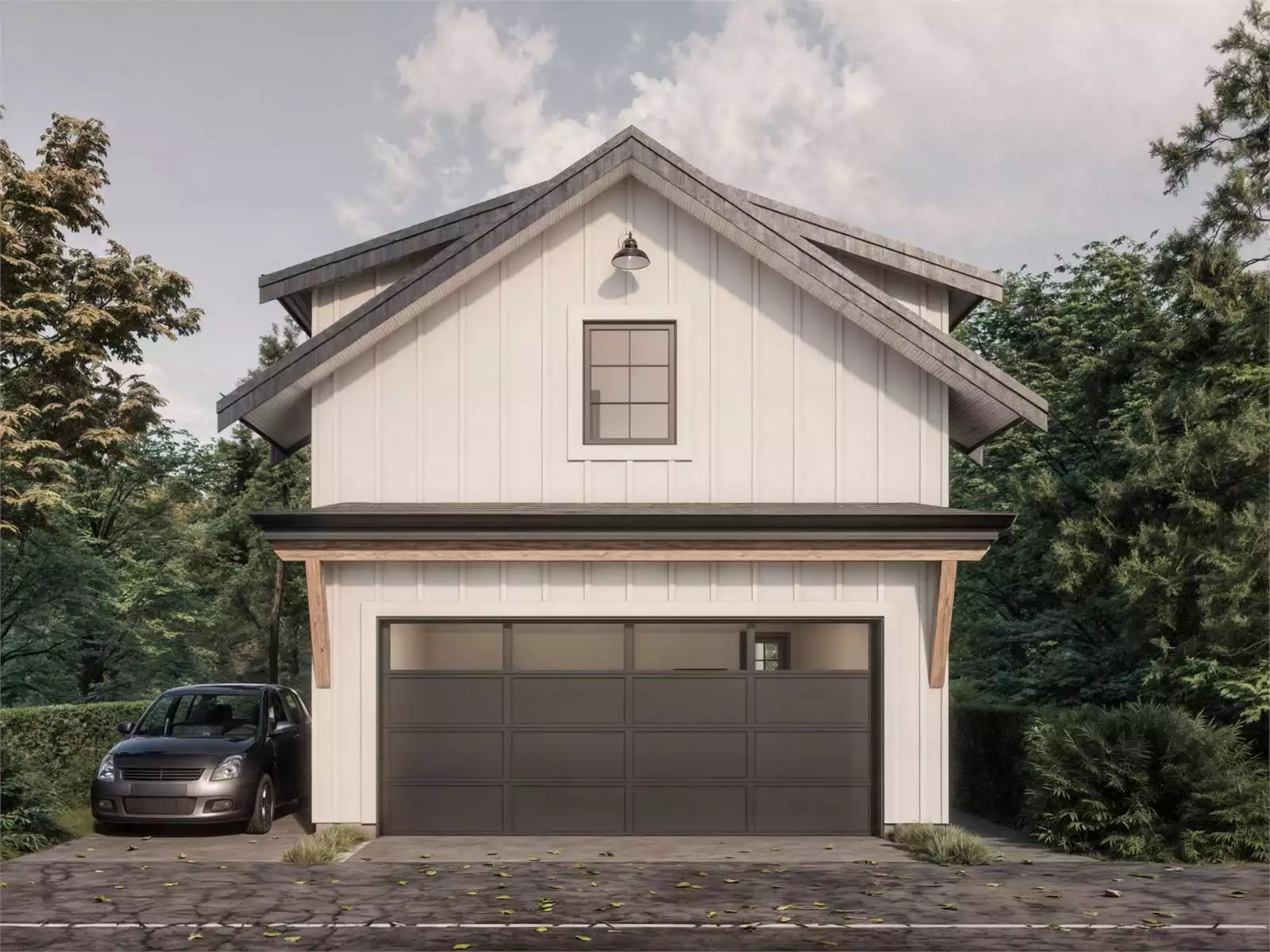

Front View

Rear View

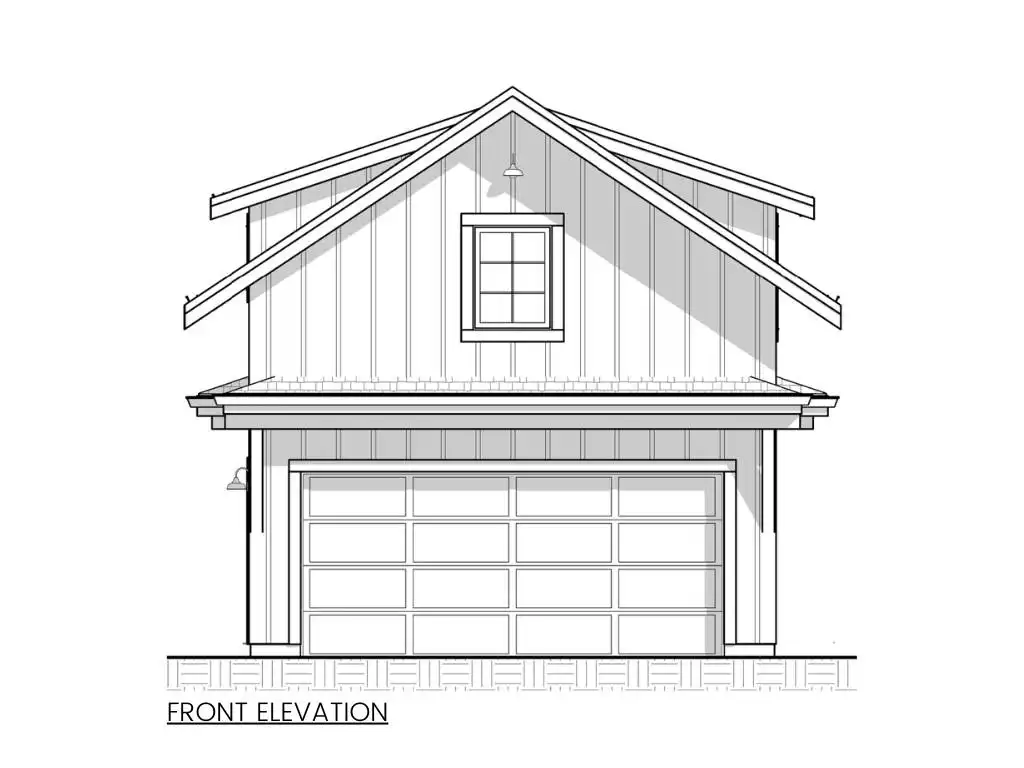

Front Elevation

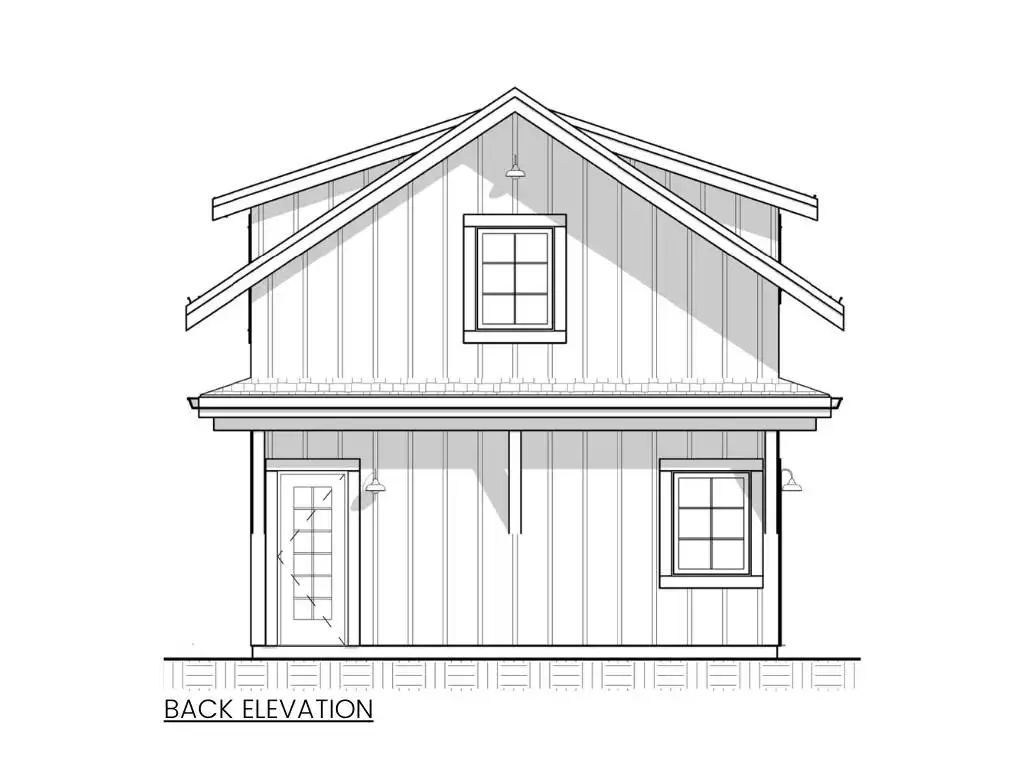

Rear Elevation

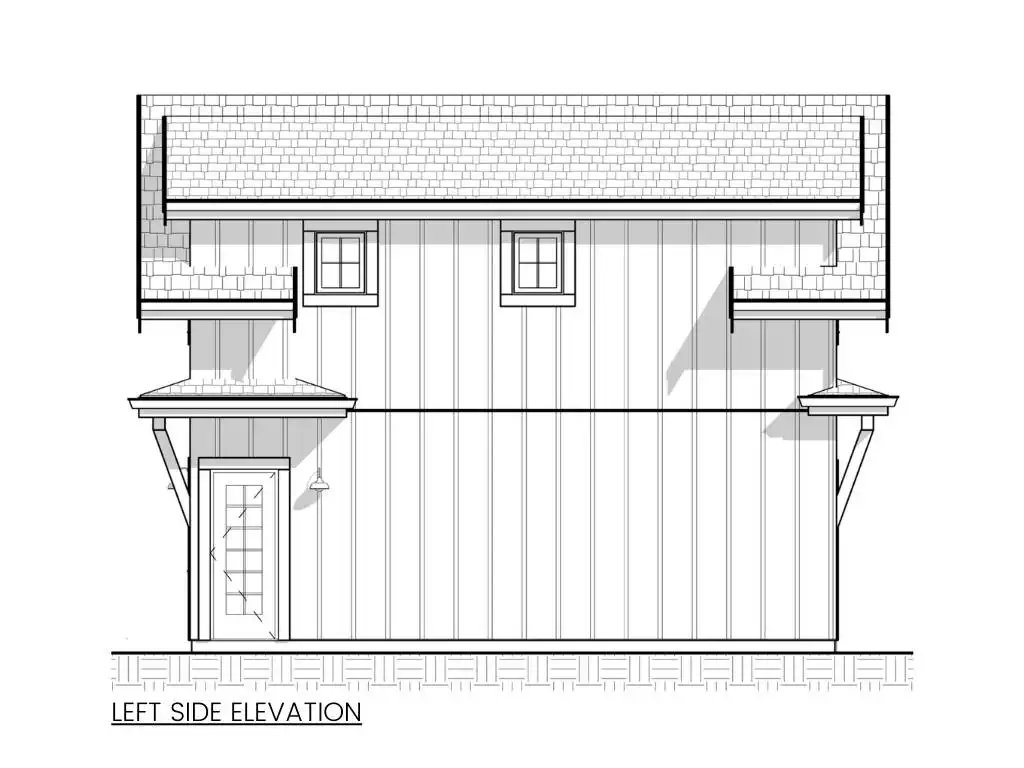

Left Elevation

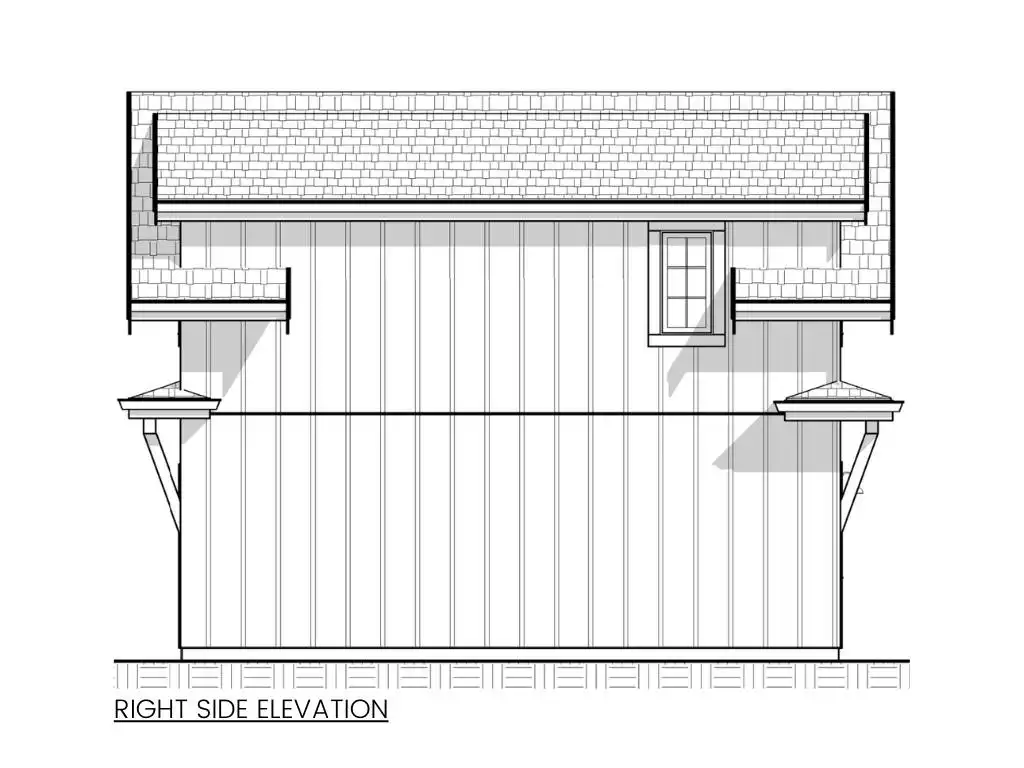

Right Elevation

View All 6 Images | Photographs may reflect modified home

Sq Ft

524 FT²

From

$590.75

Beds

Baths

Stories

Garage

Depth

25' 2"

Width

20'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

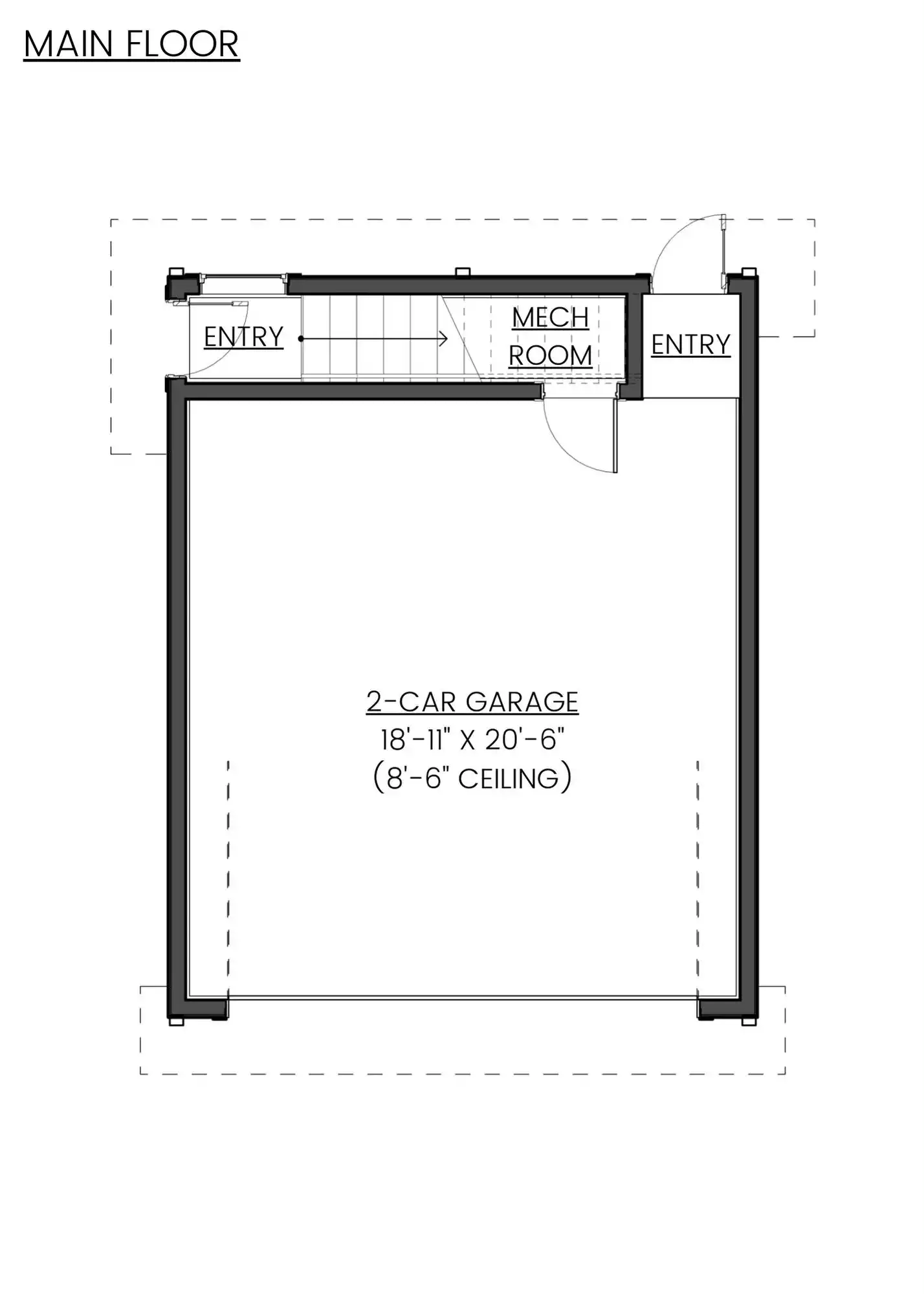

1st Floor

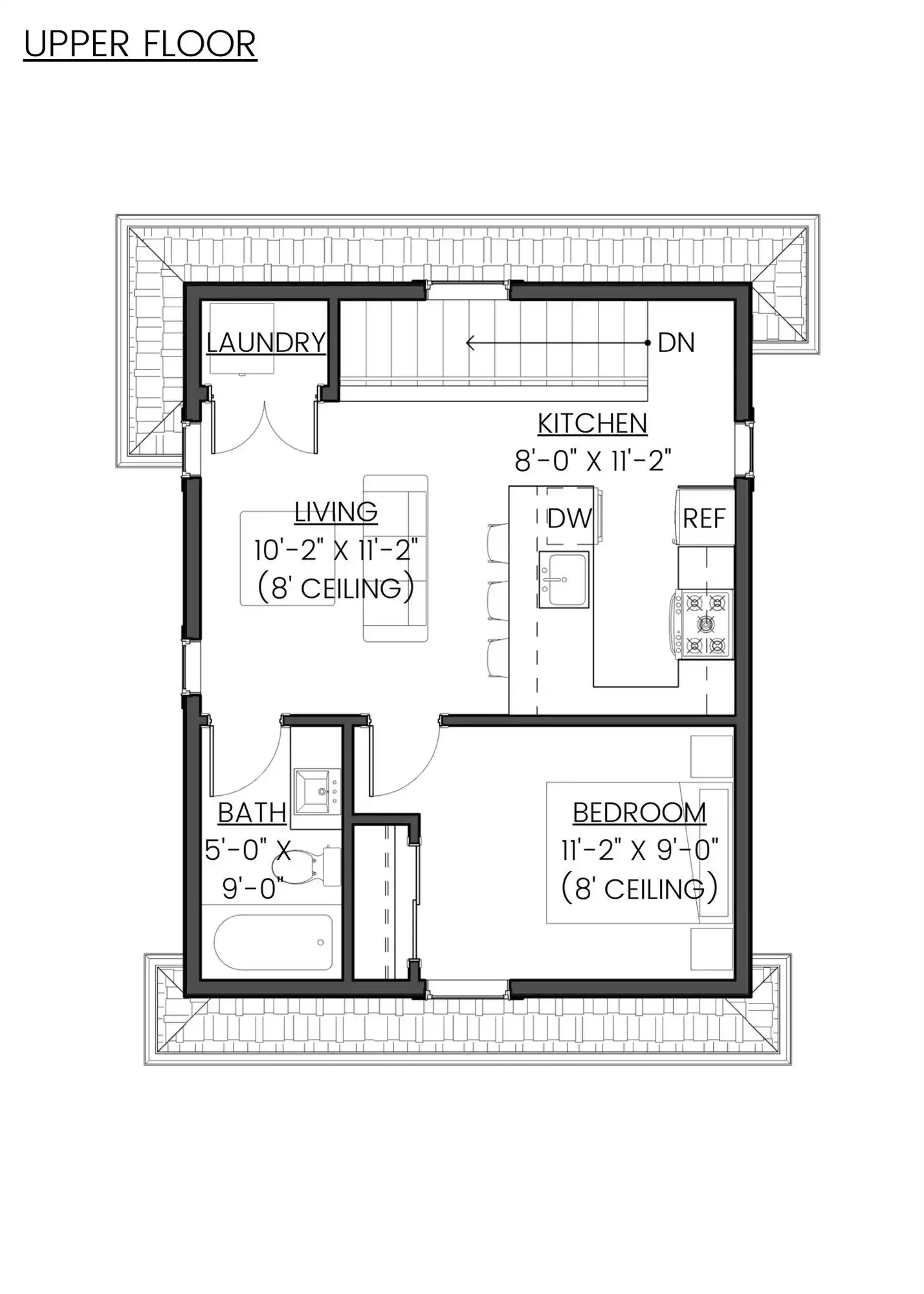

2nd Floor

1st Floor

2nd Floor

About This Plan

Introducing the Eglinton, a charming Craftsman/Country-style ADU garage with a 1-bedroom apartment on the upper level. This versatile plan features a spacious two-car garage on the main level with extra storage space and a mechanical room for convenience. Upstairs, the cozy living space includes an U-shaped kitchen, a comfortable living area, and a bedroom with closet space. The bedroom and living spaces are thoughtfully laid out to maximize comfort and functionality. The Eglinton offers a private, self-contained unit ideal for guests, rental income, or multi-generational living. Its timeless Craftsman charm and efficient design make it a perfect choice for adding style and practicality to any property.

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar
U-Shaped

Bedroom features

Primary Bdrm Upstairs

Lot Options

Suited for narrow lot
Suited for view lot

Additional features

Formal LR
Laundry 2nd Fl

Garage Location

Front

Garage Options

Attached
Front-entry
With Living Space

966 Ft

Total Structure

524 Ft

Total Heated

463 Ft

1st Floor

503 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

20' 0"

Width

25' 2"

Depth

21' 10"

Height

8' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

4/12

Primary Roof Pitch

8/12

Secondary Roof Pitch

Garage

Dwelling Number

None

Bonus Access

Unheated Living Space

Exterior Styles

Craftsman

Farmhouse

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $591

PDF Single Build

~~$695~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $591

Sale: $846

PDF Unlimited Build

~~$995~~

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

Sale: $846

Sale: $1,186

CAD Unlimited Build + PDF

~~$1,395~~

Sale: $1,186

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
