Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,667 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
34' 4"

Width
70'

On Sale
$752.00
$940.00

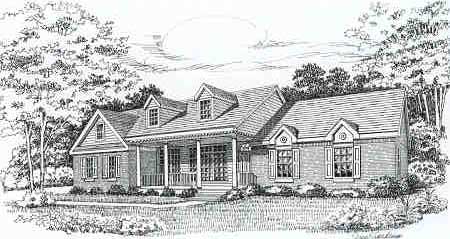

Front Rendering

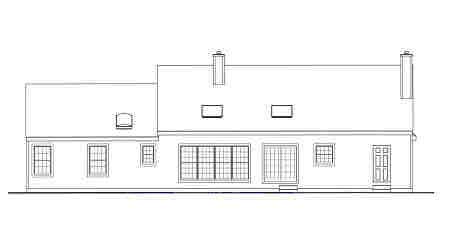

Rear Elevation

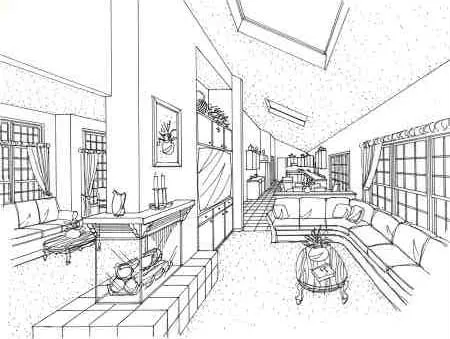

Family Room

View All 3 Images | Photographs may reflect modified home

Sq Ft

1,667 FT²

From

$752.00

Beds

Baths

Stories

Garage

Depth

34' 4"

Width

70'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

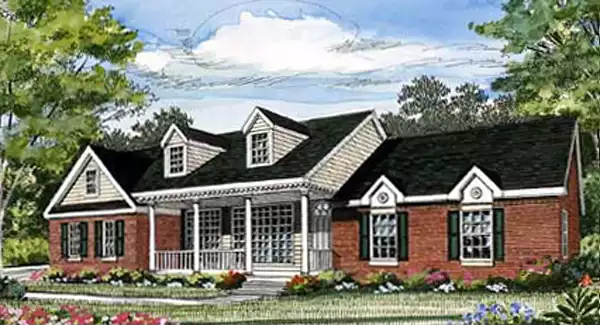

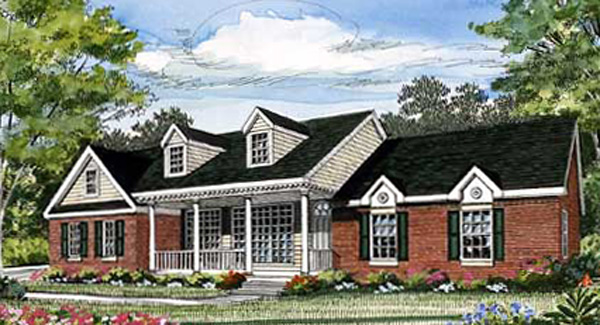

Front Rendering #2

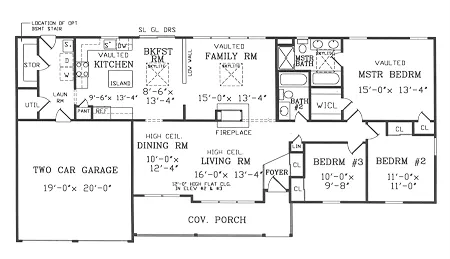

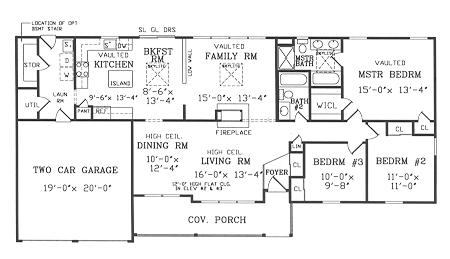

First Floor Plan

Optional Floor Plan

Front Rendering #2

First Floor Plan

Optional Floor Plan

About This Plan

I designed this home to be a practical and affordable ranch that lives much larger than it is. Open planning expands interior spaces like the dining room and living room. A two-way fireplace in the center of the home warms both the living and dining rooms on one side, and the family room on the other side, with its vaulted ceiling topped with a skylight. Plenty of workspace is apparent in the large kitchen, complete with a center island workspace and breakfast area, as well as a second skylight. It enjoys a beautiful relationship with the adjoining family and breakfast rooms. The master bedroom, full bath and two additional bedrooms complete this lovely plan.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Mud Room
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,667 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

70' 0"

Width

34' 4"

Depth

8'-1"' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

396 Ft

Garage

Exterior Styles

Country

Farmhouse

Ranch

Collections

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$680

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$680

$940

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$940

$1,050

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050

$1,125

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,125

$1,795

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795

Need To Reverse Plan? (Optional)

$350

Readable Reverse

Reverse house plans with readable text and dimensions

$350

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
