Sq Ft
1,879 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
57' 11"

Width
78' 11"
On Sale
$1,100.75
$1,295.00
EXCLUSIVE PHOTOS

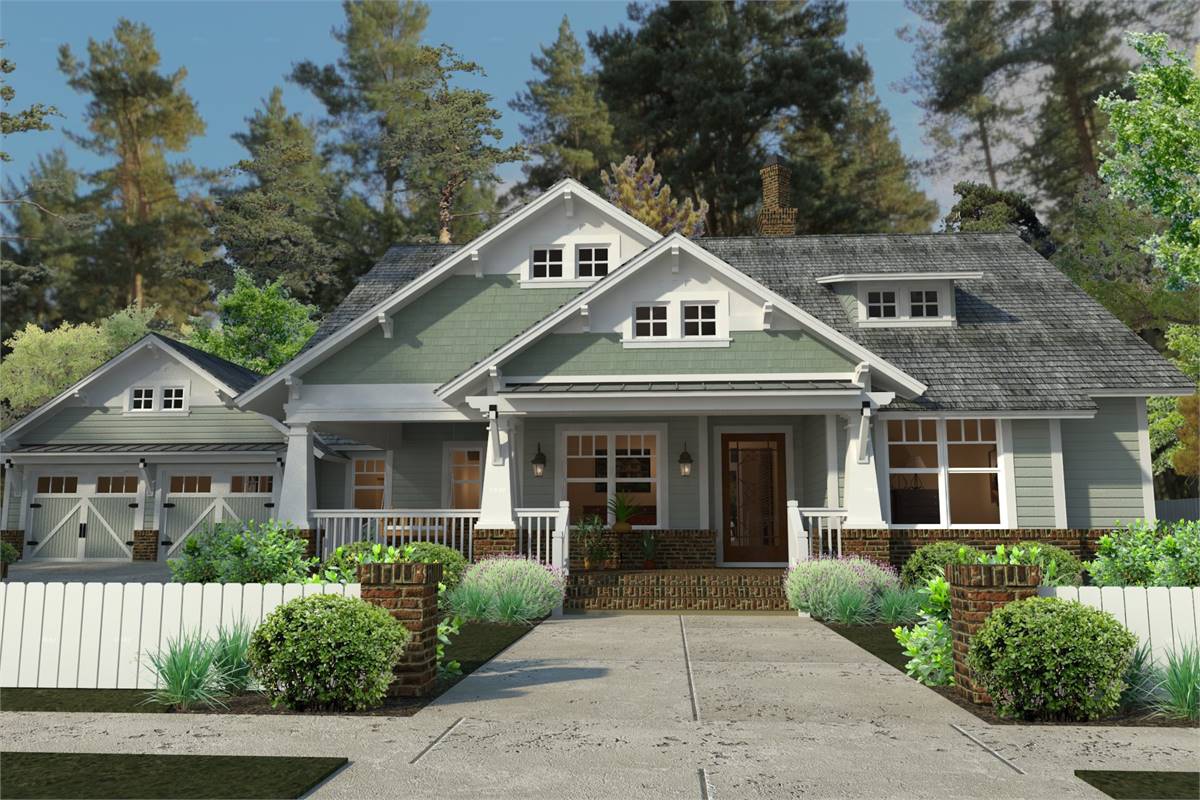

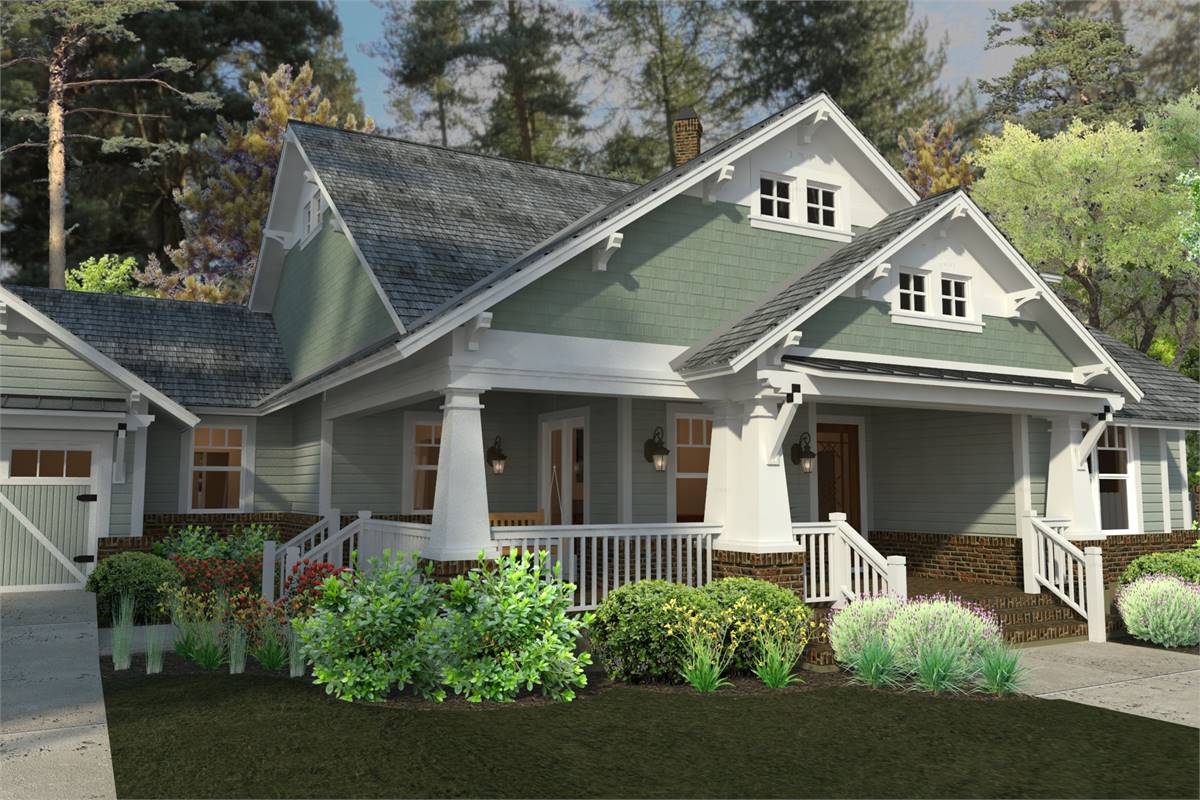

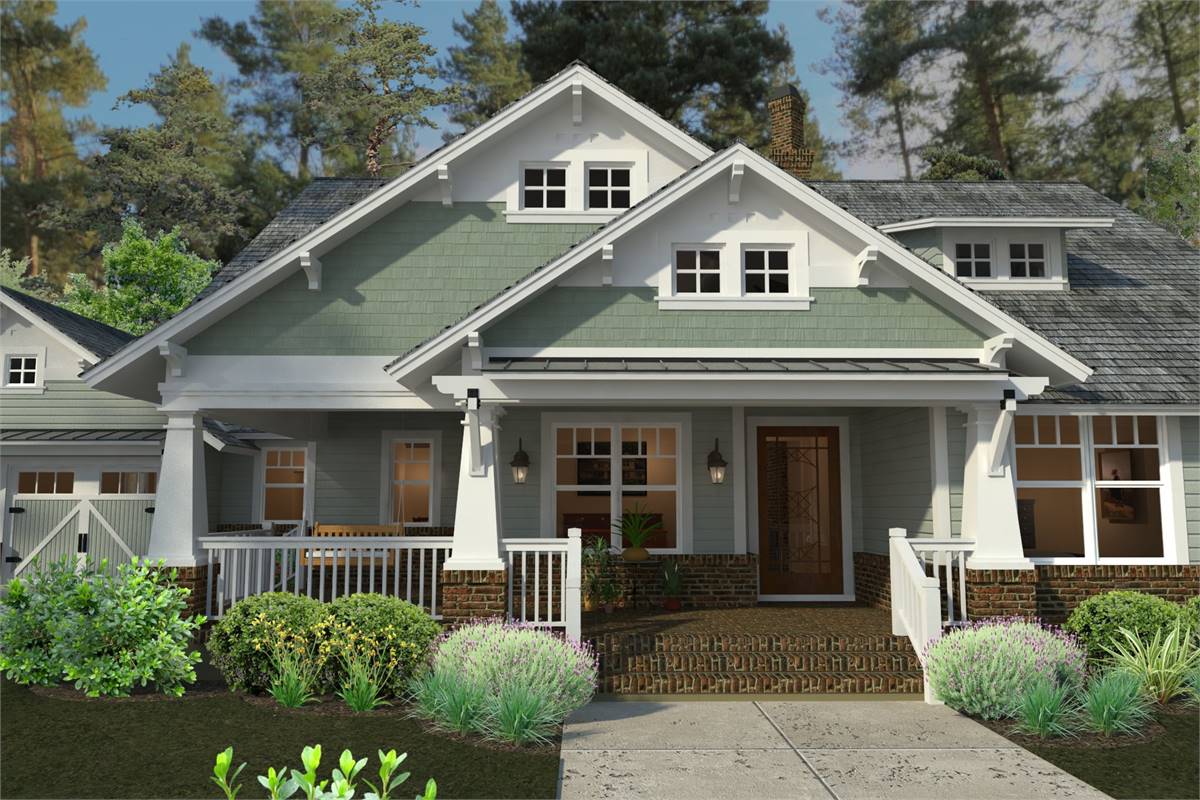

Front View
© copyright by architect
View All 66 Images | Photographs may reflect modified home
Sq Ft
1,879 FT²
Beds
3
Baths
2
Stories
1
Garage
2
Depth
57' 11"
Width
78' 11"

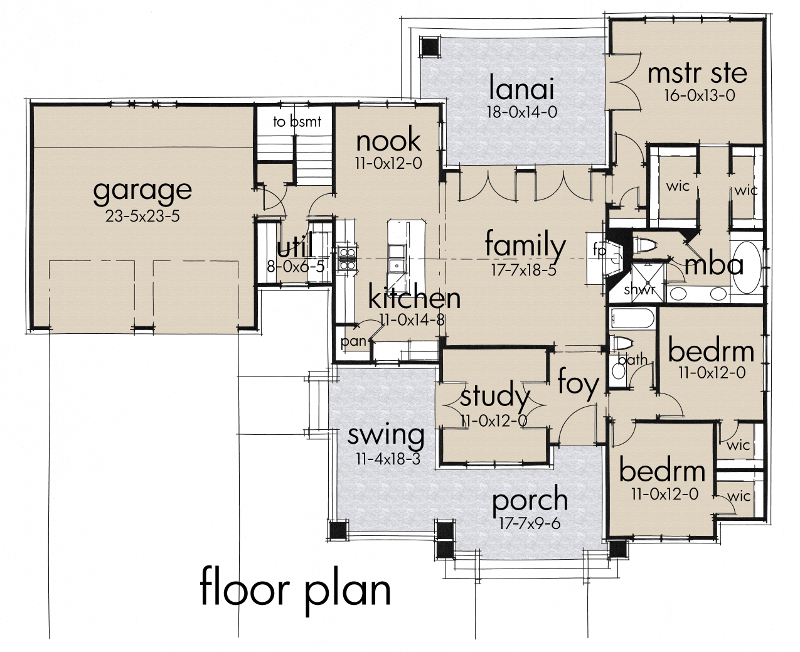

Click to Zoom In on Floor Plan
© copyright by architect



About This Plan

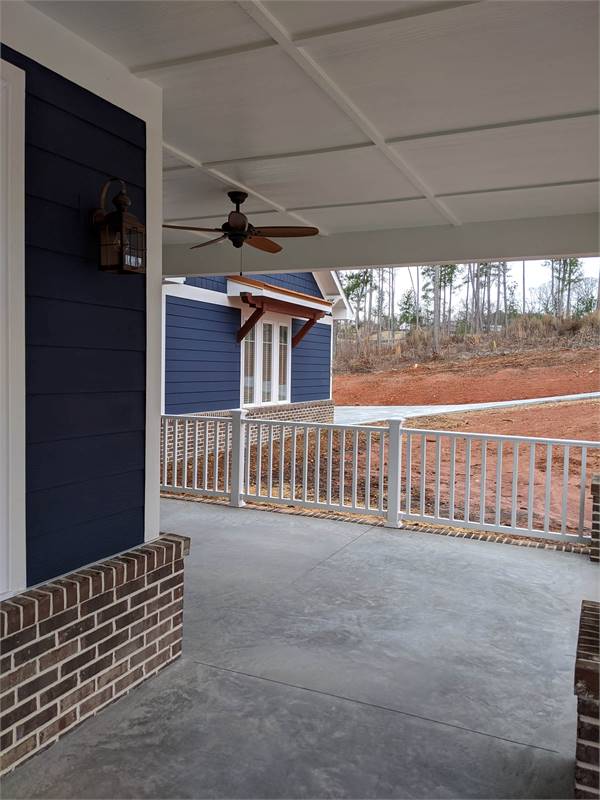

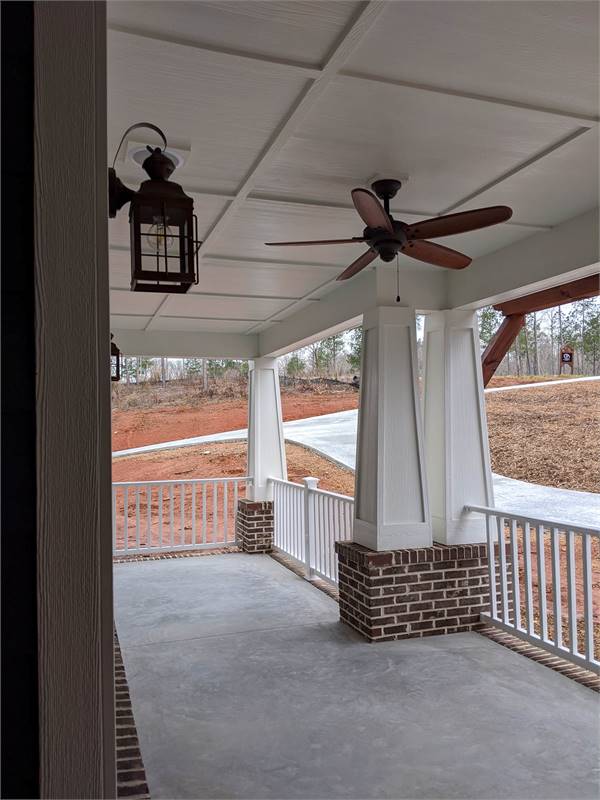

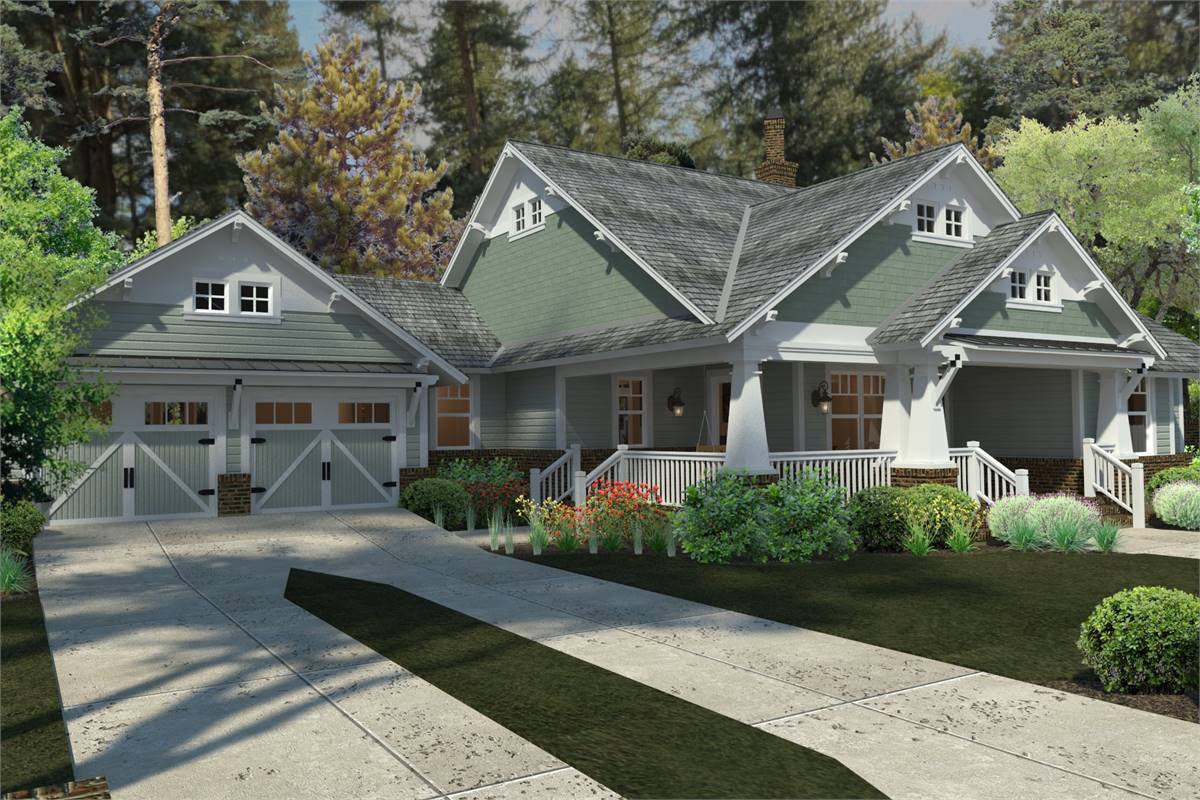

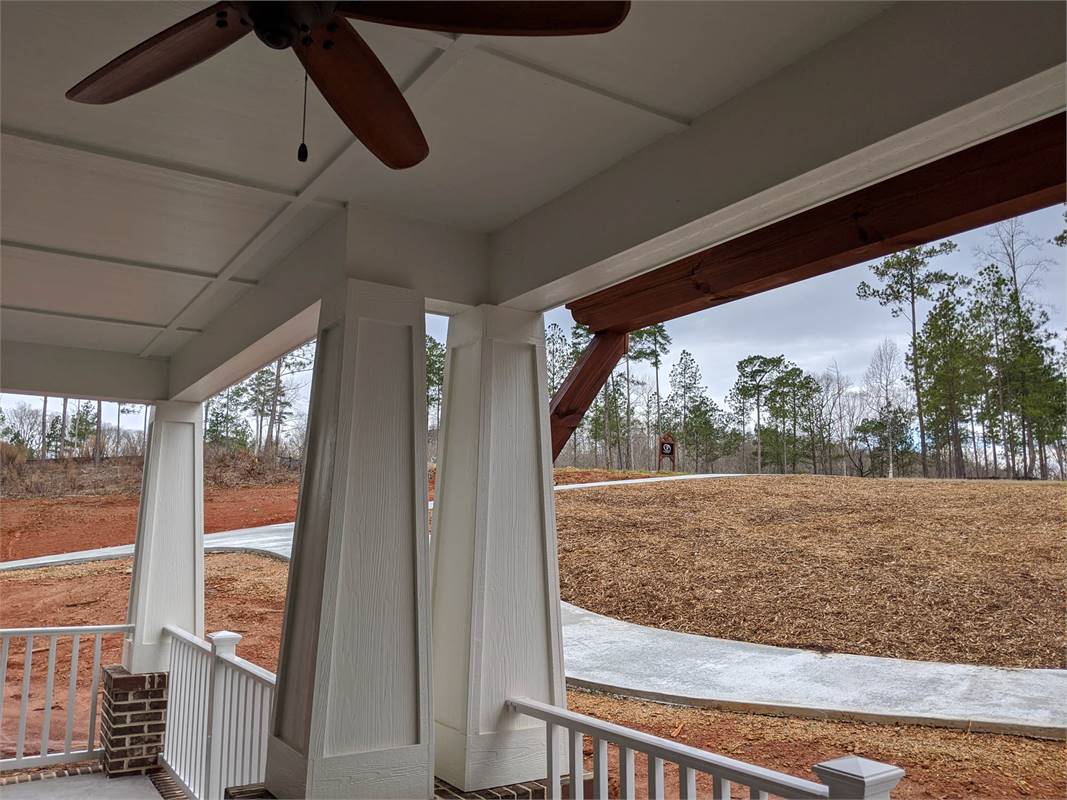

A wrap around front porch gives sheltered entry and creates a nice place set to the side for a porch swing with plenty of room to actually swing.

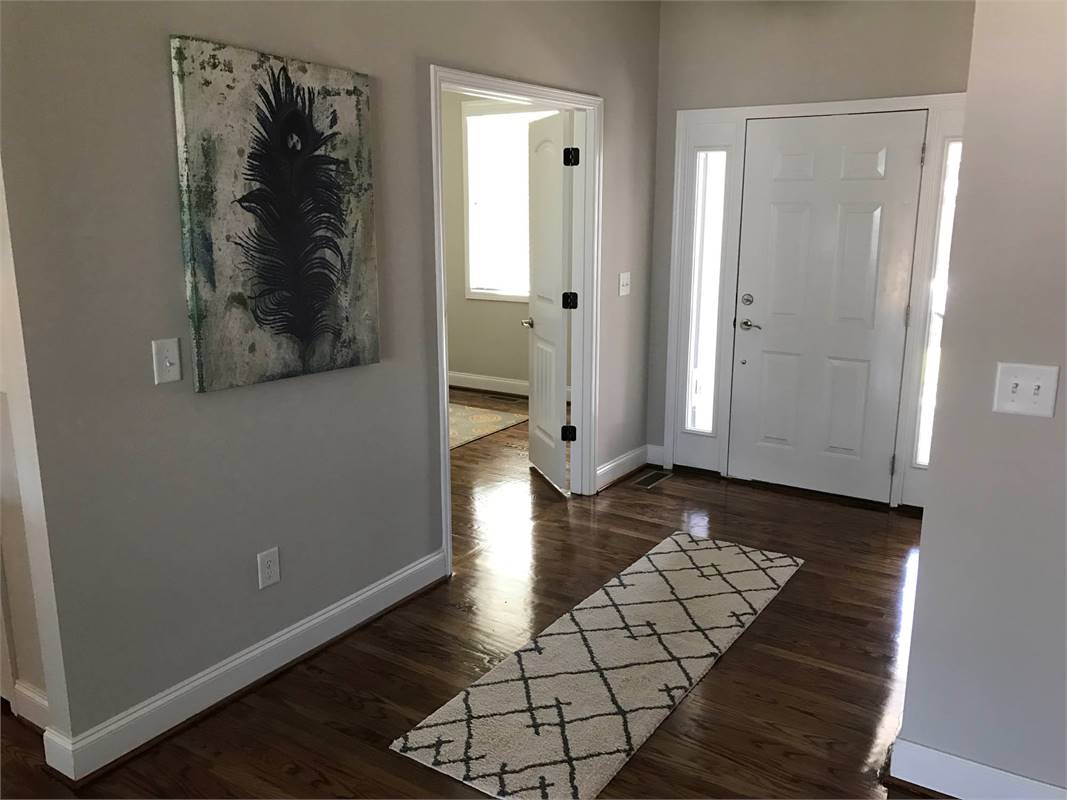

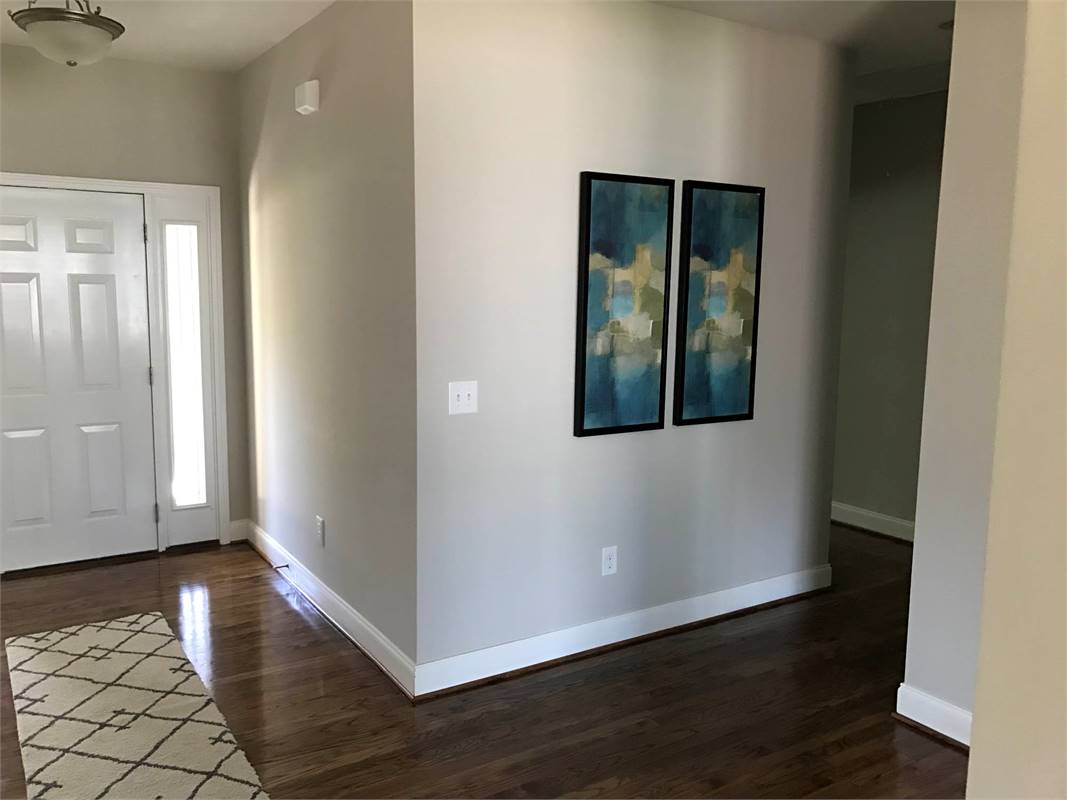

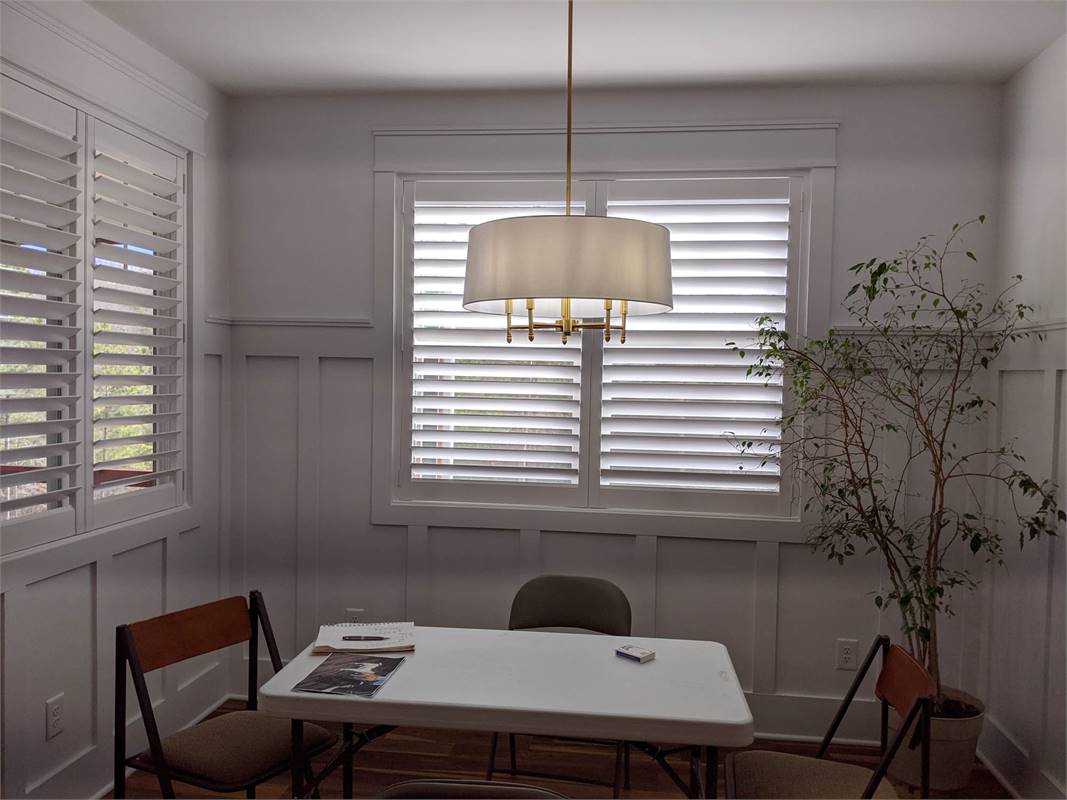

A formal foyer leads to the family via a study which can double as guest room or 4th bedroom.

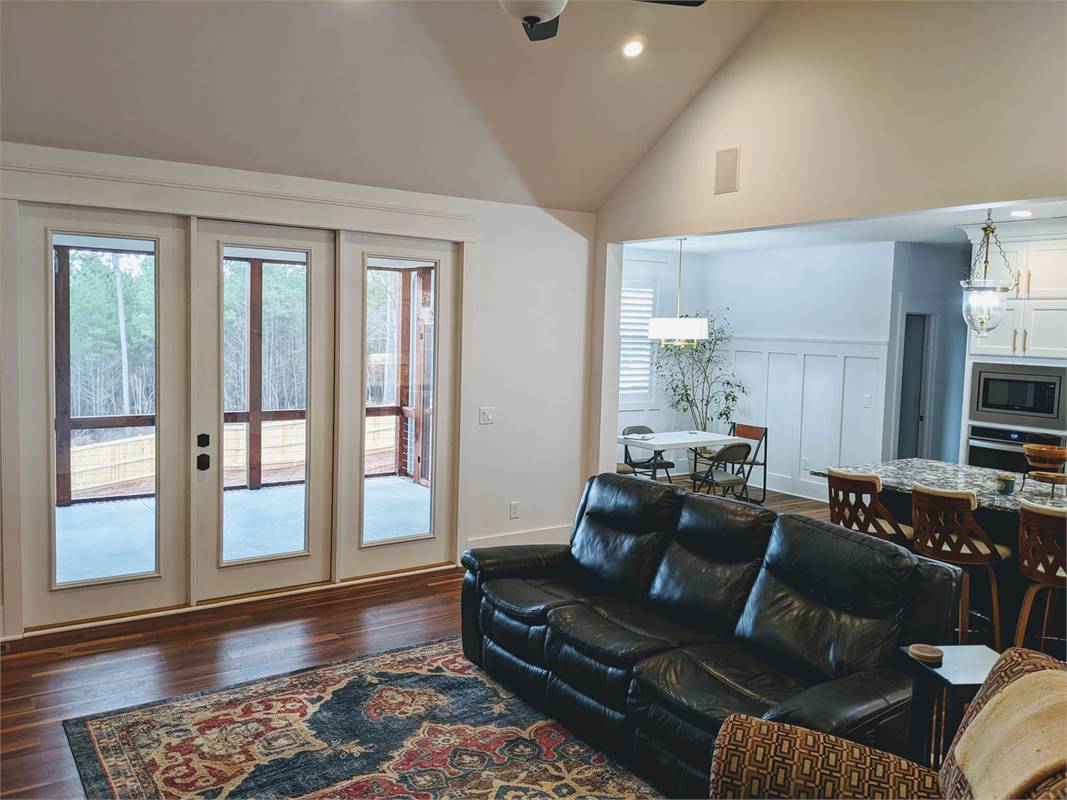

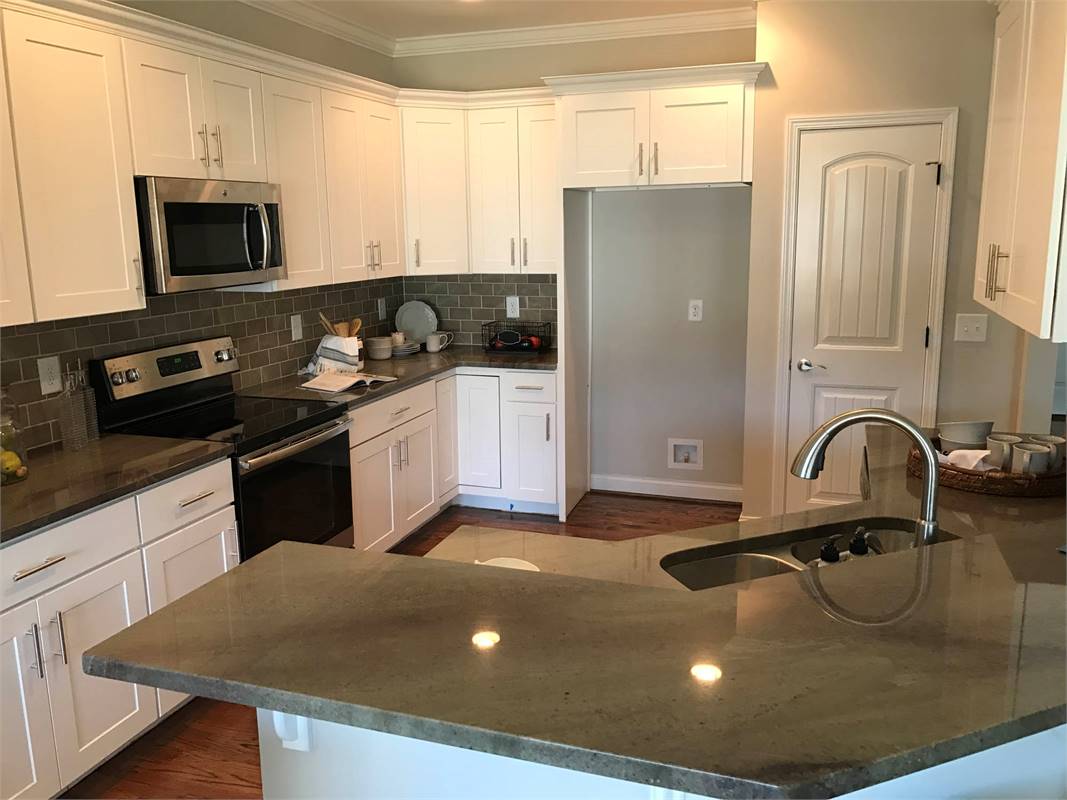

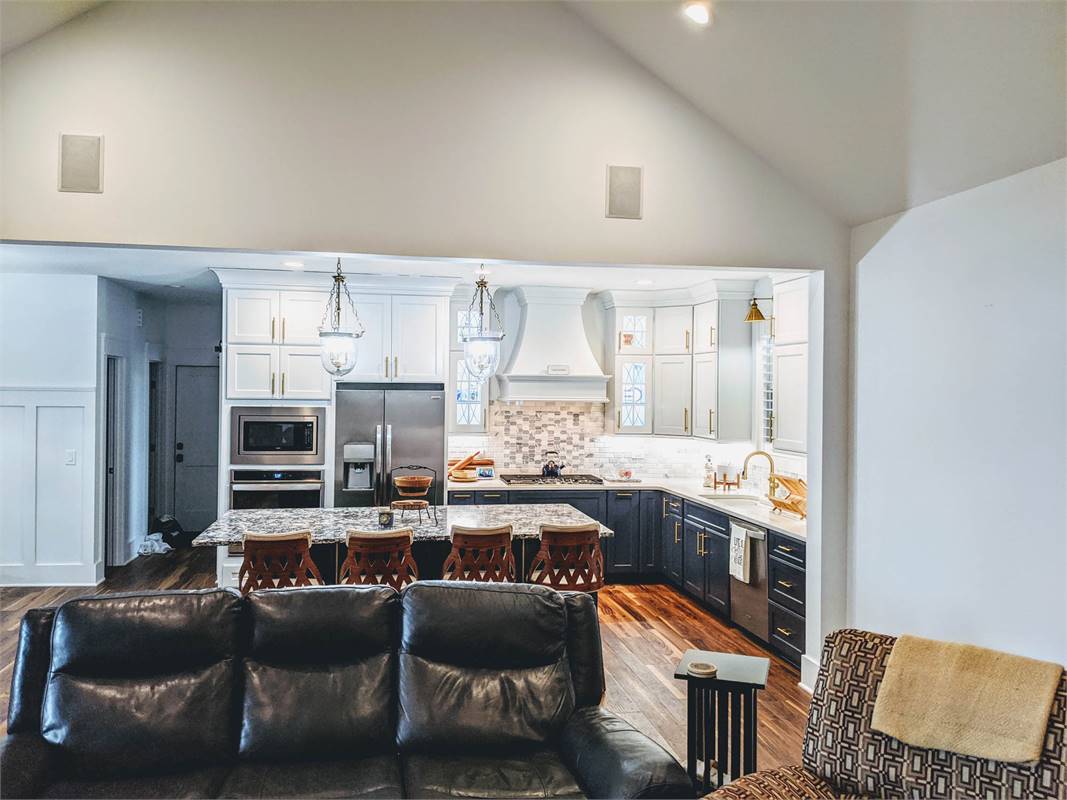

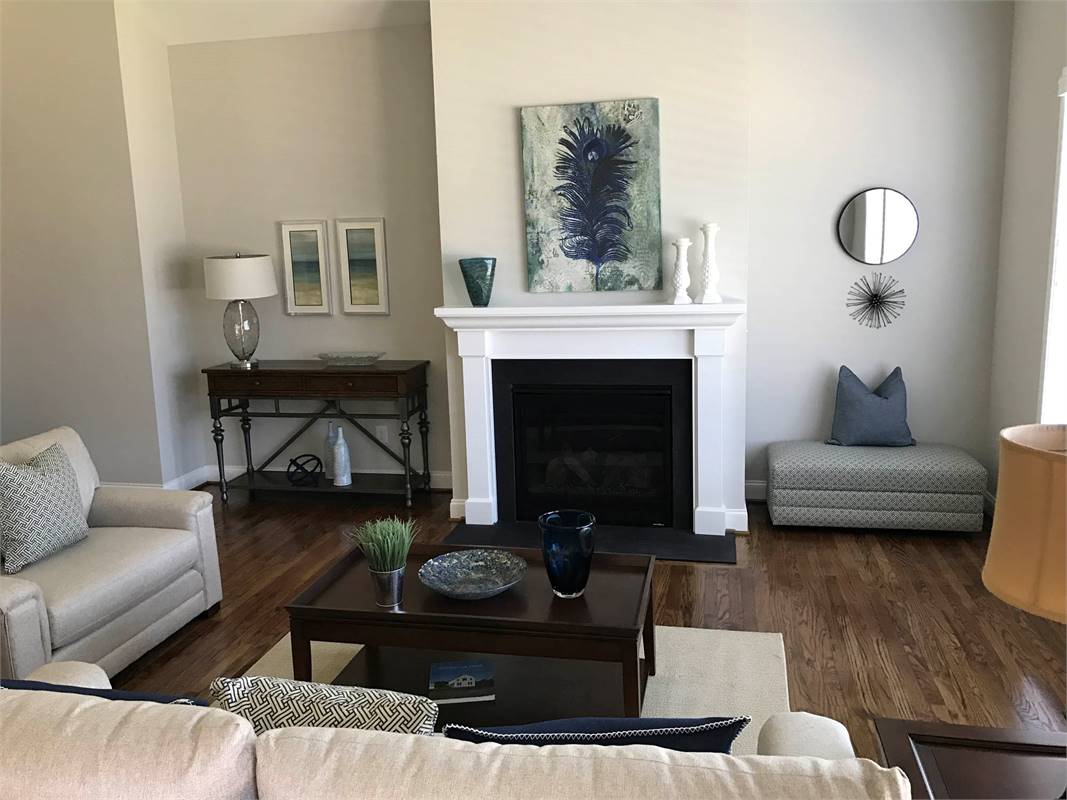

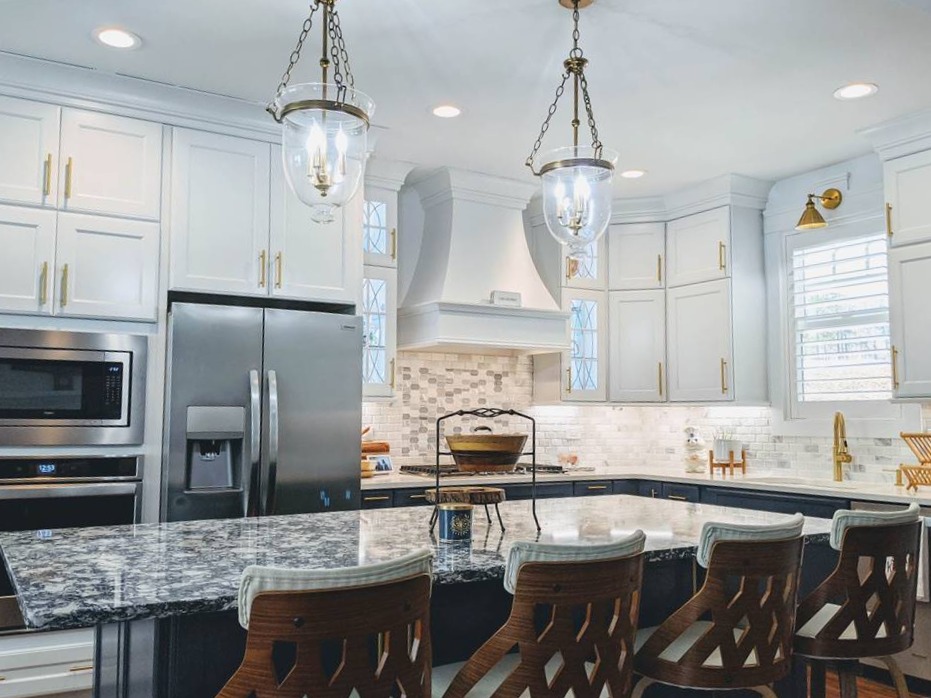

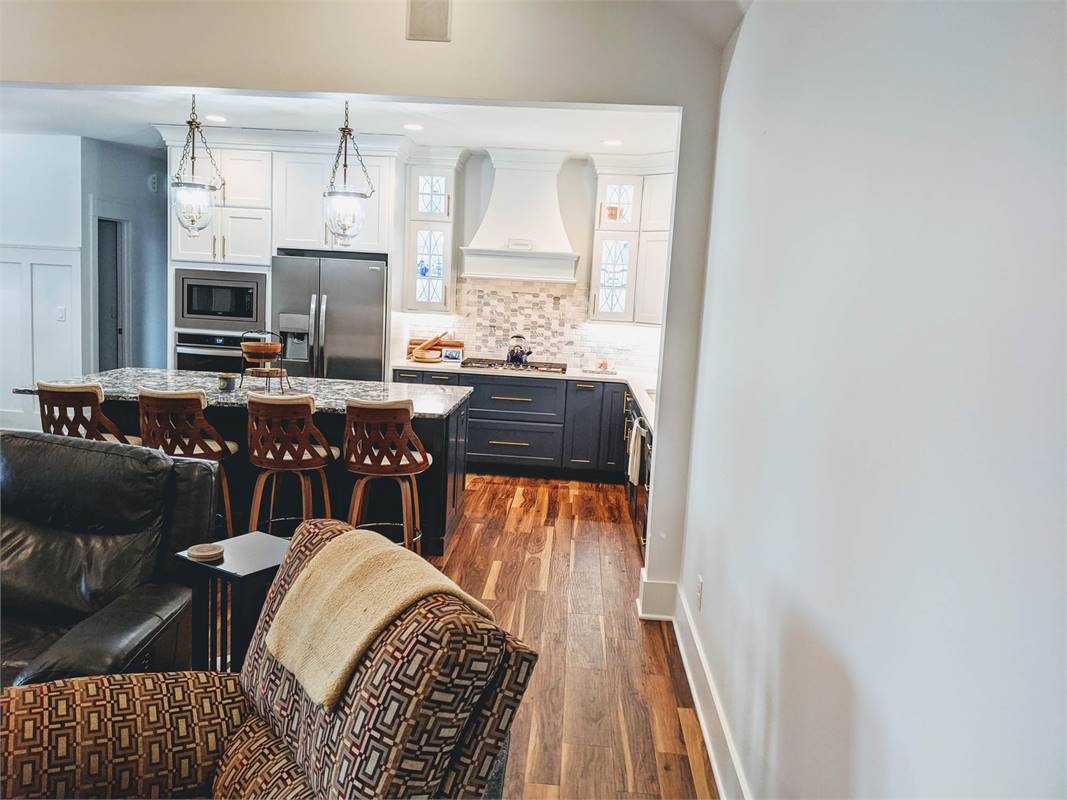

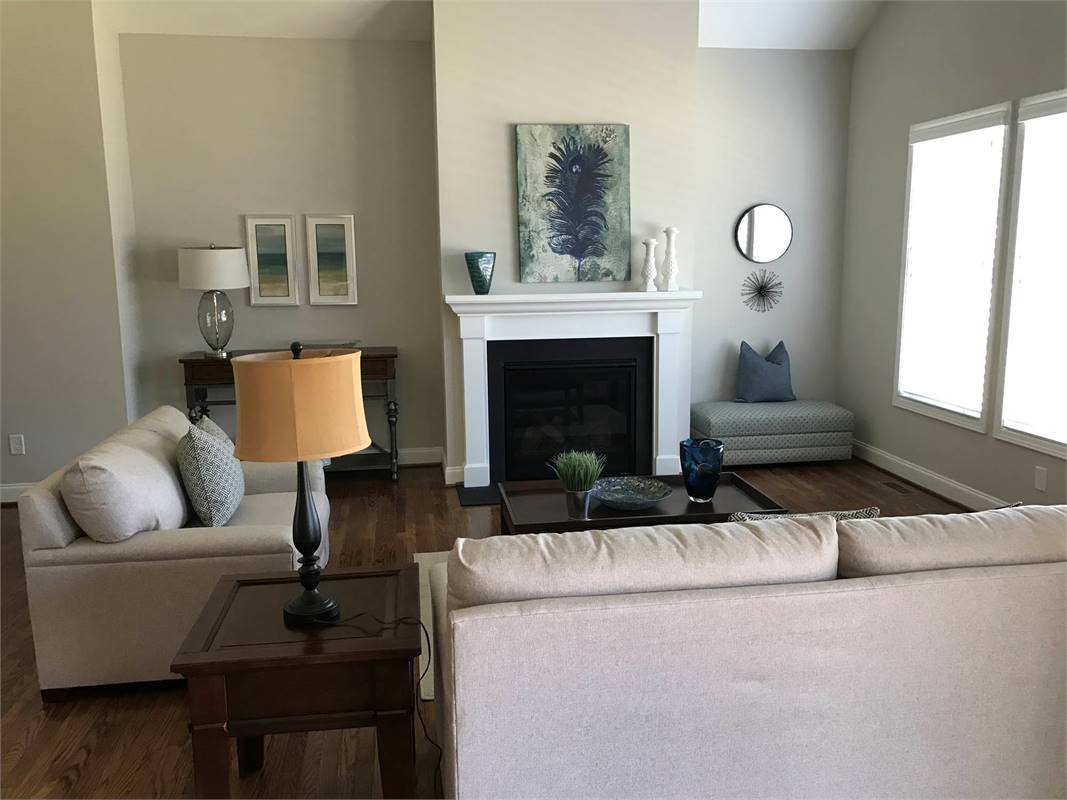

The 11' tall family and kitchen are wide open and include lots of view and natural light to the rear via french doors and large windows.

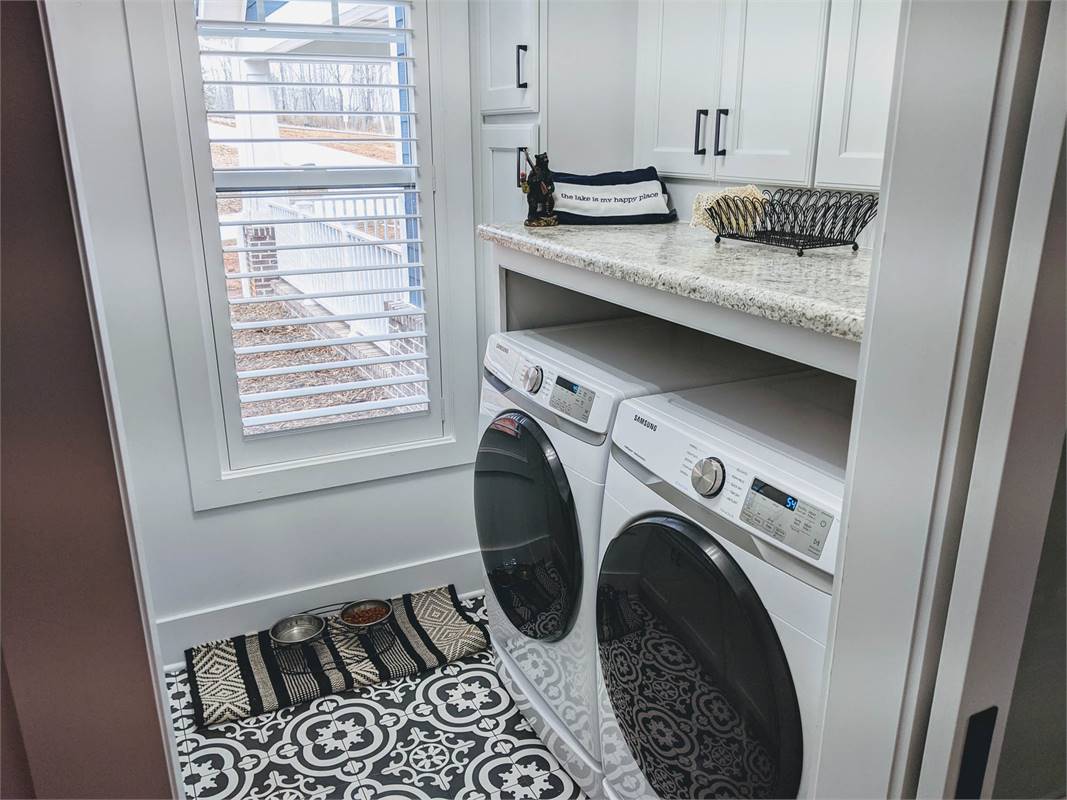

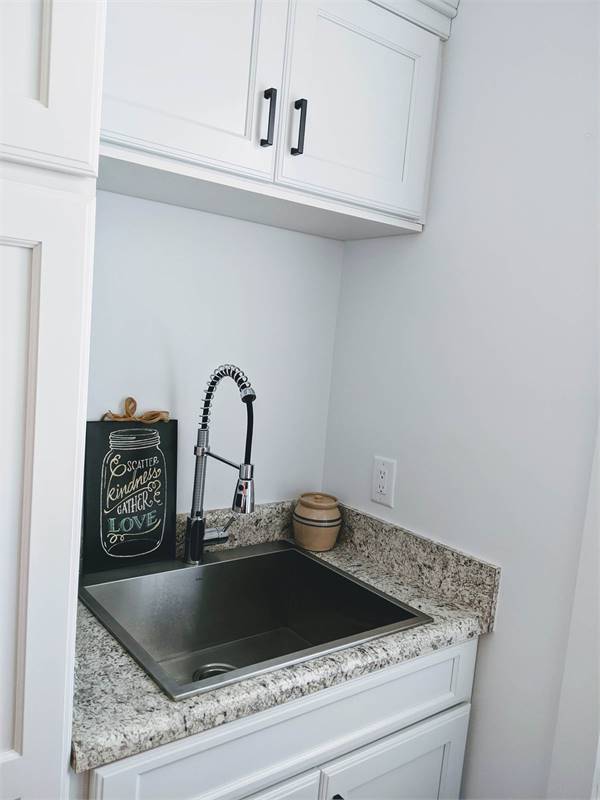

A nice size utility between the kitchen and garage provides space for not only washer and dryer, but folding area and potentially a sink or freezer space.

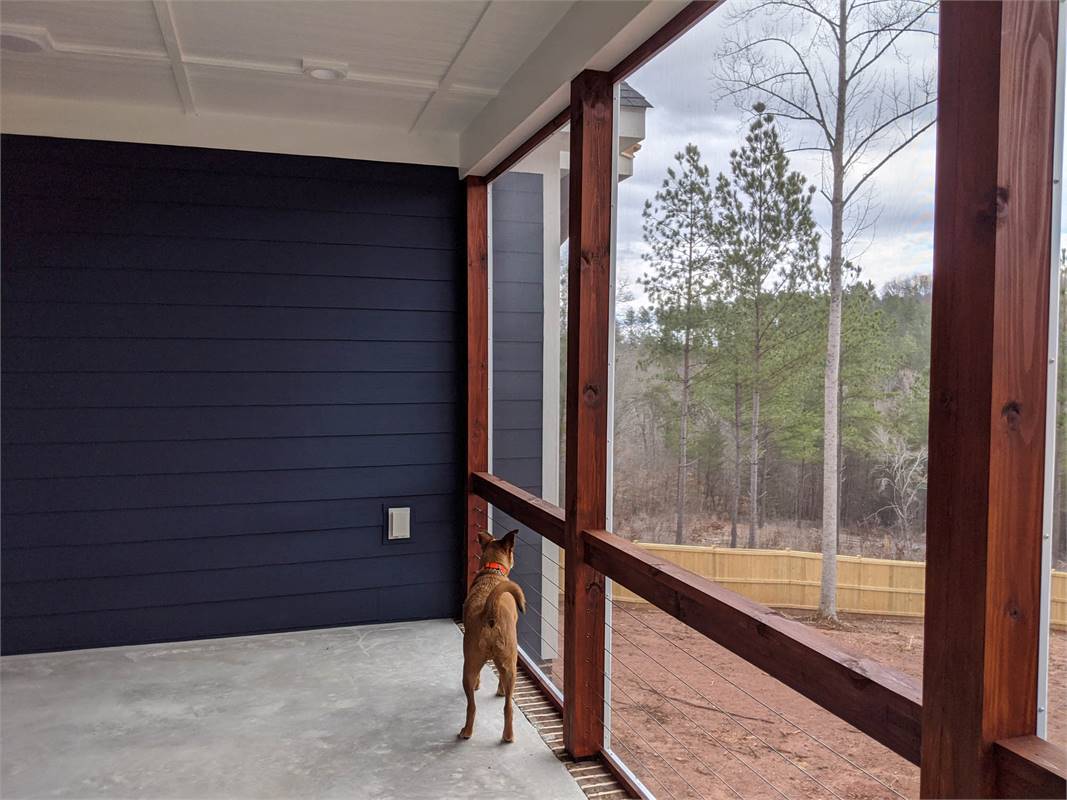

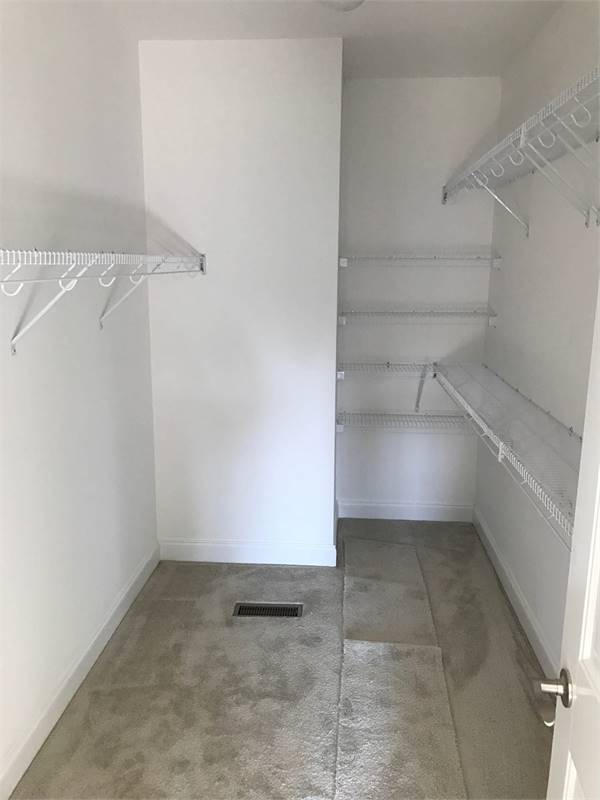

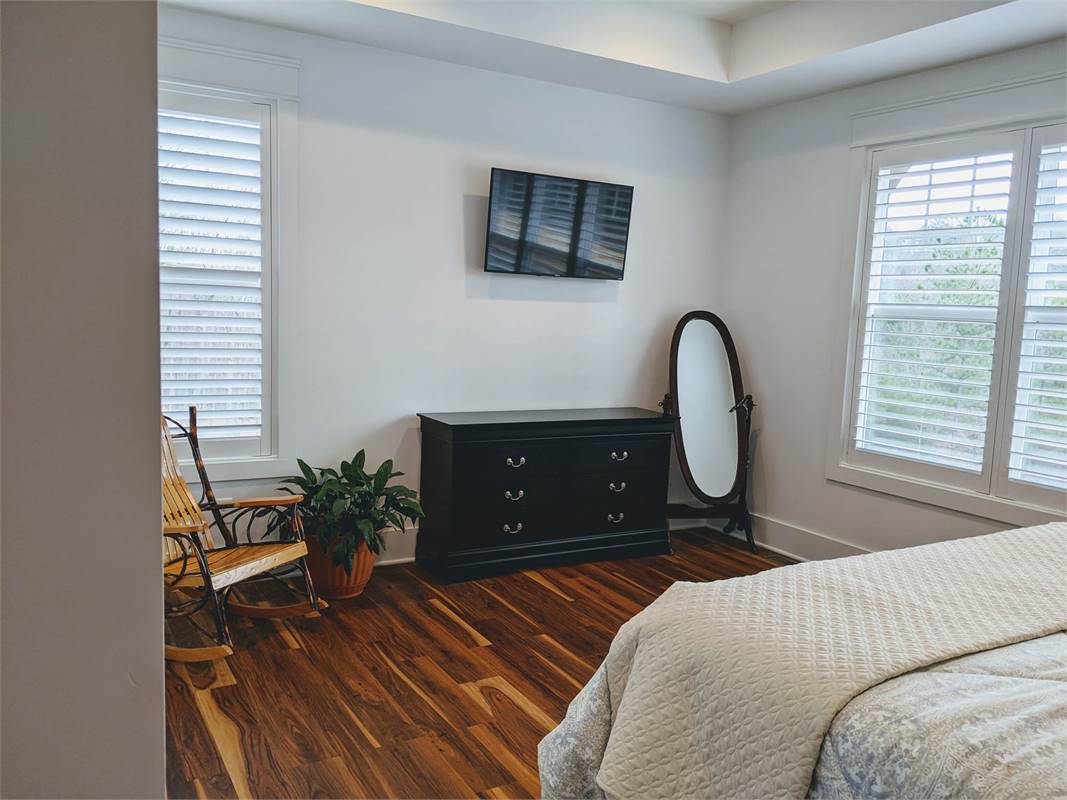

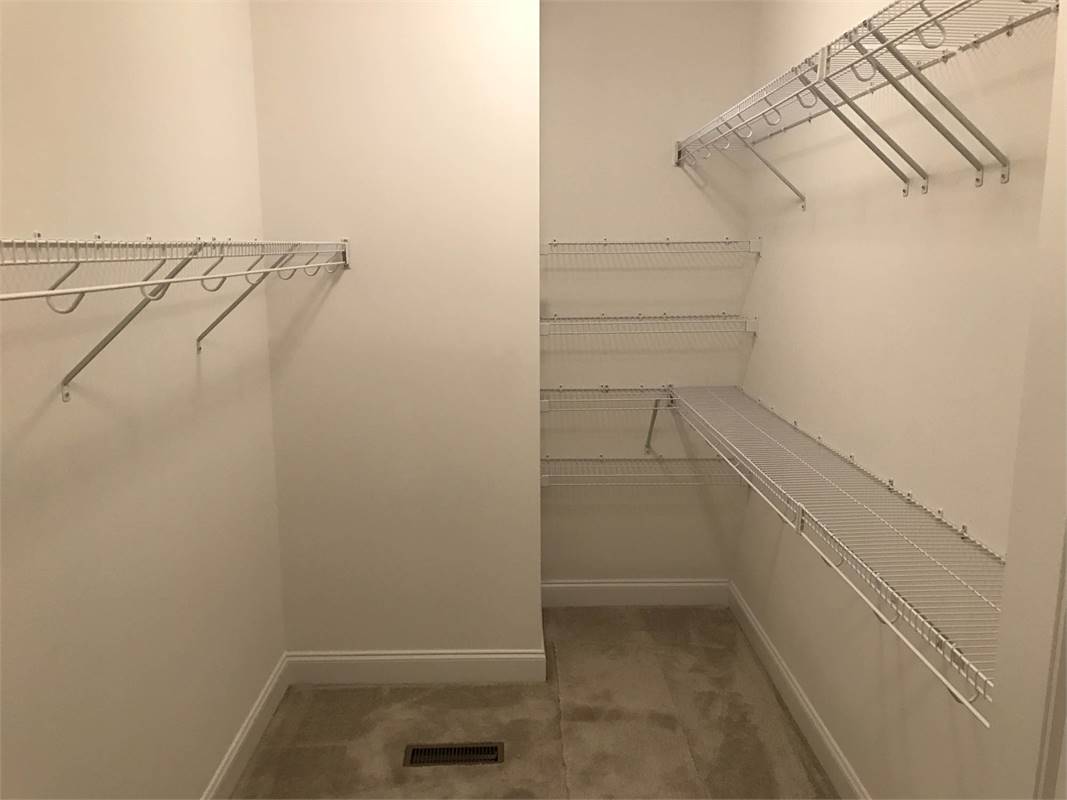

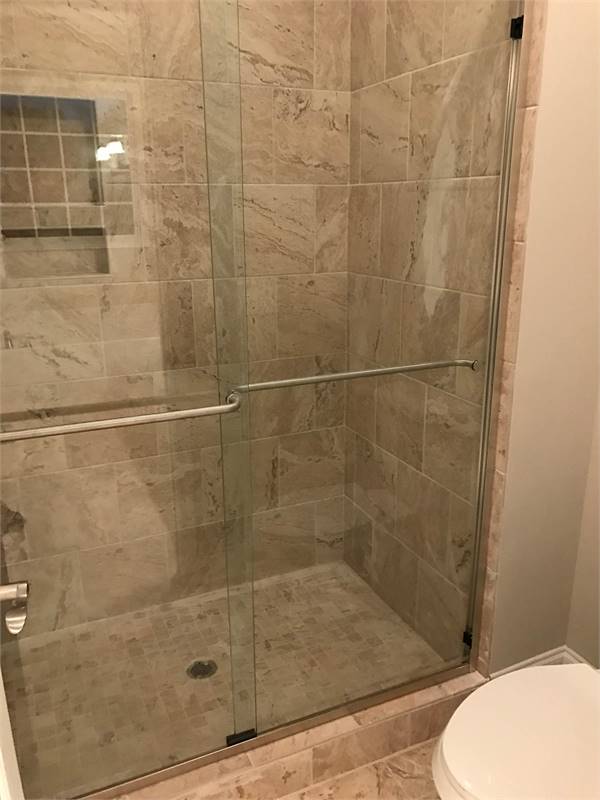

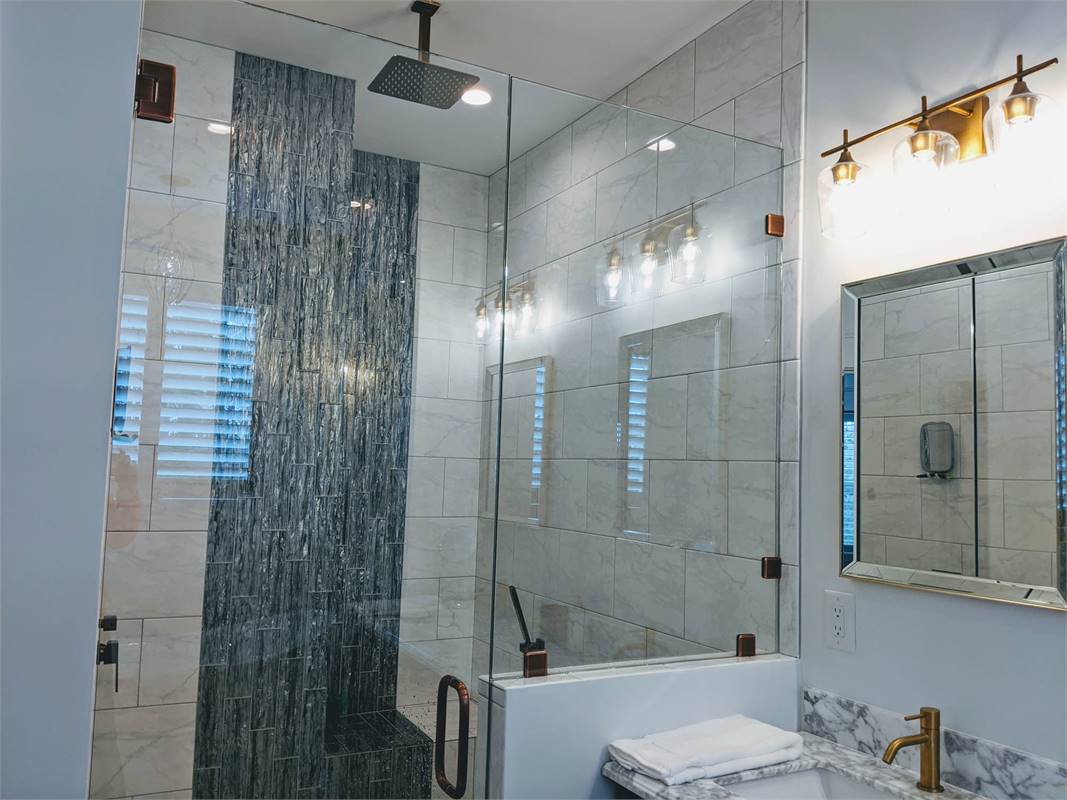

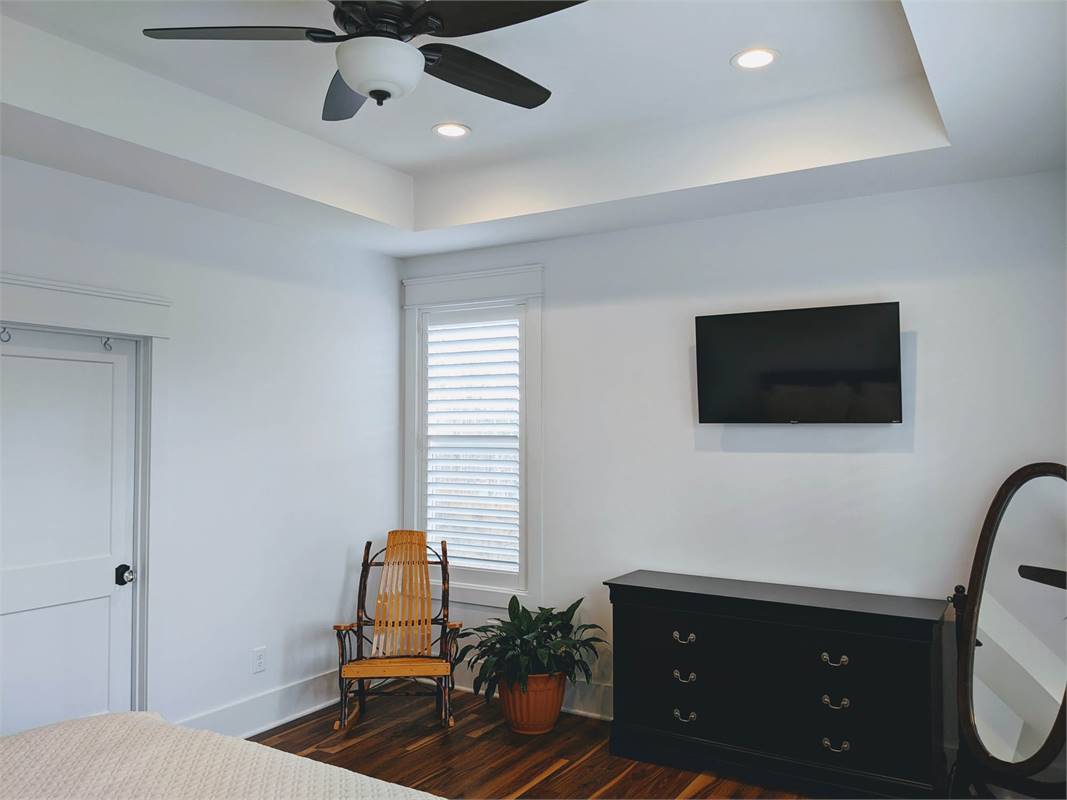

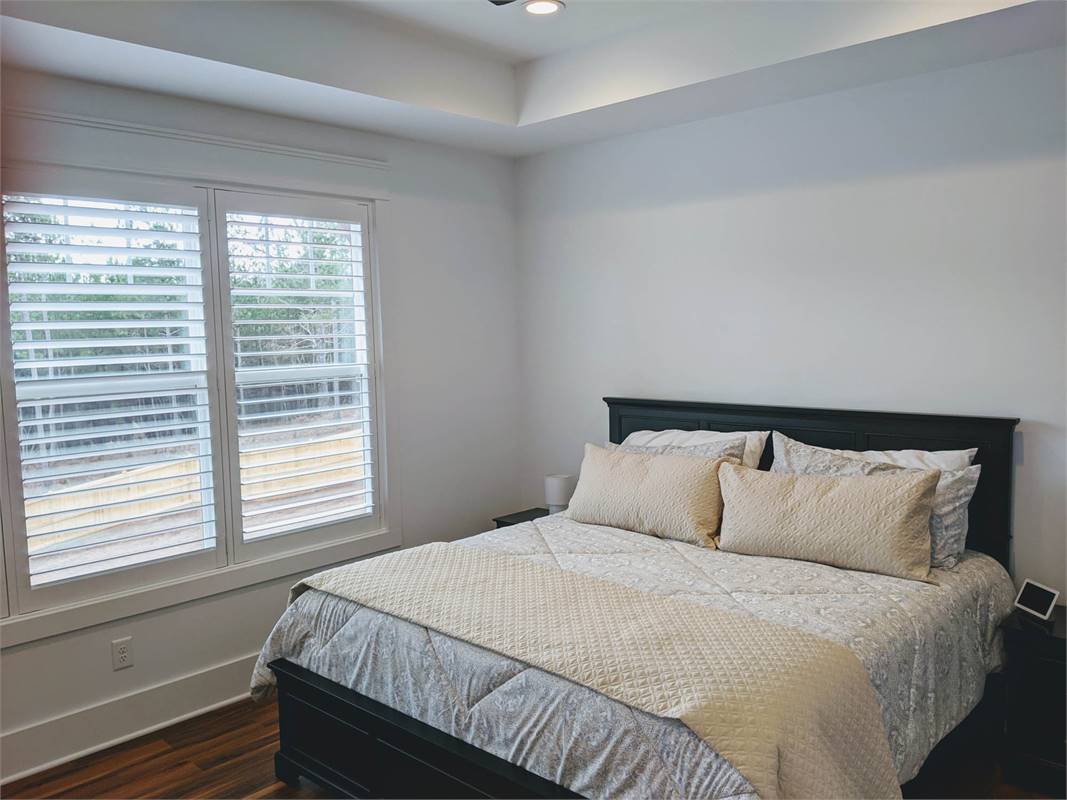

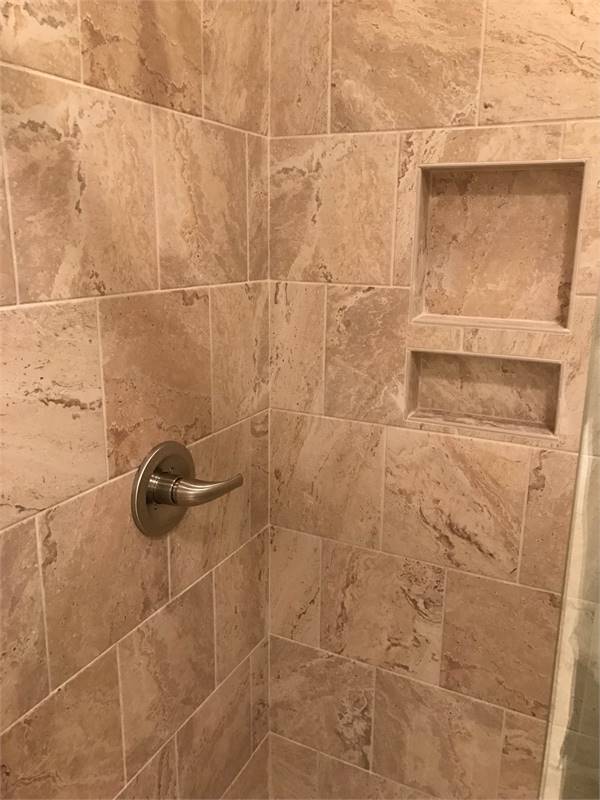

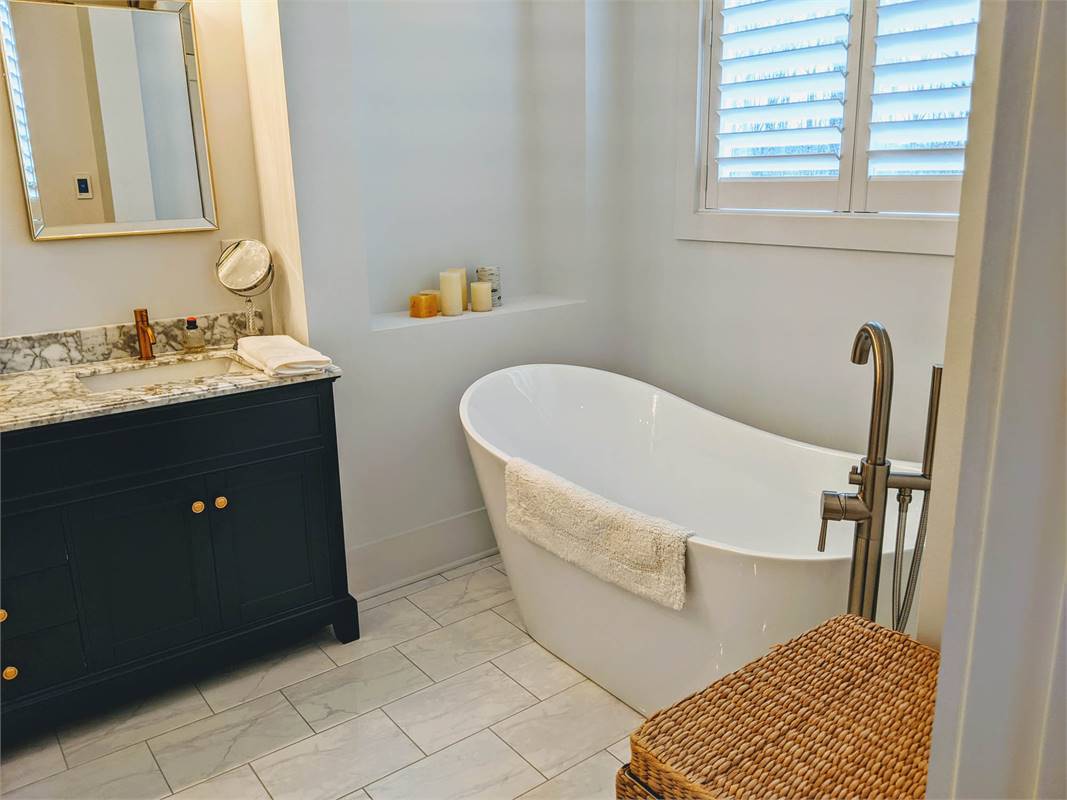

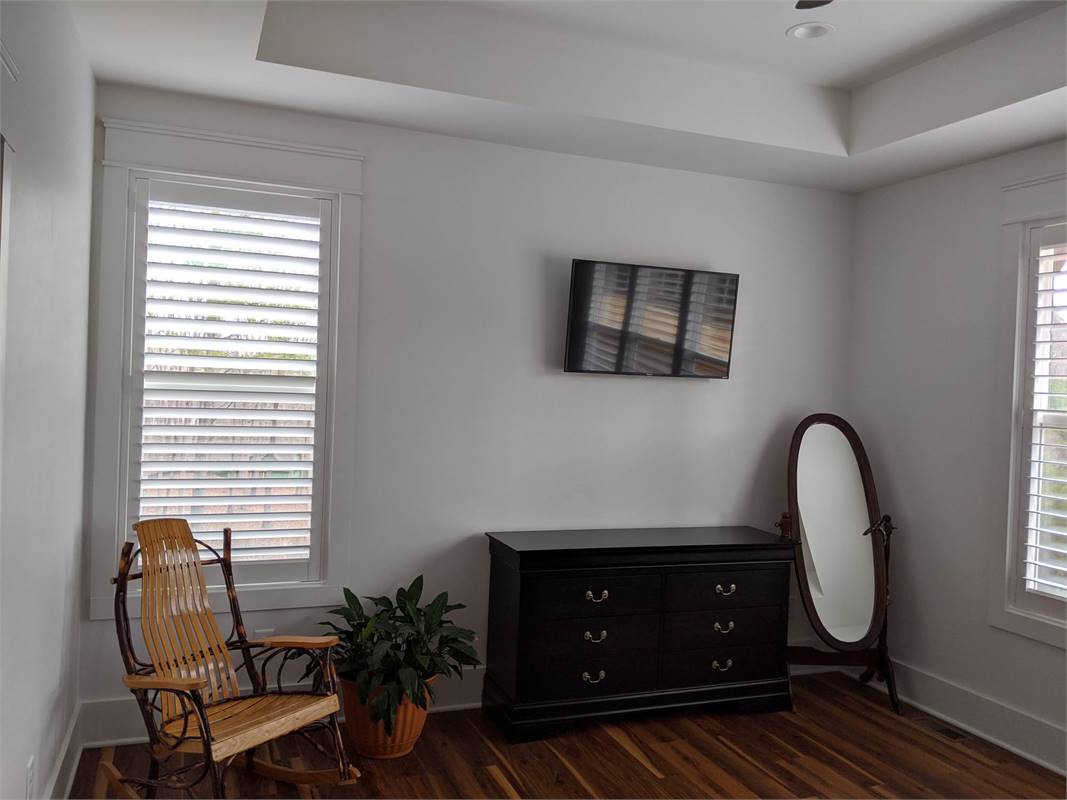

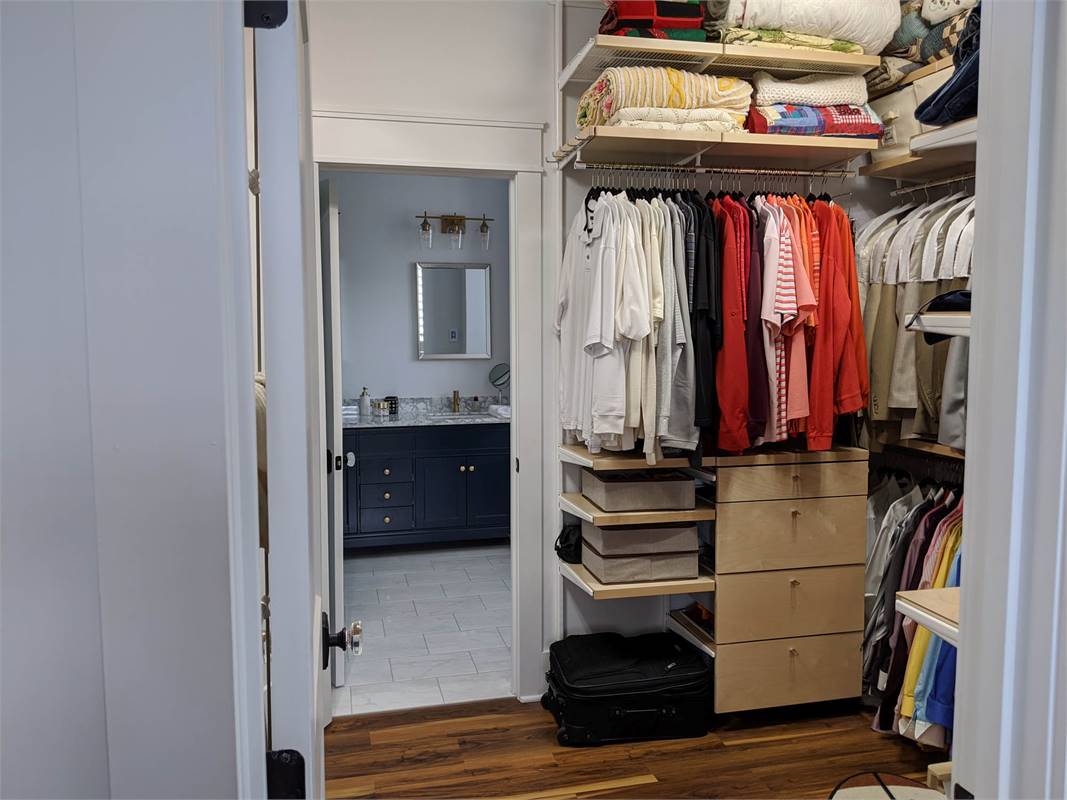

The master suite has access to the lanai via french doors and has lots of natural light and view. His and hers walk-in closets buffer the master bath from the bedroom. An over sized garden tub provides additional decoration space and a seat is included in the shower.

Optional basement plans will make use of the stair in the rear adjacent the utility to access the lower level. For those with no basement needs, this space can be used for storage.


See All Plan Options


FEATURES & DETAILS

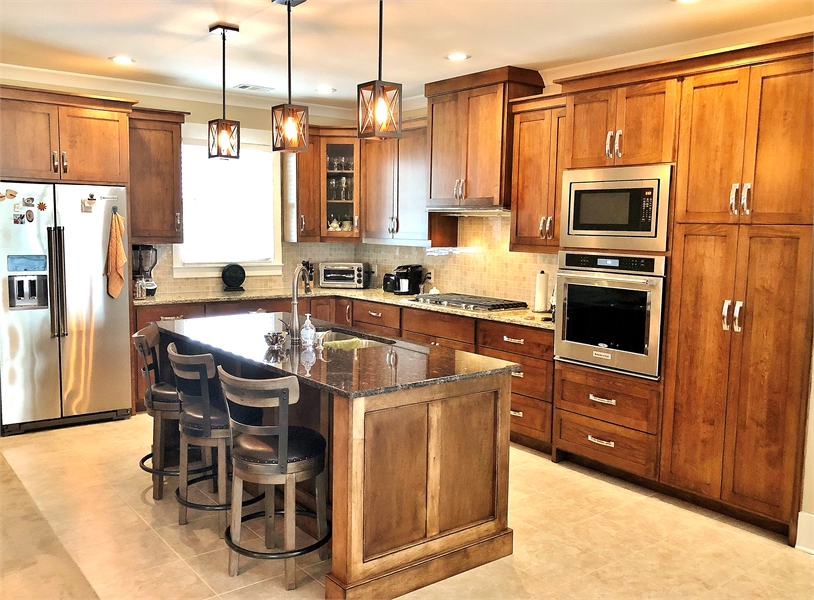

Kitchen features
Kitchen Island
L-Shaped
Nook / Breakfast Area
Walk-in Pantry
Bedroom features

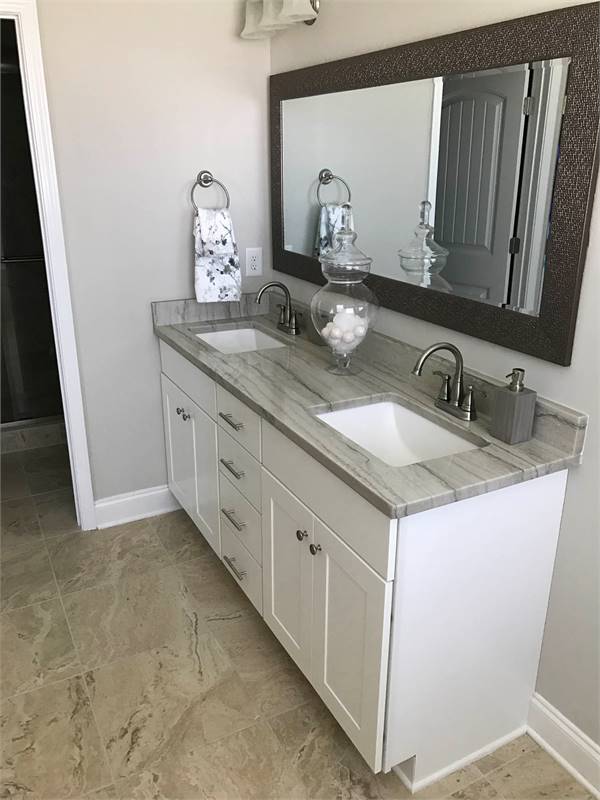

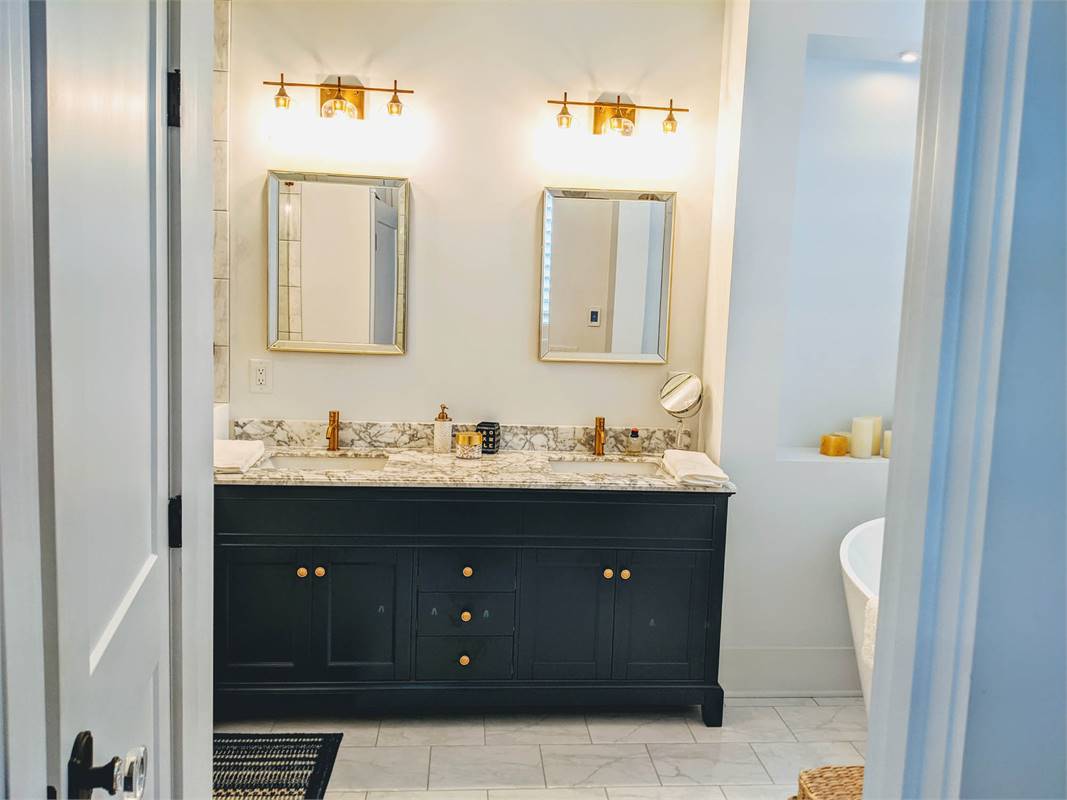

Double Vanity Sink
Family Style
His and Hers Primary Closets
Primary Bdrm Main Floor

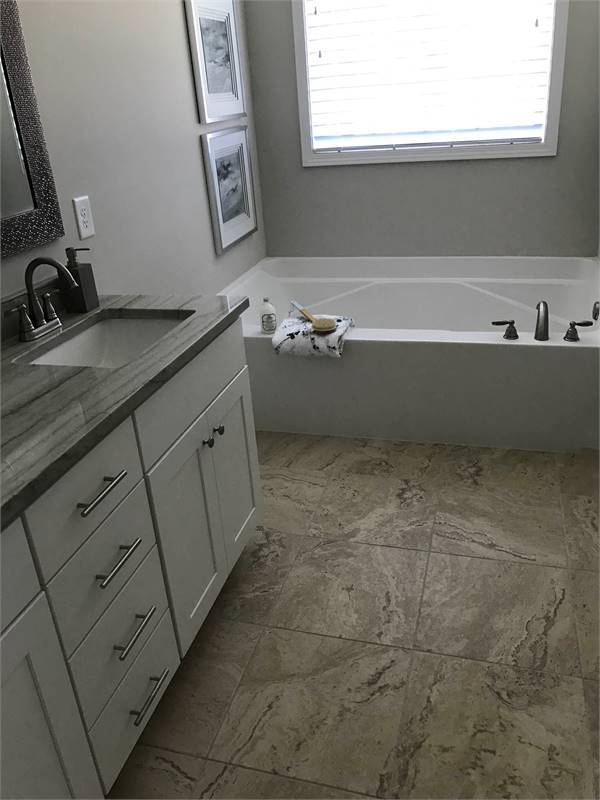

Separate Tub and Shower
Exterior features

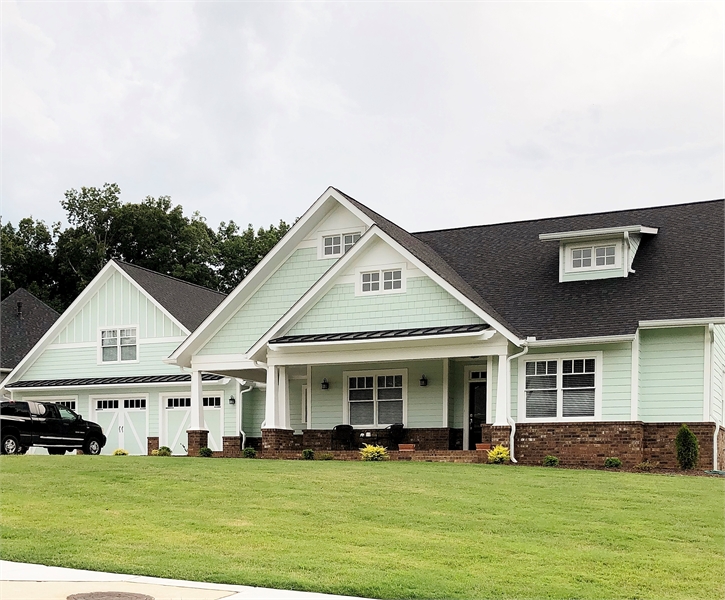

Covered Front Porch
Covered Rear Porch
Wraparound Porch
Foundation Options
Basement
Crawlspace
Slab
Walkout Basement
Lot Options
Suited for corner lot
Suited for sloping lot
Suited for view lot
Additional features

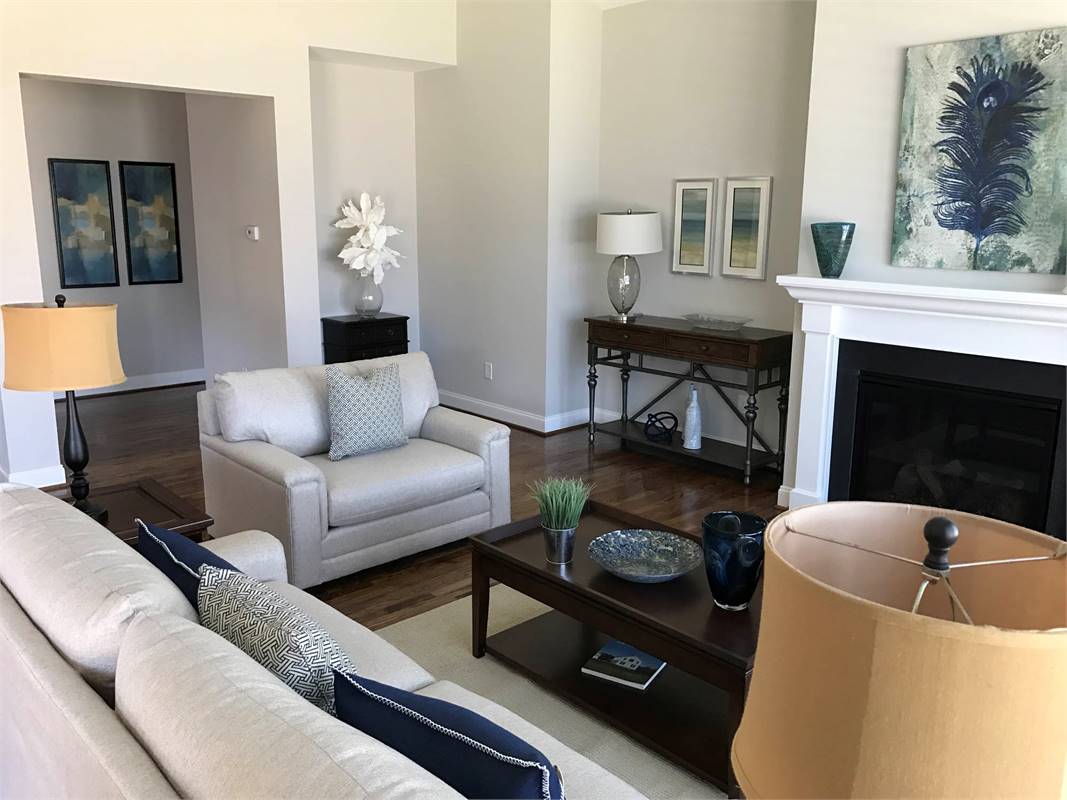

Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Garage Location
Side
Garage Options
Attached
Front-entry
3,152 Ft
2
Total Structure
1,879 Ft
2
Total Heated
252 Ft
2

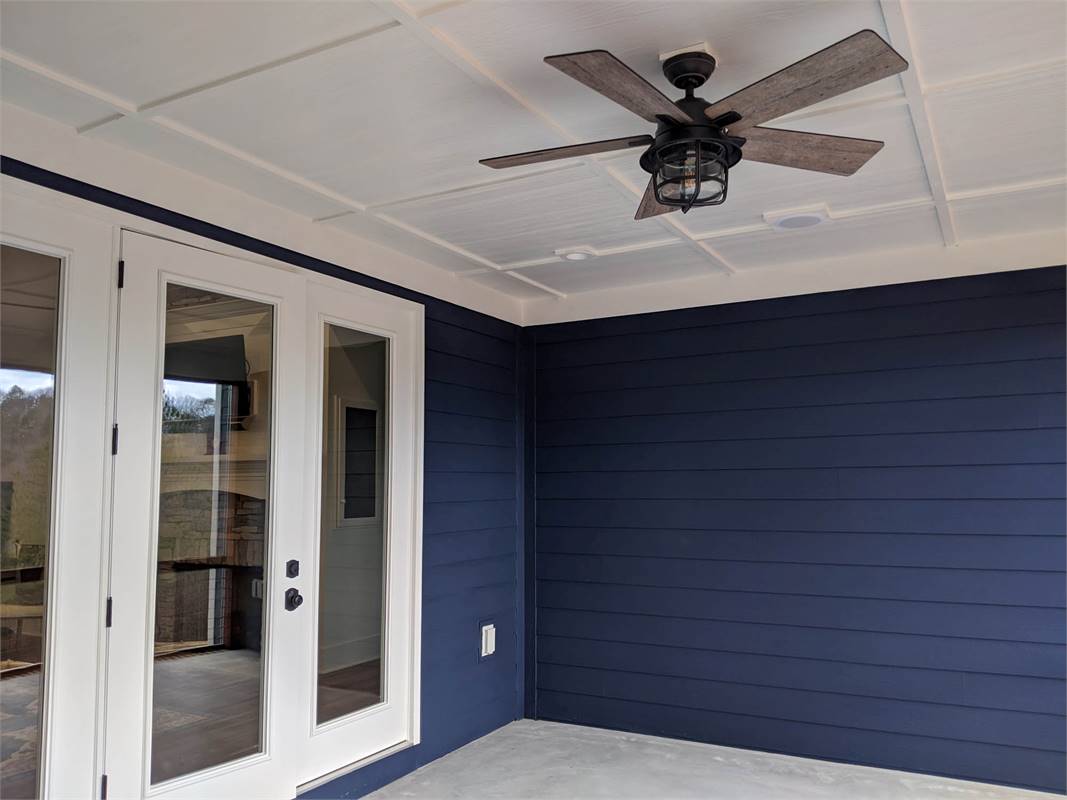

Lanai
3
Bedrooms
2
Bathrooms
2
Garage
1
Stories
78' 11"
Width
57' 11"
Depth
24' 11"
Height
9-11' 0"
Main Floor Ceiling
11' 0"
Living/Great Room Ceiling
10' 0"
Foyer Ceiling
10' 0"
Primary Ceiling
2x4
Framing
Stick
Roof Framing
8/12
Primary Roof Pitch
3:12
Dormer Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
573 Ft
2
Garage
58 Ft
2
Storage
644 Ft
2
Porch
379 Ft
2
Front Porch


Plan Package Options

 Select Plan Package
Sale: $1,101
PDF Single Build
$1,295

PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,101
Sale: $1,271
5 Printed Sets
$1,495

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $1,271
Sale: $1,356
5 Printed Sets + PDF
$1,595

PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,356
Sale: $1,951
CAD Single Build
$2,295

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,951
Sale: $2,542
CAD Unlimited Build
$2,990

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

Sale: $2,542
 Need To Reverse Plan? (Optional)
$245
Readable Reverse

Reverse house plans with readable text and dimensions

$245
  Select Foundation Option
$0
Slab
PDFs NOW!™

The most common foundation requiring the least amount of lot prep and usually preferred for a level or nearly level lot, a slab foundation is a single layer concrete poured directly on grade. Slab foundations are generally the most cost effective foundation and the most energy efficient.

$0
$195
Crawlspace
PDFs NOW!™

Preferred for sloped or for level lots, crawl space foundations are elevated from 16” to four feet above the ground. This option facilitates unrestricted access to your home’s ductwork and wiring making repairs easier, is good for flood-prone areas, and often creates warmer floors.

$195
$395
Basement
PDFs NOW!™

Ideal for level lots, lower level of home will be partially or fully underground.

$395
$495
Walkout Basement

Ideal for sloped lots, home will be partially underground with windows and exterior doors.

$495
If a foundation isn't listed, please live chat, email or call for availability.
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
Sale Price: $1,100.75
Immediate Delivery
Savings: $194.25 (15%)
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

Customer Reviews of House Plan 5517
8/23/2019
Anonymous
Customer Review:
Our home is beautiful! Just like I imagined and it was very easy to download the plans.
3/9/2015
Sue of ACWORTH, GA
Customer Review:
Well! We got our plans and began construction about 6 weeks ago! This crazy rainy wintery weather has held us back but we are finally rolling along! We are so excited to complete our new home! So far it is looking quaint and cozy! Wish I could share the pictures as well!
