Sq Ft
2,483 FT²

Beds
4

Baths
3

Stories
2

Garage
2

Depth
39'

Width
50'

On Sale
$960.00
$1,200.00

Rendering

Left Elevation

Right Elevation

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,483 FT²

From

$960.00

Beds

Baths

Stories

Garage

Depth

39'

Width

50'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

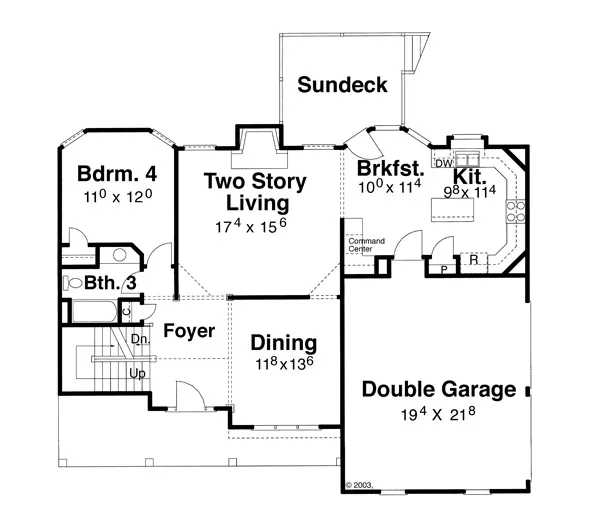

First Floor

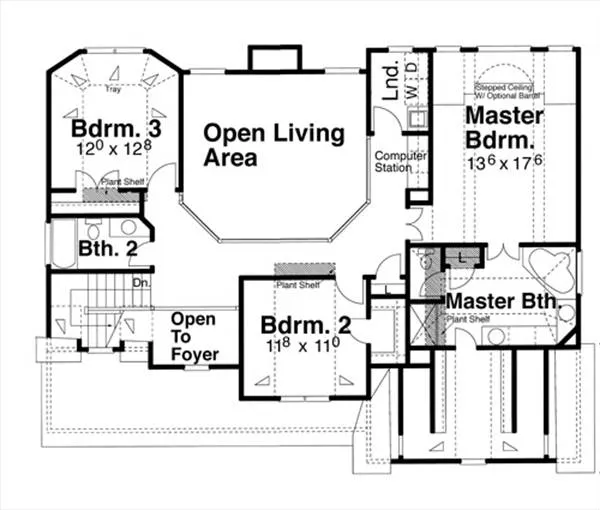

Second Floor

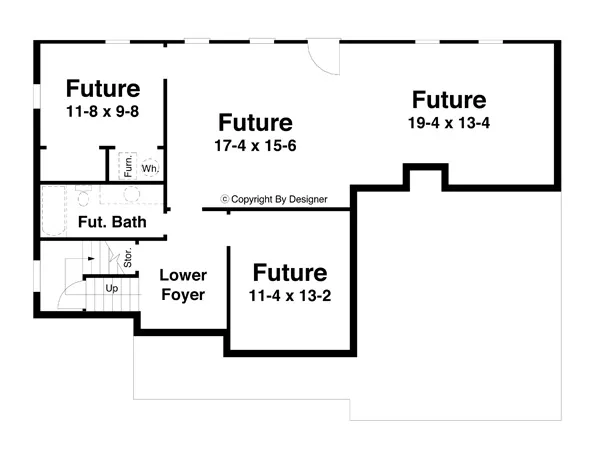

Lower Level

First Floor

Second Floor

Lower Level

About This Plan

Shake and board & batten siding help create a cottage feel to an otherwise traditional style. A first floor bedroom creates that perfect office when it's not being used as a guest suite. The dramatic master suite features a barrel ceiling highlighting the windows on rear wall of the bedroom. The two story bay on the rear of the house maximizes space in the bedrooms on both floors. An optional vaulted ceiling in the front bedroom makes sure every space has it's own unique character.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Covered Front Porch
Deck
Front Porch

Foundation Options

Basement
Walkout Basement

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot

Additional features

2 Story Volume
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Unfinished Space
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry

2,483 Ft

Total Heated

1,164 Ft

1st Floor

1,319 Ft

2nd Floor

1,164 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

50' 0"

Width

39' 0"

Depth

31' 0"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

12/12

Gable Roof Pitch

3/12

Porch Roof Pitch

Single

Dwelling Number

Unheated Living Space

462 Ft

Garage

172 Ft

Porch

110 Ft

Deck

Exterior Styles

Colonial

Cottage

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$750

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$750

$1,200

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,200

$1,300

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,300

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

Note: Please contact Designer for delivery date on this plan.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
