Sq Ft
1,693 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
52'

Width
50'

On Sale
$1,088.80
$1,361.00

Front Rendering

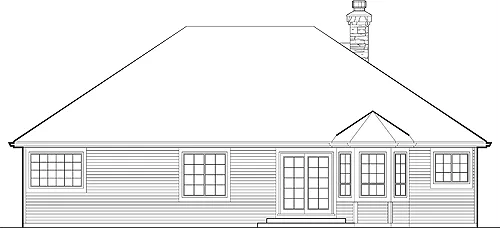

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,693 FT²

From

$1,088.80

Beds

Baths

Stories

Garage

Depth

52'

Width

50'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

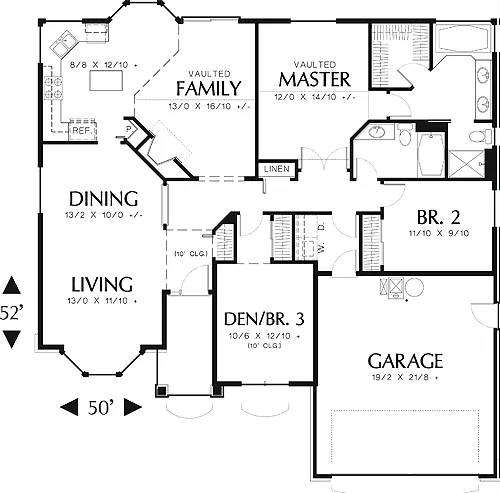

First Floor Plan

About This Plan

Diverse details on the faade of this beautiful home give it universal appeal for any neighborhood. Greet guests at the charming covered entry complete with columns. Arched windows, a skylight and a large bay window off the living room flood light into the front of the home. All the rooms in this floor plan open from a central hallway in a traditional L shape. The formal living and dining room extend to the left of the foyer. Continuing to the rear of the home, the left corner features a cozy informal area with the kitchen, nook and family room. A bay window and patio doors add to the open atmosphere.

The right side of the home features the master suite and a second bedroom. A den completes the floor plan and provides the option for a third bedroom.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

No Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for view lot

Additional features

Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,693 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

50' 0"

Width

52' 0"

Depth

21' 0"

Height

Varies' 0"

Main Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

434 Ft

Garage

Exterior Styles

Cottage

Ranch

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,361

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,361

$1,561

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,561

$1,611

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,611

$2,722

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,722

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
