Sq Ft
1,586 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
2

Depth
36'

Width
56'

On Sale
$800.00
$1,000.00

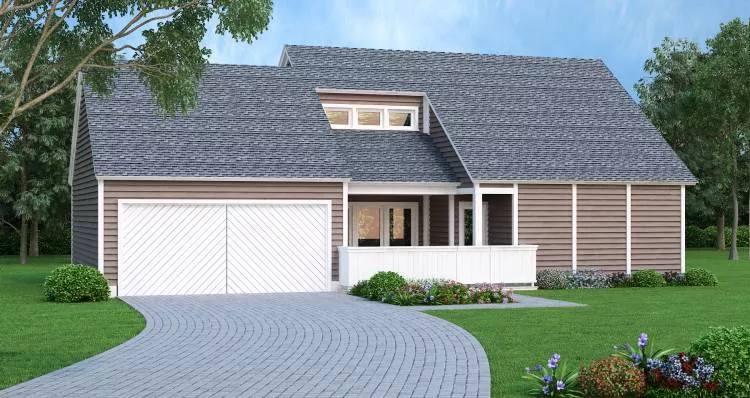

Front Rendering

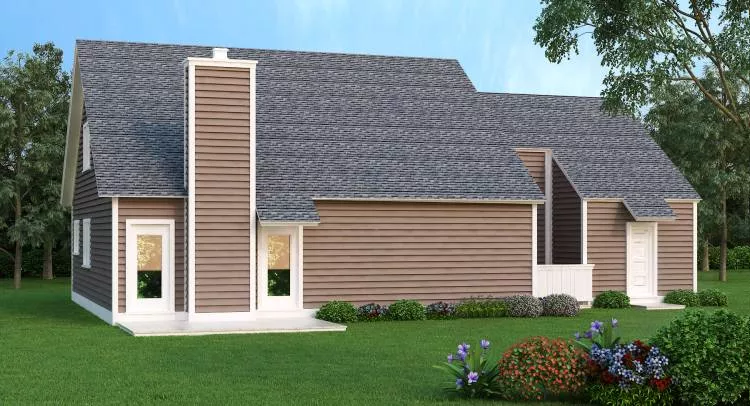

Rear Rendering

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,586 FT²

From

$800.00

Beds

Baths

2.5

Stories

1.5

Garage

Depth

36'

Width

56'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

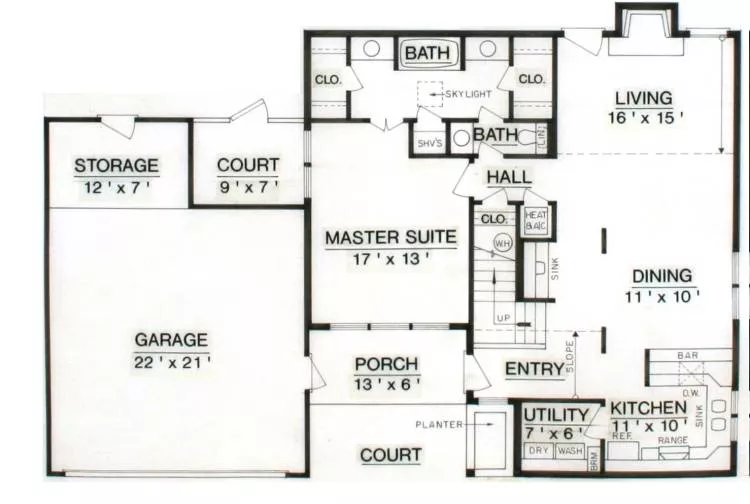

Main Level Floor Plan

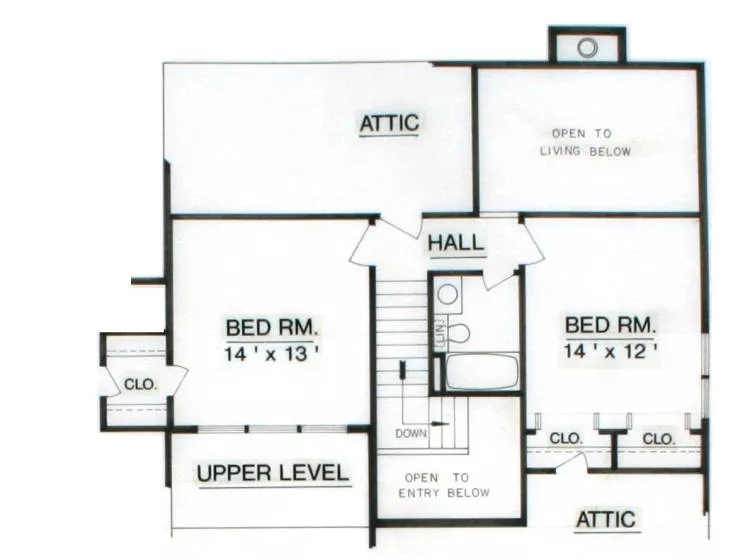

Upper level floor plan

Main Level Floor Plan

Upper level floor plan

About This Plan

Compact, economical, super energy efficient and easy to build, this 3 bed room contemporary plan has a lot of living compacted into a small foot print. The U-shaped kitchen is open to the dining and living room and conveniently located next to the utility room and only steps away from the garage. The living room ceiling slopes to the upper level ceiling and there is an overlook from the upper level hall providing an overview of the living room below. The living room also has French door access to the patio and it features a wood burning fireplace. A built-in wet bar nearby provides convenience for both the living and dining rooms. The master bath has a sitting area and an adjoining bath featuring his and her walk-in closets and dressing rooms. Other master bath amenities include a large linen closet and a private toilet compartment. The two secondary bedrooms have generous size closets and share a hall bath. This super energy saving plan features 2x6 exterior walls.

FEATURES & DETAILS

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Front Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

Dining Room
Fireplace
Laundry 1st Fl
Storage Space

Garage Location

Front

Garage Options

Attached
Front-entry

2,212 Ft

Total Structure

1,586 Ft

Total Heated

1,091 Ft

1st Floor

495 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

56' 0"

Width

36' 0"

Depth

23' 0"

Height

8' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

9/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

466 Ft

Garage

84 Ft

Storage

76 Ft

Porch

Exterior Styles

Contemporary

Cottage

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$800

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800

$1,000

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,000

$1,085

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,085

$1,130

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,130

$1,240

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,240

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,240

$1,900

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,900

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
