Sq Ft
1,711 FT²

Beds
3

Baths
3

Stories
2

Garage
3

Depth
30'

Width
40'

On Sale
$1,121.60
$1,402.00

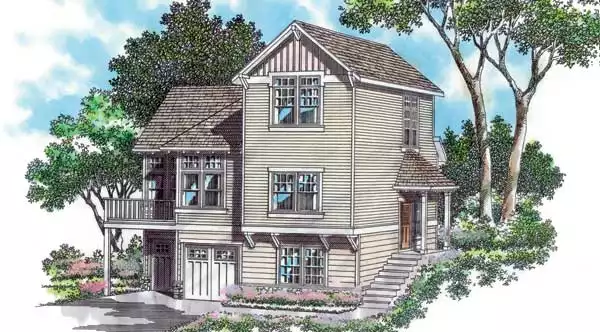

Front Rendering

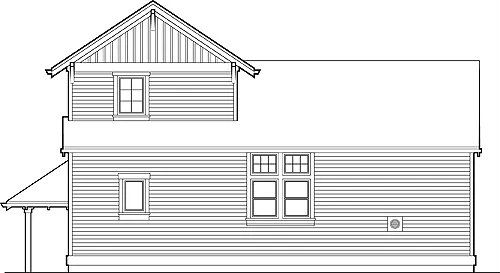

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,711 FT²

From

$1,121.60

Beds

Baths

Stories

Garage

Depth

30'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

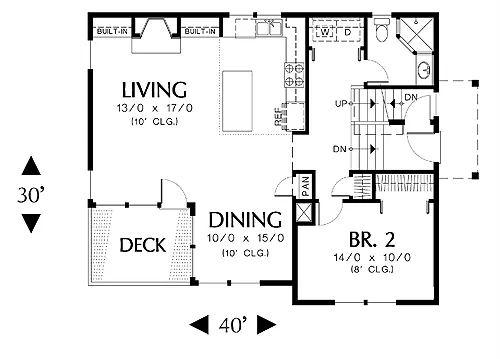

First Floor Plan

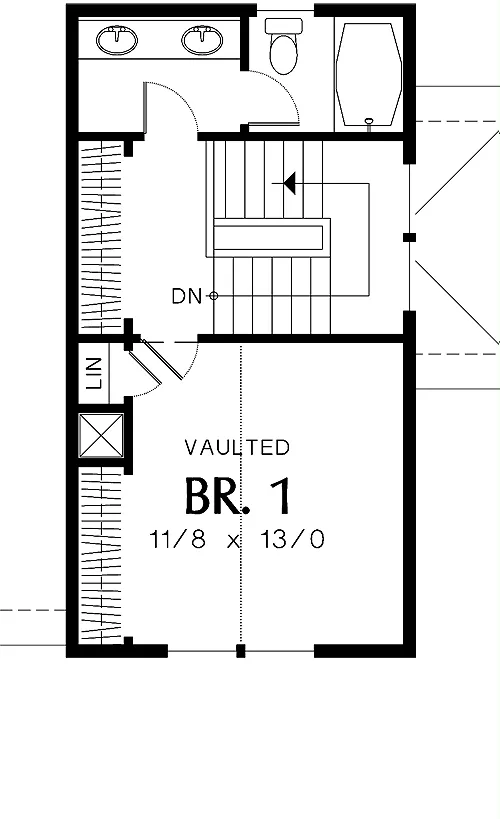

Second Floor Plan

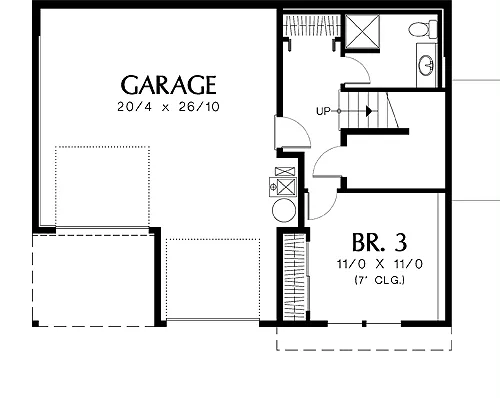

Lower Level

First Floor Plan

Second Floor Plan

Lower Level

About This Plan

This tri-level hillside home is rich with architectural details and endowed with a distinctive floorplan. Reminiscent of craftsman style, the exterior is ornamented with pilasters at each corner, knee braces beneath the eaves, and vertical trim in the front gable. Garage doors are staggered, making it possible to park three cars in the two stalls. Bedrooms on all three levels provide ultimate privacy. A covered porch shelters the front door, which enters the home midway between the main and lower levels. Steps lead up to the kitchen, dining and living spaces, which are all open to each other. A fireplace warms the communal area. An adjacent deck links it to the outdoors. The bedroom on this floor could double as a den or home office. Also on the main level are a bath with a large shower and a laundry nook.

The entire upper level is devoted to the master suite. A large closet connects the vaulted bedroom and bath. A linen closet and second closet in the bedroom provide even more storage space. A third bedroom and bath are housed on the lower level.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Split Bedrooms

Exterior features

Covered Front Porch
Deck
Front Porch

Foundation Options

Daylight Basement
Slab

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot

Additional features

Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Under

Garage Options

Attached
Drive-under

1,711 Ft

Total Heated

954 Ft

1st Floor

348 Ft

2nd Floor

409 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

30' 0"

Depth

33' 0"

Height

10' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

500 Ft

Garage

81 Ft

Deck

Exterior Styles

Beach

Country

Craftsman

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,402

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,402

$1,602

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,602

$1,652

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,652

$2,804

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,804

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
