Sq Ft
1,797 FT²

Beds
3

Baths
2

Stories
1

Garage
3

Depth
59'

Width
50'

On Sale
$1,136.00
$1,420.00

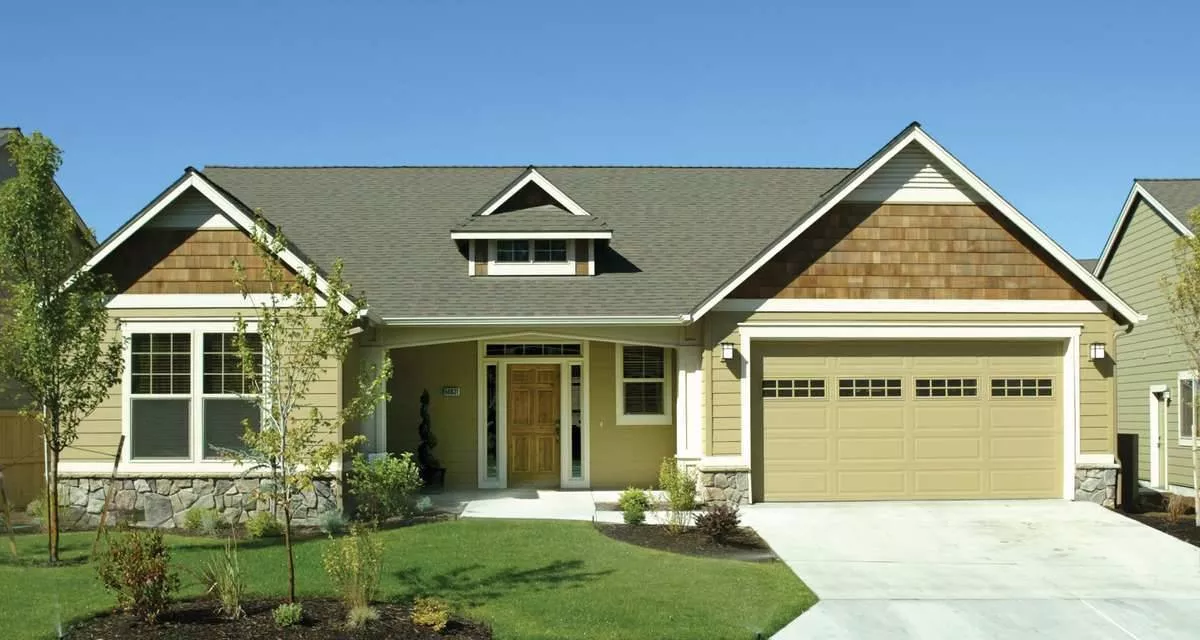

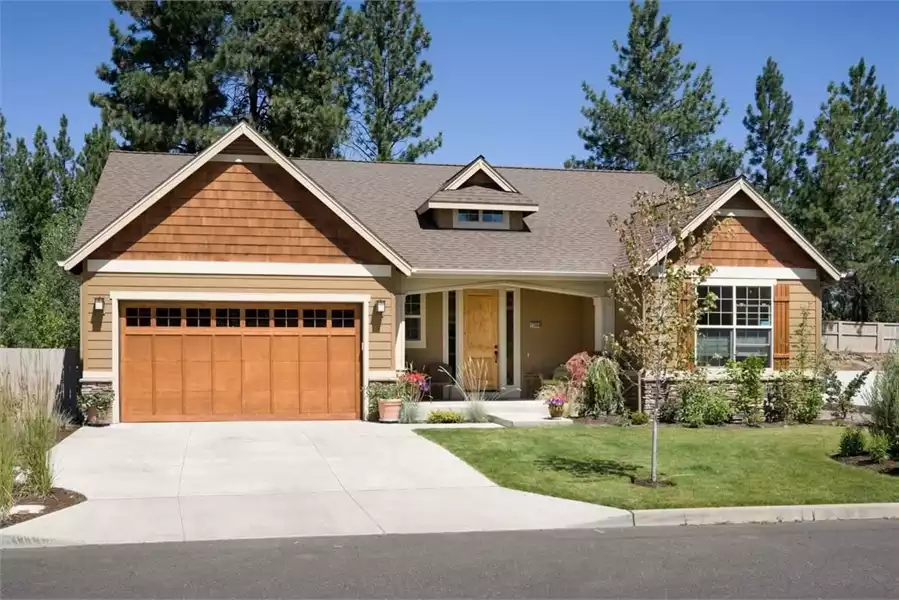

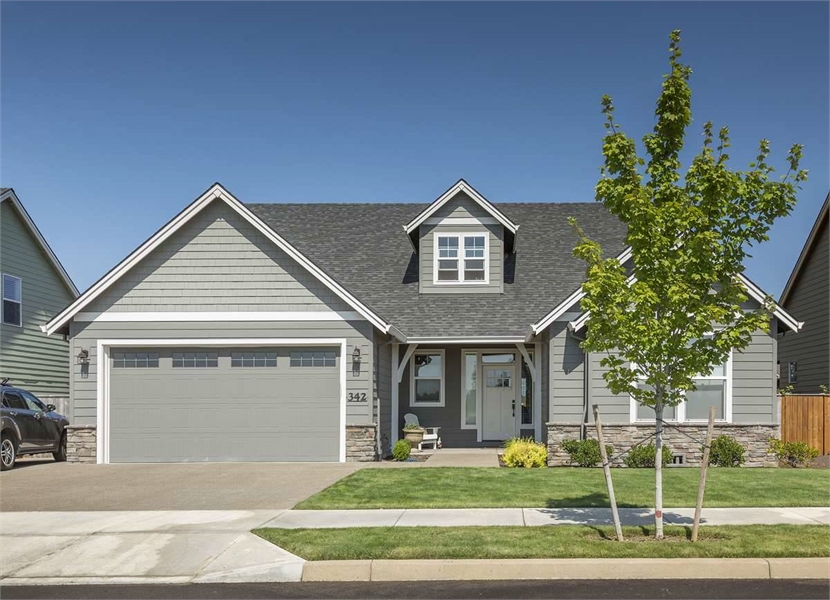

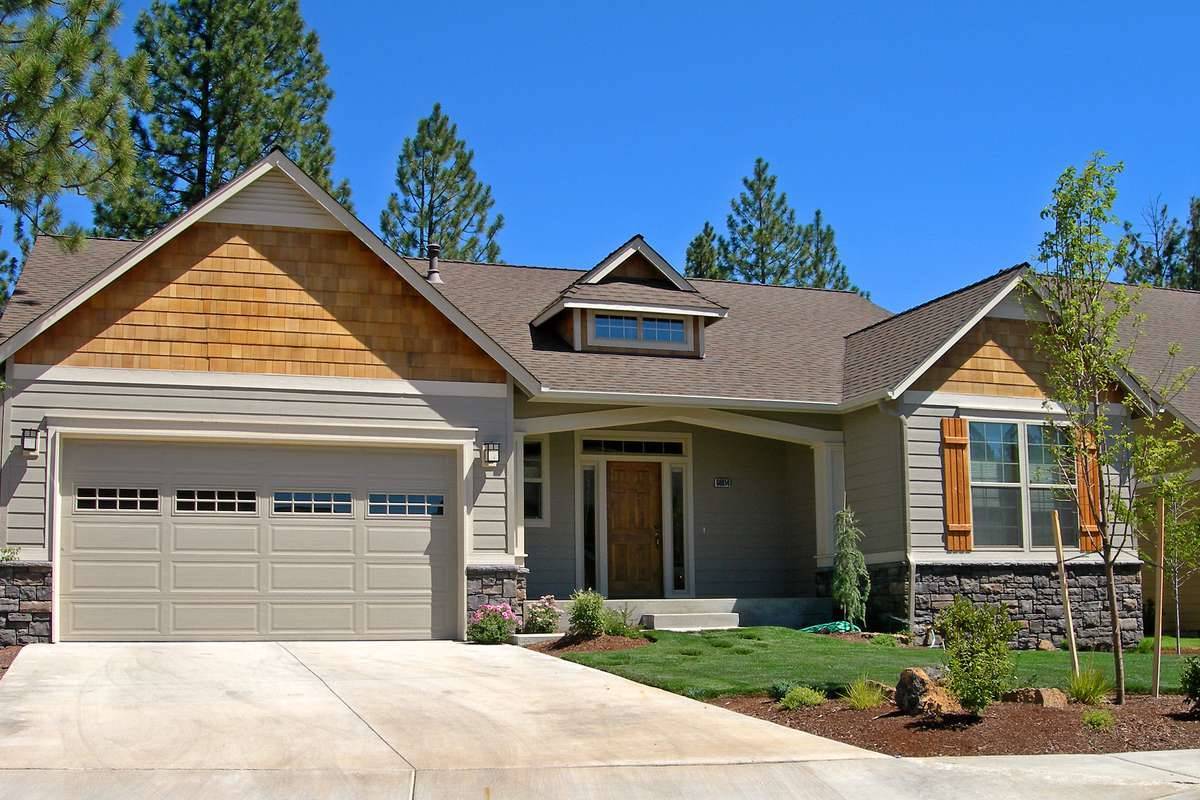

Front Exterior

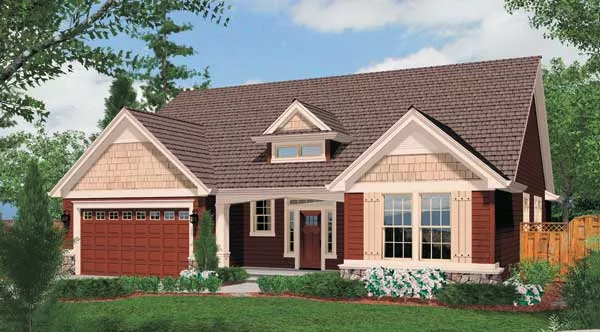

Front Rendering

Rear Elevation

View All 6 Images | Photographs may reflect modified home

Sq Ft

1,797 FT²

From

$1,136.00

Beds

Baths

Stories

Garage

Depth

59'

Width

50'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

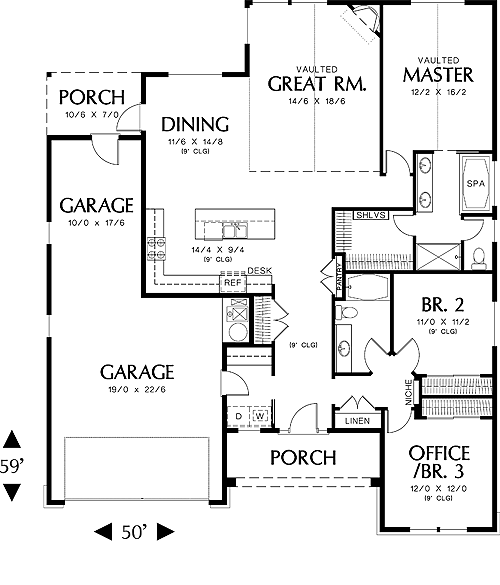

First Floor Plan

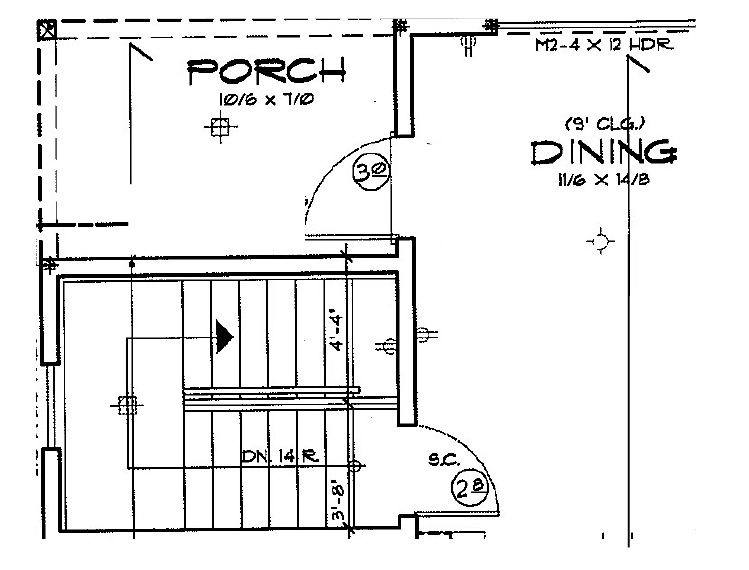

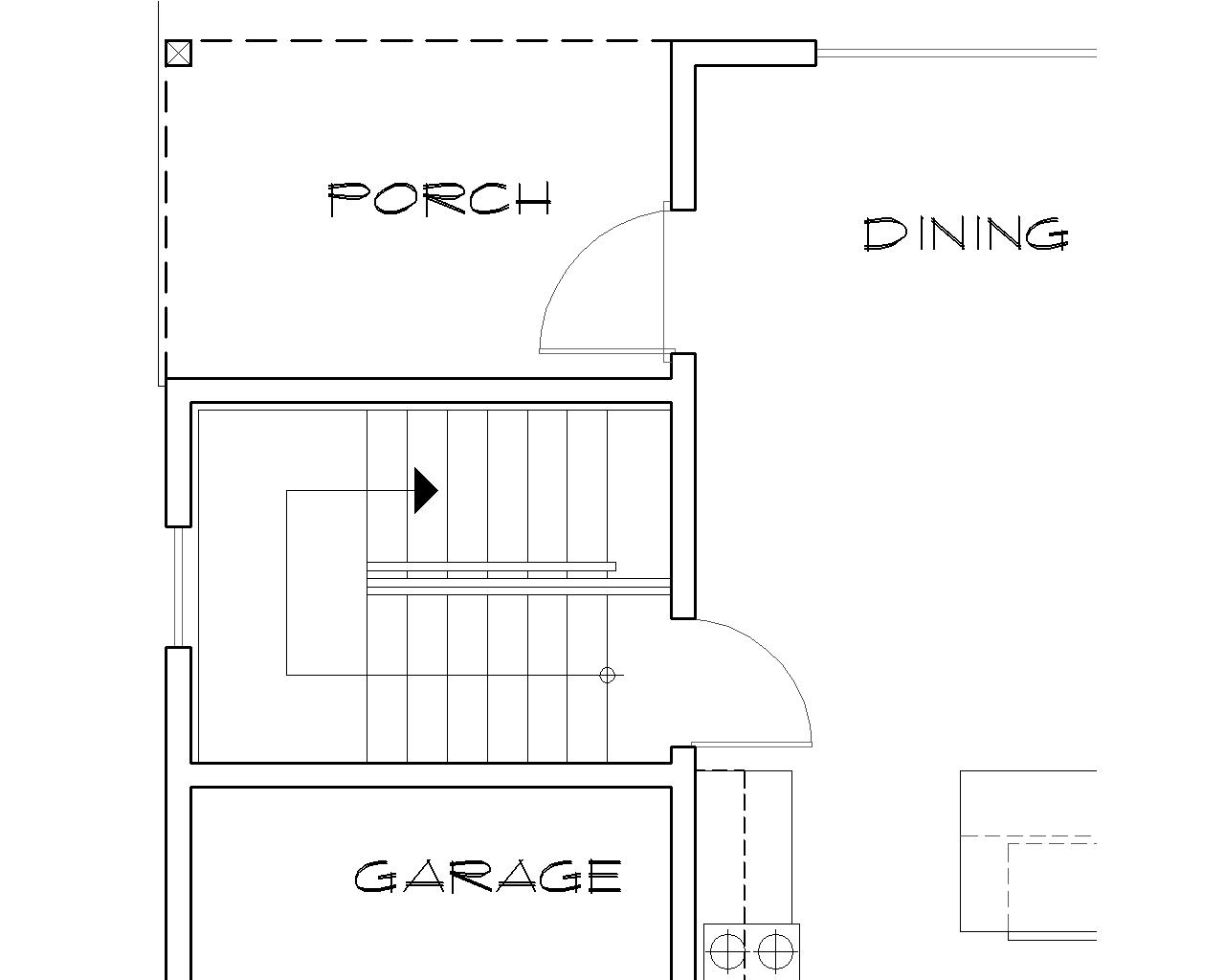

Basement Stair Location

First Floor Plan

Basement Stair Location

About This Plan

Neat and petite, this smaller one-story home is a picture of Craftsman delights. Notice the suggestion of pillars at the front entry, the transom window over the entry and the touches of cedar shingles and stone as accent. The floor plan lives large, with an extended two-vehicle garage on one side, a porch and patio to the rear and the option of two or three bedrooms. A central hallway connects interior spaces and leads through a laundry area to the garage. Use Bedroom 3 as an office if you chooseits perfectly situated to receive clients who arrive at the front door. A full bath serves both Bedroom 2 and Bedroom 3.

The master suite lies to the rear of the plan and features a vaulted ceiling and bath with spa tub, separate shower and walk-in closet. The great room is also vaulted and has a corner fireplace. It is open to the dining area and kitchen (note the built-in desk in the kitchen).

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Workshop

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized
Tandem

1,797 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

50' 0"

Width

59' 0"

Depth

21' 0"

Height

Varies' 0"

Main Floor Ceiling

2x6

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

10/12

Gable Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

657 Ft

Garage

172 Ft

Porch

Exterior Styles

Bungalow

Craftsman

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,420

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,420

$1,620

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,620

$1,670

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,670

$2,840

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,840

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
