Sq Ft
4,087 FT²

Beds
4

Baths
3.5

Stories
1

Garage
4

Depth
76'

Width
78' 9"

On Sale
$1,634.40
$2,043.00

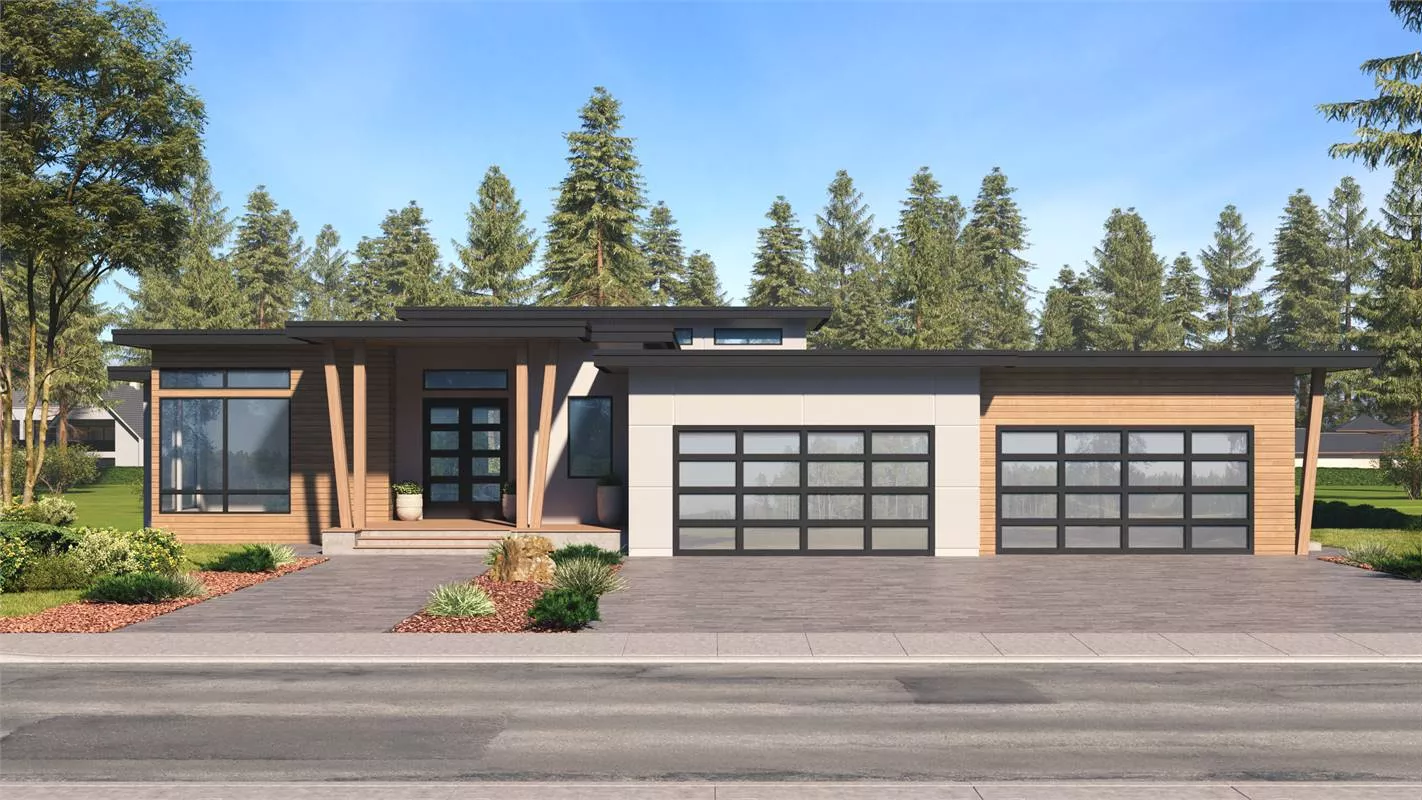

Front View

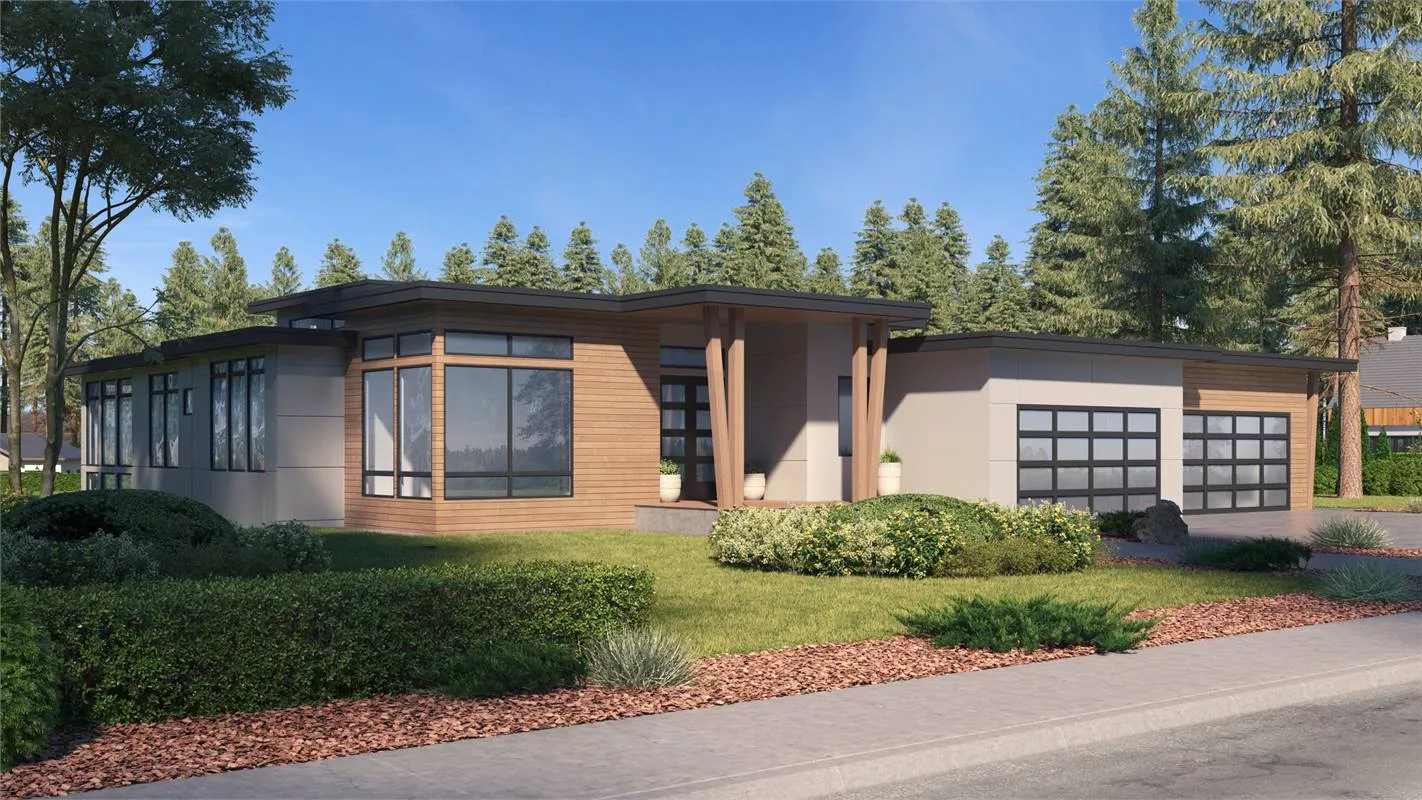

Front/Left View

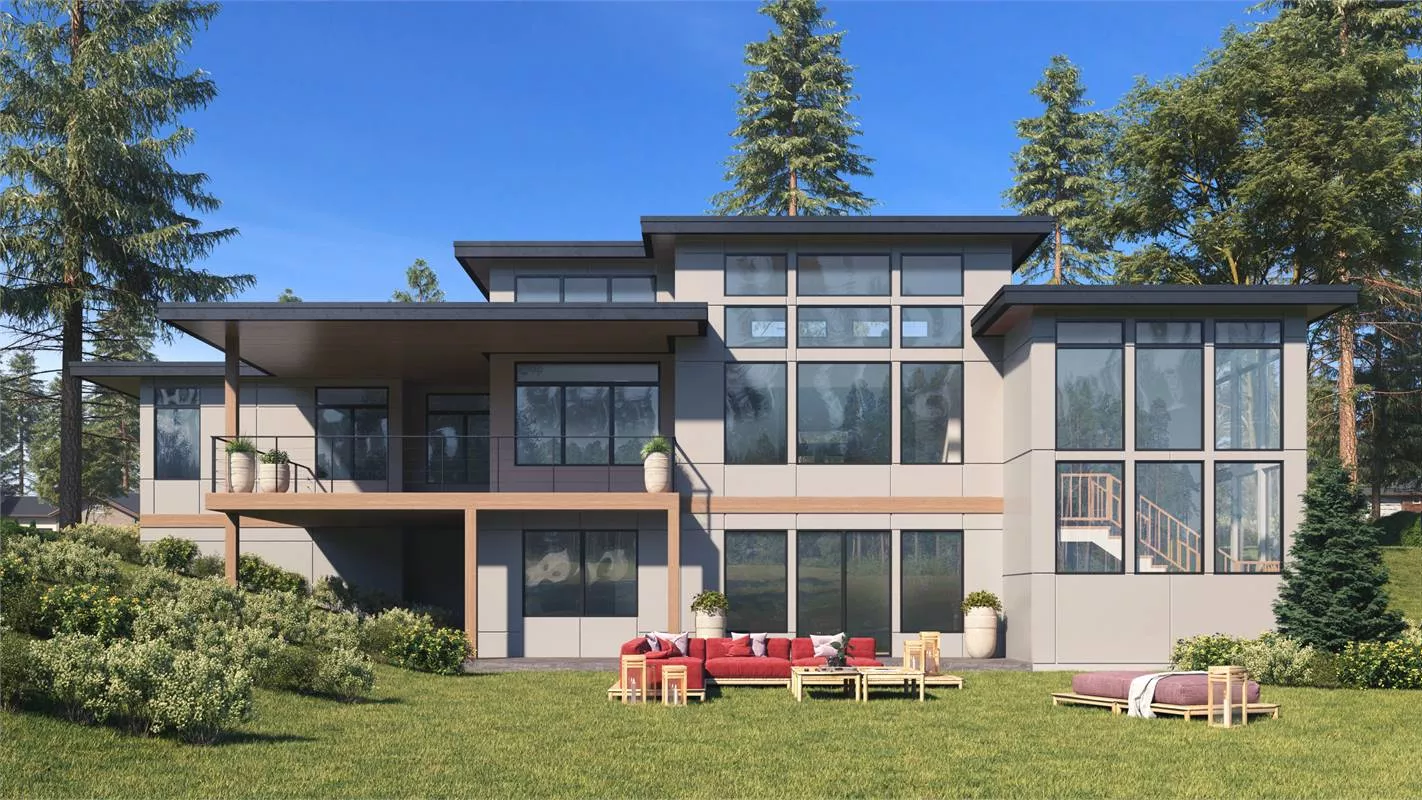

Rear View with Walkout Basement

Front and Left Rendering

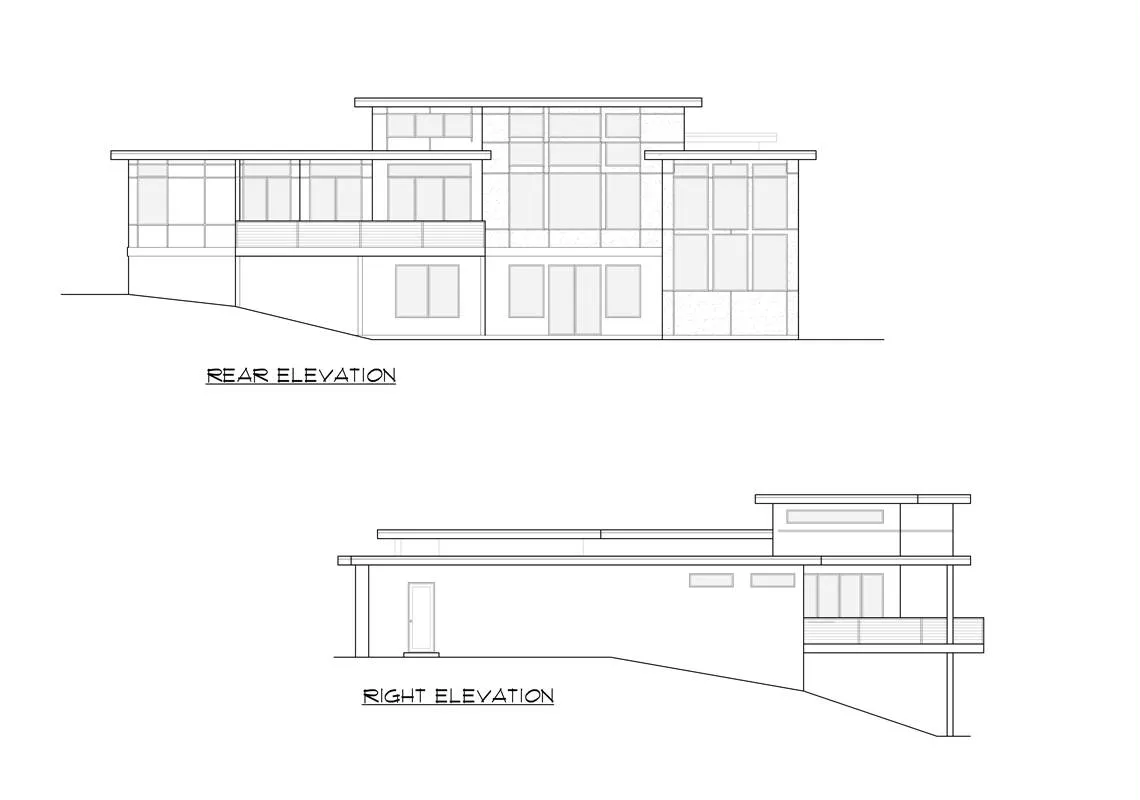

Rear and Right Rendering

View All 5 Images | Photographs may reflect modified home

Sq Ft

4,087 FT²

From

$1,634.40

Beds

Baths

3.5

Stories

Garage

Depth

76'

Width

78' 9"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

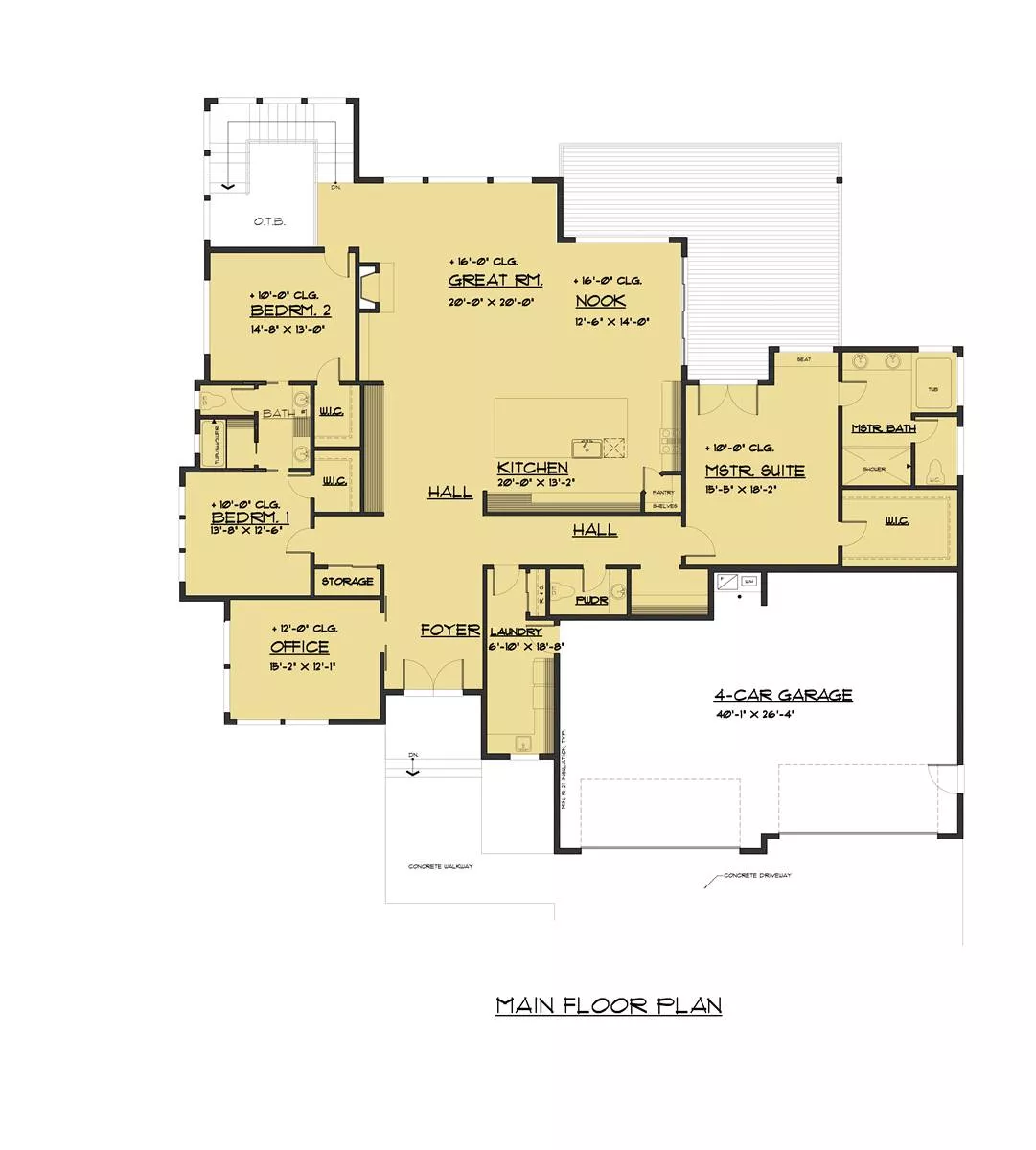

1st Floor

Basement Plan

1st Floor

Basement Plan

About This Plan

Welcome to this striking 4 bedroom, 3 1/2 bath, 4 car garage, modern house plan. You enter the home into a foyer that leads to the home office on the left. A little further in, you'll come to the hallway that leads to bedroom 1 with a Jack and Jill bath shared with bedroom 2. The Master suite is on the right, keeping these areas private from the main living areas of the home. The master bedroom is large with a nice walk-in closet. You'll also find a nice sitting area with large window view onto the back deck. French doors directly from the master bedroom provides a private exit onto the back deck. The ensuite bath is luxurious with its double vanity sinks, separate water closet, shower and tub and will be a comforting place to relax at the end of the day. The laundry room and powder room rounds out the hallway amenities. Walk a little farther into the home and you'll come to the living areas of the home with phenomenal great room, kitchen and dining nook. The lower level is perfect for a sloping lot with rec room, study and bedroom 4.

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Nook / Breakfast Area
Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet

Exterior features

Covered Front Porch
Deck

Lot Options

Suited for sloping lot

Additional features

Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Rec Room

Garage Location

Front

Garage Options

Attached
Front-entry

5,672 Ft

Total Structure

4,087 Ft

Total Heated

3,184 Ft

1st Floor

903 Ft

Lower Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

78' 9"

Width

76' 0"

Depth

18' 6"

Height

10' 0"

Main Floor Ceiling

8' 0"

Lower Floor Ceiling

2x6

Framing

Truss

Roof Framing

.25/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

1,057 Ft

Garage

466 Ft

Porch

62 Ft

Deck

Exterior Styles

Contemporary

Modern

Ranch

Collections

Kitchens

Luxury

Open Floor Plan

Plan Package Options

Important info before you buy

Select Plan Package

$2,043

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,043

$2,343

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,343

$2,493

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$2,493

$3,882

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,882

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
