Sq Ft
1,940 FT²

Beds
3

Baths
2

Stories
1

Garage
3

Depth
58' 5"

Width
71' 11"

On Sale
$840.00
$1,050.00

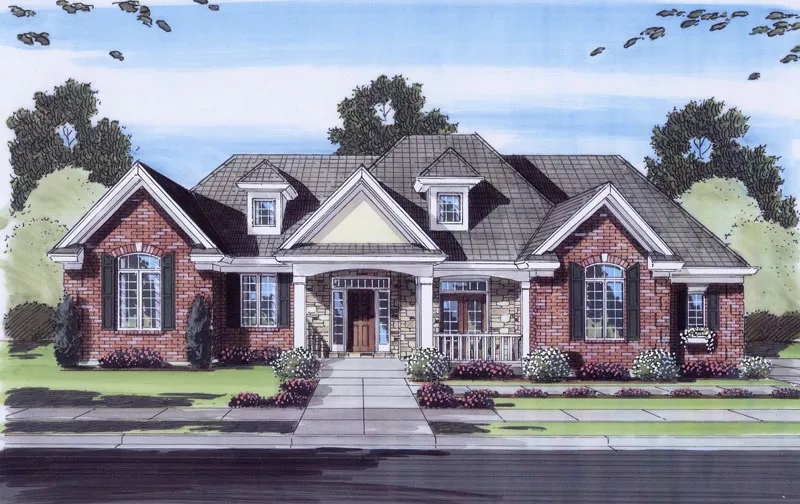

Front Rendering

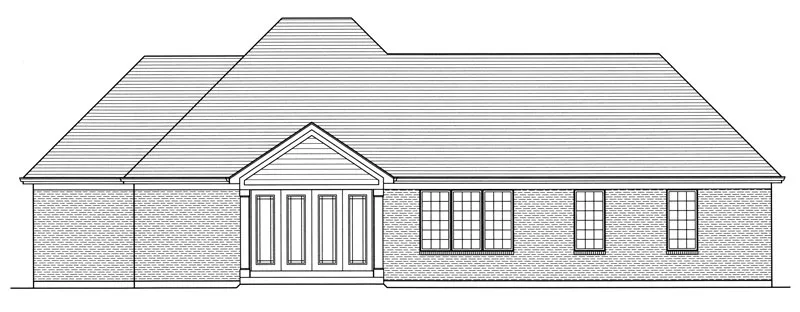

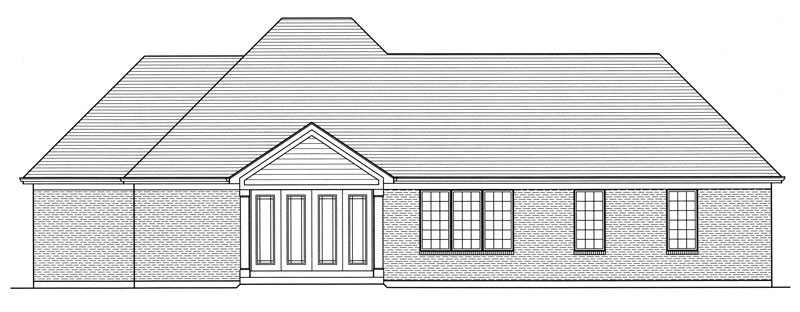

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,940 FT²

From

$840.00

Beds

Baths

Stories

Garage

Depth

58' 5"

Width

71' 11"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

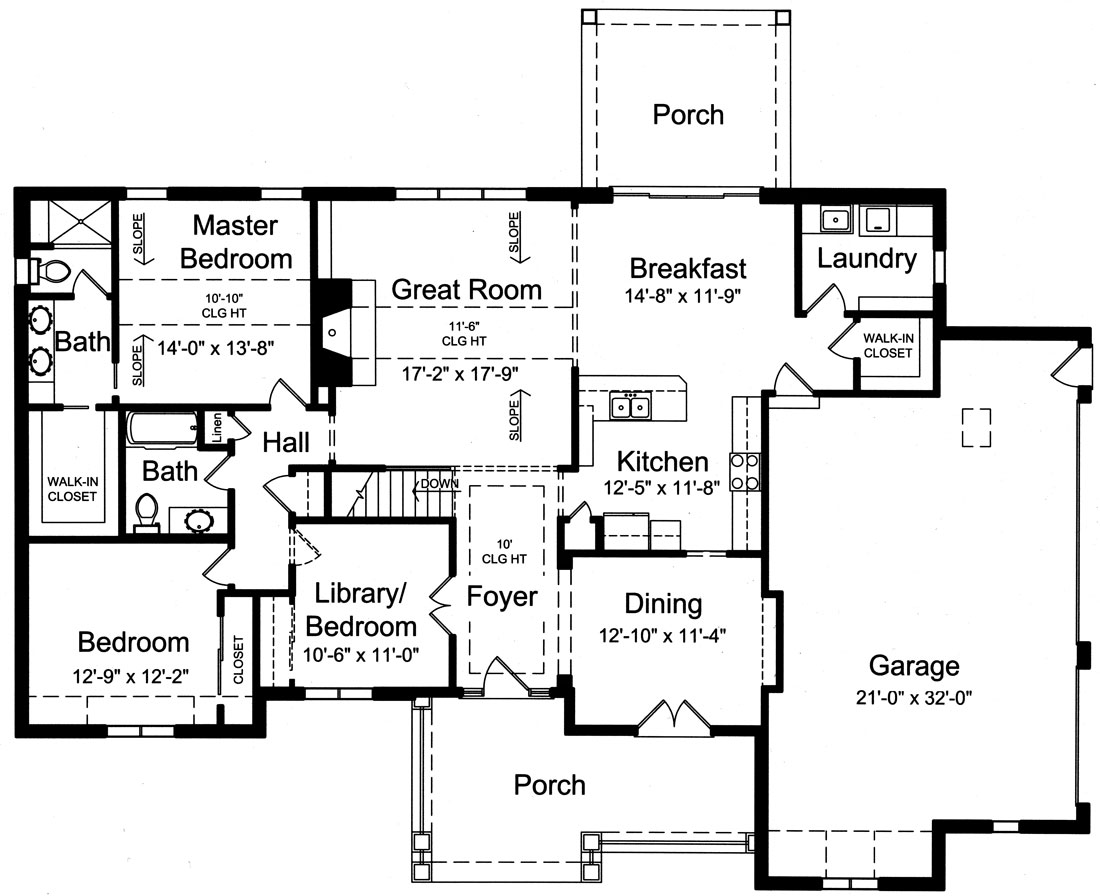

1st Floor Plan

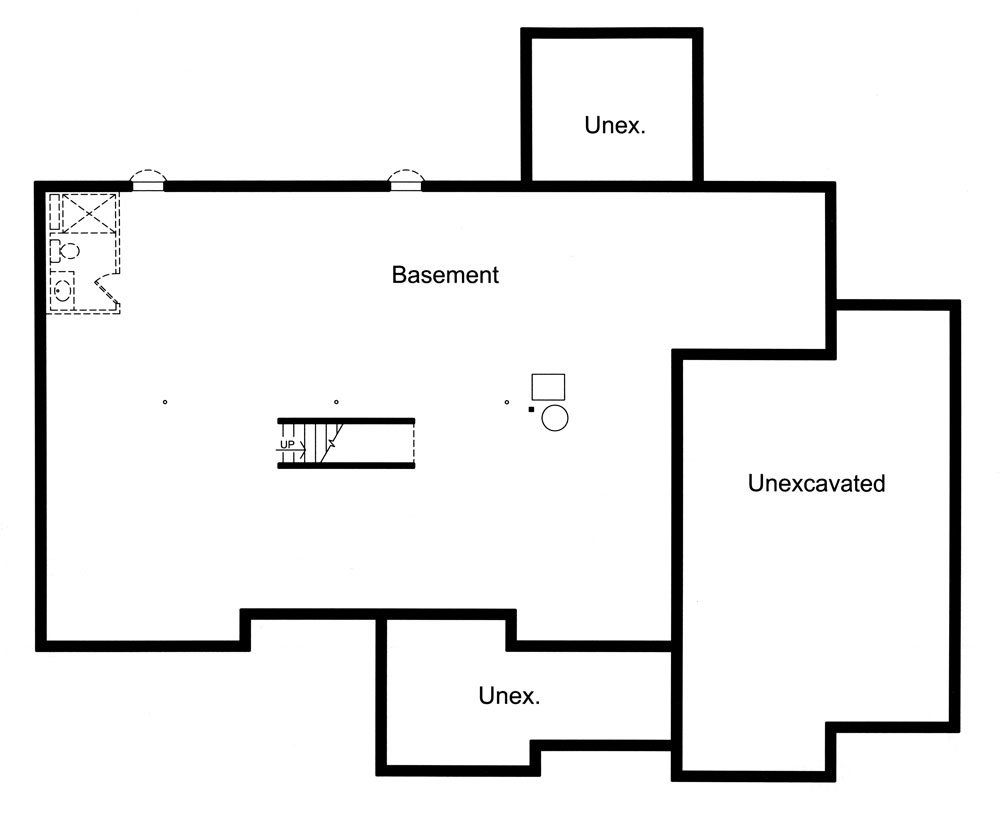

Basement Floor Plan

1st Floor Plan

Basement Floor Plan

About This Plan

An extremely functional floorplan is just the beginning of this 1,940 square foot traditional ranch. Totally accessible and wonderfully designed, this 3 bed, 2 bath plan even features a full, unfinished basement, allowing you to fully customize and effectively double your home’s square footage. The main floor features a great open concept and refined touches, such as the 10’ tray ceilings in the foyer, and a private formal dining room with a nearby study. The peninsula kitchen is open to the breakfast nook and great room, as well as the nearby back porch, great for an early morning cup of coffee. The master suite is equally as impressive, providing a grand sloped design and offering a private en-suite and walk-in closet. A 3-car garage offers tons of storage and functionality.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch

Foundation Options

Basement

Additional features

Dining Room
Foyer
Great Room
Laundry 1st Fl
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Side-entry

1,940 Ft

Total Heated

1,940 Ft

1st Floor

1,940 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

71' 11"

Width

58' 5"

Depth

26' 0"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

12:12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

674 Ft

Garage

226 Ft

Porch

165 Ft

Patio

Exterior Styles

Ranch

Traditional

Collections

Empty Nester

Old House Classics

Open Floor Plan

Plan Package Options

Important info before you buy

Select Plan Package

$820

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$820

$1,050

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,050

$1,100

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,100

$1,130

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,130

$1,775

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,775

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer Binder

Sub Total

$0
Free Shipping

Note: Please Note: for Foundation Options with additional cost applied, please allow two weeks to create.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
